用 CSS 写一个商城卡券需要几步

9,914 阅读3分钟

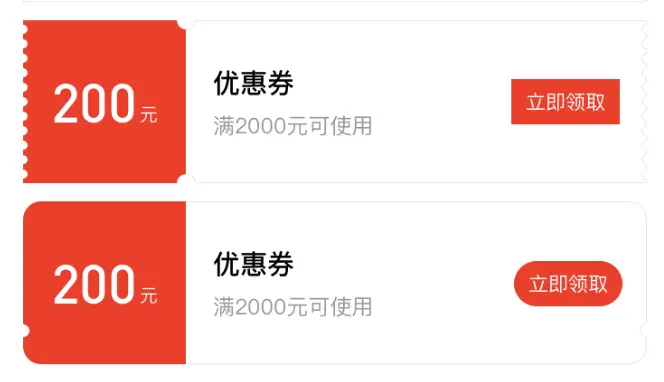

还在为上面这样格式各样的商城卡券的样式而发愁?CSS 不熟,canvas 太难,怎么办?

用 CSS 写一个商城卡券需要几步?

一共需要三步:

  1. 打开这个网址(浏览器输入 qishaoxuan.github.io/css_tricks/…
  2. 找到需要的样式
  3. 复制粘贴

交给测试后,我们来分析下 CSS 卡券。

我们来准备一下基础知识

radial-gradient

background: radial-gradient(shape size at position, start-color, ..., last-color);
描述
shape 确定圆的类型:
ellipse (默认): 指定椭圆形的径向渐变。 circle :指定圆形的径向渐变
size 定义渐变的大小
position 定义渐变的位置

这样,我们能很容易写出一个居中的圆形背景图

  .center-circle {
    width: 100px;
    height: 100px;
    background: radial-gradient(circle at 50px 50px, transparent 10px, #00adb5 0);
  }

linear-gradient

background: linear-gradient(direction, color-stop1, color-stop2, ...);
描述
direction 用角度值指定渐变的方向(或角度)
color-stop1, color-stop2,... 用于指定渐变的起止颜色

我们不需要知道具体的渐变过程,只要写一个简单的,写一个使用渐变属性而不渐变背景图即可:

  .linear-gradient {
    width: 100px;
    height: 100px;
    background: linear-gradient(to right, #00adb5, #00adb5);
  }

background

background是可以设置多个图片的,遵循background: [background-color] [background-image] [background-repeat] [background-attachment] [background-position] / [ background-size] [background-origin] [background-clip]; 使用,隔开即可。

开始组合基础知识

写一个最简单的

只要把上述中心圆示例的圆形位置定位在左侧即可

.left-circle{
  width: 100px;
  height: 100px;
  position: relative;
  background: radial-gradient(circle at 0 50px, transparent 10px, #00adb5 0) top left/100px 100% no-repeat;
}

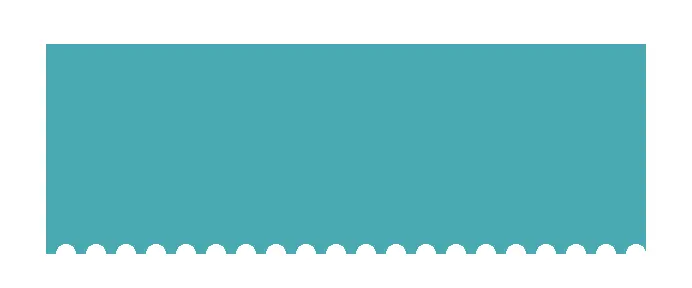

进一步学习

你可还记得 background 是有 repeat 属性吗?也就是说我们只要设置一部分样式,再使用 repeat 即可,看下图片,这不就是一个不渐变的 linear-gradientradial-gradient 的组合吗,再借助伪类,我们即可写出来了。

.hollow-circles {
  width: 300px;
  height: 100px;
  position: relative;
  background: #00adb5;
  margin-bottom: 10px;
}
.hollow-circles::after {
  content: '';
  position: absolute;
  height: 5px;
  width:100%;
  left: 0;
  bottom: -5px;
  background-image: linear-gradient(to right, #00adb5 5px, transparent 5px, transparent),
  radial-gradient(10px circle at 10px 5px, transparent 5px, #00adb5 5px);
  background-size: 15px 5px;
}

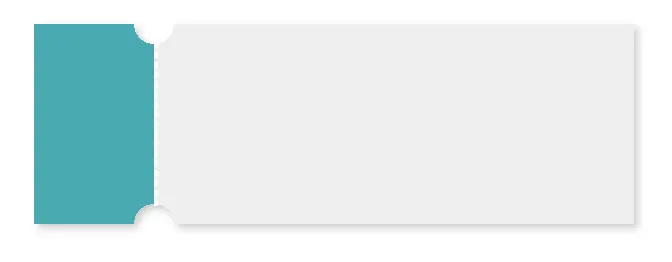

复杂一点

看见很简单,不就是刚才那个圆再画一个吗,但是要考虑到两侧的颜色是不同的,所以我们需要画四个背景图才行,将每个圆定位在方形的各个角落,然后组合在一起即可。

.two-circles {
  width: 300px;
  height: 100px;
  background: radial-gradient(circle at right top, transparent 10px, #00adb5 0) top left / 60px 51% no-repeat,
    radial-gradient(circle at right bottom, transparent 10px, #00adb5 0) bottom left /60px 51% no-repeat,
    radial-gradient(circle at left top, transparent 10px, #eeeeee 0) top right /240px 51% no-repeat,
    radial-gradient(circle at left bottom, transparent 10px, #eeeeee 0) bottom right /240px 51% no-repeat;
}

写在最后

当我们看到一个新东西时,不要抵触,试着去分析一下,有可能他只是我们以前所学的变体而已,仅仅是对我们已有知识的重新组合和适当改造,当我们搞定了的时候,也许才发现,这也不过如此,然而倘若当初怀着抵触拒绝,却只能是一点进步没有了。

最后的最后,这个网址欢迎 star ~,更欢迎 issue ~。
