前言

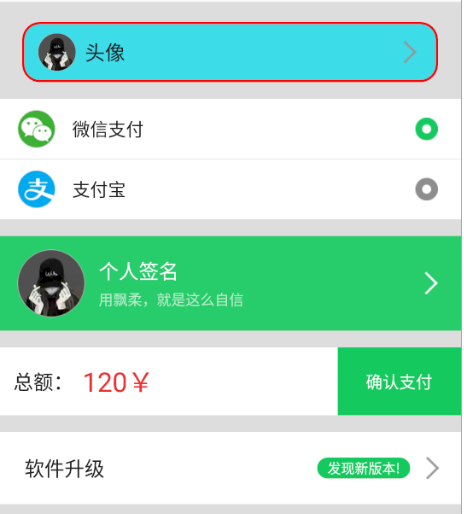

项目中会经常用到横向的图文布局,比如下面这些:

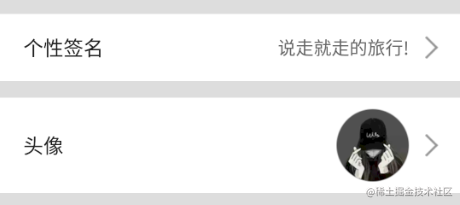

还有这样的布局,经常出现在设置性的界面:
这些布局虽然不难,但是长相类似,频繁出现,每次都要手写这么多代码还是很累的。完全可以自定义一个布局,兼容这些常见的场景,通过对外暴漏一些属性来设置里面的内容。
实现
于是我自定义了SuperLayout,实现了常见的场景。使用时只需要写一个布局,设置一些属性即可实现效果,能将原先手写的布局代码减少80%左右,大大提高布局的编写效率。
在xml中这样使用:
<com.lxj.androidktx.widget.SuperLayout
android:layout_marginLeft="20dp"
android:layout_marginRight="20dp"
android:paddingLeft="14dp"
android:paddingRight="15dp"
android:paddingTop="10dp"
android:paddingBottom="10dp"
android:layout_marginTop="15dp"
app:sl_leftImageSrc="@drawable/avatar"
app:sl_leftText="头像"
app:sl_leftTextColor="#222"
app:sl_leftTextSize="18sp"
app:sl_rightImageSrc="@mipmap/jt"
app:sl_solid="#3EDCE9"
app:sl_corner="15dp"
app:sl_strokeWidth="2dp"
app:sl_stroke="#f00"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>
复制代码
所有可以设置的属性如下:
<declare-styleable name="SuperLayout">
<attr name="sl_leftImageSrc" format="reference"/>
<attr name="sl_leftImageSize" format="dimension"/>
<attr name="sl_leftText" format="string"/>
<attr name="sl_leftTextColor" format="color"/>
<attr name="sl_leftTextSize" format="dimension"/>
<attr name="sl_leftTextMarginLeft" format="dimension"/>
<attr name="sl_leftTextMarginTop" format="dimension"/>
<attr name="sl_leftTextMarginRight" format="dimension"/>
<attr name="sl_leftTextMarginBottom" format="dimension"/>
<attr name="sl_leftSubText" format="string"/>
<attr name="sl_leftSubTextColor" format="color"/>
<attr name="sl_leftSubTextSize" format="dimension"/>
<attr name="sl_centerText" format="string"/>
<attr name="sl_centerTextColor" format="color"/>
<attr name="sl_centerTextGravity" format="integer" />
<attr name="sl_centerTextBg" format="reference"/>
<attr name="sl_centerTextSize" format="dimension"/>
<attr name="sl_rightText" format="string"/>
<attr name="sl_rightTextColor" format="color"/>
<attr name="sl_rightTextSize" format="dimension"/>
<attr name="sl_rightTextBg" format="reference"/>
<attr name="sl_rightTextBgColor" format="color"/>
<attr name="sl_rightTextVerticalPadding" format="dimension"/>
<attr name="sl_rightTextHorizontalPadding" format="dimension"/>
<attr name="sl_rightImageSrc" format="reference"/>
<attr name="sl_rightImageMarginLeft" format="dimension"/>
<attr name="sl_rightImageSize" format="dimension"/>
<attr name="sl_rightImage2Src" format="reference"/>
<attr name="sl_rightImage2MarginLeft" format="dimension"/>
<attr name="sl_rightImage2Size" format="dimension"/>
<attr name="sl_solid" format="color"/>
<attr name="sl_corner" format="dimension"/>
<attr name="sl_stroke" format="color"/>
<attr name="sl_strokeWidth" format="dimension"/>
<attr name="sl_topLineColor" format="color"/>
<attr name="sl_bottomLineColor" format="color"/>
<attr name="sl_enableRipple" format="boolean"/>
<attr name="sl_rippleColor" format="color"/>
</declare-styleable>
复制代码
添加依赖
在使用之前需要先添加依赖,这个类放在了AndroidKTX
类库中,需要依赖一下:
implementation 'com.lxj:androidktx:1.2.0'
//for androidx
implementation 'com.lxj:androidktx:1.2.0-x'
复制代码
AndroidKTX包含了一些列非常有用的Kotlin扩展和通用控件,代码不多,个个都很实用。如果你用Kotlin开发,一定不要错过。它的地址是:github.com/li-xiaojun/…
