Java之Retry重试机制详解

8,815 阅读4分钟

著作权归作者所有,任何形式的转载都请联系作者获得授权并注明出处。

应用中需要实现一个功能: 需要将数据上传到远程存储服务,同时在返回处理成功情况下做其他操作。这个功能不复杂,分为两个步骤:第一步调用远程的Rest服务上传数据后对返回的结果进行处理;第二步拿到第一步结果或者捕捉异常,如果出现错误或异常实现重试上传逻辑,否则继续接下来的功能业务操作。

常规解决方案

try-catch-redo简单重试模式

在包装正常上传逻辑基础上,通过判断返回结果或监听异常决定是否重试,同时为了解决立即重试的无效执行(假设异常是有外部执行不稳定导致的:网络抖动),休眠一定延迟时间后重新执行功能逻辑。

public void commonRetry(Map<String, Object> dataMap) throws InterruptedException {
    Map<String, Object> paramMap = Maps.newHashMap();
    paramMap.put("tableName", "creativeTable");
    paramMap.put("ds", "20160220");
    paramMap.put("dataMap", dataMap);
    boolean result = false;
    try {
      result = uploadToOdps(paramMap);
      if (!result) {
        Thread.sleep(1000);
        uploadToOdps(paramMap); //一次重试
      }
    } catch (Exception e) {
      Thread.sleep(1000);
      uploadToOdps(paramMap);//一次重试
    }
  }

try-catch-redo-retry strategy策略重试模式

上述方案还是有可能重试无效,解决这个问题尝试增加重试次数retrycount以及重试间隔周期interval,达到增加重试有效的可能性。

public void commonRetry(Map<String, Object> dataMap) throws InterruptedException {
    Map<String, Object> paramMap = Maps.newHashMap();
    paramMap.put("tableName", "creativeTable");
    paramMap.put("ds", "20160220");
    paramMap.put("dataMap", dataMap);
    boolean result = false;
    try {
      result = uploadToOdps(paramMap);
      if (!result) {
        reuploadToOdps(paramMap,1000L,10);//延迟多次重试
      }
    } catch (Exception e) {
      reuploadToOdps(paramMap,1000L,10);//延迟多次重试
    }
  }

方案一和方案二存在一个问题:正常逻辑和重试逻辑强耦合,重试逻辑非常依赖正常逻辑的执行结果,对正常逻辑预期结果被动重试触发,对于重试根源往往由于逻辑复杂被淹没,可能导致后续运维对于重试逻辑要解决什么问题产生不一致理解。重试正确性难保证而且不利于运维,原因是重试设计依赖正常逻辑异常或重试根源的臆测。

优雅重试方案尝试

应用命令设计模式解耦正常和重试逻辑

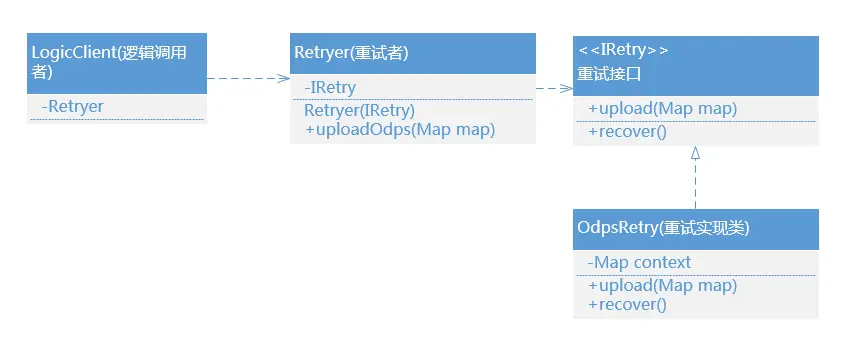

命令设计模式具体定义不展开阐述,主要该方案看中命令模式能够通过执行对象完成接口操作逻辑,同时内部封装处理重试逻辑,不暴露实现细节,对于调用者来看就是执行了正常逻辑,达到解耦的目标,具体看下功能实现。(类图结构)

IRetry约定了上传和重试接口,其实现类OdpsRetry封装ODPS上传逻辑,同时封装重试机制和重试策略。与此同时使用recover方法在结束执行做恢复操作。

而我们的调用者LogicClient无需关注重试,通过重试者Retryer实现约定接口功能,同时 Retryer需要对重试逻辑做出响应和处理, Retryer具体重试处理又交给真正的IRtry接口的实现类OdpsRetry完成。通过采用命令模式,优雅实现正常逻辑和重试逻辑分离,同时通过构建重试者角色,实现正常逻辑和重试逻辑的分离,让重试有更好的扩展性。

使用Guava retryer优雅的实现接口重调机制

Guava retryer工具与spring-retry类似,都是通过定义重试者角色来包装正常逻辑重试,但是Guava retryer有更优的策略定义,在支持重试次数和重试频度控制基础上,能够兼容支持多个异常或者自定义实体对象的重试源定义,让重试功能有更多的灵活性。Guava Retryer也是线程安全的,入口调用逻辑采用的是Java.util.concurrent.Callable的call方法。 使用Guava retryer 很简单,我们只要做以下几步:

  1. Maven POM 引入
<guava-retry.version>2.0.0</guava-retry.version>
<dependency>
      <groupId>com.github.rholder</groupId>
      <artifactId>guava-retrying</artifactId>
      <version>${guava-retry.version}</version>
</dependency>
  1. 定义实现Callable接口的方法,以便Guava retryer能够调用
private static Callable<Boolean> updateReimAgentsCall = new Callable<Boolean>() {
   @Override
   public Boolean call() throws Exception {
       String url = ConfigureUtil.get(OaConstants.OA_REIM_AGENT);
       String result = HttpMethod.post(url, new ArrayList<BasicNameValuePair>());
       if(StringUtils.isEmpty(result)){
          throw new RemoteException("获取OA可报销代理人接口异常");
       }
       List<OAReimAgents> oaReimAgents = JSON.parseArray(result, OAReimAgents.class);
       if(CollectionUtils.isNotEmpty(oaReimAgents)){
           CacheUtil.put(Constants.REIM_AGENT_KEY,oaReimAgents);
           return true;
       }
       return false;
   }
};
  1. 定义Retry对象并设置相关策略
Retryer<Boolean> retryer = RetryerBuilder.<Boolean>newBuilder()
                //抛出runtime异常、checked异常时都会重试,但是抛出error不会重试。
                .retryIfException()
                //返回false也需要重试
                .retryIfResult(Predicates.equalTo(false))
                //重调策略
                .withWaitStrategy(WaitStrategies.fixedWait(10, TimeUnit.SECONDS))
                //尝试次数
                .withStopStrategy(StopStrategies.stopAfterAttempt(3))
                .build();

try {
    retryer.call(updateReimAgentsCall());
    # 以下方式可以不用实现第二步中所说的实现Callable接口定义方法
    //retry.call(() -> { FileUtils.downloadAttachment(projectNo, url, saveDir, fileName);  return true; });
} catch (ExecutionException e) {
    e.printStackTrace();
} catch (RetryException e) {
    logger.error("xxx");
}

简单三步就能使用Guava Retryer优雅的实现重调方法。

更多特性

RetryerBuilder是一个Factory创建者,可以自定义设置重试源且支持多个重试源,可以配置重试次数或重试超时时间,以及可以配置等待时间间隔,创建重试者Retryer实例。 RetryerBuilder的重试源支持Exception异常对象自定义断言对象,通过retryIfException 和retryIfResult设置,同时支持多个且能兼容。

  • retryIfException:抛出runtime异常、checked异常时都会重试,但是抛出error不会重试。
  • retryIfRuntimeException:只会在抛runtime异常的时候才重试,checked异常和error都不重试。
  • retryIfExceptionOfType:允许我们只在发生特定异常的时候才重试,比如NullPointerException和IllegalStateException都属于runtime异常,也包括自定义的error  如:  
# 只在抛出error重试
retryIfExceptionOfType(Error.class)
# 只有出现指定的异常的时候才重试,如:&emsp;&emsp;
retryIfExceptionOfType(IllegalStateException.class)
retryIfExceptionOfType(NullPointerException.class)
# 或者通过Predicate实现
retryIfException(Predicates.or(Predicates.instanceOf(NullPointerException.class),
                Predicates.instanceOf(IllegalStateException.class)))

retryIfResult可以指定你的Callable方法在返回值的时候进行重试,如  

// 返回false重试
retryIfResult(Predicates.equalTo(false))
//以_error结尾才重试
retryIfResult(Predicates.containsPattern("_error$"))

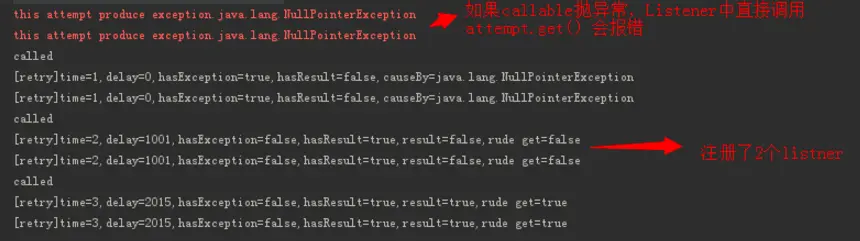

当发生重试之后,假如我们需要做一些额外的处理动作,比如发个告警邮件啥的,那么可以使用RetryListener。每次重试之后,guava-retrying会自动回调我们注册的监听。也可以注册多个RetryListener,会按照注册顺序依次调用。

import com.github.rholder.retry.Attempt;
import com.github.rholder.retry.RetryListener;
import java.util.concurrent.ExecutionException;

public class MyRetryListener<Boolean> implements RetryListener {
    @Override
    public <Boolean> void onRetry(Attempt<Boolean> attempt) {
        // 第几次重试,(注意:第一次重试其实是第一次调用)
        System.out.print("[retry]time=" + attempt.getAttemptNumber());
        // 距离第一次重试的延迟
        System.out.print(",delay=" + attempt.getDelaySinceFirstAttempt());
        // 重试结果: 是异常终止, 还是正常返回
        System.out.print(",hasException=" + attempt.hasException());
        System.out.print(",hasResult=" + attempt.hasResult());
        // 是什么原因导致异常
        if (attempt.hasException()) {
            System.out.print(",causeBy=" + attempt.getExceptionCause().toString());
        } else {
            // 正常返回时的结果
            System.out.print(",result=" + attempt.getResult());
        }

        // bad practice: 增加了额外的异常处理代码
        try {
            Boolean result = attempt.get();
            System.out.print(",rude get=" + result);
        } catch (ExecutionException e) {
            System.err.println("this attempt produce exception." + e.getCause().toString());
        }
        System.out.println();
    }
}

接下来在Retry对象中指定监听:withRetryListener(new MyRetryListener<>())
