基于angular7的多页面后台管理系统

4,987 阅读3分钟

一、简介

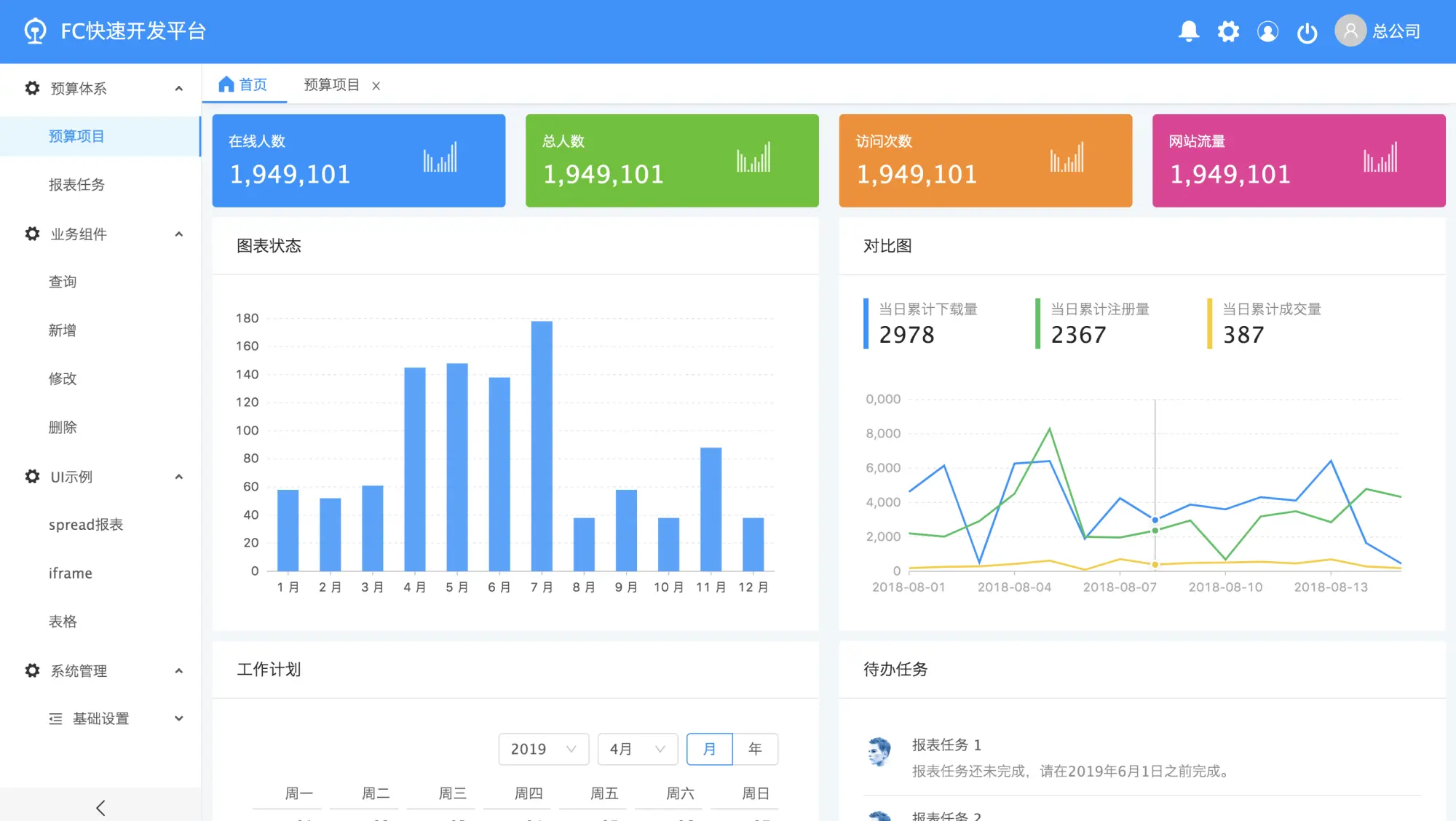

项目介绍

目录结构

├── README.md                             # 介绍文档
├── _mock                                 # 测试数据
├── angular.json                          # 工作区中所有项目的默认 CLI 配置,包括 CLI 使用的构建选项、运行选项、测试工具选项(比如 TSLint、Karma、Protractor)等
├── node_modules                          # 提供给整个工作区的 npm 包
├── package-lock.json                     # 锁定安装时的包的版本号,并且需要上传到git,以保证其他人在npm install时大家的依赖能保证一致。
├── package.json                          # 配置用于工作区中所有项目的包依赖项
├── proxy.config.json                     # 代理
├── src
│   ├── app
│   │   ├── app.README.md                 # 介绍文档
│   │   ├── app.component.ts
│   │   ├── app.module.ts
│   │   ├── app.route.ts                  # 根路由
│   │   ├── components                    # 组件
│   │   ├── service                       # 服务
│   │   └── share.service.ts              # 单例服务
│   ├── assets                            # 静态资源文件
│   │   ├── browser                       # 浏览器
│   │   ├── doc                           # 文档
│   │   ├── fonts                         # 字体图标
│   │   │   ├── ali_iconfont              # 阿里图标库
│   │   │   └── antdesign                 # antdesign本地图标
│   │   ├── image                         # 图片资源
│   │   ├── plugin                        # 第三方插件
│   │   │   └── spread
│   │   ├── styles                        # 样式文件
│   ├── environments                      # 环境配置
│   │   ├── environment.51.ts             # 其它环境配置
│   │   ├── environment.dev.ts            # 开发环境配置
│   │   └── environment.prod.ts           # 上线环境配置
│   ├── favicon.ico                       # 一个用在书签栏上的应用图标
│   ├── fccomponents                      # 平台组件
│   ├── fccore                            # 核心模块
│   │   ├── business
│   │   ├── directive                     # 指令
│   │   ├── fccore.module.ts              # 核心模块
│   │   ├── pipe                          # 管道
│   │   └── service                       # 服务
│   │       ├── cache.service.ts          # 缓存服务
│   │       ├── common.service.ts         # 公共方法
│   │       ├── dao.service.ts            # httpClient 前后端通信
│   │       ├── log.service.ts            # 打印服务
│   │       ├── message.service.ts        # 消息服务
│   │       └── user.service.ts           # 用户服务
│   ├── feature                           # 业务代码
│   ├── index.html                        # 主HTML文件
│   ├── karma.conf.js
│   ├── main.ts                           # 应用的主入口点,引导应用的根模块 AppModule 来运行在浏览器中
│   ├── polyfills.ts                      # 为浏览器支持提供腻子脚本
│   ├── shared                            # 共享模块
│   ├── styles.less                       # 项目的样式文件
│   ├── test.ts
│   ├── tsconfig.app.json                 # 继承自工作区级的 tsconfig.json 文件
│   ├── tsconfig.spec.json
│   └── tslint.json                       # 继承自工作区级的 tsconfig.json 文件
├── tsconfig.json                         # 工作区中所有应用的默认 TypeScript 配置。包括 TypeScript 选项和 Angular 模板编译器选项。
├── tslint.json                           # 工作区中所有应用的默认 TSLint 配置。
├── .gitignore                            # 指定 Git 要忽略的非跟踪的文件。
├── .editorconfig                         # 代码编辑器配置
└── tslint代码检查.READE.md                 # 介绍文档

package.json介绍

{
  "name": "fc-angular",
  "version": "0.0.0",
  "scripts": {
    "ng": "ng",
    "start": "ng serve --proxy-config proxy.config.json --host=0.0.0.0 --open --port=4200",
    "build": "ng build",
    "test": "ng test",
    "lint": "ng lint",
    "e2e": "ng e2e",
    "aot": "ng build --aot"
  },
  "private": true,
  "dependencies": {
    "@angular/animations": "~7.2.0",
    "@angular/common": "~7.2.0",
    "@angular/compiler": "~7.2.0",
    "@angular/core": "~7.2.0",
    "@angular/forms": "~7.2.0",
    "@angular/platform-browser": "~7.2.0",
    "@angular/platform-browser-dynamic": "~7.2.0",
    "@angular/router": "~7.2.0",
    "@antv/g2": "^3.5.3",
    "@grapecity/spread-excelio": "^12.0.10",
    "@grapecity/spread-sheets": "^12.0.10",
    "@grapecity/spread-sheets-charts": "^12.0.10",
    "@grapecity/spread-sheets-pdf": "^12.0.10",
    "@grapecity/spread-sheets-print": "^12.0.10",
    "@grapecity/spread-sheets-resources-zh": "^12.0.10",
    "ag-grid-community": "^20.2.0",
    "ag-grid-enterprise": "^20.2.0",
    "core-js": "^2.5.4",
    "hammerjs": "^2.0.8",
    "mockjs": "^1.0.1-beta3",
    "ng-zorro-antd": "^7.2.0",
    "rxjs": "~6.3.3",
    "tslib": "^1.9.0",
    "zone.js": "~0.8.26"
  },
  "devDependencies": {
    "@angular-devkit/build-angular": "~0.13.0",
    "@angular/cli": "~7.3.1",
    "@angular/compiler-cli": "~7.2.0",
    "@angular/language-service": "~7.2.0",
    "@types/jasmine": "~2.8.8",
    "@types/jasminewd2": "~2.0.3",
    "@types/node": "^8.9.5",
    "codelyzer": "~4.5.0",
    "jasmine-core": "~2.99.1",
    "jasmine-spec-reporter": "~4.2.1",
    "karma": "~3.1.1",
    "karma-chrome-launcher": "~2.2.0",
    "karma-coverage-istanbul-reporter": "~2.0.1",
    "karma-jasmine": "~1.1.2",
    "karma-jasmine-html-reporter": "^0.2.2",
    "less": "^2.7.3",
    "protractor": "~5.4.0",
    "ts-node": "~7.0.0",
    "tslint": "~5.11.0",
    "typescript": "~3.2.2"
  }
}

二、安装项目

  • git node npm vscode 配置好多前提下,克隆代码,命令如下:
git clone https://github.com/luohong123/fc-angular.git
npm install
npm start

三、开发代码

1. 代码规范

  • 请按照angular官网提出的 风格指南 开发代码

【风格指南】angular.cn/guide/style…

2. 前后端通信

3. 接口测试

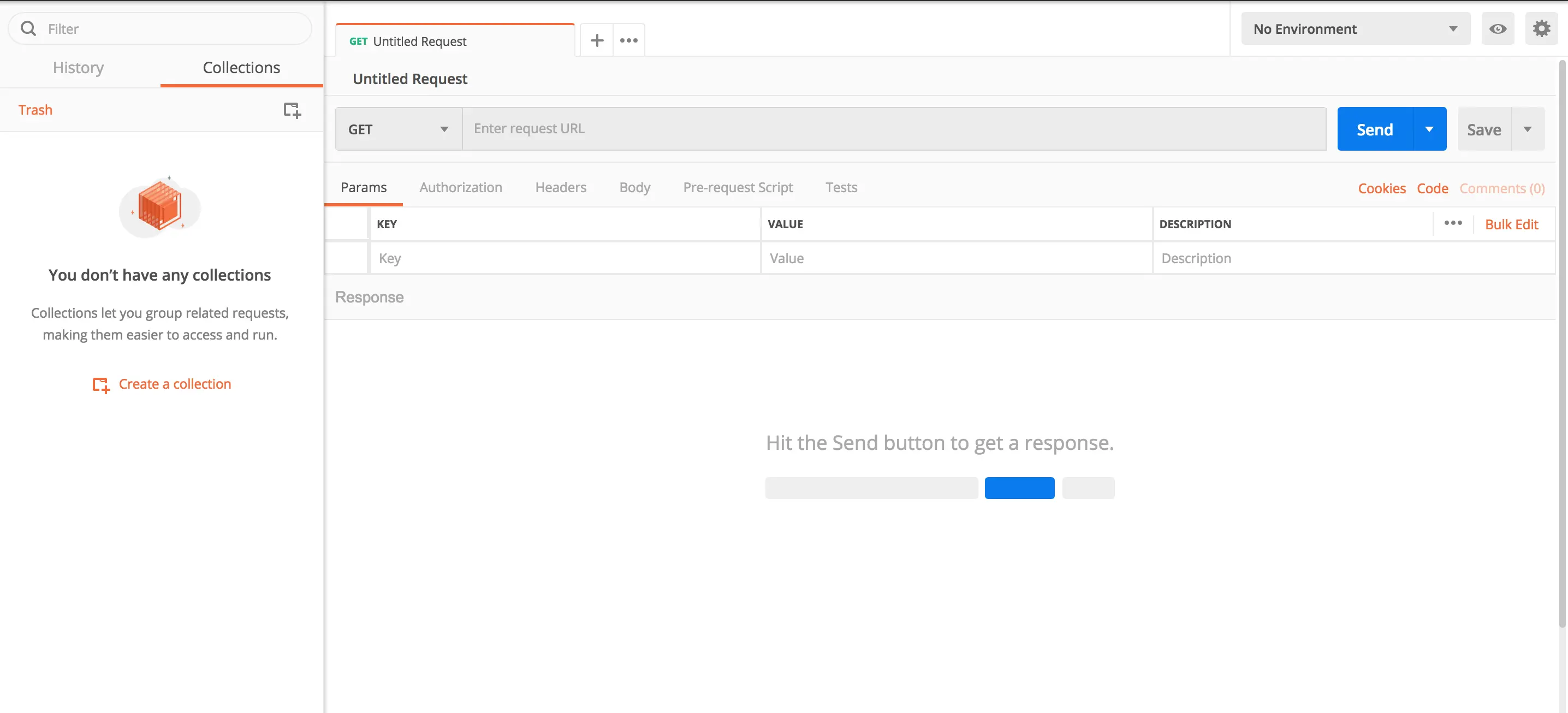

  • 推荐使用postman工具

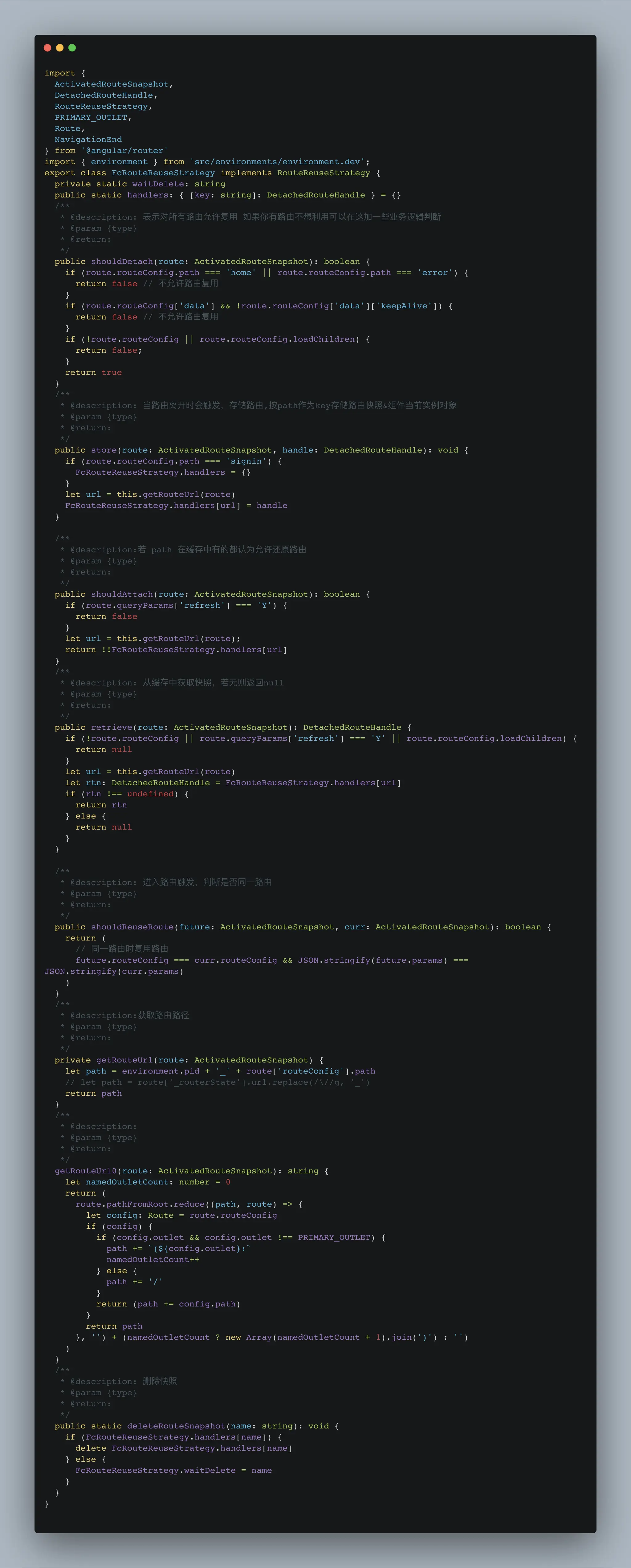

4. 路由复用策略代码预览

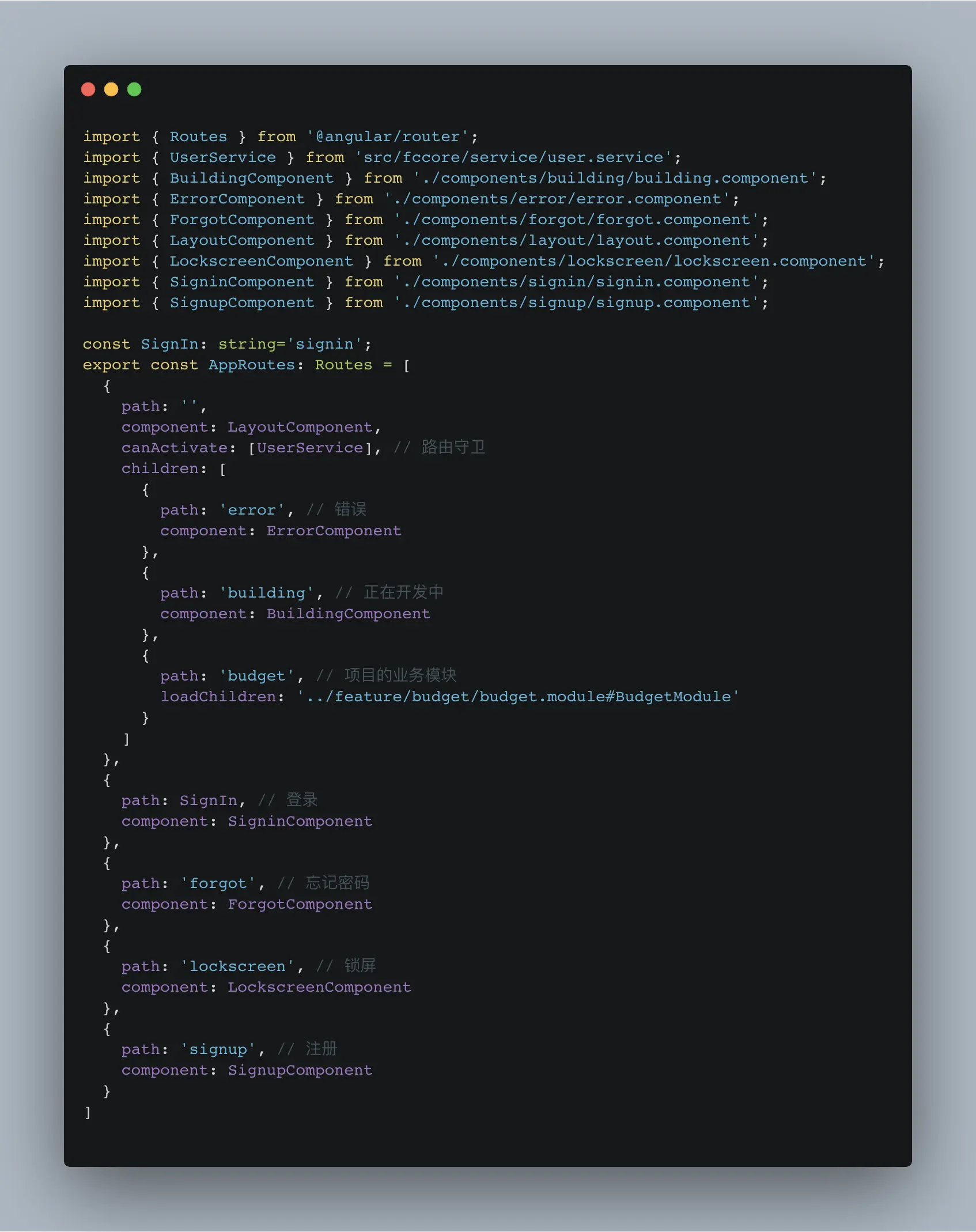

5. 懒加载路由

四、代码质量检查

【代码规范】

  1. 每一个文件,如html、css、ts的header都要有作者的名字、描述、作者邮箱、时间、修改时间、修改者等。
  2. 文件命名规范
  3. ts中一个变量一行注释,每一个方法都要有注释
  4. 按照angular官网提供的【风格指南】链接 写代码

【tslint代码检查】

【vscode安装插件】

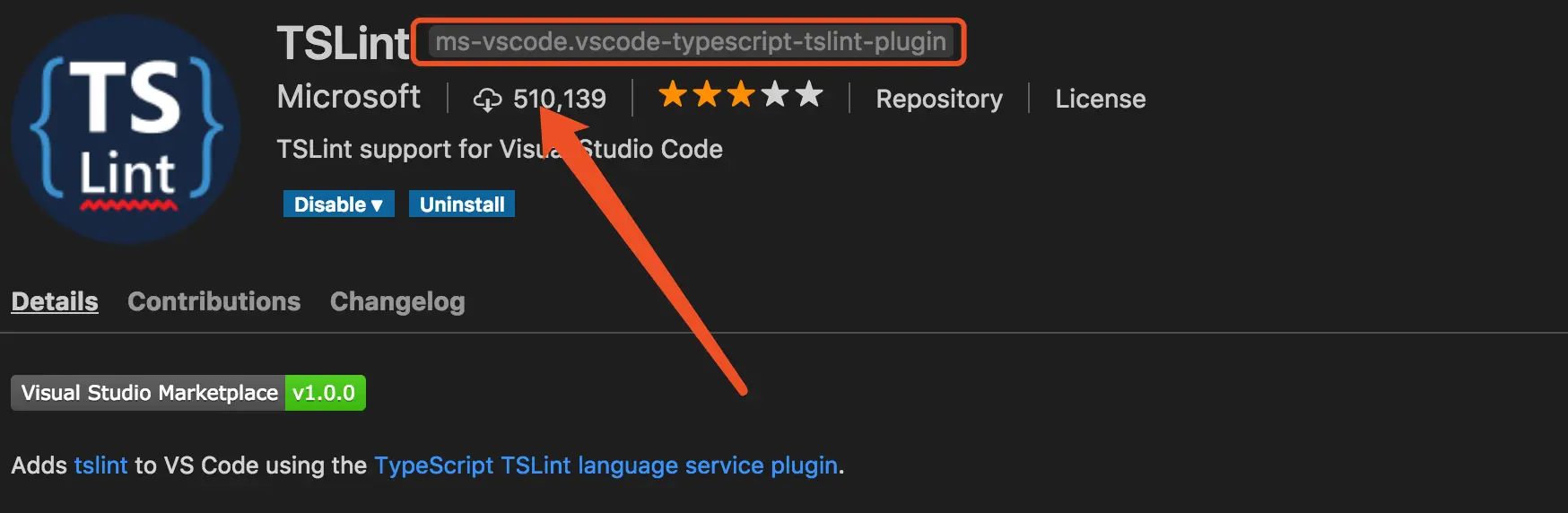

  • 在vscode中安装tslint,自动检查代码是否规范,如图:

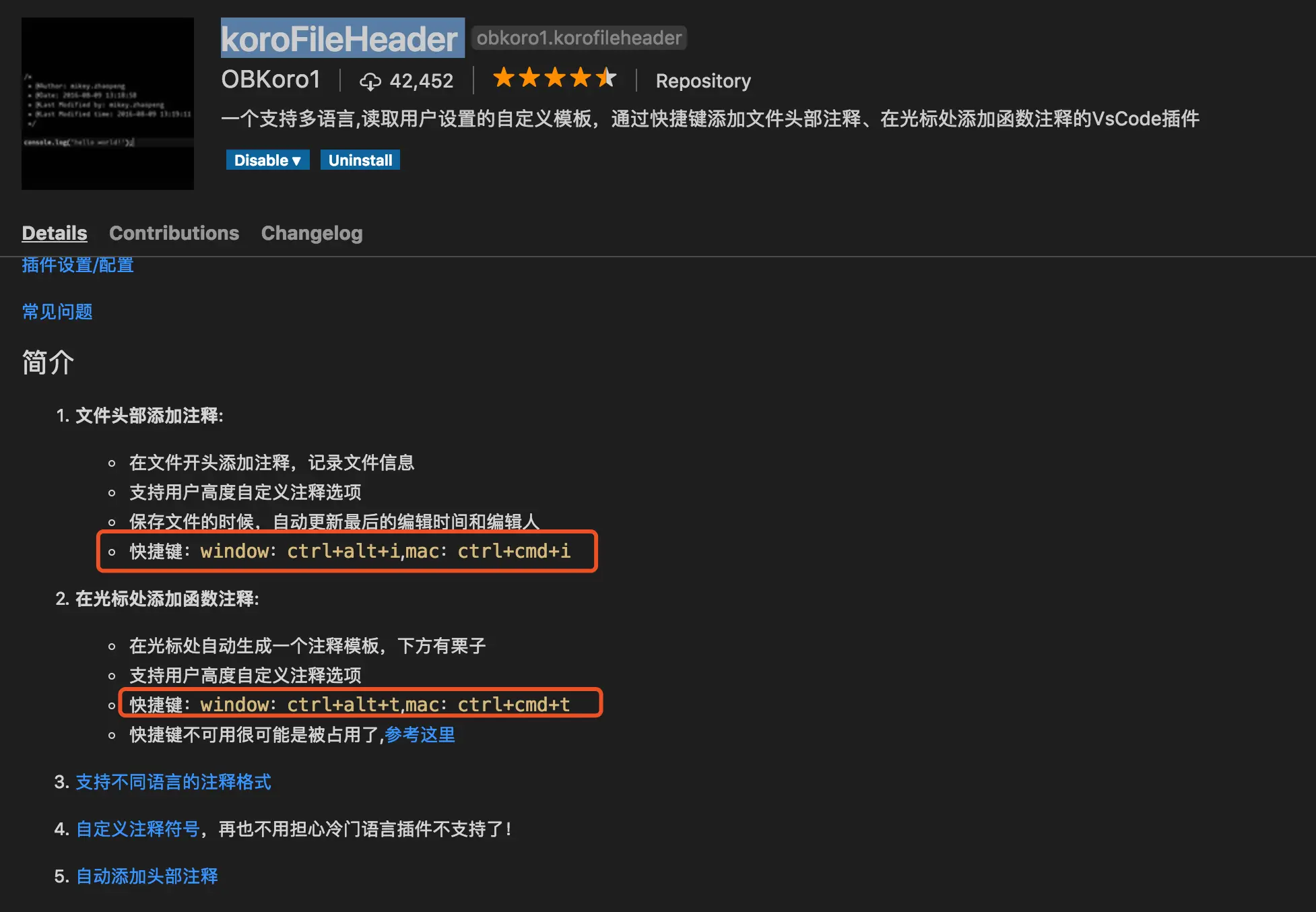

  • 在vscode中安装koroFileHeader,如图:

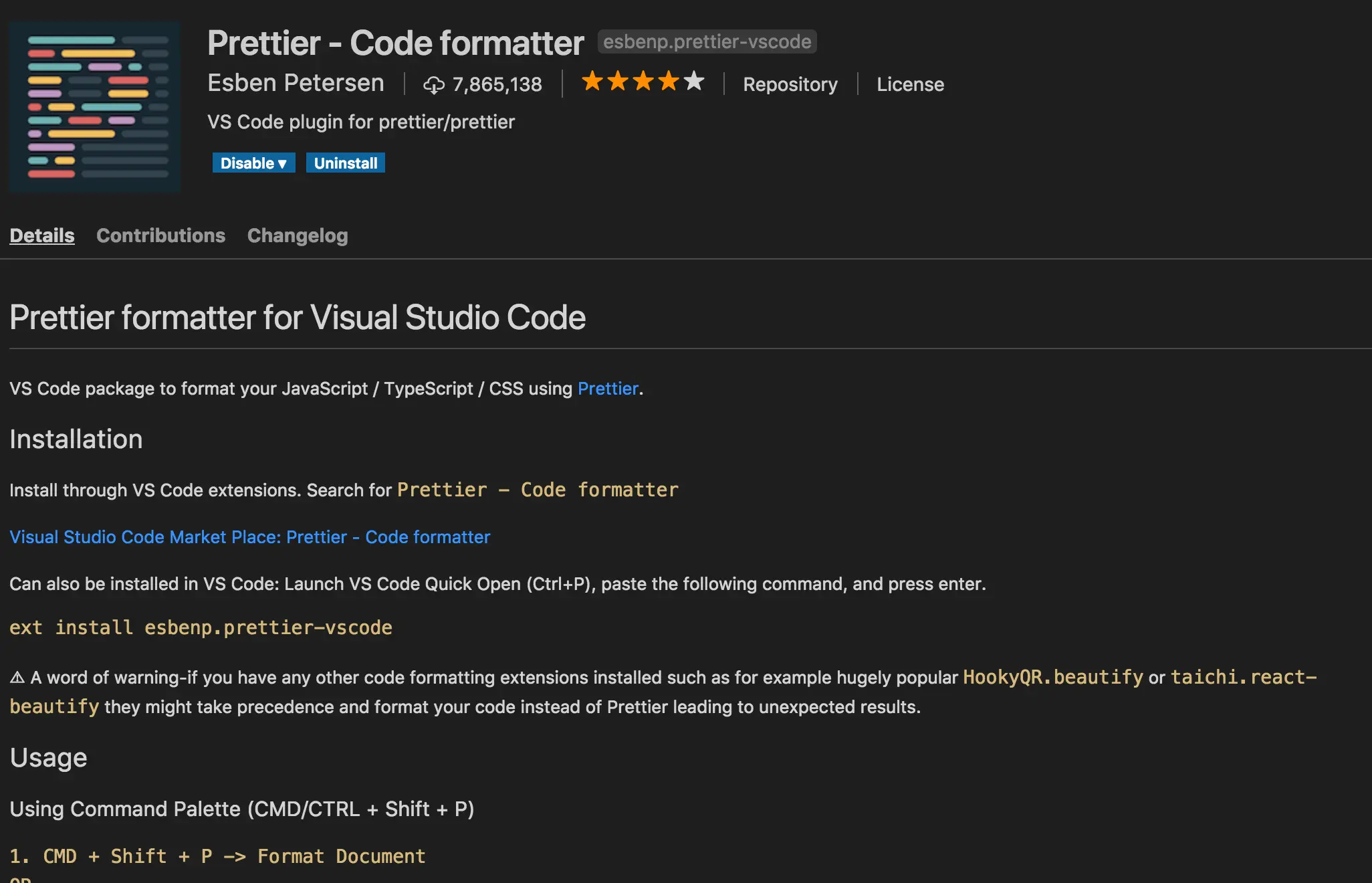

  • 在vscode中安装代码自动美化工具,如图:

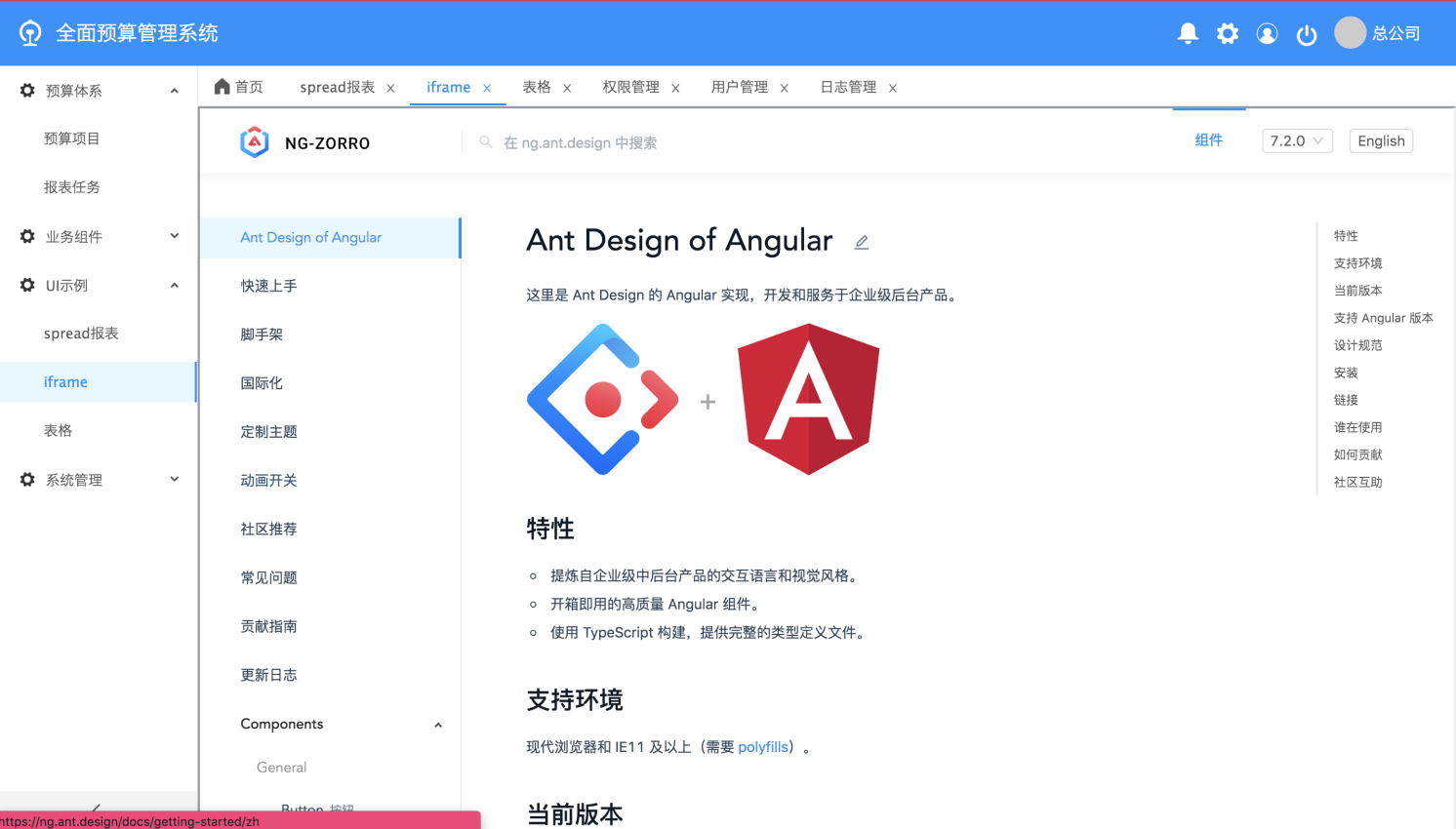

  • angular版本的antDesign代码自动提示工具

  • 在vscode中安装Open-In-Browser

  • 在vscode中安装 CSS Peek

  • 在vscode中安装 Color Info

  • 在vscode中安装快捷键插件 IntelliJ IDEA Keybindings

【通过aot打包检查代码是否规范】

ng build --aot

五、aot打包部署

  • 通过 ng build --aot 命令生成dist 文件

六、学习帮助

七、谢谢大家

感谢大家抽时间阅读我的文章,欢迎指出不对的地方,谢谢!
