通过阅读 混合开发(一) 和 混合开发(二) ,相信你已经让一个 原生 + Flutetr 的混合应用运行起来了。
恭喜你 🎉🎉🎉!
现在,你可能遇到了 Flutter代码 和 原生代码 之前无法互相调用的难题。
因为 Flutter 作为独立于原生 Android 的一套开发框架,肯定是不能直接互相调用和愉快的交换信息的。
现在,来看看 Flutter 是如何解决这些问题的。
1.Platform Channels
Flutter 使用 Platform Channels 架构来实现 Flutter 和 原生 之间的通信。

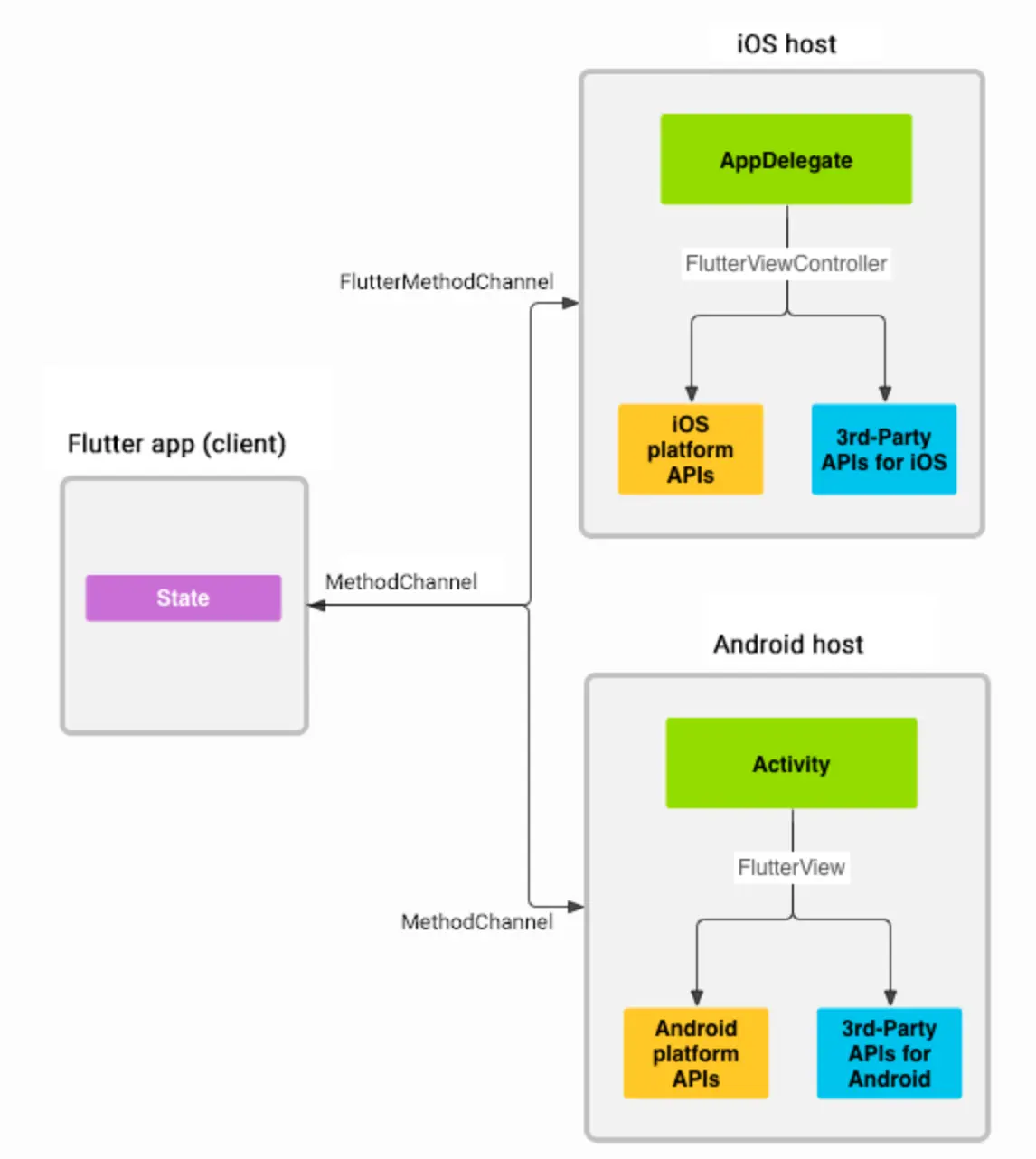

上图是其中 MethodChannel 的架构示意图,Flutter 可以通过 MethodChannel 异步的发送和接收信息。
MethodChannel 是经过封装的比较方便的通信方式,Flutter 官网的例子也是通过 MethodChannel 来实现的。
Platform Channels 仅允许以下几种的数据类型在通信中使用:
Dart | Android | iOS |
---|---|---|
null | null | nil (NSNull when nested) |
bool | java.lang.Boolean | NSNumber numberWithBool |
int | java.lang.Integer | NSNumber numberWithInt |
int, if 32 bits not enough | java.lang.Long | NSNumber numberWithLong |
double | java.lang.Double | NSNumber numberWithDouble |
String | java.lang.String | NSString |
Uint8List | byte[] | FlutterStandardTypedData typedDataWithBytes |
Int32List | int[] | FlutterStandardTypedData typedDataWithInt32 |
Int64List | long[] | FlutterStandardTypedData typedDataWithInt64 |
Float64List | double[] | FlutterStandardTypedData typedDataWithFloat64 |
List | java.util.ArrayList | NSArray |
Map | java.util.HashMap | NSDictionary |
2.如何使用 MethodChannel
MethodChannel 通过特定的通道,来建立起 Flutter 和 Native 之间通信桥梁。
当然,我们需要在 Flutter 和 Native 两端都需要定义相同的通道。
2.1 第一步:定义通信通道
Flutter 端:
先导入
import 'package:flutter/services.dart';
包,然后创建一个 MethodChannel。const channel = MethodChannel('foo');
Native - Android 端:
MethodChannel channel = new MethodChannel(flutterView, "foo");
Native - iOS 端:
let channel = FlutterMethodChannel( name: "foo", binaryMessenger: flutterView)
建立一个通信通道的方式很简单,只需要使用相同的名称(比如上面例子中的 "foo"
)创建 MethodChannel 就行。
在一个大型的项目中。你可能会需要建立很多的通信通道,所以建议统一的管理这些通信通道。
2.2 Flutter to Native
建立好通信通道,来看看如何让 Flutter 主动和 Native 通信。
Flutter 端:
final String greeting = await channel.invokeMethod('bar', 'world'); print(greeting);
通过
invokeMethod(<标识>, <数据>)
函数可以主动发起和 Native 的一次通信,且能够获得响应,允许的数据类型就是前面表格中列出的数据类型。当然,为了不阻塞 UI,你需要在异步中进行。
Native - Android 端:
channel.setMethodCallHandler((methodCall, result) -> { if (methodCall.method.equals("bar")) { result.success("success, " + methodCall.arguments); } });
在 Native 端,通过为 MethodChannel 设置一个处理器 MethodCallHandler。
当 Flutter 向 Native 发起通信时,能够回调处理器中的
onMethodCall()
函数。在该回调中,能够通过 MethodCall 获取 Flutter 发送过来的信息,通过 MethodChannel.Result 来向 Flutter 发送响应结果。
Native - iOS 端:
channel.setMethodCallHandler { (call: FlutterMethodCall, result: FlutterResult) -> Void in switch (call.method) { case "bar": result("Hello, \(call.arguments as! String)") default: result(FlutterMethodNotImplemented) } }
2.3 Native to Flutter
Flutter 端:
设置接收 Native 信息的处理器:
channel.setMethodCallHandler((MethodCall call) async { switch (call.method) { case 'bar': return 'Hello, ${call.arguments}'; case 'baz': throw PlatformException(code: '400', message: 'This is bad'); default: throw MissingPluginException(); } })
通过
setMethodCallHandler
函数设置一个Future<dynamic> handler(MethodCall call)
函数。该函数会在接收到 Native 信息时被调用,从 MethodCall 中能够获得 Native 发送过来的数据。
最后的
return
环节可以返回数据给 Native。Native - Android 端:
channel.invokeMethod("bar", "message", new MethodChannel.Result @Override public void success(@Nullable Object o) { // 发送成功时回调 } @Override public void error(String s, @Nullable String s1, @Nullable // 发送失败时回调 } @Override public void notImplemented() { // 如果该通道在Flutter端未实现,会回调这里 } });
第一个参数是 Flutter 端通过
call.method
获得的标示。第二个参数是需要发送的数据。
第三个参数用于监听通信是完成状态。
Native - iOS 端:
channel.invokeMethod(name, arguments: value) { (result: Any?) -> Void in if let error = result as? FlutterError { os_log("%@ failed: %@", type: .error, name, error.message!) } else if FlutterMethodNotImplemented.isEqual(result) { os_log("%@ not implemented", type: .error, name) } else { os_log("%@", type: .info, result as! NSObject) } }
