内容简介:分析 Flutter 中AppBar 的实现,完成渐变色GradientAppBar 。

问题

最近项目组决定使用 Flutter 来做新的App,在开发过程中遇到了这样的一个需求,渐变色的AppBar。

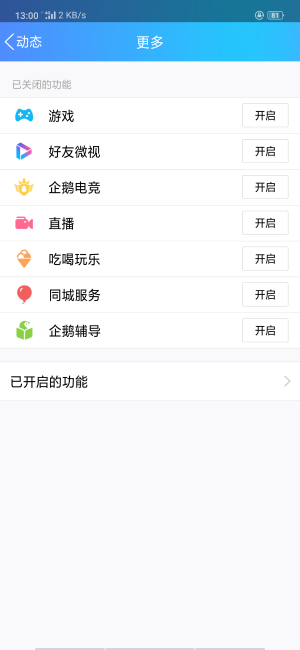

就是这样的,类似于 QQ 中的AppBar:

像 Flutter 这样强大的 UI 库,我的第一反应是它可以支持,先看一下 AppBar 的属性。

    AppBar({

    Key key,

    this.leading,

    this.automaticallyImplyLeading = true,

    this.title,

    this.actions,

    this.flexibleSpace,

    this.bottom,

    this.elevation,

    this.backgroundColor,

    this.brightness,

    this.iconTheme,

    this.textTheme,

    this.primary = true,

    this.centerTitle,

    this.titleSpacing = NavigationToolbar.kMiddleSpacing,

    this.toolbarOpacity = 1.0,

    this.bottomOpacity = 1.0,

    }) : assert(automaticallyImplyLeading != null),

    assert(elevation == null || elevation >= 0.0),

    assert(primary != null),

    assert(titleSpacing != null),

    assert(toolbarOpacity != null),

    assert(bottomOpacity != null),

    preferredSize = Size.fromHeight(kToolbarHeight + (bottom?.preferredSize?.height ?? 0.0)),

    super(key: key);

有个 backgroundColor 属性,

    final Color backgroundColor;

凉凉,Color 类型。接下来,看一下网上帖子给的方案。

How to add gradient color in AppBar in flutter

https://stackoverflow.com/questions/50412484/how-to-add-gradient-color-in-appbar-in-flutter

大体思路就是继承一个 PreferredSize 类,内部通过 Container + decoration 实现自己需要的效果。(在 Scaffold 类中 appBar 参数需要一个实现 PreferredSizeWidget 的对象)

文章中的代码这里贴出来

    Widget build(BuildContext context) {

    return new Scaffold(

    appBar: new PreferredSize(

    child: new Container(

    padding: new EdgeInsets.only(

    top: MediaQuery.of(context).padding.top

    ),

    child: new Padding(

    padding: const EdgeInsets.only(

    left: 30.0,

    top: 20.0,

    bottom: 20.0

    ),

    child: new Text(

    'Arnold Parge',

    style: new TextStyle(

    fontSize: 20.0,

    fontWeight: FontWeight.w500,

    color: Colors.white

    ),

    ),

    ),

    decoration: new BoxDecoration(

    gradient: new LinearGradient(

    colors: [

    Colors.red,

    Colors.yellow

    ]

    ),

    boxShadow: [

    new BoxShadow(

    color: Colors.grey[500],

    blurRadius: 20.0,

    spreadRadius: 1.0,

    )

    ]

    ),

    ),

    preferredSize: new Size(

    MediaQuery.of(context).size.width,

    150.0

    ),

    ),

    body: new Center(

    child: new Text('Hello'),

    ),

    );

    }

效果不是很满意,Flutter 中的 AppBar 的 leading ,title 还是很好用的。那我们就自己来实现一个吧!

AppBar 内部实现

    class AppBar extends StatefulWidget implements PreferredSizeWidget

Appbar 继承了 StatefulWidget ,所以我们直接看它的 State -> _AppBarState 。

直接去看 build 方法的返回,从后向前,看 AppBar 是如何实现的。

    @override

    Widget build(BuildContext context) {

    // 省略部分代码,后面再看

    ...

    final Brightness brightness = widget.brightness

    ?? appBarTheme.brightness

    ?? themeData.primaryColorBrightness;

    final SystemUiOverlayStyle overlayStyle = brightness == Brightness.dark

    ? SystemUiOverlayStyle.light

    : SystemUiOverlayStyle.dark;

    return Semantics( // 辅助功能相关

    container: true,

    child: AnnotatedRegion<SystemUiOverlayStyle>( // 处理主题相关,状态栏文字颜色

    value: overlayStyle,

    child: Material( // Material 控件,处理颜色,阴影等效果

    color: widget.backgroundColor

    ?? appBarTheme.color

    ?? themeData.primaryColor,

    elevation: widget.elevation

    ?? appBarTheme.elevation

    ?? _defaultElevation,

    child: Semantics( // child里面才是真正的内容,我们看内部的appBar的实现。

    explicitChildNodes: true,

    child: appBar,

    ),

    ),

    ),

    );

    }

返回了一个控件,处理了明暗主题,颜色,阴影,子控件,这里我们不想用这个颜色,再通过查看 child 能否设置颜色。

这里的 appBar 是在上面定义的:

    Widget appBar = ClipRect( // 用矩形剪辑其子widget

    child: CustomSingleChildLayout( // 通过deleagate 来约束子widget

    delegate: const _ToolbarContainerLayout(), // 这里的布局是一个宽充满,高度为kkToolbarHeight高度

    child: IconTheme.merge( // 处理IconTheme

    data: appBarIconTheme,// 通过判断,处理iconTheme的取值

    child: DefaultTextStyle( // 文字样式

    style: sideStyle, // 通过判断传入的textTheme处理style取值

    child: toolbar,

    ),

    ),

    ),

    );

这里可以看到,这里就是包装了一个 toolbar ,我们继续看 toolbar :

    // 这里是一个NavigationToolbar,我们设置的leading,title在这里使用

    final Widget toolbar = NavigationToolbar(

    leading: leading,

    middle: title,

    trailing: actions,

    centerMiddle: widget._getEffectiveCenterTitle(themeData),

    middleSpacing: widget.titleSpacing,

    );

关于 appBar 内部还进行一些处理,如处理 bottom ,增加 SafeArea 等处理,这里不做展开了

    if (widget.bottom != null) { // bottom

    appBar = Column(

    mainAxisAlignment: MainAxisAlignment.spaceBetween,

    children: <Widget>[

    Flexible(

    child: ConstrainedBox(

    constraints: const BoxConstraints(maxHeight: kToolbarHeight),

    child: appBar,

    ),

    ),

    widget.bottomOpacity == 1.0 ? widget.bottom : Opacity(

    opacity: const Interval(0.25, 1.0, curve: Curves.fastOutSlowIn).transform(widget.bottomOpacity),

    child: widget.bottom,

    ),

    ],

    );

    }

    // The padding applies to the toolbar and tabbar, not the flexible space.

    if (widget.primary) { // SafeArea

    appBar = SafeArea(

    top: true,

    child: appBar,

    );

    }

    appBar = Align( // Alignment.topCenter

    alignment: Alignment.topCenter,

    child: appBar,

    );

    if (widget.flexibleSpace != null) { // flexibleSpace效果

    appBar = Stack(

    fit: StackFit.passthrough,

    children: <Widget>[

    widget.flexibleSpace,

    appBar,

    ],

    );

    }

通过这里我们知道了,其实 AppBar 中,颜色是在 Material 中设置的,我们常用的设置是在 toolbar 中进行使用的,所以最简单的渐变色处理方式就是将 Material 的child 包一层做颜色处理,不去修改现有部分。

代码实现

代码很简单,将AppBar的代码拷贝出来进行修改,这里的类名为GradientAppBar。

在自定义的 GradientAppBar 的构造方法中增加渐变颜色的初始值,和终止值。

    GradientAppBar({

    ...

    this.gradientStart,

    this.gradientEnd,

    }) : assert(automaticallyImplyLeading != null),

    ...

    super(key: key);

    final Color gradientStart;

    final Color gradientEnd;

再将 _AppBarState 类的代码拷贝出来,这里的类名是 _GradientAppBarState (记得修改 createState 方法)。

然后在修改对 build 方法 return 中 child 进行包装,使用传入的颜色作为渐变色背景。

    // 添加到build方法最后,return之前,通过使用decoration实现颜色的渐变

    if (widget.gradientStart != null && widget.gradientEnd != null) {

    appBar = Container(

    decoration: BoxDecoration(

    gradient: LinearGradient(

    colors: [widget.gradientStart, widget.gradientEnd]),

    ),

    child: appBar,

    );

    }

再进行处理 Material 的颜色

    return Material(

    // 判断是否使用渐变色

    color: widget.gradientStart != null && widget.gradientEnd != null

    ? Colors.transparent

    : widget.backgroundColor ??

    appBarTheme.color ??

    themeData.primaryColor,

    elevation: widget.elevation ?? appBarTheme.elevation ?? _defaultElevation,

    child: appBar, // 使用包装后的appBar

    );

这样就实现了渐变效果。

使用 GradientAppBar ,就是将原来使用 AppBar 替换为 GradientAppBar 。

    return Scaffold(

    appBar: PreferredSize(

    child: GradientAppBar(

    gradientStart: Color(0xFF49A2FC),

    gradientEnd: Color(0xFF2171F5),

    title: Text(widget.title),

    leading: Icon(Icons.ac_unit),

    ),

    preferredSize: Size.fromHeight(400),

    ),

    body: Center(

    child: Column(

    mainAxisAlignment: MainAxisAlignment.center,

    children: <Widget>[

    Text(

    'You have pushed the button this many times:',

    ),

    Text(

    '$_counter',

    style: Theme.of(context).textTheme.display1,

    ),

    ],

    ),

    ),

    floatingActionButton: FloatingActionButton(

    onPressed: _incrementCounter,

    tooltip: 'Increment',

    child: Icon(Icons.add),

    ), // This trailing comma makes auto-formatting nicer for build methods.

    );

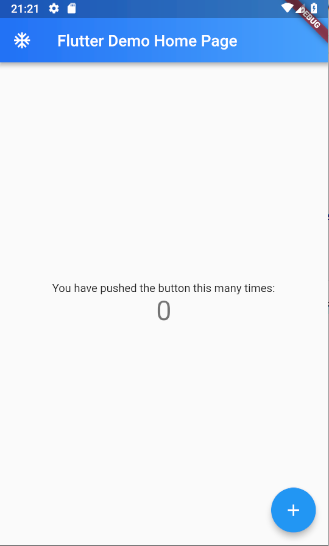

效果图:

项目源码: https://github.com/loosaSH/flutter-appbar

这个项目后续还会扩展关于SliverAppBar部分,喜欢的给个star
