系列作者:肖磊

GitHub: github.com/CommanderXL

上篇文章主要讲了 loader 的配置,匹配相关的机制。这篇主要会讲当一个 module 被创建之后,使用 loader 去处理这个 module 内容的流程机制。首先我们来总体的看下整个的流程:

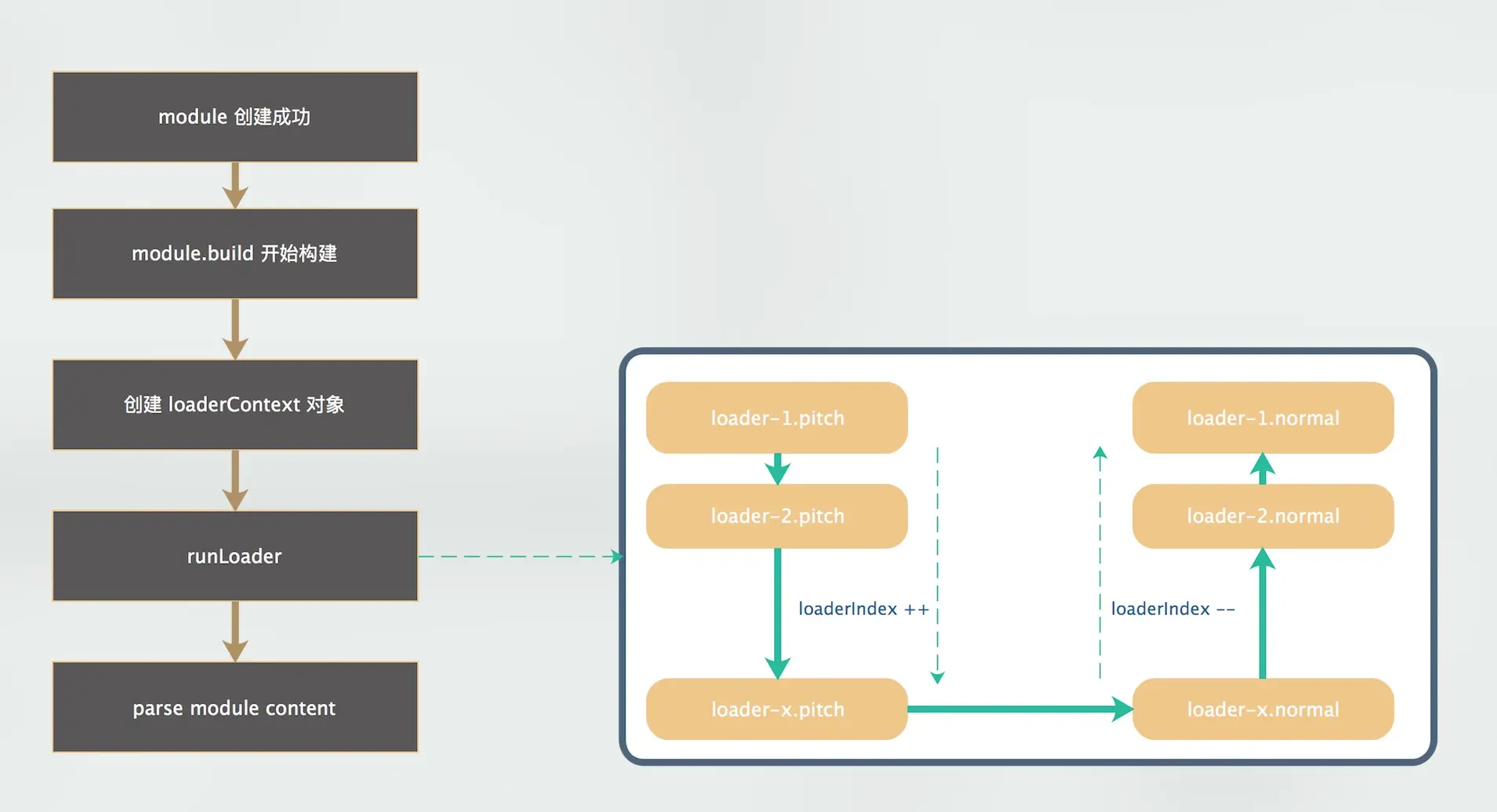

runLoader

在 module 一开始构建的过程中,首先会创建一个 loaderContext 对象,它和这个 module 是一一对应的关系,而这个 module 所使用的所有 loaders 都会共享这个 loaderContext 对象,每个 loader 执行的时候上下文就是这个 loaderContext 对象,所以可以在我们写的 loader 里面通过 this 来访问。

// NormalModule.js

const { runLoaders } = require('loader-runner')

class NormalModule extends Module {
  ...
  createLoaderContext(resolver, options, compilation, fs) {
    const requestShortener = compilation.runtimeTemplate.requestShortener;
    // 初始化 loaderContext 对象,这些初始字段的具体内容解释在文档上有具体的解释(https://webpack.docschina.org/api/loaders/#this-data)
		const loaderContext = {
			version: 2,
			emitWarning: warning => {...},
			emitError: error => {...},
			exec: (code, filename) => {...},
			resolve(context, request, callback) {...},
			getResolve(options) {...},
			emitFile: (name, content, sourceMap) => {...},
			rootContext: options.context, // 项目的根路径
			webpack: true,
			sourceMap: !!this.useSourceMap,
			_module: this,
			_compilation: compilation,
			_compiler: compilation.compiler,
			fs: fs
		};

    // 触发 normalModuleLoader 的钩子函数,开发者可以利用这个钩子来对 loaderContext 进行拓展
		compilation.hooks.normalModuleLoader.call(loaderContext, this);
		if (options.loader) {
			Object.assign(loaderContext, options.loader);
		}

		return loaderContext;
  }

  doBuild(options, compilation, resolver, fs, callback) {
    // 创建 loaderContext 上下文
		const loaderContext = this.createLoaderContext(
			resolver,
			options,
			compilation,
			fs
    )

    runLoaders(
      {
        resource: this.resource, // 这个模块的路径
				loaders: this.loaders, // 模块所使用的 loaders
				context: loaderContext, // loaderContext 上下文
				readResource: fs.readFile.bind(fs) // 读取文件的 node api
      },
      (err, result) => {
        // do something
      }
    )
  }
  ...
}

当 loaderContext 初始化完成后,开始调用 runLoaders 方法,这个时候进入到了 loaders 的执行阶段。runLoaders 方法是由loader-runner这个独立的 NPM 包提供的方法,那我们就一起来看下 runLoaders 方法内部是如何运行的。

首先根据传入的参数完成进一步的处理,同时对于 loaderContext 对象上的属性做进一步的拓展:

exports.runLoaders = function runLoaders(options, callback) {
  // read options
	var resource = options.resource || ""; // 模块的路径
	var loaders = options.loaders || []; // 模块所需要使用的 loaders
	var loaderContext = options.context || {}; // 在 normalModule 里面创建的 loaderContext
	var readResource = options.readResource || readFile;

	var splittedResource = resource && splitQuery(resource);
	var resourcePath = splittedResource ? splittedResource[0] : undefined; // 模块实际路径
	var resourceQuery = splittedResource ? splittedResource[1] : undefined; // 模块路径 query 参数
	var contextDirectory = resourcePath ? dirname(resourcePath) : null; // 模块的父路径

	// execution state
	var requestCacheable = true;
	var fileDependencies = [];
	var contextDependencies = [];

	// prepare loader objects
	loaders = loaders.map(createLoaderObject); // 处理 loaders

  // 拓展 loaderContext 的属性
	loaderContext.context = contextDirectory;
	loaderContext.loaderIndex = 0; // 当前正在执行的 loader 索引
	loaderContext.loaders = loaders;
	loaderContext.resourcePath = resourcePath;
	loaderContext.resourceQuery = resourceQuery;
	loaderContext.async = null; // 异步 loader
  loaderContext.callback = null;

  ...

  // 需要被构建的模块路径,将 loaderContext.resource -> getter/setter
  // 例如 /abc/resource.js?rrr
  Object.defineProperty(loaderContext, "resource", {
		enumerable: true,
		get: function() {
			if(loaderContext.resourcePath === undefined)
				return undefined;
			return loaderContext.resourcePath + loaderContext.resourceQuery;
		},
		set: function(value) {
			var splittedResource = value && splitQuery(value);
			loaderContext.resourcePath = splittedResource ? splittedResource[0] : undefined;
			loaderContext.resourceQuery = splittedResource ? splittedResource[1] : undefined;
		}
  });

  // 构建这个 module 所有的 loader 及这个模块的 resouce 所组成的 request 字符串
  // 例如:/abc/loader1.js?xyz!/abc/node_modules/loader2/index.js!/abc/resource.js?rrr
	Object.defineProperty(loaderContext, "request", {
		enumerable: true,
		get: function() {
			return loaderContext.loaders.map(function(o) {
				return o.request;
			}).concat(loaderContext.resource || "").join("!");
		}
  });
  // 在执行 loader 提供的 pitch 函数阶段传入的参数之一,剩下还未被调用的 loader.pitch 所组成的 request 字符串
	Object.defineProperty(loaderContext, "remainingRequest", {
		enumerable: true,
		get: function() {
			if(loaderContext.loaderIndex >= loaderContext.loaders.length - 1 && !loaderContext.resource)
				return "";
			return loaderContext.loaders.slice(loaderContext.loaderIndex + 1).map(function(o) {
				return o.request;
			}).concat(loaderContext.resource || "").join("!");
		}
  });
  // 在执行 loader 提供的 pitch 函数阶段传入的参数之一,包含当前 loader.pitch 所组成的 request 字符串
	Object.defineProperty(loaderContext, "currentRequest", {
		enumerable: true,
		get: function() {
			return loaderContext.loaders.slice(loaderContext.loaderIndex).map(function(o) {
				return o.request;
			}).concat(loaderContext.resource || "").join("!");
		}
  });
  // 在执行 loader 提供的 pitch 函数阶段传入的参数之一,包含已经被执行的 loader.pitch 所组成的 request 字符串
	Object.defineProperty(loaderContext, "previousRequest", {
		enumerable: true,
		get: function() {
			return loaderContext.loaders.slice(0, loaderContext.loaderIndex).map(function(o) {
				return o.request;
			}).join("!");
		}
  });
  // 获取当前正在执行的 loader 的query参数
  // 如果这个 loader 配置了 options 对象的话,this.query 就指向这个 option 对象
  // 如果 loader 中没有 options,而是以 query 字符串作为参数调用时,this.query 就是一个以 ? 开头的字符串
	Object.defineProperty(loaderContext, "query", {
		enumerable: true,
		get: function() {
			var entry = loaderContext.loaders[loaderContext.loaderIndex];
			return entry.options && typeof entry.options === "object" ? entry.options : entry.query;
		}
  });
  // 每个 loader 在 pitch 阶段和正常执行阶段都可以共享的 data 数据
	Object.defineProperty(loaderContext, "data", {
		enumerable: true,
		get: function() {
			return loaderContext.loaders[loaderContext.loaderIndex].data;
		}
  });

  var processOptions = {
		resourceBuffer: null, // module 的内容 buffer
		readResource: readResource
  };
  // 开始执行每个 loader 上的 pitch 函数
	iteratePitchingLoaders(processOptions, loaderContext, function(err, result) {
    // do something...
  });
}

这里稍微总结下就是在 runLoaders 方法的初期会对相关参数进行初始化的操作,特别是将 loaderContext 上的部分属性改写为 getter/setter 函数,这样在不同的 loader 执行的阶段可以动态的获取一些参数。

接下来开始调用 iteratePitchingLoaders 方法执行每个 loader 上提供的 pitch 函数。大家写过 loader 的话应该都清楚,每个 loader 可以挂载一个 pitch 函数,每个 loader 提供的 pitch 方法和 loader 实际的执行顺序正好相反。这块的内容在 webpack 文档上也有详细的说明(请戳我)。

这些 pitch 函数并不是用来实际处理 module 的内容的,主要是可以利用 module 的 request,来做一些拦截处理的工作,从而达到在 loader 处理流程当中的一些定制化的处理需要,有关 pitch 函数具体的实战可以参见下一篇文档

function iteratePitchingLoaders() {
  // abort after last loader
	if(loaderContext.loaderIndex >= loaderContext.loaders.length)
		return processResource(options, loaderContext, callback);

  // 根据 loaderIndex 来获取当前需要执行的 loader
	var currentLoaderObject = loaderContext.loaders[loaderContext.loaderIndex];

  // iterate
  // 如果被执行过,那么直接跳过这个 loader 的 pitch 函数
	if(currentLoaderObject.pitchExecuted) {
		loaderContext.loaderIndex++;
		return iteratePitchingLoaders(options, loaderContext, callback);
	}

	// 加载 loader 模块
	// load loader module
	loadLoader(currentLoaderObject, function(err) {
		// do something ...
	});
}

每次执行 pitch 函数前,首先根据 loaderIndex 来获取当前需要执行的 loader (currentLoaderObject),调用 loadLoader 函数来加载这个 loader,loadLoader 内部兼容了 SystemJS,ES Module,CommonJs 这些模块定义,最终会将 loader 提供的 pitch 方法和普通方法赋值到 currentLoaderObject 上:

// loadLoader.js
module.exports = function (loader, callback) {
  ...
  var module = require(loader.path)

  ...
  loader.normal = module

  loader.pitch = module.pitch

  loader.raw = module.raw

  callback()
  ...
}

当 loader 加载完后,开始执行 loadLoader 的回调:

loadLoader(currentLoaderObject, function(err) {
  var fn = currentLoaderObject.pitch; // 获取 pitch 函数
  currentLoaderObject.pitchExecuted = true;
  if(!fn) return iteratePitchingLoaders(options, loaderContext, callback); // 如果这个 loader 没有提供 pitch 函数,那么直接跳过

  // 开始执行 pitch 函数
  runSyncOrAsync(
    fn,
    loaderContext, [loaderContext.remainingRequest, loaderContext.previousRequest, currentLoaderObject.data = {}],
    function(err) {
      if(err) return callback(err);
      var args = Array.prototype.slice.call(arguments, 1);
      // Determine whether to continue the pitching process based on
      // argument values (as opposed to argument presence) in order
      // to support synchronous and asynchronous usages.
      // 根据是否有参数返回来判断是否向下继续进行 pitch 函数的执行
      var hasArg = args.some(function(value) {
        return value !== undefined;
      });
      if(hasArg) {
        loaderContext.loaderIndex--;
        iterateNormalLoaders(options, loaderContext, args, callback);
      } else {
        iteratePitchingLoaders(options, loaderContext, callback);
      }
    }
  );
})

这里出现了一个 runSyncOrAsync 方法,放到后文去讲,开始执行 pitch 函数,当 pitch 函数执行完后,执行传入的回调函数。我们看到回调函数里面会判断接收到的参数的个数,除了第一个 err 参数外,如果还有其他的参数(这些参数是 pitch 函数执行完后传入回调函数的),那么会直接进入 loader 的 normal 方法执行阶段,并且会直接跳过后面的 loader 执行阶段。如果 pitch 函数没有返回值的话,那么进入到下一个 loader 的 pitch 函数的执行阶段。让我们再回到 iteratePitchingLoaders 方法内部,当所有 loader 上面的 pitch 函数都执行完后,即 loaderIndex 索引值 >= loader 数组长度的时候:

function iteratePitchingLoaders () {
  ...

  if(loaderContext.loaderIndex >= loaderContext.loaders.length)
    return processResource(options, loaderContext, callback);

  ...
}

function processResource(options, loaderContext, callback) {
	// set loader index to last loader
	loaderContext.loaderIndex = loaderContext.loaders.length - 1;

	var resourcePath = loaderContext.resourcePath;
	if(resourcePath) {
		loaderContext.addDependency(resourcePath); // 添加依赖
		options.readResource(resourcePath, function(err, buffer) {
			if(err) return callback(err);
			options.resourceBuffer = buffer;
			iterateNormalLoaders(options, loaderContext, [buffer], callback);
		});
	} else {
		iterateNormalLoaders(options, loaderContext, [null], callback);
	}
}

在 processResouce 方法内部调用 node API readResouce 读取 module 对应路径的文本内容,调用 iterateNormalLoaders 方法,开始进入 loader normal 方法的执行阶段。

function iterateNormalLoaders () {
  if(loaderContext.loaderIndex < 0)
		return callback(null, args);

	var currentLoaderObject = loaderContext.loaders[loaderContext.loaderIndex];

	// iterate
	if(currentLoaderObject.normalExecuted) {
		loaderContext.loaderIndex--;
		return iterateNormalLoaders(options, loaderContext, args, callback);
	}

	var fn = currentLoaderObject.normal;
	currentLoaderObject.normalExecuted = true;
	if(!fn) {
		return iterateNormalLoaders(options, loaderContext, args, callback);
	}

  // buffer 和 utf8 string 之间的转化
	convertArgs(args, currentLoaderObject.raw);

	runSyncOrAsync(fn, loaderContext, args, function(err) {
		if(err) return callback(err);

		var args = Array.prototype.slice.call(arguments, 1);
		iterateNormalLoaders(options, loaderContext, args, callback);
	});
}

在 iterateNormalLoaders 方法内部就是依照从右到左的顺序(正好与 pitch 方法执行顺序相反)依次执行每个 loader 上的 normal 方法。loader 不管是 pitch 方法还是 normal 方法的执行可为同步的,也可设为异步的。这里说下 normal 方法的,一般如果你写的 loader 里面可能涉及到计算量较大的情况时,可将你的 loader 异步化,在你 loader 方法里面调用this.async方法,返回异步的回调函数,当你 loader 内部实际的内容执行完后,可调用这个异步的回调来进入下一个 loader 的执行。

module.exports = function (content) {
  const callback = this.async()
  someAsyncOperation(content, function(err, result) {
    if (err) return callback(err);
    callback(null, result);
  });
}

除了调用 this.async 来异步化 loader 之外,还有一种方式就是在你的 loader 里面去返回一个 promise,只有当这个 promise 被 resolve 之后,才会调用下一个 loader(具体实现机制见下文):

module.exports = function (content) {
  return new Promise(resolve => {
    someAsyncOpertion(content, function(err, result) {
      if (err) resolve(err)
      resolve(null, result)
    })
  })
}

这里还有一个地方需要注意的就是,上下游 loader 之间的数据传递过程中,如果下游的 loader 接收到的参数为一个,那么可以在上一个 loader 执行结束后,如果是同步就直接 return 出去:

module.exports = function (content) {
  // do something
  return content
}

如果是异步就直接调用异步回调传递下去(参见上面 loader 异步化)。如果下游 loader 接收的参数多于一个,那么上一个 loader 执行结束后,如果是同步那么就需要调用 loaderContext 提供的 callback 函数:

module.exports = function (content) {
  // do something
  this.callback(null, content, argA, argB)
}

如果是异步的还是继续调用异步回调函数传递下去(参见上面 loader 异步化)。具体的执行机制涉及到上文还没讲到的 runSyncOrAsync 方法,它提供了上下游 loader 调用的接口:

function runSyncOrAsync(fn, context, args, callback) {
	var isSync = true; // 是否为同步
	var isDone = false;
	var isError = false; // internal error
	var reportedError = false;
	// 给 loaderContext 上下文赋值 async 函数,用以将 loader 异步化,并返回异步回调
	context.async = function async() {
		if(isDone) {
			if(reportedError) return; // ignore
			throw new Error("async(): The callback was already called.");
		}
		isSync = false; // 同步标志位置为 false
		return innerCallback;
  };
  // callback 的形式可以向下一个 loader 多个参数
	var innerCallback = context.callback = function() {
		if(isDone) {
			if(reportedError) return; // ignore
			throw new Error("callback(): The callback was already called.");
		}
		isDone = true;
		isSync = false;
		try {
			callback.apply(null, arguments);
		} catch(e) {
			isError = true;
			throw e;
		}
	};
	try {
		// 开始执行 loader
		var result = (function LOADER_EXECUTION() {
			return fn.apply(context, args);
    }());
    // 如果为同步的执行
		if(isSync) {
      isDone = true;
      // 如果 loader 执行后没有返回值,执行 callback 开始下一个 loader 执行
			if(result === undefined)
        return callback();
      // loader 返回值为一个 promise 实例,待这个实例被resolve或者reject后执行下一个 loader。这也是 loader 异步化的一种方式
			if(result && typeof result === "object" && typeof result.then === "function") {
				return result.catch(callback).then(function(r) {
					callback(null, r);
				});
      }
      // 如果 loader 执行后有返回值,执行 callback 开始下一个 loader 执行
			return callback(null, result);
		}
	} catch(e) {
		// do something
	}
}

以上就是对于 module 在构建过程中 loader 执行流程的源码分析。可能平时在使用 webpack 过程了解相关的 loader 执行规则和策略,再配合这篇对于内部机制的分析,应该会对 webpack loader 的使用有更加深刻的印象。
