Android开源项目 RecyclerViewHelper 上拉加载更多/头尾布局/拖拽排序/侧滑删除/侧滑选择/万能分割线

521 阅读3分钟

转载请注明出处:juejin.cn/post/684490…

本文出自 容华谢后的博客

1.写在前面

2019年的第一篇文章,分享一个自己写的开源项目,主要是对RecyclerView控件的一些常用功能封装, 包括(上拉加载更多、头尾布局、拖拽排序、侧滑删除、侧滑选择、万能分割线)。

RecyclerViewHelper主要使用了装饰者模式对项目原有的Adapter进行功能扩展,不会影响项目的原有结构,集成和修改都非常方便,一起来看下。

GitHub传送门

2.引入依赖库

  • 在项目根目录的build.gradle文件中加入如下代码:
allprojects {
    repositories {
        maven { url "https://jitpack.io" }
    }
}
  • 在app根目录的buil.gradle文件中加入依赖:
dependencies {
    implementation 'com.github.alidili:RecyclerViewHelper:1.0.0'
}

截止此篇文章发布时,最新版本为1.0.0,最新版本可在GitHub中查看。

RecyclerViewHelper中使用的RecyclerView版本如下:

implementation "androidx.recyclerview:recyclerview:1.0.0"

3.上拉加载更多

效果图:

上拉加载更多

集成:

// CommonAdapter为项目原有Adapter
CommonAdapter commonAdapter = new CommonAdapter(mDataList);
mLoadMoreWrapper = new LoadMoreWrapper(commonAdapter);
// 自定义加载布局
customLoadingView();
mRecyclerView.setLayoutManager(new LinearLayoutManager(this));
mRecyclerView.setAdapter(mLoadMoreWrapper);

// 设置上拉加载监听
mRecyclerView.addOnScrollListener(new OnScrollListener() {
	@Override
	public void onLoadMore() {
		// 设置数据正在加载状态,可自定义布局
		mLoadMoreWrapper.setLoadStateNotify(mLoadMoreWrapper.LOADING);

		if (mDataList.size() < 52) {
			// 获取数据
			// 设置数据加载完成状态,可自定义布局
			mLoadMoreWrapper.setLoadStateNotify(mLoadMoreWrapper.LOADING_COMPLETE);
		} else {
			// 设置所有数据加载完成状态,可自定义布局
			mLoadMoreWrapper.setLoadStateNotify(mLoadMoreWrapper.LOADING_END);
		}
	}
});


// 刷新数据需要使用外层Adapter
mLoadMoreWrapper.notifyDataSetChanged();

自定义加载布局:

private void customLoadingView() {
	// 正在加载布局
	ProgressBar progressBar = new ProgressBar(this);
	mLoadMoreWrapper.setLoadingView(progressBar);

	// 所有数据加载完成布局
	TextView textView = new TextView(this);
	textView.setText("End");
	mLoadMoreWrapper.setLoadingEndView(textView);

	// 布局高度
	mLoadMoreWrapper.setLoadingViewHeight(DensityUtils.dp2px(this, 50));
}

4.头尾布局

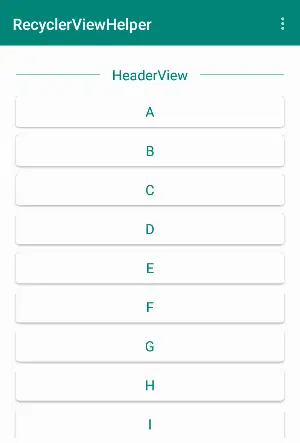

效果图:

头尾布局

集成:

// CommonAdapter为项目原有Adapter
CommonAdapter commonAdapter = new CommonAdapter(mDataList);
mHeaderAndFooterWrapper = new HeaderAndFooterWrapper(commonAdapter);
// 添加头尾布局
addHeaderAndFooterView();
mRecyclerView.setLayoutManager(new LinearLayoutManager(this));
mRecyclerView.setAdapter(mHeaderAndFooterWrapper);

// 刷新数据需要使用外层Adapter
mHeaderAndFooterWrapper.notifyDataSetChanged();

添加头尾布局:

private void addHeaderAndFooterView() {
	// 头布局
	View headerView = View.inflate(this, R.layout.layout_header_footer, null);
	TextView headerItem = headerView.findViewById(R.id.tv_item);
	headerItem.setText("HeaderView");
	mHeaderAndFooterWrapper.addHeaderView(headerView);

	// 尾布局
	View footerView = View.inflate(this, R.layout.layout_header_footer, null);
	TextView footerItem = footerView.findViewById(R.id.tv_item);
	footerItem.setText("FooterView");
	mHeaderAndFooterWrapper.addFooterView(footerView);
}

5.拖拽排序

效果图:

拖拽排序

集成:

// CommonAdapter为项目原有Adapter
CommonAdapter commonAdapter = new CommonAdapter(mDataList);
// 拖拽事件响应时间默认为200ms,可自定义
mDragAndDropWrapper = new DragAndDropWrapper(commonAdapter, mDataList, 200);
mDragAndDropWrapper.attachToRecyclerView(mRecyclerView, true);
mRecyclerView.setLayoutManager(new LinearLayoutManager(this));
mRecyclerView.setAdapter(mDragAndDropWrapper);

// 刷新数据需要使用外层Adapter
mDragAndDropWrapper.notifyDataSetChanged();

6.侧滑删除

效果图:

侧滑删除

集成:

// CommonAdapter为项目原有Adapter
CommonAdapter commonAdapter = new CommonAdapter(mDataList);
mSwipeToDismissWrapper = new SwipeToDismissWrapper(commonAdapter, mDataList);
mSwipeToDismissWrapper.attachToRecyclerView(mRecyclerView);
mRecyclerView.setLayoutManager(new LinearLayoutManager(this));
mRecyclerView.setAdapter(mSwipeToDismissWrapper);

// 设置删除事件监听
mSwipeToDismissWrapper.setItemDismissListener(new ItemSwipeCallback.ItemDismissListener() {
	@Override
	public void onItemDismiss(final int position) {
		// TODO
	}
});

// 刷新数据需要使用外层Adapter
mSwipeToDismissWrapper.notifyDataSetChanged();

7.侧滑选择

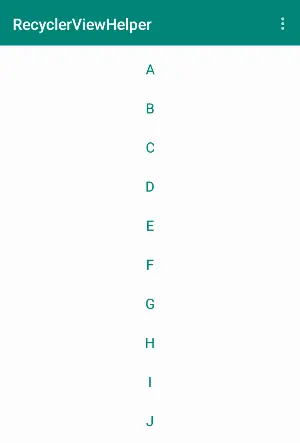

效果图:

侧滑选择

集成:

<?xml version="1.0" encoding="utf-8"?>
<com.yl.recyclerview.widget.SlideItemView xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/slide_item"
    android:layout_width="match_parent"
    android:layout_height="40dp">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="horizontal">

        // Item布局

        <LinearLayout
            android:layout_width="140dp"
            android:layout_height="match_parent"
            android:orientation="horizontal">

            // 功能按钮

        </LinearLayout>

    </LinearLayout>

</com.yl.recyclerview.widget.SlideItemView>

SlideItemView控件是通用的,不局限于RecyclerView,也可以配合其他控件或者单独使用。

8.万能分割线

效果图:

万能分割线

集成:

// CommonAdapter为项目原有Adapter
mDividerAdapter = new DividerAdapter(mDataList);
LinearLayoutManager linearLayoutManager = new LinearLayoutManager(this);
mRecyclerView.setLayoutManager(linearLayoutManager);

// 设置分割线
SuperDividerItemDecoration dividerItemDecoration = new SuperDividerItemDecoration(this, linearLayoutManager);
// 分割线样式可自定义
dividerItemDecoration.setDrawable(getResources().getDrawable(R.drawable.custom_bg_divider));
mRecyclerView.addItemDecoration(dividerItemDecoration);
mRecyclerView.setAdapter(mDividerAdapter);

分割线样式:

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">
    <size
        android:width="5dp"
        android:height="5dp" />
    <solid android:color="@color/colorPrimary" />
</shape>

9.写在最后

到这里,RecyclerViewHelper的基本功能就介绍完了,如有问题可以给我留言评论或者在GitHub中提交Issues,谢谢!

GitHub传送门

RecyclerViewHelper项目后续还会增加更多常用功能,Kotlin版本正在开发中,敬请期待!
