ThreadPool线程池的理解(二)

1,274

线程池的创建

了解之前的内容后,我们就可以创建自己的线程池了。

定义几个关键的参数:
private static final int CORE_POOL_SIZE = Runtime.getRuntime().availableProcessors() * 2; // 核心线程数为 CPU 数*2
private static final int MAXIMUM_POOL_SIZE = 64;    // 线程池最大线程数
private static final int KEEP_ALIVE_TIME = 1;    // 保持存活时间 1秒
定义一个阻塞队列:

从构造函数里可以看到 BlockingQueue<Runnable> workQueue是一个接口,它有几个常用的实现类:

1.ArrayBlockingQueue:基于数组、有界,按 FIFO(先进先出)原则对元素进行排序

2.LinkedBlockingQueue:基于链表,按FIFO (先进先出) 排序元素 吞吐量通常要高于 ArrayBlockingQueue

3.SynchronousQueue:不存储元素的阻塞队列 每个插入操作必须等到另一个线程调用移除操作,否则插入操作一直处于阻塞状态 吞吐量通常要高于LinkedBlockingQueue

4.PriorityBlockingQueue:具有优先级的、无限阻塞队列

这里可以根据处理的任务类型选择不同的阻塞队列

如果是要求高吞吐量的,可以使用 SynchronousQueue 队列;如果对执行顺序有要求,可以使用 PriorityBlockingQueue;如果最大积攒的待做任务有上限,可以使用 LinkedBlockingQueue。

创建ThreadFactory
private final ThreadFactory DEFAULT_THREAD_FACTORY = new ThreadFactory() {
    private final AtomicInteger mCount = new AtomicInteger(1);

    public Thread newThread(Runnable r) {
        Thread thread = new Thread(r, TAG + " #" + mCount.getAndIncrement());
        thread.setPriority(Thread.NORM_PRIORITY);
        return thread;
    }
};
创建线程池
private ThreadPoolExecutor mExecutor = new ThreadPoolExecutor(CORE_POOL_SIZE, MAXIMUM_POOL_SIZE, KEEP_ALIVE_TIME,
        TimeUnit.SECONDS, mWorkQueue, DEFAULT_THREAD_FACTORY,
        new ThreadPoolExecutor.DiscardOldestPolicy());

这里选用的饱和策略为 DiscardOldestPolicy。

完整代码

public class ThreadPoolManager {
    private final String TAG = this.getClass().getSimpleName();
    private static final int CORE_POOL_SIZE = Runtime.getRuntime().availableProcessors() * 2; // 核心线程数为 CPU数*2
    private static final int MAXIMUM_POOL_SIZE = 64;    // 线程队列最大线程数
    private static final int KEEP_ALIVE_TIME = 1;    // 保持存活时间 1秒

    private final BlockingQueue<Runnable> mWorkQueue = new LinkedBlockingQueue<>(128);

    private final ThreadFactory DEFAULT_THREAD_FACTORY = new ThreadFactory() {
        private final AtomicInteger mCount = new AtomicInteger(1);

        public Thread newThread(Runnable r) {
            Thread thread = new Thread(r, TAG + " #" + mCount.getAndIncrement());
            thread.setPriority(Thread.NORM_PRIORITY);
            return thread;
        }
    };

    private ThreadPoolExecutor mExecutor = new ThreadPoolExecutor(CORE_POOL_SIZE, MAXIMUM_POOL_SIZE, KEEP_ALIVE_TIME,
            TimeUnit.SECONDS, mWorkQueue, DEFAULT_THREAD_FACTORY,
            new ThreadPoolExecutor.DiscardOldestPolicy());

    private static volatile ThreadPoolManager mInstance = new ThreadPoolManager();

    public static ThreadPoolManager getInstance() {
        return mInstance;
    }

    public void addTask(Runnable runnable) {
        mExecutor.execute(runnable);
    }

    @Deprecated
    public void shutdownNow() {
        mExecutor.shutdownNow();
    }
}

JDK提供的几个线程池

JDK 为我们内置了五种常见线程池的实现,均可以使用 Executors 工厂类创建。 java.util.concurrent.Executors.

newFixedThreadPool
public static ExecutorService newFixedThreadPool(int nThreads) {
    return new ThreadPoolExecutor(nThreads, nThreads,
                                  0L, TimeUnit.MILLISECONDS,
                                  new LinkedBlockingQueue<Runnable>());
}

可以看到,FixedThreadPool 的核心线程数和最大线程数都是指定值,也就是说当线程池中的线程数超过核心线程数后,任务都会被放到阻塞队列中。

此外 keepAliveTime 为 0,也就是多余的空余线程会被立即终止(由于这里没有多余线程,这个参数也没什么意义了)。

而这里选用的阻塞队列是 LinkedBlockingQueue,使用的是默认容量 Integer.MAX_VALUE,相当于没有上限。

因此这个线程池执行任务的流程如下:

线程数少于核心线程数,也就是设置的线程数时,新建线程执行任务 线程数等于核心线程数后,将任务加入阻塞队列 由于队列容量非常大,可以一直加加加 执行完任务的线程反复去队列中取任务执行。

FixedThreadPool 用于负载比较重的服务器,为了资源的合理利用,需要限制当前线程数量。

newSingleThreadExecutor
public static ExecutorService newSingleThreadExecutor() {
    return new FinalizableDelegatedExecutorService
        (new ThreadPoolExecutor(1, 1,
                                0L, TimeUnit.MILLISECONDS,
                                new LinkedBlockingQueue<Runnable>()));
}

从参数可以看出来,SingleThreadExecutor 相当于特殊的 FixedThreadPool,它的执行流程如下:

线程池中没有线程时,新建一个线程执行任务 有一个线程以后,将任务加入阻塞队列,不停加加加 唯一的这一个线程不停地去队列里取任务执行。

SingleThreadExecutor 用于串行执行任务的场景,每个任务必须按顺序执行,不需要并发执行。

newCachedThreadPool
public static ExecutorService newCachedThreadPool() {
    return new ThreadPoolExecutor(0, Integer.MAX_VALUE,
                                  60L, TimeUnit.SECONDS,
                                  new SynchronousQueue<Runnable>());
}

可以看到,CachedThreadPool 没有核心线程,非核心线程数无上限,空闲的时间只有 60 秒,超过后就会被回收。

CachedThreadPool 使用的队列是 SynchronousQueue,这个队列的作用就是传递任务,并不会保存。

因此当提交任务的速度大于处理任务的速度时,每次提交一个任务,就会创建一个线程。极端情况下会创建过多的线程,耗尽 CPU 和内存资源。

它的执行流程如下:

没有核心线程,直接向 SynchronousQueue 中提交任务 如果有空闲线程,就去取出任务执行;如果没有空闲线程,就新建一个 执行完任务的线程有 60 秒生存时间,如果在这个时间内可以接到新任务,就可以继续活下去,否则就拜拜 由于空闲 60 秒的线程会被终止,长时间保持空闲的 CachedThreadPool 不会占用任何资源。

CachedThreadPool 用于并发执行大量短期的小任务,或者是负载较轻的服务器。

newScheduledThreadPool
public static ScheduledExecutorService newScheduledThreadPool(int corePoolSize) {
    return new ScheduledThreadPoolExecutor(corePoolSize);
}
public ScheduledThreadPoolExecutor(int corePoolSize) {
    super(corePoolSize, Integer.MAX_VALUE,
          DEFAULT_KEEPALIVE_MILLIS, MILLISECONDS,
          new DelayedWorkQueue());
}
private static final long DEFAULT_KEEPALIVE_MILLIS = 10L;

ScheduledThreadPoolExecutor 继承自 ThreadPoolExecutor, 最多线程数为 Integer.MAX_VALUE ,使用 DelayedWorkQueue 作为任务队列。

ScheduledThreadPoolExecutor 用于需要多个后台线程执行周期任务,同时需要限制线程数量的场景。

newWorkStealingPool

这是jdk1.8之后的新的一种线程池。

* @param parallelism the targeted parallelism level
     * @return the newly created thread pool
     * @throws IllegalArgumentException if {@code parallelism <= 0}
     * @since 1.8
     */
    public static ExecutorService newWorkStealingPool(int parallelism) {
        return new ForkJoinPool
            (parallelism,
             ForkJoinPool.defaultForkJoinWorkerThreadFactory,
             null, true);
    }

最终调用的是另外一个类 ForkJoinPool

 public ForkJoinPool(int parallelism,
                        ForkJoinWorkerThreadFactory factory,
                        UncaughtExceptionHandler handler,
                        boolean asyncMode) {
        this(checkParallelism(parallelism),
             checkFactory(factory),
             handler,
             asyncMode ? FIFO_QUEUE : LIFO_QUEUE,
             "ForkJoinPool-" + nextPoolId() + "-worker-");
        checkPermission();
    }

ExecutorService 提供了两种提交任务的方法:

execute():提交不需要返回值的任务

submit():提交需要返回值的任务

转折

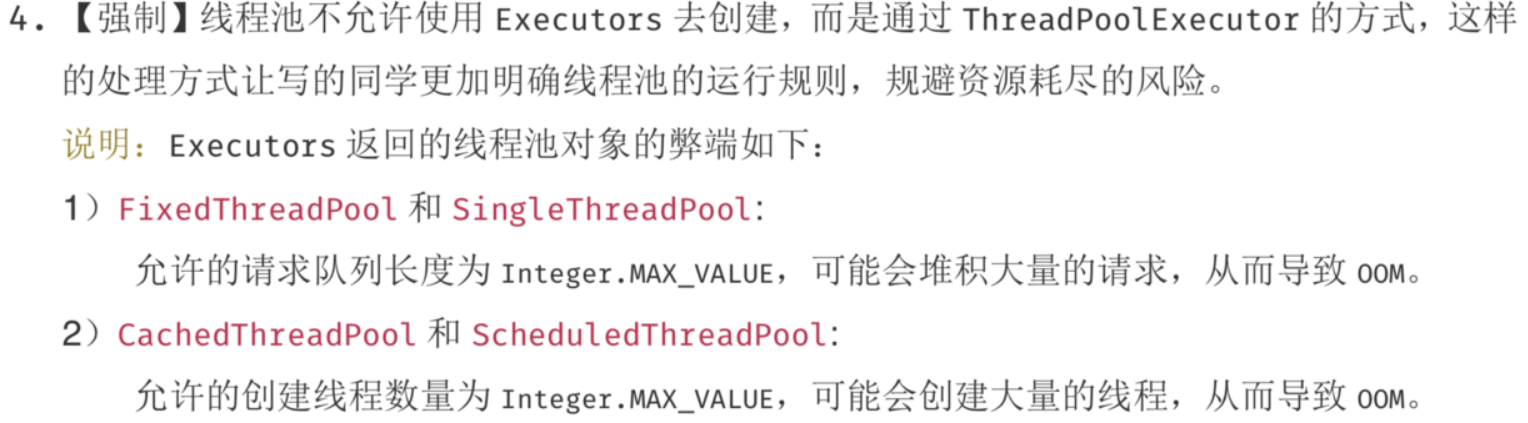

阿里巴巴的Java开发手册中明确地指出,不允许使用Executors来创建线程池。

不能使用Executors创建线程池,那我们就直接调用ThreadPoolExecutor的构造函数来创建线程。

其实Executors就是这么做的,只不过没有对BlockQueue指定容量。我们需要做的就是在创建的时候指定容量。

参考:blog.csdn.net/xiongyouqia…
