基于Maven的Spring + Spring MVC + Mybatis的环境搭建项目开发，先将环境先搭建起来。上次做了一个Spring + Spring MVC + Mybatis + Log4J + JUnit Test的环境搭建，这次也差不多，不过就是基于了Maven，同时也添加了事务管理。
首先，可以去了解一下maven，个人觉得这个东西就是JAR包管理方便，不用自己一个个去写，直接添加dependence就行了，不过有时候要注意哟，有可能重复的包含了某个JAR包，会报冲突的哟，亲！因为只有一个POM文件里指定JAR包，所以整个项目都很小的，一般就几MB，只有你在将该项目打成WAR包的时候，maven会自动的把三方JAR包放进项目，然后你就可以去部署到Tomcat的webapp下面了，放进去，重启Tomcat就OK。

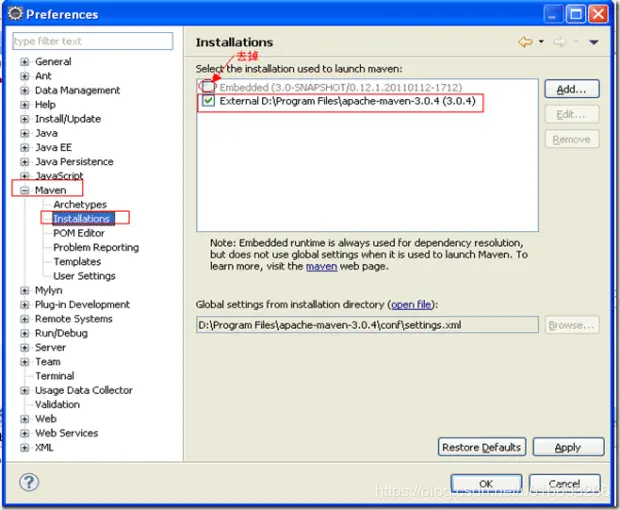

1.开始搭建我的环境吧。首先，IDE我用的是eclipse的JEE版本。要保证装上了Maven哟，可以使用eclipse的Install New Software， URL地址是http://m2eclipse.sonatype.org/sites/m2e/， 然后一步步走下去，安装好了过了会重启一次。给一个忠告哟，安装好了maven后，不要使用IDE里面的了，而是去官方下载一个，解压，然后让IDE的Maven指向你下载安装的，如图：

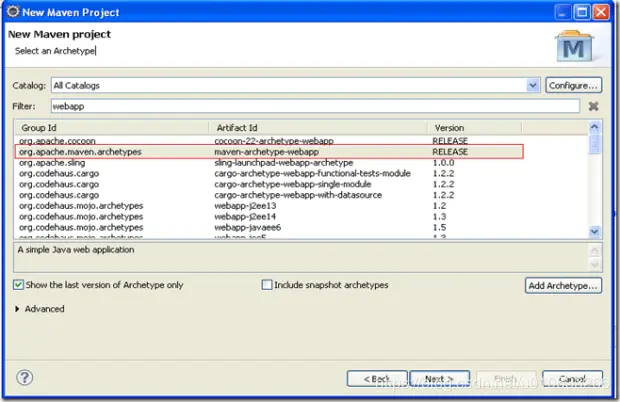

3.然后next，输入groupId:net.yuanmomo；artifactId:Test，然后finish，稍微等待一下，就创建好了。下面的是创建好了的一个初始的项目：

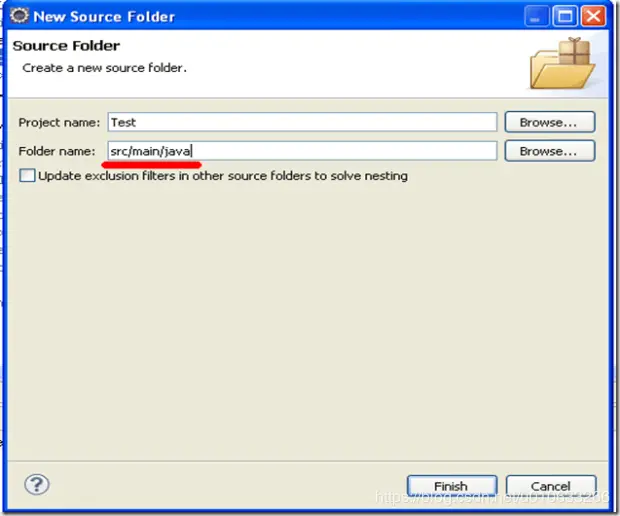

4.但是这个并不是默认的maven项目的标准结构.我们需要进行一些改动. (1).在项目下创建一个Source Folder. Folder Name:src/main/java 如下图所示:

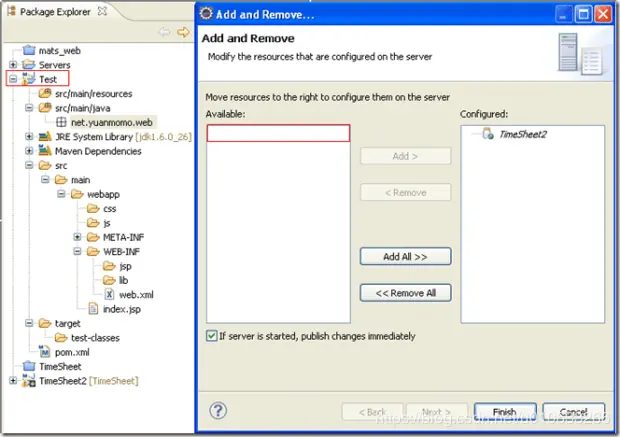

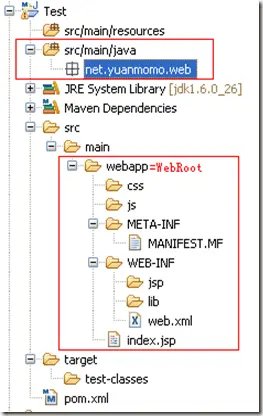

5.大家一看上面的项目结构，很熟悉吧。maven的项目结构路径有点讨厌，有点让人很烦。maven打WAR包的时候提取的东西是src/main/webapp下面的文件，然后打成一个WAR的WEB项目就可以部署了，但是，但是，我们在开发的时候，在使用eclipse里面的Tomcat调试的时候，tomcat却不是把src/main/webapp下面的文件部署到服务器。此时，如果你打开Server,然后add and remove，你在左边是找不到Test项目的，如下：

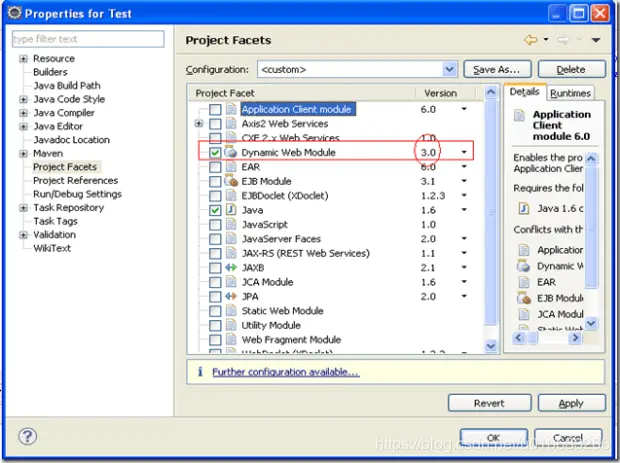

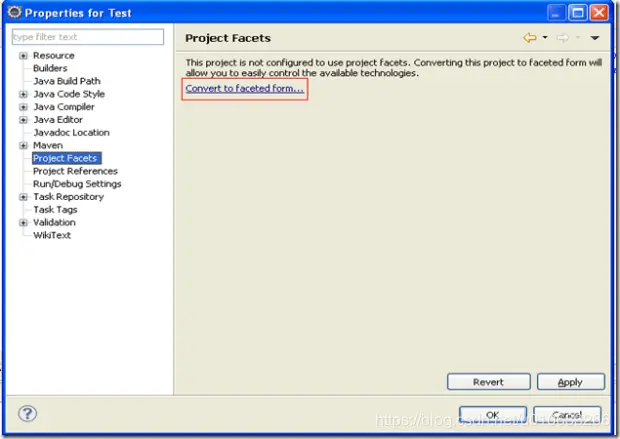

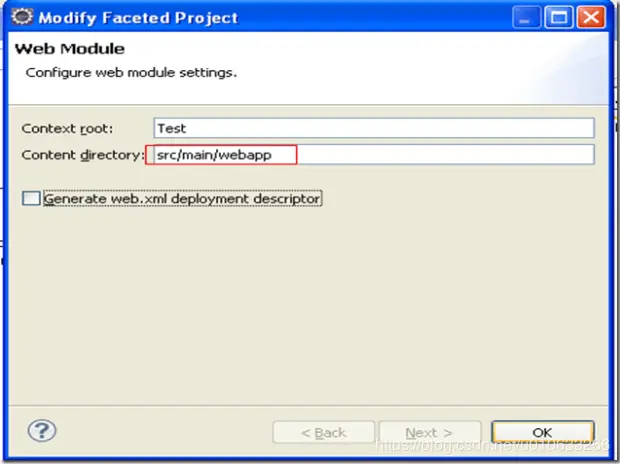

(5.1). 在Test项目的路径下面，按照路径规则创建WebRoot，WEB-INF等文件夹，然后把上面的web.xml拷贝到新建的WEB-INF中去。放心吧，我上一个项目就是这样做的，不过这种方式打死都不可取的。你修改JSP的时候改的是下面的，maven打包的时候用的上面的。你还得拷贝过来，拷过去，麻烦，如果再有svn管理，累死你，晕死你，我们经常是调试编写的时候再下面做，最后提交的时候还得一个个拷贝上去，还出很多问题。所以建议采用第二种方式。 (5.2).转换该项目: (1)在Test工程名上右键–>Properties–>Project Facets–>Convet to faceted form,
6.先给出数据库的创建脚本，方便测试搭建是否成功。
SET SQL_MODE="NO_AUTO_VALUE_ON_ZERO";
—
— 数据库: `timesheet`
—
CREATE DATABASE `timesheet` DEFAULT CHARACTER SET utf8 COLLATE utf8_bin;
USE `timesheet`;
— ——————————————————–
—
— 表的结构 `testtable`
—
CREATE TABLE IF NOT EXISTS `testtable` (
`id` int(10) unsigned NOT NULL AUTO_INCREMENT,
`name` varchar(50) COLLATE utf8_bin DEFAULT NULL,
`date` timestamp NULL DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin AUTO_INCREMENT=1 ;
7.在pom文件中添加必要的jar包的dependence，可以从两个地方查询：
mvnrepository.com/ search.maven.org/ 添加后的pom文件如下：
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>net.yuanmomo</groupId> <artifactId>Test</artifactId> <packaging>war</packaging> <version>0.0.1-SNAPSHOT</version> <name>Test Maven Webapp</name> <url>http://maven.apache.org</url> <!– 设置 Spring 的版本 –> <properties> <org.springframework.version>3.0.0.RELEASE</org.springframework.version> </properties> <dependencies> <!– 此处开始就是Spring 所有的jar了，spring3.0的jar包拆分了，所以很多 –> <!– Core utilities used by other modules. Define this if you use Spring Utility APIs (org.springframework.core.*/org.springframework.util.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-core</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Expression Language (depends on spring-core) Define this if you use Spring Expression APIs (org.springframework.expression.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-expression</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Bean Factory and JavaBeans utilities (depends on spring-core) Define this if you use Spring Bean APIs (org.springframework.beans.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-beans</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Aspect Oriented Programming (AOP) Framework (depends on spring-core, spring-beans) Define this if you use Spring AOP APIs (org.springframework.aop.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-aop</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Application Context (depends on spring-core, spring-expression, spring-aop, spring-beans) This is the central artifact for Spring’s Dependency Injection Container and is generally always defined –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-context</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Various Application Context utilities, including EhCache, JavaMail, Quartz, and Freemarker integration Define this if you need any of these integrations –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-context-support</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Transaction Management Abstraction (depends on spring-core, spring-beans, spring-aop, spring-context) Define this if you use Spring Transactions or DAO Exception Hierarchy (org.springframework.transaction.*/org.springframework.dao.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-tx</artifactId> <version>${org.springframework.version}</version> </dependency> <!– JDBC Data Access Library (depends on spring-core, spring-beans, spring-context, spring-tx) Define this if you use Spring’s JdbcTemplate API (org.springframework.jdbc.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-jdbc</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Object-to-Relation-Mapping (ORM) integration with Hibernate, JPA, and iBatis. (depends on spring-core, spring-beans, spring-context, spring-tx) Define this if you need ORM (org.springframework.orm.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-orm</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Object-to-XML Mapping (OXM) abstraction and integration with JAXB, JiBX, Castor, XStream, and XML Beans. (depends on spring-core, spring-beans, spring-context) Define this if you need OXM (org.springframework.oxm.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-oxm</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Web application development utilities applicable to both Servlet and Portlet Environments (depends on spring-core, spring-beans, spring-context) Define this if you use Spring MVC, or wish to use Struts, JSF, or another web framework with Spring (org.springframework.web.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-web</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Spring MVC for Servlet Environments (depends on spring-core, spring-beans, spring-context, spring-web) Define this if you use Spring MVC with a Servlet Container such as Apache Tomcat (org.springframework.web.servlet.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Spring MVC for Portlet Environments (depends on spring-core, spring-beans, spring-context, spring-web) Define this if you use Spring MVC with a Portlet Container (org.springframework.web.portlet.*) –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc-portlet</artifactId> <version>${org.springframework.version}</version> </dependency> <!– Support for testing Spring applications with tools such as JUnit and TestNG This artifact is generally always defined with a ‘test’ scope for the integration testing framework and unit testing stubs –> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-test</artifactId> <version>${org.springframework.version}</version> <scope>test</scope> </dependency> <!– 上面的都是Spring的jar包，可以选择性的添加 –> <!– Mybatis 开发包 –> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis-spring</artifactId> <version>1.1.1</version> </dependency> <!– Mybatis 和Spring的 整合包，是mybatis出的–> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.1.1</version> </dependency> <!– tomcat servlet开发包 –> <dependency> <groupId>javax.servlet</groupId> <artifactId>jstl</artifactId> <version>1.2</version> </dependency> <!– JSTL标签库 –> <dependency> <groupId>javax.servlet</groupId> <artifactId>servlet-api</artifactId> <version>2.5</version> </dependency> <!– mysql的数据库驱动包 –> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.21</version> </dependency> <!– 日志打印 log4j包 –> <dependency> <groupId>log4j</groupId> <artifactId>log4j</artifactId> <version>1.2.14</version> <scope>runtime</scope> </dependency> <!– 下面两个包 commons-dbcp,commons-pool 是配置数据源的包–> <dependency> <groupId>commons-dbcp</groupId> <artifactId>commons-dbcp</artifactId> <version>1.4</version> </dependency> <dependency> <groupId>commons-pool</groupId> <artifactId>commons-pool</artifactId> <version>1.4</version> </dependency> <!– 日志记录依赖包，很多都依赖此包，像log4j,json-lib等等 –> <dependency> <groupId>commons-logging</groupId> <artifactId>commons-logging-api</artifactId> <version>1.1</version> </dependency> <!– Spring 文件上传的包 –> <dependency> <groupId>commons-fileupload</groupId> <artifactId>commons-fileupload</artifactId> <version>1.2.2</version> </dependency> <!– Spring 文件上传的依赖包 –> <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-io</artifactId> <version>1.3.2</version> </dependency> <!– dom4j 解析 XML文件的包 –> <dependency> <groupId>dom4j</groupId> <artifactId>dom4j</artifactId> <version>1.6.1</version> </dependency> <!– 下面的三个包是在配置事务的时候用到的 spring的依赖包 –> <dependency> <groupId>org.aspectj</groupId> <artifactId>aspectjweaver</artifactId> <version>1.7.0</version> </dependency> <dependency> <groupId>aopalliance</groupId> <artifactId>aopalliance</artifactId> <version>1.0</version> </dependency> <dependency> <groupId>cglib</groupId> <artifactId>cglib-nodep</artifactId> <version>2.2.2</version> </dependency> <!– JSON lib 开发包 以及它的依赖包 –> <dependency> <groupId>net.sf.json-lib</groupId> <artifactId>json-lib</artifactId> <classifier>jdk15</classifier> <version>2.4</version> </dependency> <dependency> <groupId>commons-beanutils</groupId> <artifactId>commons-beanutils</artifactId> <version>1.8.3</version> </dependency> <dependency> <groupId>commons-collections</groupId> <artifactId>commons-collections</artifactId> <version>3.2.1</version> </dependency> <dependency> <groupId>commons-lang</groupId> <artifactId>commons-lang</artifactId> <version>2.6</version> </dependency> <dependency> <groupId>net.sf.ezmorph</groupId> <artifactId>ezmorph</artifactId> <version>1.0.5</version> </dependency> <!– junit 测试包 –> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>3.8.1</version> <scope>test</scope> </dependency> </dependencies> <build> <finalName>Test</finalName> </build> </project>

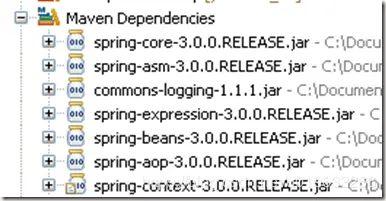

修改pom文件后，保存，maven会自动的去download这些jar包到本地。等待的时间可能会很长。上面我把所有我这次项目用到的包都罗列出来了，如果你用不到的，可以自行删除。 下载完成过后，点开项目左侧的Maven Dependencies，你就能看到很多的下载的JAR包了。
8. 修改web.xml，配置Spring，spring MVC，log4j，乱码处理等。
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5"> <!– Spring context startup Spring的初始化–> <context-param> <param-name>contextConfigLocation</param-name> <param-value><!– Spring的配置文件 –> classpath:/com/comverse/timesheet/config/ApplicationContext.xml </param-value> </context-param> <listener> <listener-class> org.springframework.web.context.ContextLoaderListener </listener-class> </listener> <!– Spring character filter 处理乱码–> <filter> <filter-name>encodingFilter</filter-name> <filter-class> org.springframework.web.filter.CharacterEncodingFilter </filter-class> <init-param> <param-name>encoding</param-name> <param-value>UTF-8</param-value> </init-param> </filter> <filter-mapping> <filter-name>encodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <!– Configuration of Log4j log4j的配置 –> <context-param> <param-name>log4jConfigLocation</param-name> <param-value><!– log4j.properties文件路径 –> classpath:/com/comverse/timesheet/config/log4j.properties </param-value> </context-param> <context-param> <param-name>log4jRefreshInterval</param-name> <param-value>60000</param-value> </context-param> <listener> <listener-class> org.springframework.web.util.Log4jConfigListener </listener-class> </listener> <!– Spring MVC Configuration Spring MVC的配置–> <servlet> <servlet-name>dispatcher</servlet-name> <servlet-class> org.springframework.web.servlet.DispatcherServlet </servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <param-value><!– dispatcher-servlet.xml文件路径 –> classpath:/com/comverse/timesheet/config/dispatcher-servlet.xml </param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>dispatcher</servlet-name> <url-pattern>*.do</url-pattern> </servlet-mapping> </web-app>
修改后保存该文件。
9.添加 log4j.properties,jdbc.properties等配置文件：

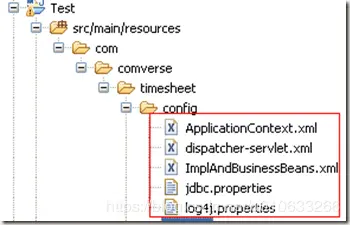

路径位置：
#配置了控制台和文本记录两种方式 log4j.rootLogger=DEBUG,CONSOLE,FILEOUT log4j.addivity.org.apache=true# CONSOLE log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender log4j.appender.Threshold=DEBUG log4j.appender.CONSOLE.Target=System.out log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout #log4j.appender.CONSOLE.layout.ConversionPattern=[framework] %d – %c -%-4r [%t] %-5p %c %x – %m%n log4j.appender.CONSOLE.layout.ConversionPattern=[%-5p] %d{yyyy-MM-dd HH\:mm\:ss} \:%m%n# # FILEOUT log4j.appender.FILEOUT=org.apache.log4j.RollingFileAppender log4j.appender.FILEOUT.File=${catalina.home}\\file.log log4j.appender.fileout.MaxFileSize=100000KB # default is true，append to the file; if false, the replace the log file whenever restart system log4j.appender.FILEOUT.Append=true #RollingFileAppender没有DatePattern这个属性 log4j.appender.FILEOUT.layout=org.apache.log4j.PatternLayout #log4j.appender.CONSOLE.layout.ConversionPattern=[framework] %d – %c -%-4r [%t] %-5p %c %x – %m%n log4j.appender.FILEOUT.layout.ConversionPattern=[%-5p]_%d{yyyy-MM-dd HH:mm:ss} :%m%n
(2). jdbc.properties: 数据库连接信息的配置
driver=com.mysql.jdbc.Driver url=jdbc:mysql://localhost:3306/timesheet user=root password=root
(3). ApplicationContext.xml: Spring的配置文件
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-2.5.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd"> <!– jdbc.properties文件路径 –> <bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer"> <property name="locations" value="classpath:/com/comverse/timesheet/config/jdbc.properties" /> </bean> <!– 数据源的配置 –> <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close"> <property name="driverClassName" value="${driver}" /> <property name="url" value="${url}" /> <property name="username" value="${user}" /> <property name="password" value="${password}" /> <!– data source configuration –> <property name="initialSize" value="60" /><!– initial connections –> <property name="maxActive" value="100" /><!– MAX connections –> <property name="maxIdle" value="50" /><!– MAX idle connections –> <property name="minIdle" value="10" /><!– MIN idle connections –> <!– 处理mysql 8小时自动断开连接的问题 –> <property name="testWhileIdle" value="true" /> <property name="testOnBorrow" value="false" /> <property name="testOnReturn" value="false" /> <property name="validationQuery" value="select 1" /> <property name="timeBetweenEvictionRunsMillis" value="20000" /> <property name="numTestsPerEvictionRun" value="100" /> </bean> <!–====事务相关控制==–> <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager"> <property name="dataSource" ref="dataSource" /> </bean> <tx:advice id="userTxAdvice" transaction-manager="transactionManager"> <tx:attributes> <tx:method name="*" propagation="REQUIRED" read-only="false" rollback-for="java.lang.Exception"/> </tx:attributes> </tx:advice> <aop:config> <aop:pointcut id="pc" expression="execution(* com.comverse.timesheet.web.business.*.*(..))" /> <!– 把事务控制在Business层 –> <aop:advisor pointcut-ref="pc" advice-ref="userTxAdvice" /> </aop:config> <!– MyBatis sqlSessionFactory 配置 mybatis–> <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean"> <property name="configLocation" value="classpath:/com/comverse/timesheet/mybatis/SqlMapConfig.xml" /> <property name="dataSource" ref="dataSource" /> </bean> <bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate"> <constructor-arg index="0" ref="sqlSessionFactory" /> </bean> <!– business AND implementation beans 包含ImplAndBusinessBeans.xml文件 –> <import resource="ImplAndBusinessBeans.xml" /> </beans>
(4). dispatcher-servlet: Spring MVC的配置文件
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd"> <context:annotation-config /> <!– 把标记了@Controller注解的类转换为bean –> <context:component-scan base-package="com.comverse.timesheet.web.controller" /> <!– 启动Spring MVC的注解功能，完成请求和注解POJO的映射 –> <bean class="org.springframework.web.servlet.mvc. annotation.AnnotationMethodHandlerAdapter" /> <!– 视图 beans –> <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver" p:prefix="/WEB-INF/jsp/" p:suffix=".jsp" /> <!– Controller 跳转的JSP页面路径 和 文件的后缀 –> <!– 文件上传 –> <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver"> <!– set the max upload size100MB –> <property name="maxUploadSize"> <value>104857600</value> </property> <property name="maxInMemorySize"> <value>1024000</value> </property> </bean> </beans>
(5). ImplAndBusinessBeans.xml: 这个文件主要放置implementation 和 Business的 bean 对象。
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-2.5.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd"><!– 这两个类的具体实现会在后面给出来–> <bean id="ITestTableDAOImpl" class="com.comverse.timesheet.web.impl.ITestTableDAOImpl"> <property name="session" ref="sqlSession" /> </bean> <bean id="TestBusiness" class="com.comverse.timesheet.web.business.TestBusiness"> <property name="testDAO" ref="ITestTableDAOImpl" /> </bean> </beans>
此时，几个主要的配置文件我们已经加进来了，只有mybatis还有几个配置文件没有加进来。

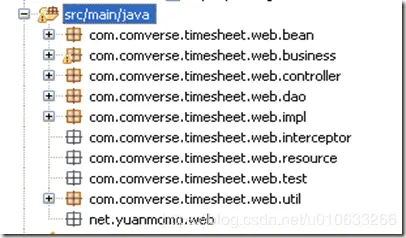

10. 创建包，用于开发系统：
10. 创建本次测试的java文件
(1). bean : TestTable.java:
package com.comverse.timesheet.web.bean;import java.util.Date;public class TestTable { private int id; private String name; private Date birthday; //setter and getter …………….}
(2). dao : ITestTableDAO.java
package com.comverse.timesheet.web.dao;import com.comverse.timesheet.web.bean.TestTable;public interface ITestTableDAO { public boolean add(TestTable test) throws Exception; }
(3). impl : ITestTableDAOImpl:
package com.comverse.timesheet.web.impl;import com.comverse.timesheet.web.bean.TestTable; import com.comverse.timesheet.web.dao.ITestTableDAO; import com.comverse.timesheet.web.util.BasicSqlSupport;public class ITestTableDAOImpl extends BasicSqlSupport implements ITestTableDAO { @Override public boolean add(TestTable test) throws Exception { boolean flag=false; int count=this.session.insert("com.comverse.timesheet.web.mapper.Test.add",test); if(count>0){ flag=true; } return flag; } }
(4). business: TestBusiness.java
package com.comverse.timesheet.web.business;import java.util.Date;import javax.annotation.Resource;import org.springframework.transaction.annotation.Transactional;import com.comverse.timesheet.web.bean.TestTable; import com.comverse.timesheet.web.dao.ITestTableDAO;public class TestBusiness { private ITestTableDAO testDAO=null; public ITestTableDAO getTestDAO() { return testDAO; } public void setTestDAO(ITestTableDAO testDAO) { this.testDAO = testDAO; } public void add() throws Exception{ TestTable test=new TestTable(); test.setName("yuanmomo6"); test.setBirthday(new Date()); try { testDAO.add(test); } catch (Exception e) { // TODO Auto-generated catch block throw e; } } }
(5). Controller : ResultController
package com.comverse.timesheet.web.controller;import javax.annotation.Resource; import javax.servlet.http.HttpServletRequest;import org.springframework.stereotype.Controller; import org.springframework.ui.ModelMap; import org.springframework.web.bind.annotation.RequestMapping;import com.comverse.timesheet.web.business.TestBusiness;@Controller @RequestMapping("/result.do") public class ResultController { //将spring 配置文件中的bean 通过setter注入进来 @Resource(name="TestBusiness") private TestBusiness testBusiness=null; public void setTestBusiness(TestBusiness testBusiness) { this.testBusiness = testBusiness; } @RequestMapping public String viewUser(HttpServletRequest request, ModelMap modelMap) throws Exception { System.out.println("??????????$you want to check the result.jsp+++++++++++++"); System.out.println("??????????$ ready to insert +++++++++++++"); testBusiness.add(); System.out.println("??????????$ insert completed +++++++++++++"); return "result"; } }
(6). util : BasicSqlSupport.java所有的implementation类都会继承这个类，在ImplAndBusinessBeans.xml文件中注册的bean,都会注入一个sqlsession。例如上面的implementation就是继承了这个类。
package com.comverse.timesheet.web.util;import org.apache.ibatis.session.SqlSession;public class BasicSqlSupport{ protected SqlSession session; public SqlSession getSession() { return session; } public void setSession(SqlSession session) { this.session = session; } }
-
加入mybatis的配置文件： (1). 为 TestTable bean 创建mapper文件，路径为com/comverse/timesheet/mybatis/mapper/Test.xml: Test.xml
INSERT INTO testtable (NAME,DATE) VALUES(#{name},#{birthday})
(1). 加入Mybatis的配置文件：在上面的ApplicationContext.xml文件中我们已经包含了SqlMapConfig.xml文件。在/com/comverse/timesheet/mybatis/下创建 SqlMapConfig.xml:
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE configuration PUBLIC "-//ibatis.apache.org//DTD Config 3.0//EN" "http://ibatis.apache.org/dtd/ibatis-3-config.dtd"> <configuration> <typeAliases> <!– Entities 参数实体 –> <!– com.comverse.timesheet.web.bean 包中的 所有Bean, 取个别名 –> <!– 比如TestTable类就用Test来表示–> <typeAlias type="com.comverse.timesheet.web.bean.TestTable" alias="Test" /> </typeAliases> <mappers> <!– 对应Bean类的xml配置文件的路径信息 –> <mapper resource="com/comverse/timesheet/mybatis/mapper/Test.xml" /> </mappers> </configuration>

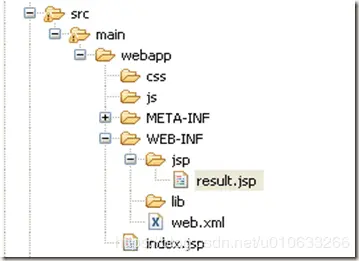

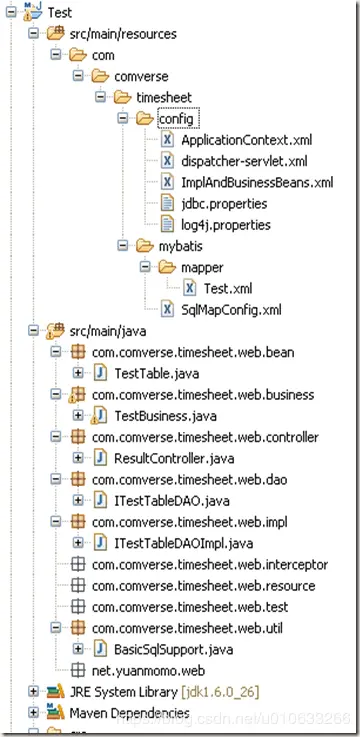

- 框架的整合完成，项目的目录结构如下：
- 编写一个测试页面，这个页面的路径在dispatcher-servlet.xml中已经确定—/WEB-INF/jsp/：
文件名在controller中已经定义–result, 后缀是 .jsp, 所以就是 result.jsp。
(1). result.jsp:
<%@page language="java" contentType="text/html; charset=utf-8" pageEncoding="utf-8"%> <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"> <html> <head> <meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1"> <title>Insert title here</title> </head> <body> <h1> 你插入数据成功了！！！</h1> </body> </html>

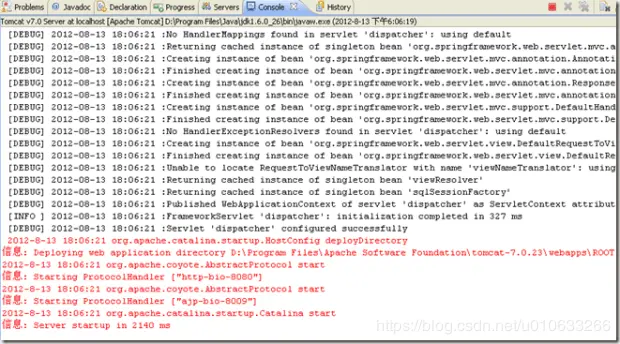

14.至此，我们的项目完成了，部署。

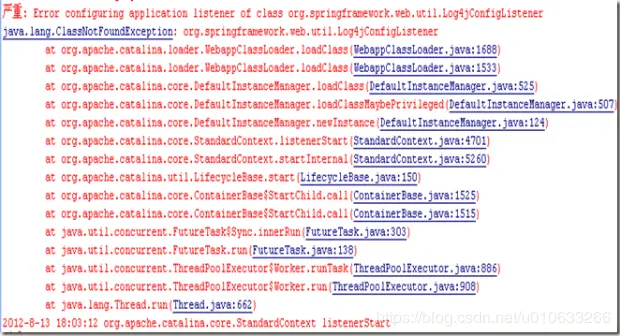

部署之前检查一下problem框，看有没有问题。这次我突然遇到一个问题，我上个星期五的时候都没有遇到，今天就奇了怪了。不过没事，问题来就想办法解决它。 (1).在problem处发现这个问题

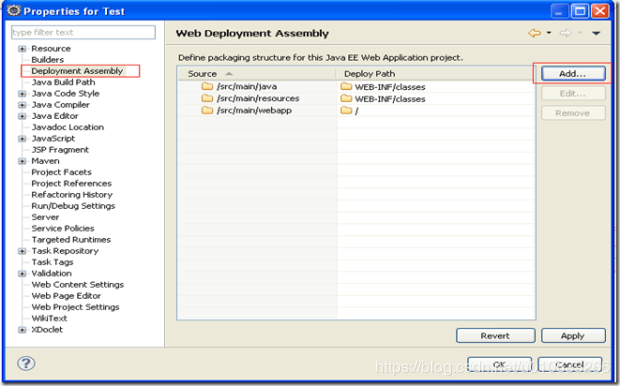

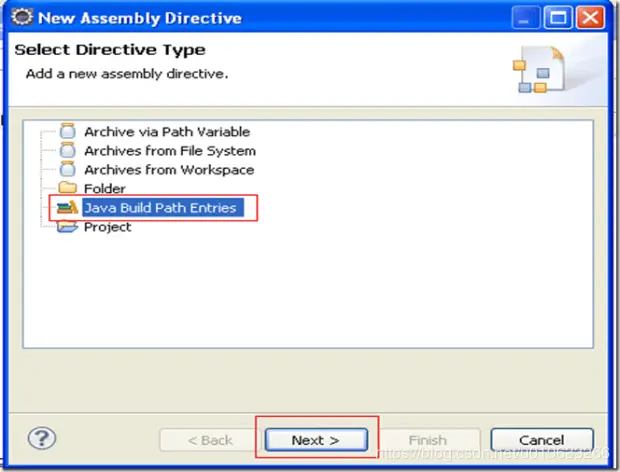

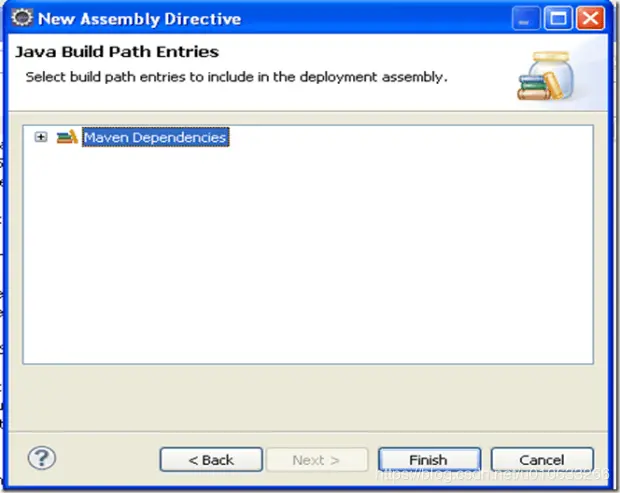

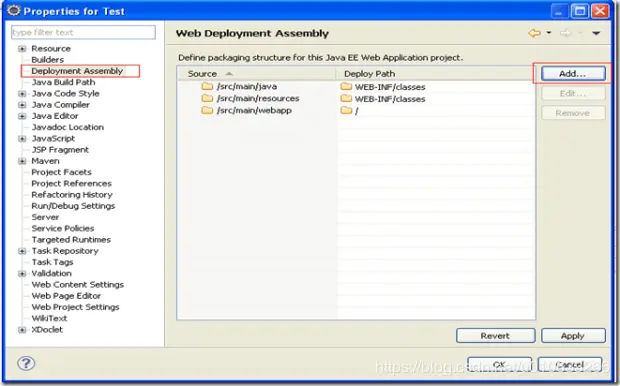

(2).问题的原因参考 Loose classpath web libraries support 在项目上右键–>properties—>deployment Assembly–>add,选择 java build path entries，然后选中Maven dependencies–>finish–>OK,就能解决问题啦。

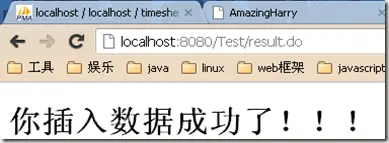

接着访问，http://localhost:8080/Test/result.do 看到结果了，高兴哇！！再看数据库
数据插入成功，至此，我们的项目搭建完整的完成了！！！如有错别字，请原谅，因为打字太痛苦啦！！谢谢大家！！
-
检查一下我们的日志信息：
[DEBUG] 2012-08-13 18:10:34 :DispatcherServlet with name ‘dispatcher’ determining Last-Modified value for [/Test/result.do] [DEBUG] 2012-08-13 18:10:34 :Mapping [/result.do] to handler ‘com.comverse.timesheet.web.controller.ResultController@7056d5’ [DEBUG] 2012-08-13 18:10:34 :Last-Modified value for [/Test/result.do] is: -1 [DEBUG] 2012-08-13 18:10:34 :DispatcherServlet with name ‘dispatcher’ processing GET request for [/Test/result.do] [DEBUG] 2012-08-13 18:10:34 :Invoking request handler method: public java.lang.String com.comverse.timesheet.web.controller.ResultController.viewUser(javax.servlet.http.HttpServletRequest,org.springframework.ui.ModelMap) throws java.lang.Exception ??????????
?????????? ready to insert +++++++++++++ [DEBUG] 2012-08-13 18:10:34 :Creating new transaction with name [com.comverse.timesheet.web.business.TestBusiness.add]: PROPAGATION_REQUIRED,ISOLATION_DEFAULT,-java.lang.Exception [DEBUG] 2012-08-13 18:10:34 :Acquired Connection [jdbc:mysql://localhost:3306/timesheet, UserName=root@localhost, MySQL-AB JDBC Driver] for JDBC transaction [DEBUG] 2012-08-13 18:10:34 :Switching JDBC Connection [jdbc:mysql://localhost:3306/timesheet, UserName=root@localhost, MySQL-AB JDBC Driver] to manual commit [DEBUG] 2012-08-13 18:10:34 :Creating a new SqlSession [DEBUG] 2012-08-13 18:10:34 :Registering transaction synchronization for SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@177e6b4] [DEBUG] 2012-08-13 18:10:34 :JDBC Connection [jdbc:mysql://localhost:3306/timesheet, UserName=root@localhost, MySQL-AB JDBC Driver] will be managed by Spring [DEBUG] 2012-08-13 18:10:34 :ooo Using Connection [jdbc:mysql://localhost:3306/timesheet, UserName=root@localhost, MySQL-AB JDBC Driver] [DEBUG] 2012-08-13 18:10:34 :==> Preparing: INSERT INTO testtable (NAME,DATE) VALUES(?,?) [DEBUG] 2012-08-13 18:10:34 :==> Parameters: yuanmomo6(String), 2012-08-13 18:10:34.122(Timestamp) [DEBUG] 2012-08-13 18:10:34 :Releasing transactional SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@177e6b4] [DEBUG] 2012-08-13 18:10:34 :Initiating transaction commit [DEBUG] 2012-08-13 18:10:34 :Committing JDBC transaction on Connection [jdbc:mysql://localhost:3306/timesheet, UserName=root@localhost, MySQL-AB JDBC Driver] [DEBUG] 2012-08-13 18:10:34 :Transaction synchronization committing SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@177e6b4] [DEBUG] 2012-08-13 18:10:34 :Transaction synchronization closing SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@177e6b4] [DEBUG] 2012-08-13 18:10:34 :Releasing JDBC Connection [jdbc:mysql://localhost:3306/timesheet, UserName=root@localhost, MySQL-AB JDBC Driver] after transaction [DEBUG] 2012-08-13 18:10:34 :Returning JDBC Connection to DataSource ??????????$ insert completed +++++++++++++ [DEBUG] 2012-08-13 18:10:34 :Invoking afterPropertiesSet() on bean with name ‘result’ [DEBUG] 2012-08-13 18:10:34 :Rendering view [org.springframework.web.servlet.view.JstlView: name ‘result’; URL [/WEB-INF/jsp/result.jsp]] in DispatcherServlet with name ‘dispatcher’ [DEBUG] 2012-08-13 18:10:34 :Forwarding to resource [/WEB-INF/jsp/result.jsp] in InternalResourceView ‘result’ [DEBUG] 2012-08-13 18:10:34 :Successfully completed request [DEBUG] 2012-08-13 18:10:34 :Returning cached instance of singleton bean ‘sqlSessionFactory’
可以看出我们的事务也添加成功。
Spring MVC的流程： request–>controller–>business–>implementation–>mysql
GitHub项目地址：github.com/BothEyes199…
