开源电子书项目FBReader初探(四)

2,799 阅读10分钟

FBReader如何打开一个指定的电子书,以及一些阅读操作的实现

首先,我们回顾一下上一篇的一些知识点,针对一个可识别的有效电子书文件来说:

  • 手机存储中的电子书文件会通过ZLFile.createFileByPath被创建成一个ZLPhysicalFile类型的文件对象
  • BookCollectionShadow的大部分方法其实是由BookCollection来实现的
  • BookCollection中有一个非常重要的方法getBookByFile(ZLFile),其中会校验文件的扩展名,如果是支持的电子书格式时,那么就会获取到相应的解析插件
  • 随后在BookCollection中创建一个DbBook对象,DbBook在初始化时会读取book的基本信息,这里主要是通过传入的plugin,调用plugin的native方法读取到的
  • 图书信息页打开FBReader进行阅读时,通过FBReaderIntents.putBookExtra(intent, book),传递的一个有效参数的Book对象

一、FBReader是如何获取book,又是如何获取并显示图书内容的

FBReader如何获取Book,以及如何更简便的打开一本电子书

查看清单文件,我们可以看到FBReader的启动模式:

android:launchMode="singleTask"

那么图书信息界面,点击“阅读”再次打开FBReader时,其onNewIntent将被触发:

@Override
protected void onNewIntent(final Intent intent) {
    final String action = intent.getAction();
    final Uri data = intent.getData();
    if ((intent.getFlags() & Intent.FLAG_ACTIVITY_LAUNCHED_FROM_HISTORY) != 0) {
        super.onNewIntent(intent);
    } else if (Intent.ACTION_VIEW.equals(action)
    && data != null && "fbreader-action".equals(data.getScheme())) {
        //忽略部分代码...
    } else if (Intent.ACTION_VIEW.equals(action) || FBReaderIntents.Action.VIEW.equals(action)) {
        //为myOpenBookIntent赋值
        myOpenBookIntent = intent;
        //忽略部分代码...
    } else if (FBReaderIntents.Action.PLUGIN.equals(action)) {
        //忽略部分代码...
    } else if (Intent.ACTION_SEARCH.equals(action)) {
        //忽略部分代码...
    } else if (FBReaderIntents.Action.CLOSE.equals(intent.getAction())) {
        //忽略部分代码...
    } else if (FBReaderIntents.Action.PLUGIN_CRASH.equals(intent.getAction())) {
        //忽略部分代码...
    } else {
        super.onNewIntent(intent);
    }
}

发现校验了action,那么我们的之前的Intent其action是什么呢?这里要回看一下打开阅读页面的时候调用的代码:

FBReader.openBookActivity(BookInfoActivity.this, myBook, null);

public static void openBookActivity(Context context, Book book, Bookmark bookmark) {
    final Intent intent = defaultIntent(context);
    FBReaderIntents.putBookExtra(intent, book);
    FBReaderIntents.putBookmarkExtra(intent, bookmark);
    context.startActivity(intent);
}

public static Intent defaultIntent(Context context) {
    return new Intent(context, FBReader.class)
        .setAction(FBReaderIntents.Action.VIEW)//设置action
        .addFlags(Intent.FLAG_ACTIVITY_CLEAR_TOP);
}

默认的Intent其action被设置为了FBReaderIntents.Action.VIEW,那么在onNewIntent方法,经过断点可以知道,针对当前我们从图书信息跳转过来阅读的情况,这里只是对myOpenBookIntent进行了赋值,并没有其他多余的操作。

这样的话,我们就要继续往下看,在FBReader的onResume中:

@Override
protected void onResume() {
    super.onResume();
    //忽略部分代码...
    if (myCancelIntent != null) {
        //忽略部分代码...
    } else if (myOpenBookIntent != null) {
        final Intent intent = myOpenBookIntent;
        myOpenBookIntent = null;
        getCollection().bindToService(this, new Runnable() {
            public void run() {
                openBook(intent, null, true);
            }
        });
    } else if (myFBReaderApp.getCurrentServerBook(null) != null) {
        //忽略部分代码...
    } else if (myFBReaderApp.Model == null && myFBReaderApp.ExternalBook != null) {
        //忽略部分代码...
    } else {
        //忽略部分代码...
    }
}

当myOpenBookIntent != null时,会执行getCollection().bindToService,这个好像我们在那见过啊,看看getCollection:

private BookCollectionShadow getCollection() {
    return (BookCollectionShadow)myFBReaderApp.Collection;
}

老朋友BookCollectionShadow,之前的分析来看,下面就会执行runnable了,也就是openBook:

private synchronized void openBook(Intent intent, final Runnable action, boolean force) {
    if (!force && myBook != null) {
        return;
    }
    //取出book
    myBook = FBReaderIntents.getBookExtra(intent, myFBReaderApp.Collection);
    final Bookmark bookmark = FBReaderIntents.getBookmarkExtra(intent);
    if (myBook == null) {
        final Uri data = intent.getData();
        if (data != null) {
            myBook = createBookForFile(ZLFile.createFileByPath(data.getPath()));
        }
    }
    //忽略部分代码...
    Config.Instance().runOnConnect(new Runnable() {
        public void run() {
            myFBReaderApp.openBook(myBook, bookmark, action, myNotifier);
            AndroidFontUtil.clearFontCache();
        }
    });
}

在openBook方法中,发现取出了我们之前传递过来的book。而且,仔细阅读下面的判断,可以分析出,如果Intent中没有传递book,但是有传递的Uri,那么就回去调用方法createBookForFile:

private Book createBookForFile(ZLFile file) {
    if (file == null) {
        return null;
    }
    Book book = myFBReaderApp.Collection.getBookByFile(file.getPath());
    if (book != null) {
        return book;
    }
    if (file.isArchive()) {
        for (ZLFile child : file.children()) {
            book = myFBReaderApp.Collection.getBookByFile(child.getPath());
            if (book != null) {
                return book;
            }
        }
    }
    return null;
}

熟悉的方法,去创建了一个Book。那么这样的话,我们就还可以通过这种方式去打开一本电子书:

//path电子书绝对路径
public static void openBookActivity(Context context, String path) {
    final Intent intent = FBReader.defaultIntent(context);
    intent.setData(Uri.parse(path));
    context.startActivity(intent);
}

关于Book和DbBook

在这里,不知大家有没有发现一个问题,那就是我们熟悉的BookCollectionShadow和BookCollection,我们知道他们都是继承于AbstractBookCollection,但是BookCollectionShadow是使用的Book,而BookCollection是使用的DbBook:

public class BookCollectionShadow extends AbstractBookCollection<Book> implements ServiceConnection

public class BookCollection extends AbstractBookCollection<DbBook>

再来看一下Book和DbBook这两个类的定义:

public final class DbBook extends AbstractBook

public final class Book extends AbstractBook

很明显这两个类,是均继承于AbstractBook的不同子类,但是我们之前有分析过BookCollectionShadow中有关于IBookCollection的实现,实际最终是BookCollection来操作的,但是他们是基于两个不同数据类型的,比如我们查看getBookByFile:

BookCollectionShadow中:
public synchronized Book getBookByFile(String path) {
    if (myInterface == null) {
        return null;
    }
    try {
        return SerializerUtil.deserializeBook(myInterface.getBookByFile(path), this);
    } catch (RemoteException e) {
        return null;
    }
}

BookCollection中:
public DbBook getBookByFile(String path) {
    return getBookByFile(ZLFile.createFileByPath(path));
}

调用者BookCollectionShadow,调用getBookByFile期望得到Book类型的数据,而最终实现者调用getBookByFile却返回了DbBook类型的数据,这是怎么一回事?

在BookCollectionShadow中,我们可以发现,最终return的是SerializerUtil.deserializeBook方法返回的数据。那这个方法又是做什么的呢?点进去看一下:

SerializerUtil.class

private static final AbstractSerializer defaultSerializer = new XMLSerializer();

public static <B extends AbstractBook> B deserializeBook(String xml, AbstractSerializer.BookCreator<B> creator) {
    return xml != null ? defaultSerializer.deserializeBook(xml, creator) : null;
}

XMLSerializer.class
@Override
public <B extends AbstractBook> B deserializeBook(String xml, BookCreator<B> creator) {
    try {
        final BookDeserializer<B> deserializer = new BookDeserializer<B>(creator);
        Xml.parse(xml, deserializer);
        return deserializer.getBook();
    } catch (SAXException e) {
        System.err.println(xml);
        e.printStackTrace();
        return null;
    }
}

不难看出,在调用BookCollectionShadow的getBookByFile方法时,会调用LibraryService的getBookByFile,而后者会返回一段xml数据,BookCollectionShadow会根据这段xml数据,将其解析成对应的Book对象。我们知道,虽然BookCollection是最终实施人,但是在他和BookCollectionShadow之间,还有一个LibraryService中的LibraryImplementation作为中间人,那么我们就看看中间人的这个方法是做了些什么:

public String getBookByFile(String path) {
    //这里myCollection是BookCollection实例,返回结果为DbBook
    return SerializerUtil.serialize(myCollection.getBookByFile(path));
}

同样进入了SerializerUtil中:

public static String serialize(AbstractBook book) {
    return book != null ? defaultSerializer.serialize(book) : null;
}

XMLSerializer.class
@Override
public String serialize(AbstractBook book) {
    final StringBuilder buffer = builder();
    serialize(buffer, book);
    return buffer.toString();
}

细节我们就不再深入去看了,这里流程已经比较清晰,就拿getBookByFile这个方法来说:

  • 客户端通过BookCollectionShadow实例调用此方法,意图得到Book类型的数据
  • BookCollectionShadow调用到中间人LibraryImplementation的getBookByFile方法
  • LibraryImplementation调用最终实施人BookCollection的getBookByFile方法,后者返回DbBook数据
  • LibraryImplementation对返回的DbBook,通过SerializerUtil转换成对应xml数据
  • 转换后的xml返回客户端BookCollectionShadow中,再次通过SerializerUtil转为Book对象

这里也就实现了Book的跨进程传输,由于AbstractBook及其父类,均没有实现Serializable或者Parcelable,所以是不能夸进程传输的。通过跨进程传输,把Book的一些核心信息传递给客户端,同时使客户端可以忽略DbBook中其他的关于dataBase的操作行为。

Book获取内容及显示前的准备工作

经过上面简单的分析,FBReader已经拿到了book,那么接下来,FBReader又分别做了些什么呢?

这就要从openBook方法中的,最后一段代码来开始接下来的分析了:

private synchronized void openBook(Intent intent, final Runnable action, boolean force) {
    //忽略部分代码...
    Config.Instance().runOnConnect(new Runnable() {
        public void run() {
            myFBReaderApp.openBook(myBook, bookmark, action, myNotifier);
            AndroidFontUtil.clearFontCache();
        }
    });
}

runOnConnect这个方法我们之前已经分析过了,接下来会执行runnable。这里,我们发现了一个新的角色登场了,就是FBReaderApp。

先看看这个FBReaderApp在FBReader的中,是什么时候初始化的吧:

@Override
protected void onCreate(Bundle icicle) {
	super.onCreate(icicle);
	//忽略部分代码...
	myFBReaderApp = (FBReaderApp)FBReaderApp.Instance();
	if (myFBReaderApp == null) {
		myFBReaderApp = new FBReaderApp(Paths.systemInfo(this), new BookCollectionShadow());
	}
	myFBReaderApp.setWindow(this);
	//忽略部分代码...
}

首次进入FBReader时,FBReaderApp.Instance()为null,就会通过new创建,之后会被重用。看下它的构造方法:

public FBReaderApp(SystemInfo systemInfo, final IBookCollection<Book> collection)

BookCollectionShadow我们已经很熟了,这个SystemInfo是个啥呢?进去看看:

public interface SystemInfo {
    String tempDirectory();
    String networkCacheDirectory();
}

在看看onCreate创建FBReaderApp时传入的Paths.systemInfo:

public static SystemInfo systemInfo(Context context) {
    final Context appContext = context.getApplicationContext();
    return new SystemInfo() {
        public String tempDirectory() {
            final String value = ourTempDirectoryOption.getValue();
            if (!"".equals(value)) {
                return value;
            }
            return internalTempDirectoryValue(appContext);
        }

        public String networkCacheDirectory() {
            return tempDirectory() + "/cache";
        }
    };
}

看来是获取文件存储和缓存路径的。

接下来,我们就进入FBReaderApp,去看一下它的openBook方法:

public void openBook(Book book, final Bookmark bookmark, Runnable postAction, Notifier notifier) {
    //忽略部分代码..
    final SynchronousExecutor executor = createExecutor("loadingBook");
    executor.execute(new Runnable() {
        public void run() {
            openBookInternal(bookToOpen, bookmark, false);
        }
    }, postAction);
}

逐步分析:

1.createExecutor:

protected SynchronousExecutor createExecutor(String key) {
    if (myWindow != null) {
        return myWindow.createExecutor(key);
    } else {
        return myDummyExecutor;
    }
}

FBReader在onCreate生成FBReaderApp之后,就调用了FBReaderApp.setWindow(this),那么当前的myWindow就是FBReader,其createExecutor方法:

@Override
public FBReaderApp.SynchronousExecutor createExecutor(String key) {
    return UIUtil.createExecutor(this, key);
}

接着进入了UIUtil:

public static ZLApplication.SynchronousExecutor createExecutor(final Activity activity, final String key) {
    return new ZLApplication.SynchronousExecutor() {
        private final ZLResource myResource =
            ZLResource.resource("dialog").getResource("waitMessage");
        private final String myMessage = myResource.getResource(key).getValue();
        private volatile ProgressDialog myProgress;

        public void execute(final Runnable action, final Runnable uiPostAction) {
            activity.runOnUiThread(new Runnable() {
                public void run() {
                    myProgress = ProgressDialog.show(activity, null, myMessage, true, false);
                    final Thread runner = new Thread() {
                        public void run() {
                            action.run();
                            activity.runOnUiThread(new Runnable() {
                                public void run() {
                                    try {
                                        myProgress.dismiss();
                                        myProgress = null;
                                    } catch (Exception e) {
                                        e.printStackTrace();
                                    }
                                    if (uiPostAction != null) {
                                        uiPostAction.run();
                                    }
                                }
                            });
                        }
                    };
                    runner.setPriority(Thread.MAX_PRIORITY);
                    runner.start();
                }
            });
        }
        //忽略部分代码...
    };
}

简单分析一下,这段代码做了什么:

  • 加载资源ZLResource
  • 根据传入的key获取resouce下对应的资源信息msg
  • 实现execute(action,uiaction)
  • 执行execute时创建ProgressDialog,并设置其提示信息为msg
  • 随后创建子线程执行action,执行完毕后通过activity调度到主线程关闭ProgressDialog,然后执行uiaction

那么资源信息都是有哪些?又存储在什么地方呢?要想了解这两个问题的答案,我们就需要去看一下ZLResource:

static void buildTree() {
    synchronized (ourLock) {
        if (ourRoot == null) {
            ourRoot = new ZLTreeResource("", null);
            ourLanguage = "en";
            ourCountry = "UK";
            loadData();
        }
    }
}

private static void loadData() {
	ResourceTreeReader reader = new ResourceTreeReader();
	loadData(reader, ourLanguage + ".xml");
	loadData(reader, ourLanguage + "_" + ourCountry + ".xml");
}

private static void loadData(ResourceTreeReader reader, String fileName) {
	reader.readDocument(ourRoot, ZLResourceFile.createResourceFile("resources/zlibrary/" + fileName));
	reader.readDocument(ourRoot, ZLResourceFile.createResourceFile("resources/application/" + fileName));
	reader.readDocument(ourRoot, ZLResourceFile.createResourceFile("resources/lang.xml"));
	reader.readDocument(ourRoot, ZLResourceFile.createResourceFile("resources/application/neutral.xml"));
}

ZLResource在加载资源前,会首先buildTree,在首次buildTree的时会调用loadData方法,最终加载了资源目录下当前系统语言的资源文件,分别是zlibrary下的相应语言资源文件,application下的相应语言资源文件,lang资源文件,application/neutral.xml资源文件。

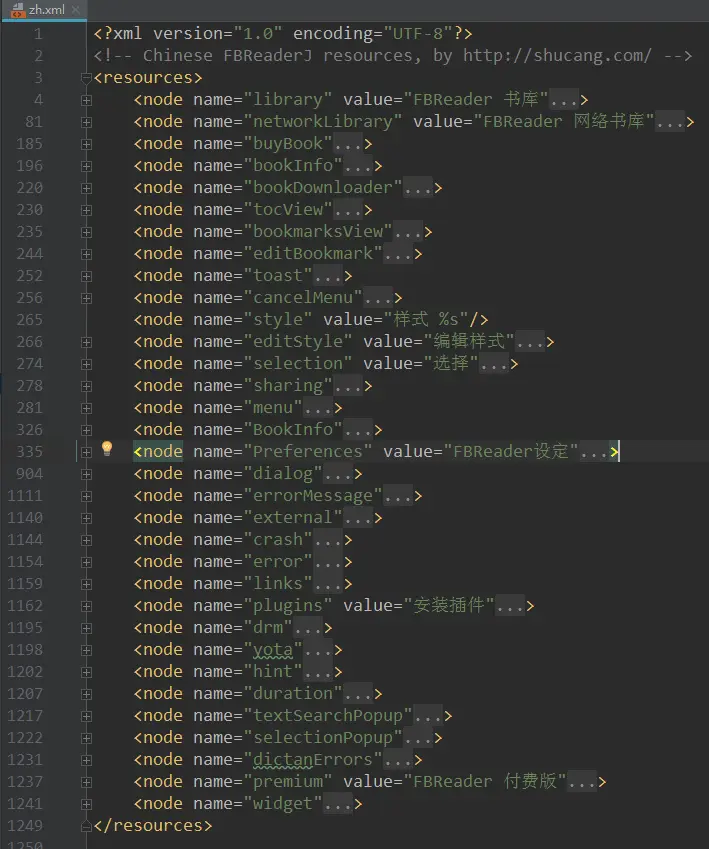

中文系统资源文件:

上面分析处调用的UIUtil,分别加载了"dialog"-"waitMessage"-"loadingBook"

2.openBookInternal(bookToOpen, bookmark, false)

通过第一步的分析,在调用execute时,首先会执行第一个runnable,也就是其中的openBookInternal方法:

private synchronized void openBookInternal(final Book book, Bookmark bookmark, boolean force) {

    //忽略部分代码...

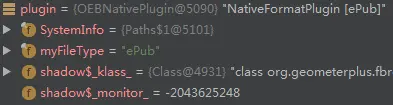

    final PluginCollection pluginCollection = PluginCollection.Instance(SystemInfo);
    final FormatPlugin plugin;
    try {
        plugin = BookUtil.getPlugin(pluginCollection, book);
    } catch (BookReadingException e) {
        processException(e);
        return;
    }
    //忽略部分代码...
    try {
        Model = BookModel.createModel(book, plugin);
        Collection.saveBook(book);
        ZLTextHyphenator.Instance().load(book.getLanguage());
        BookTextView.setModel(Model.getTextModel());
        setBookmarkHighlightings(BookTextView, null);
        gotoStoredPosition();
        if (bookmark == null) {
            setView(BookTextView);
        } else {
            gotoBookmark(bookmark, false);
        }
        Collection.addToRecentlyOpened(book);
        final StringBuilder title = new StringBuilder(book.getTitle());
        if (!book.authors().isEmpty()) {
            boolean first = true;
            for (Author a : book.authors()) {
                title.append(first ? " (" : ", ");
                title.append(a.DisplayName);
                first = false;
            }
            title.append(")");
        }
        setTitle(title.toString());
    } catch (BookReadingException e) {
        processException(e);
    }

    getViewWidget().reset();
    getViewWidget().repaint();
    //忽略部分代码...
}

关于PluginCollection.Instance(SystemInfo):

public static PluginCollection Instance(SystemInfo systemInfo) {
    if (ourInstance == null) {
        createInstance(systemInfo);
    }
    return ourInstance;
}

private static synchronized void createInstance(SystemInfo systemInfo) {
	if (ourInstance == null) {
		ourInstance = new PluginCollection(systemInfo);
		// This code cannot be moved to constructor
		// because nativePlugins() is a native method
		for (NativeFormatPlugin p : ourInstance.nativePlugins(systemInfo)) {
			ourInstance.myBuiltinPlugins.add(p);
			System.err.println("native plugin: " + p);
		}
	}
}

private native NativeFormatPlugin[] nativePlugins(SystemInfo systemInfo);

PluginCollection初始化之后,会调用native的nativePlugins去获取一个图书解析插件集合,返回的结果就是可解析的各电子书类型对应的解析插件。这里我打开的电子书格式为epub,获取到的插件是OEBNativePlugin:

紧接着我们来看这个方法,BookUtil.getPlugin(pluginCollection, book),在上一篇已经分析过,这里最终会通过对Book文件类型的区分,获取该电子书格式对应的解析插件。

随后,一个超级核心的方法出现了!那就是解析电子书内容的方法:

BookModel.createModel(book, plugin);

BookModel.class
public static BookModel createModel(Book book, FormatPlugin plugin) throws BookReadingException {
    if (plugin instanceof BuiltinFormatPlugin) {
        final BookModel model = new BookModel(book);
        ((BuiltinFormatPlugin)plugin).readModel(model);
        return model;
    }

    throw new BookReadingException(
        "unknownPluginType", null, new String[] { String.valueOf(plugin) }
    );
}

对于我测试使用的书来说,最终解析图书内容会调用NativeFormatPlugin的readModel
synchronized public void readModel(BookModel model) throws BookReadingException {
	final int code;
	final String tempDirectory = SystemInfo.tempDirectory();
	synchronized (ourNativeLock) {
	    //这里返回解析结果code,为0时则正确解析
		code = readModelNative(model, tempDirectory);
	}
	switch (code) {
		case 0:
			return;
		case 3:
			throw new CachedCharStorageException(
				"Cannot write file from native code to " + tempDirectory
			);
		default:
			throw new BookReadingException(
				"nativeCodeFailure",
				BookUtil.fileByBook(model.Book),
				new String[] { String.valueOf(code), model.Book.getPath() }
			);
	}
}

private native int readModelNative(BookModel model, String cacheDir);

解析前的BookMode内容:

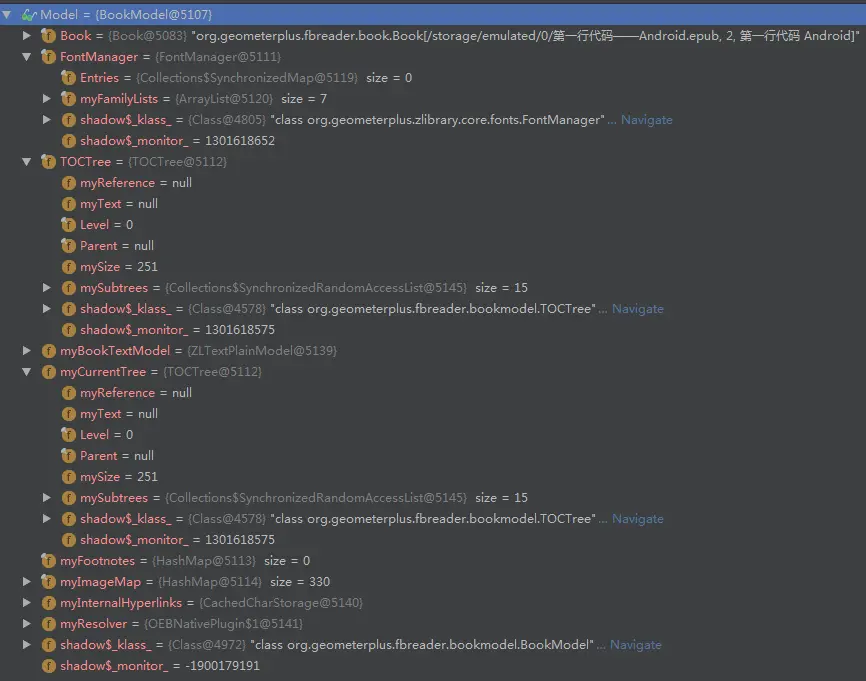

解析后的BookMode内容:

最后,我们再看一下最后两句:

getViewWidget().reset();
getViewWidget().repaint();

public final ZLViewWidget getViewWidget() {
    return myWindow != null ? myWindow.getViewWidget() : null;
}

我们知道myWindow为FBReader,那么就去看一下FBReader中的getViewWidget:
@Override
public ZLViewWidget getViewWidget() {
    return myMainView;
}

在FBReader的onCreate中:
myMainView = (ZLAndroidWidget)findViewById(R.id.main_view);

进入ZLAndroidWidget看一下对应的方法:

@Override
public void reset() {
    myBitmapManager.reset();
}

@Override
public void repaint() {
    postInvalidate();
}

BitmapManagerImpl.class
void reset() {
    for (int i = 0; i < SIZE; ++i) {
        myIndexes[i] = null;
    }
}

最终,页面绘制出了电子书的内容。

当然,由于本人接触此项目时间有限,而且书写技术文章的经验实在欠缺,过程中难免会有存在错误或描述不清或语言累赘等等一些问题,还望大家能够谅解,同时也希望大家继续给予指正。最后,感谢大家对我的支持,让我有了强大的动力坚持下去。

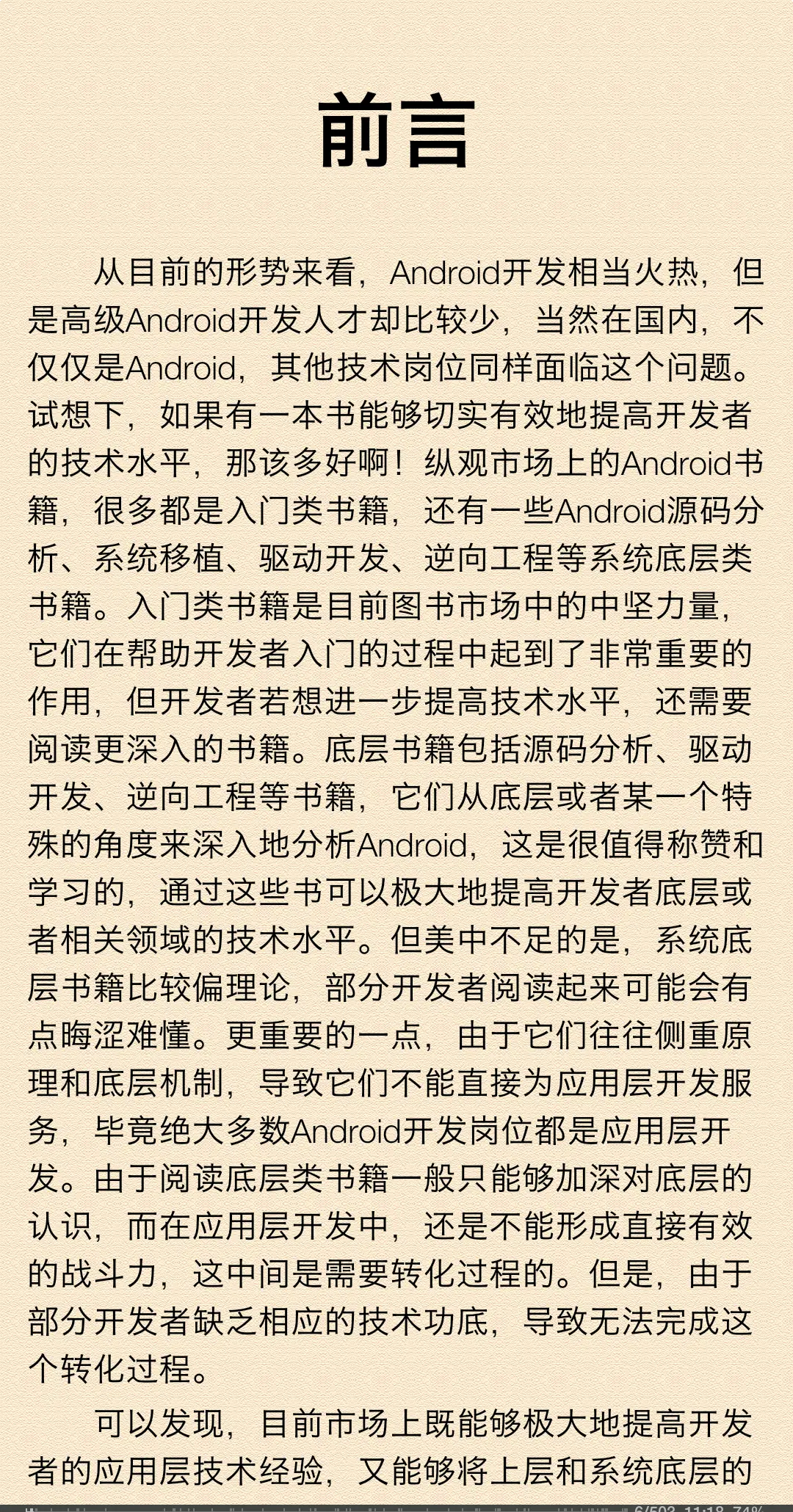

PS:《Android开发艺术探索》,前言中的第一行“从目前形势来看,Android开发相当火热...”。看到这句话,眼中满是泪水啊!青春!怎么这么快就过去了!......
