一、开始：DecorView被加载到Window中
从Activity的startActivity开始，最终调用到ActivityThread的handleLaunchActivity方法来创建Activity，相关核心代码如下：
private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent) {
....
// 创建Activity，会调用Activity的onCreate方法
// 从而完成DecorView的创建
Activity a = performLaunchActivity(r, customIntent);
if (a != null) {
r.createdConfig = new Configuration(mConfiguration);
Bundle oldState = r.state;
handleResumeActivity(r.tolen, false, r.isForward, !r.activity..mFinished && !r.startsNotResumed);
}
}
final void handleResumeActivity(IBinder token, boolean clearHide, boolean isForward, boolean reallyResume) {
unscheduleGcIdler();
mSomeActivitiesChanged = true;
// 调用Activity的onResume方法
ActivityClientRecord r = performResumeActivity(token, clearHide);
if (r != null) {
final Activity a = r.activity;
...
if (r.window == null &&& !a.mFinished && willBeVisible) {
r.window = r.activity.getWindow();
// 得到DecorView
View decor = r.window.getDecorView();
decor.setVisibility(View.INVISIBLE);
// 得到了WindowManager，WindowManager是一个接口
// 并且继承了接口ViewManager
ViewManager wm = a.getWindowManager();
WindowManager.LayoutParams l = r.window.getAttributes();
a.mDecor = decor;
l.type = WindowManager.LayoutParams.TYPE_BASE_APPLICATION;
l.softInputMode |= forwardBit;
if (a.mVisibleFromClient) {
a.mWindowAdded = true;
// WindowManager的实现类是WindowManagerImpl，
// 所以实际调用的是WindowManagerImpl的addView方法
wm.addView(decor, l);
}
}
}
}
public final class WindowManagerImpl implements WindowManager {
private final WindowManagerGlobal mGlobal = WindowManagerGlobal.getInstance();
...
@Override
public void addView(@NonNull View view, @NonNull ViewGroup.LayoutParams params) {
applyDefaultToken(params);
mGlobal.addView(view, params, mDisplay, mParentWindow);
}
...
}
在了解View绘制的整体流程之前，我们必须先了解下ViewRoot和DecorView的概念。ViewRoot对应于ViewRootImpl类，它是连接WindowManager和DecorView的纽带，View的三大流程均是通过ViewRoot来完成的。在ActivityThread中，当Activity对象被创建完毕后，会将DecorView添加到Window中，同时会创建ViewRootImpl对象，并将ViewRootImpl对象和DecorView建立关联，相关源码如下所示：
// WindowManagerGlobal的addView方法
public void addView(View view, ViewGroup.LayoutParams params, Display display, Window parentWindow) {
...
ViewRootImpl root;
View pannelParentView = null;
synchronized (mLock) {
...
// 创建ViewRootImpl实例
root = new ViewRootImpl(view..getContext(), display);
view.setLayoutParams(wparams);
mViews.add(view);
mRoots.add(root);
mParams.add(wparams);
}
try {
// 把DecorView加载到Window中
root.setView(view, wparams, panelParentView);
} catch (RuntimeException e) {
synchronized (mLock) {
final int index = findViewLocked(view, false);
if (index >= 0) {
removeViewLocked(index, true);
}
}
throw e;
}
}
二、了解绘制的整体流程
绘制会从根视图ViewRoot的performTraversals()方法开始，从上到下遍历整个视图树，每个View控件负责绘制自己，而ViewGroup还需要负责通知自己的子View进行绘制操作。performTraversals()的核心代码如下。
private void performTraversals() {
...
int childWidthMeasureSpec = getRootMeasureSpec(mWidth, lp.width);
int childHeightMeasureSpec = getRootMeasureSpec(mHeight, lp.height);
...
//执行测量流程
performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);
...
//执行布局流程
performLayout(lp, desiredWindowWidth, desiredWindowHeight);
...
//执行绘制流程
performDraw();
}

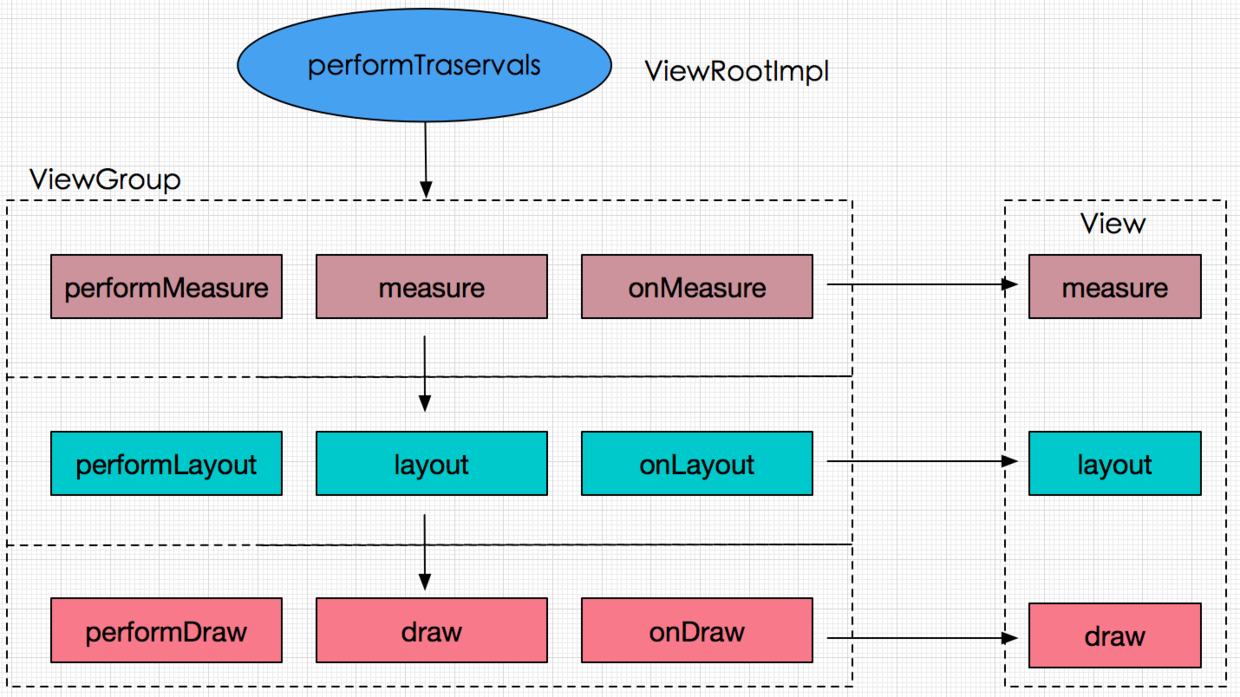

performTraversals的大致工作流程图如下所示：
注意：
- preformLayout和performDraw的传递流程和performMeasure是类似的，唯一不同的是，performDraw的传递过程是在draw方法中通过dispatchDraw来实现的，不过这并没有本质区别。
- 获取content：
ViewGroup content = (ViewGroup)findViewById(android.R.id.content);
- 获取设置的View：
content.getChildAt(0);
三、理解MeasureSpec
1.MeasureSpec源码解析
MeasureSpec表示的是一个32位的整形值，它的高2位表示测量模式SpecMode，低30位表示某种测量模式下的规格大小SpecSize。MeasureSpec是View类的一个静态内部类，用来说明应该如何测量这个View。MeasureSpec的核心代码如下。
public static class MeasureSpec {
private static final int MODE_SHIFT = 30;
private static final int MODE_MASK = 0X3 << MODE_SHIFT;
// 不指定测量模式, 父视图没有限制子视图的大小，子视图可以是想要
// 的任何尺寸，通常用于系统内部，应用开发中很少用到。
public static final int UNSPECIFIED = 0 << MODE_SHIFT;
// 精确测量模式，视图宽高指定为match_parent或具体数值时生效，
// 表示父视图已经决定了子视图的精确大小，这种模式下View的测量
// 值就是SpecSize的值。
public static final int EXACTLY = 1 << MODE_SHIFT;
// 最大值测量模式，当视图的宽高指定为wrap_content时生效，此时
// 子视图的尺寸可以是不超过父视图允许的最大尺寸的任何尺寸。
public static final int AT_MOST = 2 << MODE_SHIFT;
// 根据指定的大小和模式创建一个MeasureSpec
public static int makeMeasureSpec(int size, int mode) {
if (sUseBrokenMakeMeasureSpec) {
return size + mode;
} else {
return (size & ~MODE_MASK) | (mode & MODE_MASK);
}
}
// 微调某个MeasureSpec的大小
static int adjust(int measureSpec, int delta) {
final int mode = getMode(measureSpec);
if (mode == UNSPECIFIED) {
// No need to adjust size for UNSPECIFIED mode.
return make MeasureSpec(0, UNSPECIFIED);
}
int size = getSize(measureSpec) + delta;
if (size < 0) {
size = 0;
}
return makeMeasureSpec(size, mode);
}
}
MeasureSpec通过将SpecMode和SpecSize打包成一个int值来避免过多的对象内存分配，为了方便操作，其提供了打包和解包的方法，打包方法为上述源码中的makeMeasureSpec，解包方法源码如下：
public static int getMode(int measureSpec) {
return (measureSpec & MODE_MASK);
}
public static int getSize(int measureSpec) {
return (measureSpec & ~MODE_MASK);
}
2.DecorView的MeasureSpec的创建过程：
//desiredWindowWidth和desiredWindowHeight是屏幕的尺寸
childWidthMeasureSpec = getRootMeasureSpec(desiredWindowWidth, lp.width);
childHeightMeasureSpec = getRootMeasureSpec(desiredWindowHeight, lp.height);
performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);
private static int getRootMeaureSpec(int windowSize, int rootDimension) {
int measureSpec;
switch (rootDimension) {
case ViewGroup.LayoutParams.MATRCH_PARENT:
// Window can't resize. Force root view to be windowSize.
measureSpec = MeasureSpec.makeMeasureSpec(windowSize, MeasureSpec.EXACTLY);
break;
case ViewGroup.LayoutParams.WRAP_CONTENT：
// Window can resize. Set max size for root view.
measureSpec = MeasureSpec.makeMeasureSpec(windowSize, MeasureSpec.AT_MOST);
break
default:
// Window wants to be an exact size. Force root view to be that size.
measureSpec = MeasureSpec.makeMeasureSpec(rootDimension, MeasureSpec.EXACTLY);
break;
}
return measureSpec;
}
3.子元素的MeasureSpec的创建过程
// ViewGroup的measureChildWithMargins方法
protected void measureChildWithMargins(View child,
int parentWidthMeasureSpec, int widthUsed,
int parentHeightMeasureSpec, int heightUsed) {
final MarginLayoutParams lp = (MarginLayoutParams) child.getLayoutParams();
// 子元素的MeasureSpec的创建与父容器的MeasureSpec和子元素本身
// 的LayoutParams有关，此外还和View的margin及padding有关
final int childWidthMeasureSpec = getChildMeasureSpec(
parentWidthMeasureSpec,
mPaddingLeft + mPaddingRight + lp.leftMargin + lp.rightMargin + widthUsed,
lp.width);
final int childHeightMeasureSpec = getChildMeasureSpec(
parentHeightMeasureSpec,
mPaddingTop + mPaddingBottom + lp.topMargin + lp.bottomMargin + heightUsed,
lp.height);
child..measure(childWidthMeasureSpec, childHeightMeasureSpec);
}
public static int getChildMeasureSpec(int spec, int padding, int childDimesion) {
int specMode = MeasureSpec.getMode(spec);
int specSize = MeasureSpec.getSize(spec);
// padding是指父容器中已占用的空间大小，因此子元素可用的
// 大小为父容器的尺寸减去padding
int size = Math.max(0, specSize - padding);
int resultSize = 0;
int resultMode = 0;
switch (sepcMode) {
// Parent has imposed an exact size on us
case MeasureSpec.EXACTLY:
if (childDimension >= 0) {
resultSize = childDimension;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.MATCH_PARENT) {
// Child wants to be our size. So be it.
resultSize = size;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimesion == LayoutParams.WRAP_CONTENT) {
// Child wants to determine its own size. It can't be
// bigger than us.
resultSize = size;
resultMode = MeasureSpec.AT_MOST;
}
break;
// Parent has imposed a maximum size on us
case MeasureSpec.AT_MOST:
if (childDimension >= 0) {
// Child wants a specific size... so be it
resultSize = childDimension;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.MATCH_PARENT) {
// Child wants to be our size, but our size is not fixed.
// Constrain child to not be bigger than us.
resultSize = size;
resultMode = MeasureSpec.AT_MOST;
} else if (childDimension == LayoutParams.WRAP_CONTENT) {
// Child wants to determine its own size. It can't be
// bigger than us.
resultSize = size;
resultMode = MeasureSpec.AT_MOST;
}
break;
// Parent asked to see how big we want to be
case MeasureSpec.UNSPECIFIED:
if (childDimension >= 0) {
// Child wants a specific size... let him have it
resultSize = childDimension;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.MATCH_PARENT) {
// Child wants to be our size... find out how big it should be
resultSize = 0;
resultMode = MeasureSpec.UNSPECIFIED;
} else if (childDimension == LayoutParams.WRAP_CONTENT) {
// Child wants to determine its own size....
// find out how big it should be
resultSize = 0;
resultMode == MeasureSpec.UNSPECIFIED;
}
break;
}
return MeasureSpec.makeMeasureSpec(resultSize, resultMode);
}

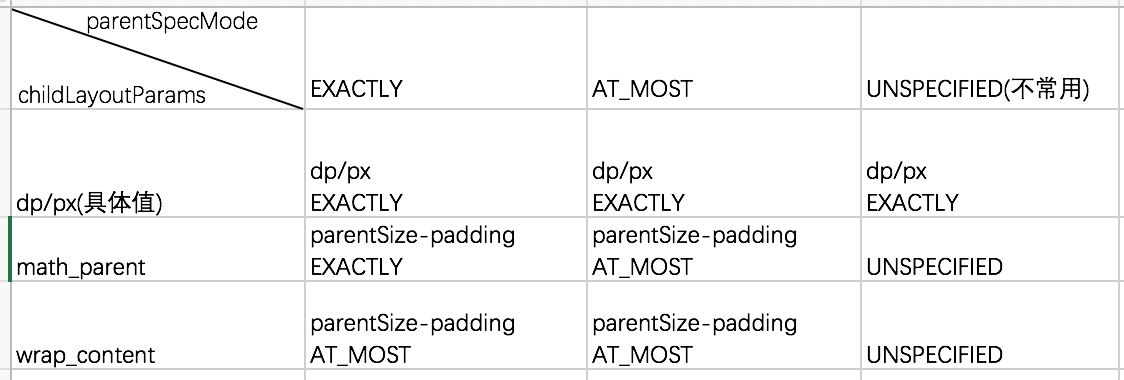

普通View的MeasureSpec的创建规则如下：
注意：UNSPECIFIED模式主要用于系统内部多次Measure的情形，一般不需关注。
结论：对于DecorView而言，它的MeasureSpec由窗口尺寸和其自身的LayoutParams共同决定；对于普通的View，它的MeasureSpec由父视图的MeasureSpec和其自身的LayoutParams共同决定。
四、View绘制流程之Measure
1.Measure的基本流程
由前面的分析可知，页面的测量流程是从performMeasure方法开始的，相关的核心代码流程如下。
private void perormMeasure(int childWidthMeasureSpec, int childHeightMeasureSpec) {
...
// 具体的测量操作分发给ViewGroup
mView.measure(childWidthMeasureSpec, childHeightMeasureSpec);
...
}
// 在ViewGroup中的measureChildren()方法中遍历测量ViewGroup中所有的View
protected void measureChildren(int widthMeasureSpec, int heightMeasureSpec) {
final int size = mChildrenCount;
final View[] children = mChildren;
for (int i = 0; i < size; ++i) {
final View child = children[i];
// 当View的可见性处于GONE状态时，不对其进行测量
if ((child.mViewFlags & VISIBILITY_MASK) != GONE) {
measureChild(child, widthMeasureSpec, heightMeasureSpec);
}
}
}
// 测量某个指定的View
protected void measureChild(View child, int parentWidthMeasureSpec, int parentHeightMeasureSpec) {
final LayoutParams lp = child.getLayoutParams();
// 根据父容器的MeasureSpec和子View的LayoutParams等信息计算
// 子View的MeasureSpec
final int childWidthMeasureSpec = getChildMeasureSpec(parentWidthMeasureSpec, mPaddingLeft + mPaddingRight, lp.width);
final int childHeightMeasureSpec = getChildMeasureSpec(parentHeightMeasureSpec, mPaddingTop + mPaddingBottom, lp.height);
child.measure(childWidthMeasureSpec, childHeightMeasureSpec);
}
// View的measure方法
public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
...
// ViewGroup没有定义测量的具体过程，因为ViewGroup是一个
// 抽象类，其测量过程的onMeasure方法需要各个子类去实现
onMeasure(widthMeasureSpec, heightMeasureSpec);
...
}
// 不同的ViewGroup子类有不同的布局特性，这导致它们的测量细节各不相同，如果需要自定义测量过程，则子类可以重写这个方法
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
// setMeasureDimension方法用于设置View的测量宽高
setMeasureDimension(getDefaultSize(getSuggestedMinimumWidth(), widthMeasureSpec),
getDefaultSize(getSuggestedMinimumHeight(), heightMeasureSpec));
}
// 如果View没有重写onMeasure方法，则会默认调用getDefaultSize来获得View的宽高
public static int getDefaultSize(int size, int measureSpec) {
int result = size;
int specMode = MeasureSpec.getMode(measureSpec);
int specSize = MeasureSpec.getSize(measureSpec);
switch (specMode) {
case MeasureSpec.UNSPECIFIED:
result = size;
break;
case MeasureSpec.AT_MOST:
case MeasureSpec.EXACTLY:
result = sepcSize;
break;
}
return result;
}
2.对getSuggestMinimumWidth的分析
protected int getSuggestedMinimumWidth() {
return (mBackground == null) ? mMinWidth : max(mMinWidth, mBackground.getMinmumWidth());
}
protected int getSuggestedMinimumHeight() {
return (mBackground == null) ? mMinHeight : max(mMinHeight, mBackground.getMinimumHeight());
}
public int getMinimumWidth() {
final int intrinsicWidth = getIntrinsicWidth();
return intrinsicWidth > 0 ? intrinsicWidth : 0;
}
如果View没有设置背景，那么返回android:minWidth这个属性所指定的值，这个值可以为0；如果View设置了背景，则返回android:minWidth和背景的最小宽度这两者中的最大值。
3.自定义View时手动处理wrap_content时的情形
直接继承View的控件需要重写onMeasure方法并设置wrap_content时的自身大小，否则在布局中使用wrap_content就相当于使用match_parent。解决方式如下：
protected void onMeasure(int widthMeasureSpec,
int height MeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int widthSpecMode = MeasureSpec.getMode(widthMeasureSpec);
int widtuhSpecSize = MeasureSpec.getSize(widthMeasureSpec);
int heightSpecMode = MeasureSpec.getMode(heightMeasureSpec);
// 在wrap_content的情况下指定内部宽/高(mWidth和mHeight)
int heightSpecSize = MeasureSpec.AT_MOST && heightSpecMode == MeasureSpec.AT_MOST) {
setMeasuredDimension(mWidth, mHeight);
} else if (widthSpecMode == MeasureSpec.AT_MOST) {
setMeasureDimension(mWidth, heightSpecSize);
} else if (heightSpecMode == MeasureSpec.AT_MOST) {
setMeasureDimension(widthSpecSize, mHeight);
}
}
4.LinearLayout的onMeasure方法实现解析
protected void onMeasure(int widthMeasureSpec, int hegithMeasureSpec) {
if (mOrientation == VERTICAL) {
measureVertical(widthMeasureSpec, heightMeasureSpec);
} else {
measureHorizontal(widthMeasureSpec, heightMeasureSpec);
}
}
// measureVertical核心源码
// See how tall everyone is. Also remember max width.
for (int i = 0; i < count; ++i) {
final View child = getVirtualChildAt(i);
...
// Determine how big this child would like to be. If this or
// previous children have given a weight, then we allow it to
// use all available space (and we will shrink things later
// if need)
measureChildBeforeLayout(
child, i, widthMeasureSpec, 0, heightMeasureSpec,
totalWeight == 0 ? mTotalLength : 0);
if (oldHeight != Integer.MIN_VALUE) {
lp.height = oldHeight;
}
final int childHeight = child.getMeasuredHeight();
final int totalLength = mTotalLength;
mTotalLength = Math.max(totalLength, totalLength + childHeight + lp.topMargin +
lp.bottomMargin + getNextLocationOffset(child));
}
系统会遍历子元素并对每个子元素执行measureChildBeforeLayout方法，这个方法内部会调用子元素的measure方法，这样各个子元素就开始依次进入measure过程，并且系统会通过mTotalLength这个变量来存储LinearLayout在竖直方向的初步高度。每测量一个子元素，mTotalLength就会增加，增加的部分主要包括了子元素的高度以及子元素在竖直方向上的margin等。
// LinearLayout测量自己大小的核心源码
// Add in our padding
mTotalLength += mPaddingTop + mPaddingBottom;
int heightSize = mTotalLength;
// Check against our minimum height
heightSize = Math.max(heightSize, getSuggestedMinimumHeight());
// Reconcile our calculated size with the heightMeasureSpec
int heightSizeAndState = resolveSizeAndState(heightSize, heightMeasureSpec, 0);
heightSize = heightSizeAndState & MEASURED_SIZE_MASK；
...
setMeasuredDimension(resolveSizeAndSize(maxWidth, widthMeasureSpec, childState),
heightSizeAndState);
public static int resolveSizeAndState(int size, int measureSpec, int childMeasuredState) {
int result = size;
int specMode = MeasureSpec.getMode(measureSpec);
int specSize = MeasureSpec.getSize(measureSpec);
switch (specMode) {
case MeasureSpec.UNSPECIFIED:
result = size;
break;
case MeasureSpec.AT_MOST:
// 高度不能超过父容器的剩余空间
if (specSize < size) {
result = specSize | MEASURED_STATE_TOO_SMALL；
} else {
result = size;
}
break;
case MeasureSpec.EXACTLY:
result = specSize;
break;
}
return result | (childMeasuredState & MEASURED_STATE_MASK);
}
5.在Activity中获取某个View的宽高
由于View的measure过程和Activity的生命周期方法不是同步执行的，如果View还没有测量完毕，那么获得的宽/高就是0。所以在onCreate、onStart、onResume中均无法正确得到某个View的宽高信息。解决方式如下：
- Activity/View#onWindowFocusChanged
// 此时View已经初始化完毕
// 当Activity的窗口得到焦点和失去焦点时均会被调用一次
// 如果频繁地进行onResume和onPause，那么onWindowFocusChanged也会被频繁地调用
public void onWindowFocusChanged(boolean hasFocus) {
super.onWindowFocusChanged(hasFocus);
if (hasFocus) {
int width = view.getMeasureWidth();
int height = view.getMeasuredHeight();
}
}
- view.post(runnable)
// 通过post可以将一个runnable投递到消息队列的尾部，// 然后等待Looper调用次runnable的时候，View也已经初
// 始化好了
protected void onStart() {
super.onStart();
view.post(new Runnable() {
@Override
public void run() {
int width = view.getMeasuredWidth();
int height = view.getMeasuredHeight();
}
});
}
- ViewTreeObserver
// 当View树的状态发生改变或者View树内部的View的可见// 性发生改变时，onGlobalLayout方法将被回调
protected void onStart() {
super.onStart();
ViewTreeObserver observer = view.getViewTreeObserver();
observer.addOnGlobalLayoutListener(new OnGlobalLayoutListener() {
@SuppressWarnings("deprecation")
@Override
public void onGlobalLayout() {
view.getViewTreeObserver().removeGlobalOnLayoutListener(this);
int width = view.getMeasuredWidth();
int height = view.getMeasuredHeight();
}
});
}
- View.measure(int widthMeasureSpec, int heightMeasureSpec)
五、View的绘制流程之Layout
1.Layout的基本流程
// ViewRootImpl.java
private void performLayout(WindowManager.LayoutParams lp, int desiredWindowWidth, int desiredWindowHeight) {
...
host.layout(0, 0, host.getMeasuredWidth(), host.getMeasuredHeight());
...
}
// View.java
public void layout(int l, int t, int r, int b) {
...
// 通过setFrame方法来设定View的四个顶点的位置，即View在父容器中的位置
boolean changed = isLayoutModeOptical(mParent) ?
set OpticalFrame(l, t, r, b) : setFrame(l, t, r, b);
...
onLayout(changed, l, t, r, b);
...
}
// 空方法，子类如果是ViewGroup类型，则重写这个方法，实现ViewGroup
// 中所有View控件布局流程
protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
}
2.LinearLayout的onLayout方法实现解析
protected void onlayout(boolean changed, int l, int t, int r, int b) {
if (mOrientation == VERTICAL) {
layoutVertical(l, t, r, b);
} else {
layoutHorizontal(l,)
}
}
// layoutVertical核心源码
void layoutVertical(int left, int top, int right, int bottom) {
...
final int count = getVirtualChildCount();
for (int i = 0; i < count; i++) {
final View child = getVirtualChildAt(i);
if (child == null) {
childTop += measureNullChild(i);
} else if (child.getVisibility() != GONE) {
final int childWidth = child.getMeasureWidth();
final int childHeight = child.getMeasuredHeight();
final LinearLayout.LayoutParams lp =
(LinearLayout.LayoutParams) child.getLayoutParams();
...
if (hasDividerBeforeChildAt(i)) {
childTop += mDividerHeight;
}
childTop += lp.topMargin;
// 为子元素确定对应的位置
setChildFrame(child, childLeft, childTop + getLocationOffset(child), childWidth, childHeight);
// childTop会逐渐增大，意味着后面的子元素会被
// 放置在靠下的位置
childTop += childHeight + lp.bottomMargin + getNextLocationOffset(child);
i += getChildrenSkipCount(child,i)
}
}
}
private void setChildFrame(View child, int left, int top, int width, int height) {
child.layout(left, top, left + width, top + height);
}
注意：在View的默认实现中，View的测量宽/高和最终宽/高是相等的，只不过测量宽/高形成于View的measure过程，而最终宽/高形成于View的layout过程，即两者的赋值时机不同，测量宽/高的赋值时机稍微早一些。在一些特殊的情况下则两者不相等：
- 重写View的layout方法,使最终宽度总是比测量宽/高大100px
public void layout(int l, int t, int r, int b) {
super.layout(l, t, r + 100, b + 100);
}
- View需要多长measure才能确定自己的测量宽/高,在前几次测量的过程中，其得出的测量宽/高有可能和最终宽/高不一致，但最终来说，测量宽/高还是和最终宽/高相同
六、View的绘制流程之Draw
1.Draw的基本流程
private void performDraw() {
...
draw(fullRefrawNeeded);
...
}
private void draw(boolean fullRedrawNeeded) {
...
if (!drawSoftware(surface, mAttachInfo, xOffest, yOffset,
scalingRequired, dirty)) {
return;
}
...
}
private boolean drawSoftware(Surface surface, AttachInfo attachInfo,
int xoff, int yoff, boolean scallingRequired, Rect dirty) {
...
mView.draw(canvas);
...
}
// 绘制基本上可以分为六个步骤
public void draw(Canvas canvas) {
...
// 步骤一：绘制View的背景
drawBackground(canvas);
...
// 步骤二：如果需要的话，保持canvas的图层，为fading做准备
saveCount = canvas.getSaveCount();
...
canvas.saveLayer(left, top, right, top + length, null, flags);
...
// 步骤三：绘制View的内容
onDraw(canvas);
...
// 步骤四：绘制View的子View
dispatchDraw(canvas);
...
// 步骤五：如果需要的话，绘制View的fading边缘并恢复图层
canvas.drawRect(left, top, right, top + length, p);
...
canvas.restoreToCount(saveCount);
...
// 步骤六：绘制View的装饰(例如滚动条等等)
onDrawForeground(canvas)
}
2.setWillNotDraw的作用
// 如果一个View不需要绘制任何内容，那么设置这个标记位为true以后，
// 系统会进行相应的优化。
public void setWillNotDraw(boolean willNotDraw) {
setFlags(willNotDraw ? WILL_NOT_DRAW : 0, DRAW_MASK);
}
- 默认情况下，View没有启用这个优化标记位，但是ViewGroup会默认启用这个优化标记位。
- 当我们的自定义控件继承于ViewGroup并且本身不具备绘制功能时，就可以开启这个标记位从而便于系统进行后续的优化。
- 当明确知道一个ViewGroup需要通过onDraw来绘制内容时，我们需要显示地关闭WILL_NOT_DRAW这个标记位。
七、总结
View的绘制流程和事件分发机制都是Android开发中的核心知识点，也是自定View高手的内功心法。众所周知，Kotlin在Android中的地位越来越重要，下一篇将会给大家带来Kotlin的一系列教程，敬请期待~
参考链接：
1、Android开发艺术探索
2、Android进阶之光
3、Android高级进阶
