iOS中的通知包括本地推送通知和远程推送通知，下面就来详细介绍iOS推送通知的相关功能及操作。
本文来自360奇舞团Qishare团队投稿。
概述
iOS中的通知包括本地推送通知和远程推送通知，两者在iOS系统中都可以通过弹出横幅的形式来提醒用户，点击横幅会打开应用。在iOS 10及之后版本的系统中，还支持通知扩展功能（ UNNotificationServiceExtension
、UNNotificationContentExtension），下面就来详细介绍iOS推送通知的相关功能及操作。
本地推送通知
01本地推送通知是由本地应用触发的，是基于时间的通知形式，一般用于闹钟定时、待办事项等提醒功能。发送本地推送通知的大体步骤如下： （1）注册本地通知； （2）创建本地通知相关变量，并初始化； （3）设置处理通知的时间
fireDate； （4）设置通知的内容：通知标题、通知声音、图标数字等； （5）设置通知传递的参数userInfo，该字典内容可自定义（可选）； （6）添加这个本地通知到UNUserNotificationCenter。
注册本地推送通知
- (void)sendLocalNotification {
NSString *title = @"通知-title";
NSString *sutitle = @"通知-subtitle";
NSString *body = @"通知-body";
NSInteger badge = 1;
NSInteger timeInteval = 5;
NSDictionary *userInfo = @{@"id": @"LOCAL_NOTIFY_SCHEDULE_ID"};
if (@available(iOS 10.0, *)) {
// 1.创建通知内容
UNMutableNotificationContent *content = [[UNMutableNotificationContent alloc] init];
[content setValue:@(YES) forKeyPath:@"shouldAlwaysAlertWhileAppIsForeground"];
content.sound = [UNNotificationSound defaultSound];
content.title = title;
content.subtitle = subtitle;
content.body = body;
content.badge = @(badge);
content.userInfo = userInfo;
// 2.设置通知附件内容
NSError *error = nil;
NSString *path = [[NSBundle mainBundle] pathForResource:@"logo_img_02@2x" ofType:@"png"];
UNNotificationAttachment *att = [UNNotificationAttachment attachmentWithIdentifier:@"att1" URL:[NSURL fileURLWithPath:path] options:nil error:&error];
if (error) {
NSLog(@"attachment error %@", error);
}
content.attachments = @[att];
content.launchImageName = @"icon_certification_status1@2x";
// 3.设置声音
UNNotificationSound *sound = [UNNotificationSound soundNamed:@"sound01.wav"];// [UNNotificationSound defaultSound];
content.sound = sound;
// 4.触发模式
UNTimeIntervalNotificationTrigger *trigger = [UNTimeIntervalNotificationTrigger triggerWithTimeInterval:timeInteval repeats:NO];
// 5.设置UNNotificationRequest
UNNotificationRequest *request = [UNNotificationRequest requestWithIdentifier:LocalNotiReqIdentifer content:content trigger:trigger];
// 6.把通知加到UNUserNotificationCenter, 到指定触发点会被触发
[[UNUserNotificationCenter currentNotificationCenter] addNotificationRequest:request withCompletionHandler:^(NSError * _Nullable error) {
}];
} else {
UILocalNotification *localNotification = [[UILocalNotification alloc] init];
// 1.设置触发时间（如果要立即触发，无需设置）
localNotification.timeZone = [NSTimeZone defaultTimeZone];
localNotification.fireDate = [NSDate dateWithTimeIntervalSinceNow:5];
// 2.设置通知标题
localNotification.alertBody = title;
// 3.设置通知动作按钮的标题
localNotification.alertAction = @"查看";
// 4.设置提醒的声音
localNotification.soundName = @"sound01.wav";// UILocalNotificationDefaultSoundName;
// 5.设置通知的 传递的userInfo
localNotification.userInfo = userInfo;
// 6.在规定的日期触发通知
[[UIApplication sharedApplication] scheduleLocalNotification:localNotification];
// 7.立即触发一个通知
//[[UIApplication sharedApplication] presentLocalNotificationNow:localNotification];
}
}
02
取消本地推送通知
- (void)cancelLocalNotificaitons {
// 取消一个特定的通知
NSArray *notificaitons = [[UIApplication sharedApplication] scheduledLocalNotifications];
// 获取当前所有的本地通知
if (!notificaitons || notificaitons.count <= 0) { return; }
for (UILocalNotification *notify in notificaitons) {
if ([[notify.userInfo objectForKey:@"id"] isEqualToString:@"LOCAL_NOTIFY_SCHEDULE_ID"]) {
if (@available(iOS 10.0, *)) {
[[UNUserNotificationCenter currentNotificationCenter] removePendingNotificationRequestsWithIdentifiers:@[LocalNotiReqIdentifer]];
} else {
[[UIApplication sharedApplication] cancelLocalNotification:notify];
}
break;
}
}
// 取消所有的本地通知
//[[UIApplication sharedApplication] cancelAllLocalNotifications];
}
03
AppDelegate中的回调方法
在上面的代码中我们设置了 userInfo，在iOS中收到并点击通知，则会自动打开应用。但是在不同版本的iOS系统中回调方式有所差异，如下：
-
系统版本 < iOS 10
// 如果App已经完全退出：
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions;
// 当App已经完全退出时，获取userInfo参数过程如下：
// NSDictionary *userInfoLocal = (NSDictionary *)[launchOptions objectForKey:UIApplicationLaunchOptionsLocalNotificationKey];
// NSDictionary *userInfoRemote = (NSDictionary *)[launchOptions objectForKey:UIApplicationLaunchOptionsRemoteNotificationKey];
// 如果App还在运行（前台or后台）
- (void)application:(UIApplication *)application didReceiveLocalNotification:(UILocalNotification *)notification;
-
系统版本 >= iOS 10
#if __IPHONE_OS_VERSION_MAX_ALLOWED >= __IPHONE_10_0
#pragma mark - UNUserNotificationCenterDelegate
- (void)userNotificationCenter:(UNUserNotificationCenter *)center willPresentNotification:(UNNotification *)notification withCompletionHandler:(void (^)(UNNotificationPresentationOptions options))completionHandler __IOS_AVAILABLE(10.0) __TVOS_AVAILABLE(10.0) __WATCHOS_AVAILABLE(3.0);
- (void)userNotificationCenter:(UNUserNotificationCenter *)center didReceiveNotificationResponse:(UNNotificationResponse *)response withCompletionHandler:(void(^)(void))completionHandler __IOS_AVAILABLE(10.0) __WATCHOS_AVAILABLE(3.0) __TVOS_PROHIBITED;
#endif
04
实现效果
-
app向用户请求推送通知权限的提示弹窗：
-

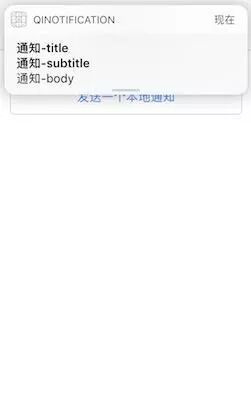

app处于不同状态（前台、后台、锁屏）时弹出通知的效果：
二PS：
当用户拒绝授权推送通知时，
app无法接收通知；（用户可以到设置->通知->相应app，手动设置通知选项）通知的声音在代码中指定，由系统播放，时长必须在
30s内，否则将被默认声音替换，并且自定义声音文件必须放到main bundle中。本地通知有数量限制，超过一定数量（64个）将被系统忽略（数据来源于网络，具体时间间隔待验证）。
远程推送通知
远程推送通知是通过苹果的APNs（
ApplePushNotificationservice）发送到app，而APNs必须先知道用户设备的令牌（device token）。在启动时，app与APNs通信并接收device token，然后将其转发到AppServer，AppServer将该令牌和要发送的通知消息发送至APNs。 PS：苹果官网APNs概述
远程推送通知的传递过程涉及几个关键组件：
-
App Server
-
Apple推送通知服务（APNs）
-
用户的设备（iPhone、iPad、iTouch、Mac等）
-
相应的app

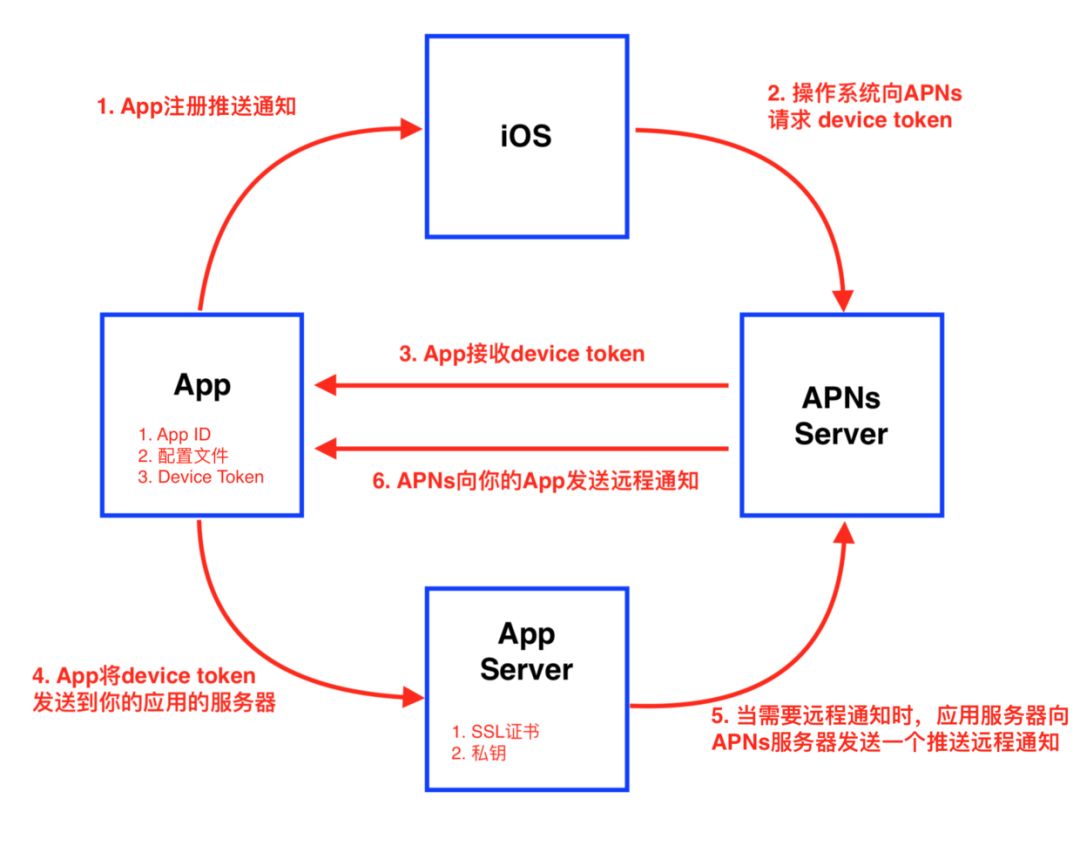

苹果官方提供的远程推送通知的传递示意图如下：
各关键组件之间的交互细节：
-
开发远程推送功能首先要设置正确的推送证书和权限，步骤如下： 1）根据工程的
BundleIdentifier，在苹果开发者平台中创建同名AppID，并勾选PushNotifications服务； 2）在工程的“Capabilities”中设置PushNotifications为ON； 3）远程推送必须使用真机调试，因为模拟器无法获取得到device token。 -
在设置好证书和权限后，按照以下步骤开发远程推送功能：
01
注册远程通知
// iOS 8及以上版本的远程推送通知注册
- (void)registerRemoteNotifications
{
if (@available(iOS 10.0, *)) {
UNUserNotificationCenter *center = [UNUserNotificationCenter currentNotificationCenter];
center.delegate = self;
[center requestAuthorizationWithOptions:(UNAuthorizationOptionBadge | UNAuthorizationOptionSound | UNAuthorizationOptionAlert | UNAuthorizationOptionCarPlay) completionHandler:^(BOOL granted, NSError *_Nullable error) {
if (!error) {
NSLog(@"request authorization succeeded!");
[[UIApplication sharedApplication] registerForRemoteNotifications];
} else {
NSLog(@"request authorization failed!");
}
}];
} else {
UIUserNotificationType types = (UIUserNotificationTypeAlert | UIUserNotificationTypeSound | UIUserNotificationTypeBadge);
UIUserNotificationSettings *settings = [UIUserNotificationSettings settingsForTypes:types categories:nil];
[[UIApplication sharedApplication] registerUserNotificationSettings:settings];
[[UIApplication sharedApplication] registerForRemoteNotifications];
}
}
02
App获取device token
-
在注册远程通知后，获取
device token的回调方法：
- (void)application:(UIApplication *)application didRegisterForRemoteNotificationsWithDeviceToken:(NSData *)deviceToken;
-
获取
device token失败的回调方法：
- (void)application:(UIApplication *)application didFailToRegisterForRemoteNotificationsWithError:(NSError *)error;
03
app将device token发送给App Server
只有苹果公司知道 device token的生成算法，保证唯一， device token在app卸载后重装等情况时会变化，因此为确保 device token变化后app仍然能够正常接收服务器端发送的通知，建议每次启动应用都将获取到的 device token传给 AppServer。
04
App Server将device token和要推送的消息发送给APNs
将指定的 device token和消息内容发送给 APNs时，必须按照苹果官方的消息格式组织消息内容。 PS：远程通知消息的字段、创建远程通知消息
消息格式： {"aps":{"alert":{"title":"通知的title","subtitle":"通知的subtitle","body":"通知的body","title-loc-key":"TITLELOCKEY","title-loc-args":["t01","t02"],"loc-key":"LOC KEY","loc-args":["l01","l_02"]},"sound":"sound01.wav","badge":1,"mutable-content":1,"category": "realtime"},"msgid":"123"}
05
APNs根据device token查找相应设备，并推送消息
一般情况 APNs可以根据 deviceToken将消息成功推送到相应设备中，但也存在用户卸载程序等导致推送消息失败的情况，这时 AppServer会收到 APNs返回的错误信息）。
06
AppDelegate中的回调方法
// iOS<10时，且app被完全杀死
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions;
// 注：iOS10以上如果不使用UNUserNotificationCenter时，也将走此回调方法
- (void)application:(UIApplication *)application didReceiveRemoteNotification:(NSDictionary *)userInfo;
// 支持iOS7及以上系统
- (void)application:(UIApplication *)application didReceiveRemoteNotification:(NSDictionary *)userInfo fetchCompletionHandler:(void (^)(UIBackgroundFetchResult))completionHandler;
// iOS>=10: app在前台获取到通知
- (void)userNotificationCenter:(UNUserNotificationCenter *)center willPresentNotification:(UNNotification *)notification withCompletionHandler:(void (^)(UNNotificationPresentationOptions))completionHandler;
// iOS>=10: 点击通知进入app时触发（杀死/切到后台唤起）
- (void)userNotificationCenter:(UNUserNotificationCenter *)center didReceiveNotificationResponse:(UNNotificationResponse *)response withCompletionHandler:(void (^)(void))completionHandler;
在AppDelegate中注册远程推送通知并解析通知数据的完整代码如下：
#import "AppDelegate.h"
#import "ViewController.h"
#if __IPHONE_OS_VERSION_MAX_ALLOWED >= __IPHONE_10_0
#import <UserNotifications/UserNotifications.h>
#endif
@interface AppDelegate () <UNUserNotificationCenterDelegate>
@end
@implementation AppDelegate
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
ViewController *controller = [[ViewController alloc] init];
UINavigationController *nav = [[UINavigationController alloc] initWithRootViewController:controller];
_window = [[UIWindow alloc] initWithFrame:[UIScreen mainScreen].bounds];
[_window setRootViewController:nav];
[_window makeKeyAndVisible];
////注册本地推送通知（具体操作在ViewController中）
//[self registerLocalNotification];
// 注册远程推送通知
[self registerRemoteNotifications];
return YES;
}
- (void)registerLocalNotification {
if (@available(iOS 10.0, *)) {
UNUserNotificationCenter *center = [UNUserNotificationCenter currentNotificationCenter];
center.delegate = self;
[center requestAuthorizationWithOptions:(UNAuthorizationOptionBadge | UNAuthorizationOptionSound | UNAuthorizationOptionAlert) completionHandler:^(BOOL granted, NSError * _Nullable error) {
if (!error) {
NSLog(@"request authorization succeeded!");
}
}];
} else {
UIUserNotificationSettings *settings = [UIUserNotificationSettings settingsForTypes:UIUserNotificationTypeAlert | UIUserNotificationTypeBadge | UIUserNotificationTypeSound categories:nil];
[[UIApplication sharedApplication] registerUserNotificationSettings:settings];
}
}
- (void)registerRemoteNotifications
{
if (@available(iOS 10.0, *)) {
UNUserNotificationCenter *center = [UNUserNotificationCenter currentNotificationCenter];
center.delegate = self;
[center requestAuthorizationWithOptions:(UNAuthorizationOptionBadge | UNAuthorizationOptionSound | UNAuthorizationOptionAlert | UNAuthorizationOptionCarPlay) completionHandler:^(BOOL granted, NSError *_Nullable error) {
if (!error) {
NSLog(@"request authorization succeeded!");
[[UIApplication sharedApplication] registerForRemoteNotifications];
} else {
NSLog(@"request authorization failed!");
}
}];
} else {
UIUserNotificationType types = (UIUserNotificationTypeAlert | UIUserNotificationTypeSound | UIUserNotificationTypeBadge);
UIUserNotificationSettings *settings = [UIUserNotificationSettings settingsForTypes:types categories:nil];
[[UIApplication sharedApplication] registerUserNotificationSettings:settings];
[[UIApplication sharedApplication] registerForRemoteNotifications];
}
}
- (void)application:(UIApplication *)application didRegisterUserNotificationSettings:(UIUserNotificationSettings *)notificationSettings {
NSLog(@"didRegisterUserNotificationSettings");
}
- (void)application:(UIApplication *)application didReceiveLocalNotification:(UILocalNotification *)notification {
NSLog(@"app收到本地推送(didReceiveLocalNotification:):%@", notification.userInfo);
}
- (void)application:(UIApplication *)application didRegisterForRemoteNotificationsWithDeviceToken:(NSData *)deviceToken {
// 获取并处理deviceToken
NSString *token = [[deviceToken description] stringByTrimmingCharactersInSet:[NSCharacterSet characterSetWithCharactersInString:@"<>"]];
token = [token stringByReplacingOccurrencesOfString:@" " withString:@""];
NSLog(@"DeviceToken:%@\n", token);
}
- (void)application:(UIApplication *)application didFailToRegisterForRemoteNotificationsWithError:(NSError *)error {
NSLog(@"didFailToRegisterForRemoteNotificationsWithError: %@", error.description);
}
// 注：iOS10以上如果不使用UNUserNotificationCenter时，也将走此回调方法
- (void)application:(UIApplication *)application didReceiveRemoteNotification:(NSDictionary *)userInfo {
// iOS6及以下系统
if (userInfo) {
if ([UIApplication sharedApplication].applicationState == UIApplicationStateActive) {// app位于前台通知
NSLog(@"app位于前台通知(didReceiveRemoteNotification:):%@", userInfo);
} else {// 切到后台唤起
NSLog(@"app位于后台通知(didReceiveRemoteNotification:):%@", userInfo);
}
}
}
- (void)application:(UIApplication *)application didReceiveRemoteNotification:(NSDictionary *)userInfo fetchCompletionHandler:(void (^)(UIBackgroundFetchResult))completionHandler NS_AVAILABLE_IOS(7_0) {
// iOS7及以上系统
if (userInfo) {
if ([UIApplication sharedApplication].applicationState == UIApplicationStateActive) {
NSLog(@"app位于前台通知(didReceiveRemoteNotification:fetchCompletionHandler:):%@", userInfo);
} else {
NSLog(@"app位于后台通知(didReceiveRemoteNotification:fetchCompletionHandler:):%@", userInfo);
}
}
completionHandler(UIBackgroundFetchResultNewData);
}
#pragma mark - iOS>=10 中收到推送消息
#if __IPHONE_OS_VERSION_MAX_ALLOWED >= __IPHONE_10_0
- (void)userNotificationCenter:(UNUserNotificationCenter *)center willPresentNotification:(UNNotification *)notification withCompletionHandler:(void (^)(UNNotificationPresentationOptions))completionHandler
API_AVAILABLE(ios(10.0)){
NSDictionary * userInfo = notification.request.content.userInfo;
if (userInfo) {
NSLog(@"app位于前台通知(willPresentNotification:):%@", userInfo);
}
completionHandler(UNNotificationPresentationOptionBadge|UNNotificationPresentationOptionSound|UNNotificationPresentationOptionAlert);
}
- (void)userNotificationCenter:(UNUserNotificationCenter *)center didReceiveNotificationResponse:(UNNotificationResponse *)response withCompletionHandler:(void (^)(void))completionHandler
API_AVAILABLE(ios(10.0)){
NSDictionary * userInfo = response.notification.request.content.userInfo;
if (userInfo) {
NSLog(@"点击通知进入App时触发(didReceiveNotificationResponse:):%@", userInfo);
}
completionHandler();
}
#endif
@end
07
使用Pusher工具模拟App Server推送通知
Pusher和SmartPush等工具一样，是优秀的远程推送测试工具，工具界面如下：
-
Pusher的使用步骤说明：1）选择
p12格式的推送证书； 2）设置是否为测试环境（默认勾选为测试环境，由于推送证书分为测试证书和生产证书，并且苹果的APNs也分为测试和生产两套环境，因此Pusher需要手动勾选推送环境）； 3）输入device token； 4）输入符合苹果要求格式的aps字符串； 5）执行推送。
效果如下点击横幅打开app，在回调方法中获取到的 json串如下：
PS：
要使用远程推送通知功能，需要至少启动app一次；
设备不连网，是无法注册远程推送通知的；
推送过程中aps串可在适当位置添加自定义字段，消息上限为
4 KB。
三
iOS 通知扩展
iOS 10及之后的推送通知具有扩展功能，包括两个方面：
通知服务扩展（UNNotificationServiceExtension），是在收到通知后且展示通知前允许开发者做一些事情，比如添加附件、加载网络请求等。点击查看官网文档

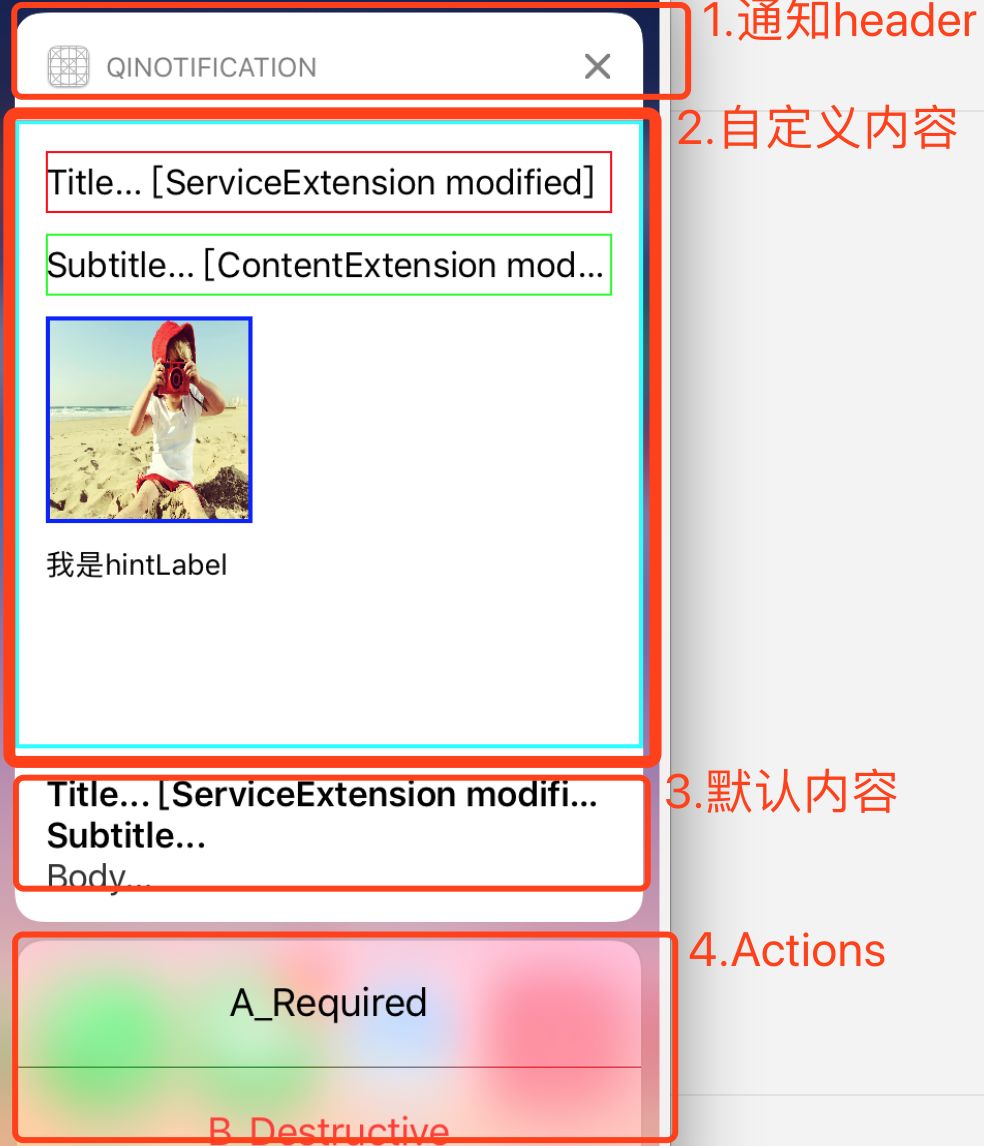

通知内容扩展（UNNotificationContentExtension），是在展示通知时展示一个自定义的用户界面。点击查看官网文档
01

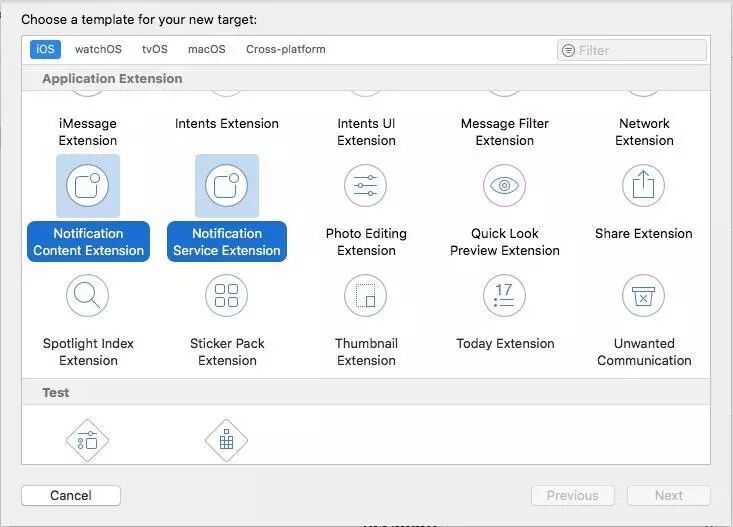

创建UNNotificationServiceExtension和UNNotificationContentExtension：
注意：
target支持的iOS版本为10.0及以上，且当前系统支持target版本。
02

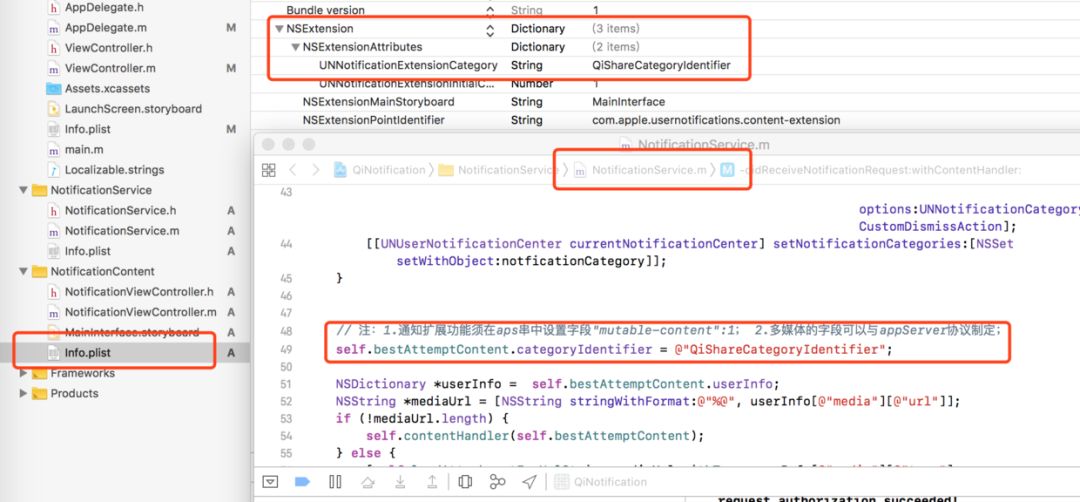

通知服务扩展UNNotificationServiceExtension
在NotificationService.m文件中，有两个回调方法：
// 系统接到通知后，有最多30秒在这里重写通知内容（如下载附件并更新通知）
- (void)didReceiveNotificationRequest:(UNNotificationRequest *)request withContentHandler:(void (^)(UNNotificationContent *contentToDeliver))contentHandler;
// 处理过程超时，则收到的通知直接展示出来
- (void)serviceExtensionTimeWillExpire;
在通知服务扩展中加载网络请求，代码如下：
#import "NotificationService.h"
#import <AVFoundation/AVFoundation.h>
@interface NotificationService ()
@property (nonatomic, strong) void (^contentHandler)(UNNotificationContent *contentToDeliver);
@property (nonatomic, strong) UNMutableNotificationContent *bestAttemptContent;
@end
@implementation NotificationService
- (void)didReceiveNotificationRequest:(UNNotificationRequest *)request withContentHandler:(void (^)(UNNotificationContent * _Nonnull))contentHandler {
self.contentHandler = contentHandler;
self.bestAttemptContent = [request.content mutableCopy];
//// Modify the notification content here...
self.bestAttemptContent.title = [NSString stringWithFormat:@"%@ [ServiceExtension modified]", self.bestAttemptContent.title];
// 设置UNNotificationAction
UNNotificationAction * actionA =[UNNotificationAction actionWithIdentifier:@"ActionA" title:@"A_Required" options:UNNotificationActionOptionAuthenticationRequired];
UNNotificationAction * actionB = [UNNotificationAction actionWithIdentifier:@"ActionB" title:@"B_Destructive" options:UNNotificationActionOptionDestructive];
UNNotificationAction * actionC = [UNNotificationAction actionWithIdentifier:@"ActionC" title:@"C_Foreground" options:UNNotificationActionOptionForeground];
UNTextInputNotificationAction * actionD = [UNTextInputNotificationAction actionWithIdentifier:@"ActionD"
title:@"D_InputDestructive"
options:UNNotificationActionOptionDestructive
textInputButtonTitle:@"Send"
textInputPlaceholder:@"input some words here ..."];
NSArray *actionArr = [[NSArray alloc] initWithObjects:actionA, actionB, actionC, actionD, nil];
NSArray *identifierArr = [[NSArray alloc] initWithObjects:@"ActionA", @"ActionB", @"ActionC", @"ActionD", nil];
UNNotificationCategory * notficationCategory = [UNNotificationCategory categoryWithIdentifier:@"QiShareCategoryIdentifier"
actions:actionArr
intentIdentifiers:identifierArr
options:UNNotificationCategoryOptionCustomDismissAction];
[[UNUserNotificationCenter currentNotificationCenter] setNotificationCategories:[NSSet setWithObject:notficationCategory]];
// 设置categoryIdentifier
self.bestAttemptContent.categoryIdentifier = @"QiShareCategoryIdentifier";
// 加载网络请求
NSDictionary *userInfo = self.bestAttemptContent.userInfo;
NSString *mediaUrl = userInfo[@"media"][@"url"];
NSString *mediaType = userInfo[@"media"][@"type"];
if (!mediaUrl.length) {
self.contentHandler(self.bestAttemptContent);
} else {
[self loadAttachmentForUrlString:mediaUrl withType:mediaType completionHandle:^(UNNotificationAttachment *attach) {
if (attach) {
self.bestAttemptContent.attachments = [NSArray arrayWithObject:attach];
}
self.contentHandler(self.bestAttemptContent);
}];
}
}
- (void)loadAttachmentForUrlString:(NSString *)urlStr withType:(NSString *)type completionHandle:(void(^)(UNNotificationAttachment *attach))completionHandler
{
__block UNNotificationAttachment *attachment = nil;
NSURL *attachmentURL = [NSURL URLWithString:urlStr];
NSString *fileExt = [self getfileExtWithMediaType:type];
NSURLSession *session = [NSURLSession sessionWithConfiguration:[NSURLSessionConfiguration defaultSessionConfiguration]];
[[session downloadTaskWithURL:attachmentURL completionHandler:^(NSURL *temporaryFileLocation, NSURLResponse *response, NSError *error) {
if (error) {
NSLog(@"加载多媒体失败 %@", error.localizedDescription);
} else {
NSFileManager *fileManager = [NSFileManager defaultManager];
NSURL *localURL = [NSURL fileURLWithPath:[temporaryFileLocation.path stringByAppendingString:fileExt]];
[fileManager moveItemAtURL:temporaryFileLocation toURL:localURL error:&error];
// 自定义推送UI需要
NSMutableDictionary * dict = [self.bestAttemptContent.userInfo mutableCopy];
[dict setObject:[NSData dataWithContentsOfURL:localURL] forKey:@"image"];
self.bestAttemptContent.userInfo = dict;
NSError *attachmentError = nil;
attachment = [UNNotificationAttachment attachmentWithIdentifier:@"QiShareCategoryIdentifier" URL:localURL options:nil error:&attachmentError];
if (attachmentError) {
NSLog(@"%@", attachmentError.localizedDescription);
}
}
completionHandler(attachment);
}] resume];
}
- (NSString *)getfileExtWithMediaType:(NSString *)mediaType {
NSString *fileExt = mediaType;
if ([mediaType isEqualToString:@"image"]) {
fileExt = @"jpg";
}
if ([mediaType isEqualToString:@"video"]) {
fileExt = @"mp4";
}
if ([mediaType isEqualToString:@"audio"]) {
fileExt = @"mp3";
}
return [@"." stringByAppendingString:fileExt];
}
- (void)serviceExtensionTimeWillExpire {
// Called just before the extension will be terminated by the system.
// Use this as an opportunity to deliver your "best attempt" at modified content, otherwise the original push payload will be used.
self.contentHandler(self.bestAttemptContent);
}
@end
消息内容格式： {"aps":{"alert":{"title":"Title...","subtitle":"Subtitle...","body":"Body..."},"sound":"default","badge": 1,"mutable-content": 1,"category": "QiShareCategoryIdentifier",},"msgid":"123","media":{"type":"image","url":"https://www.fotor.com/images2/features/photo effects/ebw.jpg"}}
PS：
加载并处理附件时间上限为30秒，否则，通知按系统默认形式弹出；
UNNotificationAttachment的url接收的是本地文件的url；
服务端在处理推送内容时，最好加上媒体类型字段；
aps字符串中的mutable-content字段需要设置为1；
在对NotificationService进行debug时，需要在Xcode顶栏选择编译运行的target为NotificationService，否则无法进行实时debug。
03
通知内容扩展UNNotificationContentExtension
通知内容扩展界面NotificationViewController的结构如下：
-
设置actions： 从NotificationViewController直接继承于ViewController，因此可以在这个类中重写相关方法，来修改界面的相关布局及样式。在这个界面展开之前，用户可以通过UNNotificationAction与相应推送通知交互，但是用户和这个通知内容扩展界面无法直接交互。
-
设置category： 推送通知内容中的category字段，与UNNotificationContentExtension的info.plist中UNNotificationExtensionCategory字段的值要匹配，系统才能找到自定义的UI。
在aps串中直接设置category字段，例如： { "aps":{ "alert":"Testing...(0)","badge":1,"sound":"default","category":"QiShareCategoryIdentifier"}}
在NotificationService.m中设置category的值如下：
self.bestAttemptContent.categoryIdentifier = @"QiShareCategoryIdentifier";
info.plist中关于category的配置如下：
-
UNNotificationContentExtension协议：NotificationViewController 中生成时默认实现了。
简单的英文注释很明了：
// This will be called to send the notification to be displayed by
// the extension. If the extension is being displayed and more related
// notifications arrive (eg. more messages for the same conversation)
// the same method will be called for each new notification.
- (void)didReceiveNotification:(UNNotification *)notification；
// If implemented, the method will be called when the user taps on one
// of the notification actions. The completion handler can be called
// after handling the action to dismiss the notification and forward the
// action to the app if necessary.
- (void)didReceiveNotificationResponse:(UNNotificationResponse *)response completionHandler:(void (^)(UNNotificationContentExtensionResponseOption))completion
// Called when the user taps the play or pause button.
- (void)mediaPlay;
- (void)mediaPause;
-
UNNotificationAttachment：attachment支持1）音频5M（kUTTypeWaveformAudio/kUTTypeMP3/kUTTypeMPEG4Audio/kUTTypeAudioInterchangeFileFormat）2）图片10M（kUTTypeJPEG/kUTTypeGIF/kUTTypePNG）3）视频50M（kUTTypeMPEG/kUTTypeMPEG2Video/kUTTypeMPEG4/kUTTypeAVIMovie）
04
自定义内容扩展界面与内容扩展功能联合使用时，代码如下：
#import "NotificationViewController.h"
#import <UserNotifications/UserNotifications.h>
#import <UserNotificationsUI/UserNotificationsUI.h>
#define Margin 15
@interface NotificationViewController () <UNNotificationContentExtension>
@property (nonatomic, strong) UILabel *label;
@property (nonatomic, strong) UILabel *subLabel;
@property (nonatomic, strong) UIImageView *imageView;
@property (nonatomic, strong) UILabel *hintLabel;
@end
@implementation NotificationViewController
- (void)viewDidLoad {
[super viewDidLoad];
CGPoint origin = self.view.frame.origin;
CGSize size = self.view.frame.size;
self.label = [[UILabel alloc] initWithFrame:CGRectMake(Margin, Margin, size.width-Margin*2, 30)];
self.label.autoresizingMask = UIViewAutoresizingFlexibleWidth;
[self.view addSubview:self.label];
self.subLabel = [[UILabel alloc] initWithFrame:CGRectMake(Margin, CGRectGetMaxY(self.label.frame)+10, size.width-Margin*2, 30)];
self.subLabel.autoresizingMask = UIViewAutoresizingFlexibleWidth;
[self.view addSubview:self.subLabel];
self.imageView = [[UIImageView alloc] initWithFrame:CGRectMake(Margin, CGRectGetMaxY(self.subLabel.frame)+10, 100, 100)];
[self.view addSubview:self.imageView];
self.hintLabel = [[UILabel alloc] initWithFrame:CGRectMake(Margin, CGRectGetMaxY(self.imageView.frame)+10, size.width-Margin*2, 20)];
[self.hintLabel setText:@"我是hintLabel"];
[self.hintLabel setFont:[UIFont systemFontOfSize:14]];
[self.hintLabel setTextAlignment:NSTextAlignmentLeft];
[self.view addSubview:self.hintLabel];
self.view.frame = CGRectMake(origin.x, origin.y, size.width, CGRectGetMaxY(self.imageView.frame)+Margin);
// 设置控件边框颜色
[self.label.layer setBorderColor:[UIColor redColor].CGColor];
[self.label.layer setBorderWidth:1.0];
[self.subLabel.layer setBorderColor:[UIColor greenColor].CGColor];
[self.subLabel.layer setBorderWidth:1.0];
[self.imageView.layer setBorderWidth:2.0];
[self.imageView.layer setBorderColor:[UIColor blueColor].CGColor];
[self.view.layer setBorderWidth:2.0];
[self.view.layer setBorderColor:[UIColor cyanColor].CGColor];
}
- (void)didReceiveNotification:(UNNotification *)notification {
self.label.text = notification.request.content.title;
self.subLabel.text = [NSString stringWithFormat:@"%@ [ContentExtension modified]", notification.request.content.subtitle];
NSData *data = notification.request.content.userInfo[@"image"];
UIImage *image = [UIImage imageWithData:data];
[self.imageView setImage:image];
}
- (void)didReceiveNotificationResponse:(UNNotificationResponse *)response completionHandler:(void (^)(UNNotificationContentExtensionResponseOption))completion {
[self.hintLabel setText:[NSString stringWithFormat:@"触发了%@", response.actionIdentifier]];
if ([response.actionIdentifier isEqualToString:@"ActionA"]) {
dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(1.5 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
completion(UNNotificationContentExtensionResponseOptionDismiss);
});
} else if ([response.actionIdentifier isEqualToString:@"ActionB"]) {
} else if ([response.actionIdentifier isEqualToString:@"ActionC"]) {
} else if ([response.actionIdentifier isEqualToString:@"ActionD"]) {
} else {
completion(UNNotificationContentExtensionResponseOptionDismiss);
}
completion(UNNotificationContentExtensionResponseOptionDoNotDismiss);
}
@end
手机收到通知时的展示（aps串以上面第2点中提到的“消息内容格式”为例）
说明：
服务扩展target和内容扩展target在配置中所支持的系统版本要在iOS10及以上；
自定义视图的大小可以通过设置NotificationViewController的preferredContentSize大小来控制，但是用户体验稍显突兀，可以通过设置info.plist中的UNNotificationExtensionInitialContentSizeRatio属性的值来优化；
contentExtension中的info.plist中NSExtension下的NSExtensionAttributes字段下可以配置以下属性的值，UNNotificationExtensionCategory：表示自定义内容假面可以识别的category，可以为数组，也即可以为这个content绑定多个通知；UNNotificationExtensionInitialContentSizeRatio：默认的UI界面的宽高比；UNNotificationExtensionDefaultContentHidden：是否显示系统默认的标题栏和内容，可选参数；UNNotificationExtensionOverridesDefaultTitle：是否让系统采用消息的标题作为通知的标题，可选参数。
处理通知内容扩展的过程中关于identifier的设置共有五处（UNNotificationAction、UNNotificationCategory、bestAttemptContent、contentExtension中的info.plist中，aps字符串中），请区别不同identifier的作用。
两个扩展联合使用，在XCode中选择当前target，才能打断点看到相应log信息。
工程源码：
https://github.com/QiShare/QiNotification
界世的你当不
只作你的肩膀
无
360官方技术公众号
技术干货|一手资讯|精彩活动
空·
