浅析Vue源码(四)—— $mount中template的编译--parse

1,781 阅读8分钟

$mount

mount是什么?--mount是手动加载的过程,接下来让我们看看具体是怎么实现的:

src/platforms/web/entry-runtime-with-compiler.js
/*把原本不带编译的$mount方法保存下来,在最后会调用。*/
const mount = Vue.prototype.$mount
/*挂载组件,带模板编译*/
Vue.prototype.$mount = function (
  el?: string | Element,
  hydrating?: boolean
): Component {
  el = el && query(el)

  /* istanbul ignore if */
  if (el === document.body || el === document.documentElement) {
    process.env.NODE_ENV !== 'production' && warn(
      `Do not mount Vue to <html> or <body> - mount to normal elements instead.`
    )
    return this
  }

  const options = this.$options
  // resolve template/el and convert to render function
  /*处理模板templete,编译成render函数,render不存在的时候才会编译template,否则优先使用render*/
  if (!options.render) {
    let template = options.template
     /*template存在的时候取template,不存在的时候取el的outerHTML*/
    if (template) {
    /*当template的类型是字符串时*/
      if (typeof template === 'string') {
        /*检索到template的首字母是#时判断为id*/
        if (template.charAt(0) === '#') {
          template = idToTemplate(template)
          /* istanbul ignore if */
          if (process.env.NODE_ENV !== 'production' && !template) {
            warn(
              `Template element not found or is empty: ${options.template}`,
              this
            )
          }
        }
      } else if (template.nodeType) {
      /*当template为DOM节点的时候*/
        template = template.innerHTML
      } else {
      /*报错*/
        if (process.env.NODE_ENV !== 'production') {
          warn('invalid template option:' + template, this)
        }
        return this
      }
    } else if (el) {
    /*获取element的outerHTML*/
      template = getOuterHTML(el)
    }
    if (template) {
      /* istanbul ignore if */
      if (process.env.NODE_ENV !== 'production' && config.performance && mark) {
        mark('compile')
      }
     /*将template编译成render函数,这里会有render以及staticRenderFns两个返回,这是vue的编译时优化,static静态不需要在VNode更新时进行patch,优化性能*/
      const { render, staticRenderFns } = compileToFunctions(template, {
        shouldDecodeNewlines,
        shouldDecodeNewlinesForHref,
        delimiters: options.delimiters,
        comments: options.comments
      }, this)
      options.render = render
      options.staticRenderFns = staticRenderFns

      /* istanbul ignore if */
      if (process.env.NODE_ENV !== 'production' && config.performance && mark) {
        mark('compile end')
        measure(`vue ${this._name} compile`, 'compile', 'compile end')
      }
    }
  }
   /*调用const mount = Vue.prototype.$mount保存下来的不带编译的mount*/
  return mount.call(this, el, hydrating)
}

通过mount编译代码我们清晰的了解到,在mount的过程中,如果render函数不存在(render函数存在会优先使用render)会将template进行compileToFunctions得到render以及staticRenderFns。譬如说手写组件时加入了template的情况都会在运行时进行编译。而render function在运行后会返回VNode节点,供页面的渲染以及在update的时候patch。接下来我们来看一下template是如何编译的。

compile 函数(src/compiler/index.js)就是将 template 编译成 render function 的字符串形式。接下来就详细讲解这个函数:

import { parse } from './parser/index'
import { optimize } from './optimizer'
import { generate } from './codegen/index'
import { createCompilerCreator } from './create-compiler'

// `createCompilerCreator` allows creating compilers that use alternative
// parser/optimizer/codegen, e.g the SSR optimizing compiler.
// Here we just export a default compiler using the default parts.
export const createCompiler = createCompilerCreator(function baseCompile (
  template: string,
  options: CompilerOptions
): CompiledResult {
  const ast = parse(template.trim(), options)
  if (options.optimize !== false) {
    optimize(ast, options)
  }
  const code = generate(ast, options)
  return {
    ast,
    render: code.render,
    staticRenderFns: code.staticRenderFns
  }
})

createCompiler 函数主要通过3个步骤:parse、optimize、generate来生成一个包含ast、render、staticRenderFns的对象。

parse

在说parse函数之前,我们先来了解一个概念:AST(Abstract Syntax Tree)抽象语法树: 在计算机科学中,抽象语法树(abstract syntax tree或者缩写为AST),或者语法树(syntax tree),是源代码的抽象语法结构的树状表现形式,这里特指编程语言的源代码。具体可以查看抽象语法树

AST会经过generate得到render函数,render的返回值是VNode,VNode是Vue的虚拟DOM节点,具体定义如下:

export default class VNode {
  tag: string | void;
  data: VNodeData | void;
  children: ?Array<VNode>;
  text: string | void;
  elm: Node | void;
  ns: string | void;
  context: Component | void; // rendered in this component's scope
  key: string | number | void;
  componentOptions: VNodeComponentOptions | void;
  componentInstance: Component | void; // component instance
  parent: VNode | void; // component placeholder node

  // strictly internal
  raw: boolean; // contains raw HTML? (server only)
  isStatic: boolean; // hoisted static node
  isRootInsert: boolean; // necessary for enter transition check
  isComment: boolean; // empty comment placeholder?
  isCloned: boolean; // is a cloned node?
  isOnce: boolean; // is a v-once node?
  asyncFactory: Function | void; // async component factory function
  asyncMeta: Object | void;
  isAsyncPlaceholder: boolean;
  ssrContext: Object | void;
  fnContext: Component | void; // real context vm for functional nodes
  fnOptions: ?ComponentOptions; // for SSR caching
  fnScopeId: ?string; // functional scope id support

  constructor (
    tag?: string,
    data?: VNodeData,
    children?: ?Array<VNode>,
    text?: string,
    elm?: Node,
    context?: Component,
    componentOptions?: VNodeComponentOptions,
    asyncFactory?: Function
  ) {
    /*当前节点的标签名*/
    this.tag = tag
    /*当前节点对应的对象,包含了具体的一些数据信息,是一个VNodeData类型,可以参考VNodeData类型中的数据信息*/
    this.data = data
    /*当前节点的子节点,是一个数组*/
    this.children = children
    /*当前节点的文本*/
    this.text = text
    /*当前虚拟节点对应的真实dom节点*/
    this.elm = elm
    /*当前节点的名字空间*/
    this.ns = undefined
    /*编译作用域*/
    this.context = context
    /*函数化组件作用域*/
    this.functionalContext = undefined
    /*节点的key属性,被当作节点的标志,用以优化*/
    this.key = data && data.key
    /*组件的option选项*/
    this.componentOptions = componentOptions
    /*当前节点对应的组件的实例*/
    this.componentInstance = undefined
    /*当前节点的父节点*/
    this.parent = undefined
    /*简而言之就是是否为原生HTML或只是普通文本,innerHTML的时候为true,textContent的时候为false*/
    this.raw = false
    /*静态节点标志*/
    this.isStatic = false
    /*是否作为跟节点插入*/
    this.isRootInsert = true
    /*是否为注释节点*/
    this.isComment = false
    /*是否为克隆节点*/
    this.isCloned = false
    /*是否有v-once指令*/
    this.isOnce = false
    /*异步组件的工厂方法*/
    this.asyncFactory = asyncFactory
    /*异步源*/
    this.asyncMeta = undefined
    /*是否异步的预赋值*/
    this.isAsyncPlaceholder = false
  }

  // DEPRECATED: alias for componentInstance for backwards compat.
  /* istanbul ignore next */
  get child (): Component | void {
    return this.componentInstance
  }
}

接下来我们来看看parse的源码:

src/compiler/parser/index.js
function parse(template) {
    ...
    const stack = [];
    let currentParent;    //当前父节点
    let root;            //最终返回出去的AST树根节点
    ...
    parseHTML(template, {
        start: function start(tag, attrs, unary) {
           ......
        },
        end: function end() {
          ......
        },
        chars: function chars(text) {
           ......
        }
    })
    return root
}

这个方法太长啦,就省略了parse的相关内容,只看一下大体的功能,其主要的功能函数应该是parseHTML方法。接受了2个参数,一个使我们的模板template,另一个是包含start、end、chars的方法。 在看parseHTML之前,我们需要先了解一下下面这几个正则:

// 该正则式可匹配到 <div id="index"> 的 id="index" 属性部分
const attribute = /^\s*([^\s"'<>\/=]+)(?:\s*(=)\s*(?:"([^"]*)"+|'([^']*)'+|([^\s"'=<>`]+)))?/
const ncname = '[a-zA-Z_][\\w\\-\\.]*'
const qnameCapture = `((?:${ncname}\\:)?${ncname})`
// 匹配起始标签
const startTagOpen = new RegExp(`^<${qnameCapture}`)
const startTagClose = /^\s*(\/?)>/
// 匹配结束标签
const endTag = new RegExp(`^<\\/${qnameCapture}[^>]*>`)
// 匹配DOCTYPE、注释等特殊标签
const doctype = /^<!DOCTYPE [^>]+>/i
const comment = /^<!\--/
const conditionalComment = /^<!\[/

Vue 通过上面几个正则表达式去匹配开始结束标签、标签名、属性等等。有了上面这些基础,我们再来看看parseHtml的内部实行:

export function parseHTML (html, options) {
  const stack = []
  const expectHTML = options.expectHTML
  const isUnaryTag = options.isUnaryTag || no
  const canBeLeftOpenTag = options.canBeLeftOpenTag || no
  let index = 0
  let last, lastTag
  while (html) {
    // 保留 html 副本
    last = html
    // 如果没有lastTag,并确保我们不是在一个纯文本内容元素中:script、style、textarea
    if (!lastTag || !isPlainTextElement(lastTag)) {
      let textEnd = html.indexOf('<')
      if (textEnd === 0) {
        // Comment:
        if (comment.test(html)) {
          ...
        }
        if (conditionalComment.test(html)) {
          ...
        }
        // Doctype:
        const doctypeMatch = html.match(doctype)
        if (doctypeMatch) {
          ...
        }
        // End tag:
        const endTagMatch = html.match(endTag)
        if (endTagMatch) {
          ...
        }
        // Start tag:
        const startTagMatch = parseStartTag()
        if (startTagMatch) {
          ...
        }
      }
      let text, rest, next
      if (textEnd >= 0) {
        ...
      }
      if (textEnd < 0) {
        text = html
        html = ''
      }
      // 绘制文本内容,使用 options.char 方法。
      if (options.chars && text) {
        options.chars(text)
      }
    } else {
      ...
    }
    ...
  }

上面只看一下代码的大概意思:

1.首先通过while (html)去循环判断html内容是否存在。

2.再判断文本内容是否在script/style标签中。

3.上述条件都满足的话,开始解析html字符串。

这里面有parseStartTag 和 handleStartTag两个方法值得关注一下:

function parseStartTag () {
  //判断html中是否存在开始标签
  const start = html.match(startTagOpen)
  if (start) {
    // 定义 match 结构
    const match = {
      tagName: start[1], // 标签名
      attrs: [], // 属性名
      start: index // 起点位置
    }

    /**
     * 通过传入变量n来截取字符串,这也是Vue解析的重要方法,通过不断地蚕食掉html字符串,一步步完成对他的解析过程
     */
    advance(start[0].length)
    let end, attr

    // 如果还没有到结束标签的位置
    // 存入属性
    while (!(end = html.match(startTagClose)) && (attr = html.match(attribute))) {
      advance(attr[0].length)
      match.attrs.push(attr)
    }
    // 返回处理后的标签match结构
    if (end) {
      match.unarySlash = end[1]
      advance(end[0].length)
      match.end = index
      return match
    }
  }
}

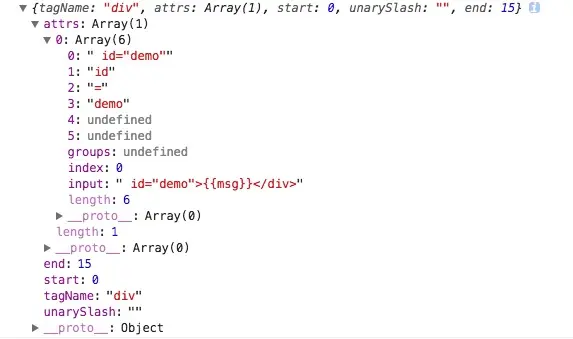

假设我们设置一个html字符串

{{msg}}
,经过上面一步的解析,我们得到了一个起始标签match的数据结构:

function handleStartTag (match) {
  // match 是上面调用方法的时候传递过来的数据结构
  const tagName = match.tagName
  const unarySlash = match.unarySlash
  ...
  const unary = isUnaryTag(tagName) || !!unarySlash

  // 备份属性数组的长度
  const l = match.attrs.length
  // 构建长度为1的空数组
  const attrs = new Array(l)
  for (let i = 0; i < l; i++) {
    const args = match.attrs[i]
    ...
    // 取定义属性的值
    const value = args[3] || args[4] || args[5] || ''

    // 改变attr的格式为 [{name: 'id', value: 'demo'}]
    attrs[i] = {
      name: args[1],
      value: decodeAttr(
        value,
        options.shouldDecodeNewlines
      )
    }
  }

  // stack中记录当前解析的标签
  // 如果不是自闭和标签
  // 这里的stack这个变量在parseHTML中定义,作用是为了存放标签名 为了和结束标签进行匹配的作用。
  if (!unary) {
    stack.push({ tag: tagName, lowerCasedTag: tagName.toLowerCase(), attrs: attrs })
    lastTag = tagName
  }
  // parse 函数传入的 start 方法
  options.start(tagName, attrs, unary, match.start, match.end)
}

到这里似乎一切明朗了许多,parseHTML主要用来解析html字符串,解析出字符串中的tagName,attrs,match等元素,传入start方法:

start (tag, attrs, unary) {
  ...
  // 创建基础的 ASTElement
  let element: ASTElement = createASTElement(tag, attrs, currentParent)
  if (ns) {
    element.ns = ns
  }
  ...

  if (!inVPre) {
    // 判断有没有 v-pre 指令的元素。如果有的话 element.pre = true
    // 官网有介绍:<span v-pre>{{ this will not be compiled }}</span>
    // 跳过这个元素和它的子元素的编译过程。可以用来显示原始 Mustache 标签。跳过大量没有指令的节点会加快编译。
    processPre(element)
    if (element.pre) {
      inVPre = true
    }
  }
  if (platformIsPreTag(element.tag)) {
    inPre = true
  }
  if (inVPre) {
    // 处理原始属性
    processRawAttrs(element)
  } else if (!element.processed) {
    // structural directives
    // v-for v-if v-once
    processFor(element)
    processIf(element)
    processOnce(element)
    // element-scope stuff
    processElement(element, options)
  }

  // 检查根节点约束
  function checkRootConstraints (el) {
    if (process.env.NODE_ENV !== 'production') {
      if (el.tag === 'slot' || el.tag === 'template') {
        warnOnce(
          `Cannot use <${el.tag}> as component root element because it may ` +
          'contain multiple nodes.'
        )
      }
      if (el.attrsMap.hasOwnProperty('v-for')) {
        warnOnce(
          'Cannot use v-for on stateful component root element because ' +
          'it renders multiple elements.'
        )
      }
    }
  }

  // tree management
  if (!root) {
    // 如果不存在根节点
    root = element
    checkRootConstraints(root)
  } else if (!stack.length) {
    // 允许有 v-if, v-else-if 和 v-else 的根元素
    ...
  if (currentParent && !element.forbidden) {
    if (element.elseif || element.else) {
      processIfConditions(element, currentParent)
    } else if (element.slotScope) { // scoped slot
      currentParent.plain = false
      const name = element.slotTarget || '"default"'
      ;(currentParent.scopedSlots || (currentParent.scopedSlots = {}))[name] = element
    } else {
      // 将元素插入 children 数组中
      currentParent.children.push(element)
      element.parent = currentParent
    }
  }
  if (!unary) {
    currentParent = element
    stack.push(element)
  } else {
    endPre(element)
  }
  // apply post-transforms
  for (let i = 0; i < postTransforms.length; i++) {
    postTransforms[i](element, options)
  }
}

其实start方法就是处理 element 元素的过程。确定命名空间;创建AST元素 element;执行预处理;定义root;处理各类 v- 标签的逻辑;最后更新 root、currentParent、stack 的结果。 最终通过 createASTElement 方法定义了一个新的 AST 对象。

总结

下面我们来屡一下parse整体的过程:

1.通过parseHtml来一步步解析传入html字符串的标签、元素、文本、注释..。

2.parseHtml解析过程中,调用传入的start,end,chars方法来生成AST语法树

我们看一下最终生成的AST语法树对象:

要是喜欢的话给我个star, github

感谢muwoo提供的解析思路。
