低下头看了看自己的手环。距离自己的flag已经跳票3天了。。。
不为什么,因为我懒#滑稽 #滑稽#滑稽
咳咳,咱们今天进入正题---Tab组件的编写
首先还是先看Tab预览图:

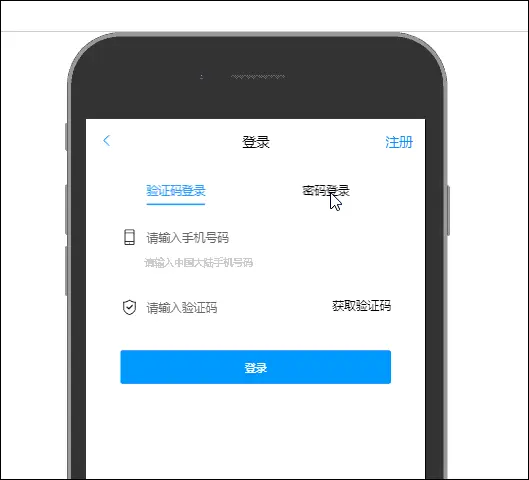

Tab预览图
很简单的功能,很简洁的UI。
首先还是献上Tab html代码和css代码(我css基础不好 各位可以忽略#滑稽)
为了自由度高一点,我们采用 Tab+TabPanel 的方式制作。这种制作方式也是大部分UI框架的制作方式
Tab-HTML代码
<template>
<div class="tab-wrapper">
<div class="tab__header">
<div class="tab__header__item">
<div style="width: 100%;">
<div class="tab__item">
<span>验证码登录</span>
</div>
<div class="tab__item">
<span>密码登录</span>
</div>
</div>
</div>
</div>
<div class="tab__content">
<slot></slot>
</div>
</div>
</template>
Tab-CSS代码
<style scoped>
.iconfont {
font-size: 1.5rem;
}
.tab__header {
display: flex;
}
.tab__header__item {
margin: 0;
}
.tab__header__item > div {
display: flex;
flex-direction: row;
white-space: nowrap;
transition: transform .3s;
}
.tab__item {
font-size: 1.3rem;
cursor: pointer;
margin-right: 1rem;
flex: 1;
text-align: center;
}
.tab--active > span {
border-bottom: 2px solid #1890FF;
color: #1890FF;
padding-bottom: .5rem;
}
.tab__header__btn--left {
margin-right: .5rem;
cursor: pointer;
}
.tab__header__btn--right {
margin-left: .5rem;
cursor: pointer;
}
.tab--panel-wrapper {
display: none;
}
.tab--panel-wrapper--active {
display: block !important;
}
</style>
TabPanel代码:
<template>
<div class="tab--panel-wrapper" :name="name">
<div class="tab--panel-content">
<slot></slot>
</div>
</div>
</template>
<script>
export default {
name: "ZbTabPanel",
props: {
name: { //Tab模块名
required: true
}
}
}
</script>
<style scoped>
</style>
先开始制作基础功能:Tab切换
Tab切换功能的制作
首先一上来就会出现理解性的问题:
以往我们写Tab 头部写头部的东西,内容写内容的东西。两者分开来写。便于理解
但如果是这种组件套组件的方式,看起来用法简单了不少。但是增加了编写难度
还有一点,父组件怎么去控制子组件的显示隐藏情况?
那就一步步来呗。
为了方便便于编写起来好理解。我选择内容插入,头部遍历的方式去制作
<template>
<div class="tab-wrapper">
<div class="tab__header" ref="tabHeaderItem">
<div class="tab__header__item">
<div style="width: 100%;">
<div class="tab__item"
@click="tabItemClick(item.name,key)" //tab的点击事件
@touchstart="tabItemClick(item.name,key)" //tab的移动端点击事件
v-for="(item,key) in tabList" //循环list
:class="{'tab--active':activeTab.index===key}"> //如果当前tabtitle的下标 =已激活的tabtitle下标
<span>{{item.name}}</span>
</div>
</div>
</div>
</div>
<div class="tab__content"
ref="content">
<slot></slot>
</div>
</div>
</template>
js方面:
data() {
return {
tabList: [], //tab标题列表
activeTab: { //已激活的tab信息
index: 0, //下标
name: '' //名称
}
}
}
既然是插槽slot,那我们就用点插槽该做的事情 #嘿嘿嘿

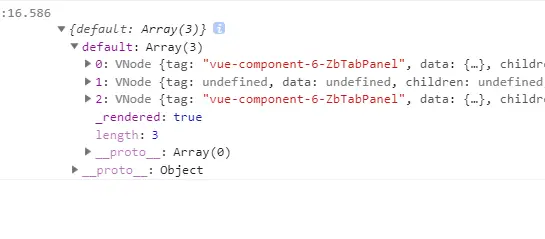

于是我在 mounted 函数内,看一下$slot的内容
结果还真的有
不过出现了一个空插槽值。。。但是无关紧要,我们可以加一层空值判断嘛~~
let self = this; //外层新建变量引用this
this.$slots.default.forEach((components) => { //循环default内的内容
if (components.tag && components.componentOptions) { //如果子元素tag键&&componentOptions有内容。
self.tabList.push(components.componentOptions.propsData)
// 在components.componentOptions这个键内 有propsDate这个属性。我们可以通过这个属性拿到子组件的props值
}
});
this.$nextTick(() => { //避免data未更新
this.activeTab = { //给activeTab赋初始值
index: 0, //默认选中第一个
name: this.tabList[0].name //寻找tabList第一个元素 还有他的名字
};
});
这样切换头部功能实现了。但是底部主体内容无动于衷
所以我们在watch函数内,监听一下activeTab变量的数据变化:
watch: {
activeTab(newValue, oldValue) {
this.$refs.content.children[oldValue.index].className = "tab--panel-wrapper";
this.$refs.content.children[newValue.index].className = "tab--panel-wrapper--active";
}
}
这样基础内容就大功告成了。
用法参考
<zb-tab>
<zb-tab-panel name="验证码登录">
<!--这是验证码登录的内容-->
</zb-tab-panel>
<zb-tab-panel name="密码登录">
<!--这是密码登录的内容-->
</zb-tab-panel>
</zb-tab>
因为name属性不能少 所以是必填
这样一来遇到个问题,我们的tab是用flex编写的。但是如果tab多了横向滚动怎么办?
这里安利一个滴滴出行@ustbhuangyi 开发的滚动组件: better-scroll
首先我们先安装他:
npm install better-scroll --save
接着在vue组件内引入:
import BScroll from 'better-scroll'
这里不做过多介绍。所以我们简单使用。详细使用请看文档
_initScroll: function () {
new BScroll(this.$refs.tabHeaderItem, {
scrollX: true, //是否支持X滚动
bounce: true //是否开启回弹动画
});
}
挂载函数内
setTimeout(() => {
this.$nextTick(() => { //避免data未更新
this._initScroll();
}
)
}, 20)
如果看到行内样式有css动画。说明就挂载成功了

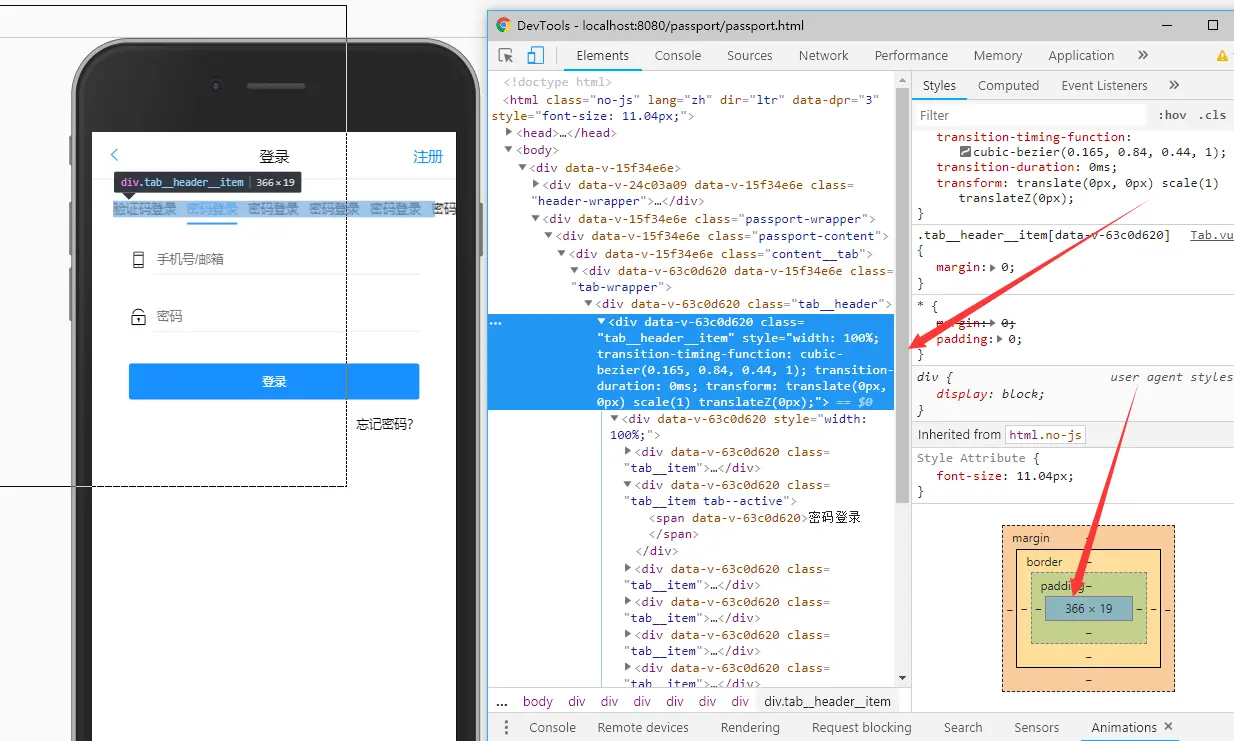

这样遇到了一个小bug。挂载成功是可以。但是无法滚动。如图

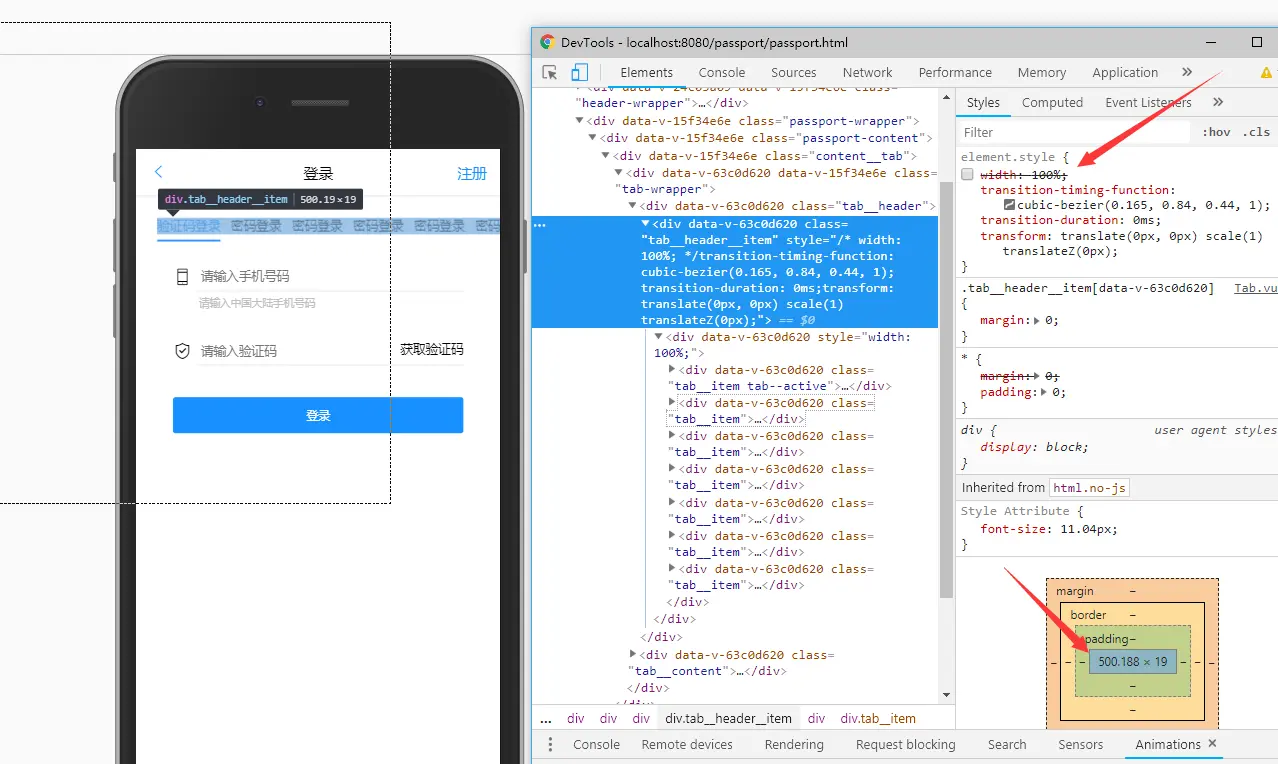

经查:是因为他挂载的那个元素,我们写个width:100%。导致他丢失了实际长度。无法挂载。
但是去掉width:100%后,元素始终不会平铺开。会左浮动一样的排列
所以我们为了两种都要,加个props外部控制吧~~
props: {
floatLeft: { //是否开启左浮动模式
default: false
}
}
html:
<div class="tab__header__item"
:style="floatLeft? '': 'width:100%'">
这样一个不算很完美的tab就完成了。希望制作思想可以帮到大家
