Android Kotlin仿微信头像裁剪图片

1,113 阅读5分钟

0.前言

最近突发了很多事情,又跟康仔跳票了,无可奈何,不好意思了。最近生活上有很多感悟,一个男人的牛逼就在于平衡工作,学习和家庭,这个点很难把握,既要保证家庭和睦,又要保证自己价值的实现从而避免堕入平庸,每个人的状况都是不一样的,没有什么经验是可以照搬的,怎么说呢,不断摸索吧。

1.分析

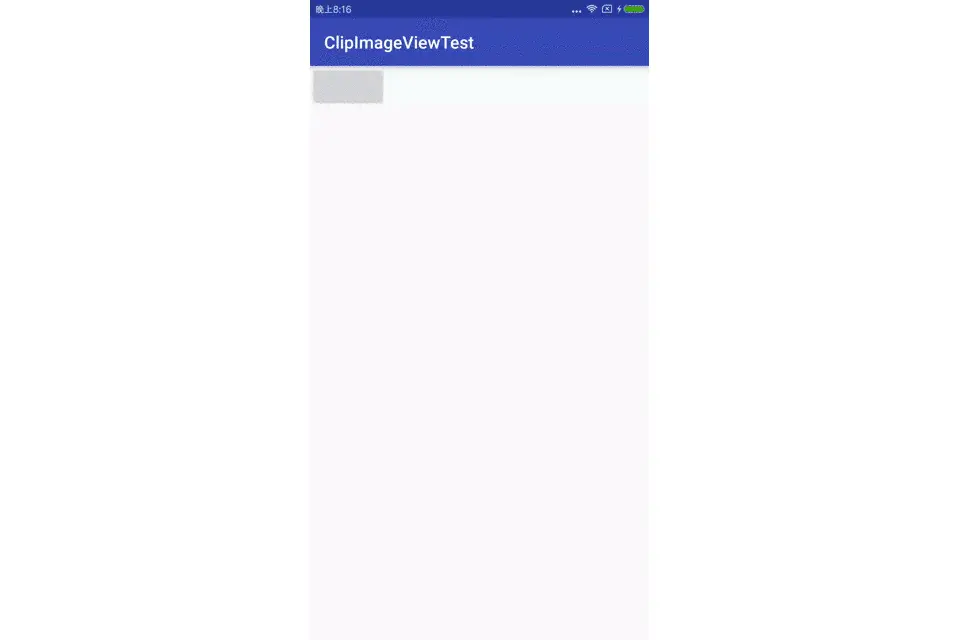

整个效果是仿照微信来做的,效果如图所示:

整个效果就是从图库选取一张图片,并进行裁剪,从图库选取没什么好说的,就说说怎么做的裁剪控件吧,这个裁剪控件就是ClipImageView,可以看到它有一个阴影遮罩,一个透明的框,还有图片的显示,以及可以移动图片。

2.代码

class ClipImageView(context: Context, attributeSet: AttributeSet?) : ImageView(context, attributeSet)
{

    private val paint: Paint = Paint(Paint.ANTI_ALIAS_FLAG)

    var clipWidth = 300
        set(value)
        {
            field = value
            if (isAttachedToWindow)
            {
                postInvalidate()
            }
        }

    var clipHeight = 300
        set(value)
        {
            field = value
            if (isAttachedToWindow)
            {
                postInvalidate()
            }
        }

    var minScale = 1.0f

    var maxScale = 1.0f

    private var rectColor = Color.BLACK

    private var lastTouchX = 0F

    private var lastTouchY = 0F

    private val transMatrix = Matrix()

    private var isTouching = false

    private var scale = 1.0f

    var onsaveClipImageListener: OnSaveClipImageListsner? = null

    private val scaleGestureDetectorListener = object : ScaleGestureDetector.SimpleOnScaleGestureListener()
    {

        override fun onScale(detector: ScaleGestureDetector?): Boolean
        {
            val curScaleFactor = detector?.scaleFactor ?: 1.0f
            var curScale = scale * curScaleFactor
            curScale = if (curScale >= 1.0f) Math.min(maxScale, curScale) else Math.max(minScale, curScale)
            val scaleFactor = if (curScale > scale) 1 + (curScale - scale) / scale else 1.0f - (scale - curScale) / scale
            transMatrix.postScale(scaleFactor, scaleFactor, detector?.focusX
                    ?: 0f, detector?.focusY ?: 0f)
            postInvalidate()
            scale = curScale
            return true
        }

        override fun onScaleEnd(detector: ScaleGestureDetector?)
        {
            super.onScaleEnd(detector)
        }
    }

    private var scaleGestureDetector: ScaleGestureDetector

    constructor(context: Context) : this(context, null)

    init
    {
        paint.strokeJoin = Paint.Join.ROUND
        scaleGestureDetector = ScaleGestureDetector(context, scaleGestureDetectorListener)
        if (attributeSet != null)
        {
            pareseAttributeSet(attributeSet)
        }
        setBackgroundColor(Color.WHITE)
    }

    private fun pareseAttributeSet(attributeSet: AttributeSet)
    {
        val typedArray = context.obtainStyledAttributes(attributeSet, R.styleable.ClipImageView)
        clipWidth = typedArray.getDimensionPixelOffset(R.styleable.ClipImageView_clip_width, clipWidth)
        clipHeight = typedArray.getDimensionPixelOffset(R.styleable.ClipImageView_clip_width, clipHeight)
        rectColor = typedArray.getColor(R.styleable.ClipImageView_rect_color, rectColor)
        minScale = typedArray.getFloat(R.styleable.ClipImageView_min_scale, minScale)
        maxScale = typedArray.getFloat(R.styleable.ClipImageView_max_scale, maxScale)
        typedArray.recycle()
    }

    override fun layout(l: Int, t: Int, r: Int, b: Int)
    {
        super.layout(l, t, r, b)
        if (clipWidth > measuredWidth)
        {
            clipWidth = measuredWidth
        }
        if (clipHeight > measuredHeight)
        {
            clipHeight = measuredHeight
        }

    }


    override fun onTouchEvent(event: MotionEvent?): Boolean
    {
        if (event?.pointerCount ?: 1 >= 2)
        {
            isTouching = false
            return scaleGestureDetector.onTouchEvent(event)
        }
        else
        {
            when (event?.action)
            {
                MotionEvent.ACTION_DOWN ->
                {
                    isTouching = true
                    lastTouchX = event.x
                    lastTouchY = event.y
                }

                MotionEvent.ACTION_MOVE ->
                {
                    if (isTouching && event.pointerCount == 1)
                    {
                        val offsetX = event.x - lastTouchX
                        val offsetY = event.y - lastTouchY
                        transMatrix.postTranslate(offsetX, offsetY)
                        lastTouchX = event.x
                        lastTouchY = event.y
                        postInvalidate()
                    }
                }

                MotionEvent.ACTION_UP ->
                {
                    isTouching = false
                }
            }
            return true
        }
    }

    override fun onDraw(canvas: Canvas?)
    {
        canvas?.let {
            val saveState = it.saveCount
            it.save()
            it.concat(transMatrix)
            super.onDraw(canvas)
            it.restoreToCount(saveState)
            drawMask(it)
            drawRect(it)

        }
    }

    private fun drawMask(canvas: Canvas)
    {
        paint.style = Paint.Style.FILL
        paint.color = Color.parseColor("#A0000000")
        canvas.drawRect(0.0f, 0.0f, width.toFloat(), (height / 2 - clipHeight / 2).toFloat(), paint)
        canvas.drawRect((width / 2 + clipWidth / 2).toFloat(), (height / 2 - clipHeight / 2).toFloat(), width.toFloat(), (height / 2 + clipHeight / 2).toFloat(), paint)
        canvas.drawRect(0.0f, (height / 2 + clipHeight / 2).toFloat(), width.toFloat(), height.toFloat(), paint)
        canvas.drawRect(0.0f, (height / 2 - clipHeight / 2).toFloat(), (width / 2 - clipWidth / 2).toFloat(), (height / 2 + clipHeight / 2).toFloat(), paint)
    }

    private fun drawRect(canvas: Canvas)
    {
        paint.style = Paint.Style.FILL_AND_STROKE
        paint.color = rectColor
        paint.strokeWidth = 4.0f
        val offset = paint.strokeWidth / 2
        val left: Float = (width / 2 - clipWidth / 2).toFloat() - offset
        val top: Float = (height / 2 - clipHeight / 2).toFloat() - offset
        val right: Float = (width / 2 + clipWidth / 2).toFloat() + offset
        val bottom: Float = (height / 2 + clipHeight / 2).toFloat() + offset
        canvas.drawLine(left, top, right, top, paint)
        canvas.drawLine(right, top, right, bottom, paint)
        canvas.drawLine(left, bottom, right, bottom, paint)
        canvas.drawLine(left, top, left, bottom, paint)
    }

    interface OnSaveClipImageListsner
    {
        fun onImageFinishedSav()
    }


    inner class SaveTask(private val filePath: String) : AsyncTask<Unit, Unit, Unit>()
    {

        override fun doInBackground(vararg params: Unit?): Unit
        {
            saveClipImage(filePath)

        }

        override fun onPostExecute(result: Unit?)
        {
            super.onPostExecute(result)
            onsaveClipImageListener?.onImageFinishedSav()
        }
    }


    fun clipAndSaveImage(filePath: String)
    {
        SaveTask(filePath).execute()
    }

    private fun saveClipImage(filePath: String)
    {
        val clipBitmap = Bitmap.createBitmap(width, height, Bitmap.Config.ARGB_8888)
        val clipCanvas = Canvas(clipBitmap)
        draw(clipCanvas)
        try
        {
            val outputStream = FileOutputStream(filePath)
            val bitmap = Bitmap.createBitmap(clipBitmap, width / 2 - clipWidth / 2, height / 2 - clipHeight / 2, clipWidth, clipHeight, transMatrix, true)
            bitmap.compress(Bitmap.CompressFormat.JPEG, 80, outputStream)
            outputStream.close()
        }
        catch (e: IOException)
        {
            e.printStackTrace()
        }

    }
}

可以发现这段代码是继承自ImageView。 先看代码段

 private fun pareseAttributeSet(attributeSet: AttributeSet)
    {
        val typedArray = context.obtainStyledAttributes(attributeSet, R.styleable.ClipImageView)
        clipWidth = typedArray.getDimensionPixelOffset(R.styleable.ClipImageView_clip_width, clipWidth)
        clipHeight = typedArray.getDimensionPixelOffset(R.styleable.ClipImageView_clip_width, clipHeight)
        rectColor = typedArray.getColor(R.styleable.ClipImageView_rect_color, rectColor)
        minScale = typedArray.getFloat(R.styleable.ClipImageView_min_scale, minScale)
        maxScale = typedArray.getFloat(R.styleable.ClipImageView_max_scale, maxScale)
        typedArray.recycle()
    }

这里解析布局文件的里的属性,其中clipwidth和clipheight分别代表裁剪框的宽度和高度,minScale和maxScale是最小和最大的缩放程度。

    override fun layout(l: Int, t: Int, r: Int, b: Int)
    {
        super.layout(l, t, r, b)
        if (clipWidth > measuredWidth)
        {
            clipWidth = measuredWidth
        }
        if (clipHeight > measuredHeight)
        {
            clipHeight = measuredHeight
        }

    }

在layout方法里设置clipWidth和clipHeight,防止设置值大于控件大小。

drawMask方法和drawRect方法是用来绘制遮罩层和裁剪框的,其中遮罩层就是四个方形,而裁剪框就是一个矩形的外框。

 private fun drawMask(canvas: Canvas)
    {
        paint.style = Paint.Style.FILL
        paint.color = Color.parseColor("#A0000000")
        canvas.drawRect(0.0f, 0.0f, width.toFloat(), (height / 2 - clipHeight / 2).toFloat(), paint)
        canvas.drawRect((width / 2 + clipWidth / 2).toFloat(), (height / 2 - clipHeight / 2).toFloat(), width.toFloat(), (height / 2 + clipHeight / 2).toFloat(), paint)
        canvas.drawRect(0.0f, (height / 2 + clipHeight / 2).toFloat(), width.toFloat(), height.toFloat(), paint)
        canvas.drawRect(0.0f, (height / 2 - clipHeight / 2).toFloat(), (width / 2 - clipWidth / 2).toFloat(), (height / 2 + clipHeight / 2).toFloat(), paint)
    }

    private fun drawRect(canvas: Canvas)
    {
        paint.style = Paint.Style.FILL_AND_STROKE
        paint.color = rectColor
        paint.strokeWidth = 4.0f
        val offset = paint.strokeWidth / 2
        val left: Float = (width / 2 - clipWidth / 2).toFloat() - offset
        val top: Float = (height / 2 - clipHeight / 2).toFloat() - offset
        val right: Float = (width / 2 + clipWidth / 2).toFloat() + offset
        val bottom: Float = (height / 2 + clipHeight / 2).toFloat() + offset
        canvas.drawLine(left, top, right, top, paint)
        canvas.drawLine(right, top, right, bottom, paint)
        canvas.drawLine(left, bottom, right, bottom, paint)
        canvas.drawLine(left, top, left, bottom, paint)
    }

接着看如何让图片随手指移动和缩放,这里说一下transMatrix,这个是Matrix类,通过它应用到Canvas来实现缩放和移动。

 override fun onTouchEvent(event: MotionEvent?): Boolean
    {
        if (event?.pointerCount ?: 1 >= 2)
        {
            isTouching = false
            return scaleGestureDetector.onTouchEvent(event)
        }
        else
        {
            when (event?.action)
            {
                MotionEvent.ACTION_DOWN ->
                {
                    isTouching = true
                    lastTouchX = event.x
                    lastTouchY = event.y
                }

                MotionEvent.ACTION_MOVE ->
                {
                    if (isTouching && event.pointerCount == 1)
                    {
                        val offsetX = event.x - lastTouchX
                        val offsetY = event.y - lastTouchY
                        transMatrix.postTranslate(offsetX, offsetY)
                        lastTouchX = event.x
                        lastTouchY = event.y
                        postInvalidate()
                    }
                }

                MotionEvent.ACTION_UP ->
                {
                    isTouching = false
                }
            }
            return true
        }
    }

当两个手指触摸时,由移动事件有ScaleGestureDetector处理缩放,否则进行移动。 先看移动: 将移动的距离应用到transMatrix,并调用postInvalidate()重新绘制。

再看缩放处理

private val scaleGestureDetectorListener = object : ScaleGestureDetector.SimpleOnScaleGestureListener()
    {

        override fun onScale(detector: ScaleGestureDetector?): Boolean
        {
            val curScaleFactor = detector?.scaleFactor ?: 1.0f
            var curScale = scale * curScaleFactor
            curScale = if (curScale >= 1.0f) Math.min(maxScale, curScale) else Math.max(minScale, curScale)
            val scaleFactor = if (curScale > scale) 1 + (curScale - scale) / scale else 1.0f - (scale - curScale) / scale
            transMatrix.postScale(scaleFactor, scaleFactor, detector?.focusX
                    ?: 0f, detector?.focusY ?: 0f)
            postInvalidate()
            scale = curScale
            return true
        }

        override fun onScaleEnd(detector: ScaleGestureDetector?)
        {
            super.onScaleEnd(detector)
        }
    }

在SimpleOnScaleGestureListener的onScale方法处理缩放,将缩放因子应用到transMatrix,并调用postInvalidate()重新绘制。

接下重点就是onDraw方法:

override fun onDraw(canvas: Canvas?)
    {
        canvas?.let {
            val saveState = it.saveCount
            it.save()
            it.concat(transMatrix)
            super.onDraw(canvas)
            it.restoreToCount(saveState)
            drawMask(it)
            drawRect(it)

        }
    }

先调用save,保存当前画布状态,之后应用transMatrix,缩放和移动画布,然后调用ImageView的onDraw()方法,也就是父类的方法,用来绘制图片,因为绘制遮罩层和裁剪框不移动,所以恢复画布状态后进行绘制。

最后就是裁剪图片了

inner class SaveTask(private val filePath: String) : AsyncTask<Unit, Unit, Unit>()
    {

        override fun doInBackground(vararg params: Unit?): Unit
        {
            saveClipImage(filePath)

        }

        override fun onPostExecute(result: Unit?)
        {
            super.onPostExecute(result)
            onsaveClipImageListener?.onImageFinishedSav()
        }
    }


    fun clipAndSaveImage(filePath: String)
    {
        SaveTask(filePath).execute()
    }

    private fun saveClipImage(filePath: String)
    {
        val clipBitmap = Bitmap.createBitmap(width, height, Bitmap.Config.ARGB_8888)
        val clipCanvas = Canvas(clipBitmap)
        draw(clipCanvas)
        try
        {
            val outputStream = FileOutputStream(filePath)
            val bitmap = Bitmap.createBitmap(clipBitmap, width / 2 - clipWidth / 2, height / 2 - clipHeight / 2, clipWidth, clipHeight, transMatrix, true)
            bitmap.compress(Bitmap.CompressFormat.JPEG, 80, outputStream)
            outputStream.close()
        }
        catch (e: IOException)
        {
            e.printStackTrace()
        }

    }

可以看到启动了一个AsyncTask用来裁剪和保存Bitmap,其中saveClipImage就是重新构建了一个画布,并传入bitmap,重新调用draw方法,将数据信息保存到bitmap,然后裁剪bitmap并存入文件。

3.

源码地址GitHub
