Java并发——读写锁ReentrantReadWriteLock

1,924 阅读6分钟

简介

ReentrantReadWriteLock即可重入读写锁,同样也依赖于AQS来实现。在介绍ReentrantLock我们知道其依托AQS的同步状态来判断锁是否占有,而ReentrantReadWriteLock既有读锁又有写锁,是如何依靠一个状态来维持的?

ReentrantReadWriteLock

ReentrantReadWriteLock读写锁,与ReentrantLock一样默认非公平,内部定义了读锁ReadLock()和写锁WriteLock(),在同一时间允许被多个读线程访问,但在写线程访问时,所有读线程和写线程都会被阻塞。读写锁主要特性:公平性、可重入性、锁降级

写锁的获取与释放

  • 写锁获取
  • 写锁是一个支持重进入的排它锁,其获取的核心方法:


            protected final boolean tryAcquire(int acquires) {
                // 获取当前线程
                Thread current = Thread.currentThread();
                // 获取ReentrantReadWriteLock锁整体同步状态
                int c = getState();
                // 获取写锁同步状态
                int w = exclusiveCount(c);
                // 存在读锁或写锁
                if (c != 0) {
                    // c != 0 && w == 0 即若存在读锁或写锁持有线程不是当前线程,获取写锁失败
                    if (w == 0 || current != getExclusiveOwnerThread())
                        return false;
                    // 最多65535次重入,若超过报错
                    if (w + exclusiveCount(acquires) > MAX_COUNT)
                        throw new Error("Maximum lock count exceeded");
                    // 可重入,设置同步状态
                    setState(c + acquires);
                    return true;
                }
                // 公平与非公平,同步队列是否有节点,同时cas设置状态
                if (writerShouldBlock() ||
                    !compareAndSetState(c, c + acquires))
                    return false;
                // 设置获取锁的线程为当前线程
                setExclusiveOwnerThread(current);
                return true;
            }


    从源码中我们可以发现getState()获取的是读锁与写锁总同步状态,再通过exclusiveCount()方法单独获取写锁同步状态


        static final int SHARED_SHIFT   = 16;
        static final int EXCLUSIVE_MASK = (1 << SHARED_SHIFT) - 1;

        static int exclusiveCount(int c) {
            return c & EXCLUSIVE_MASK;
        }

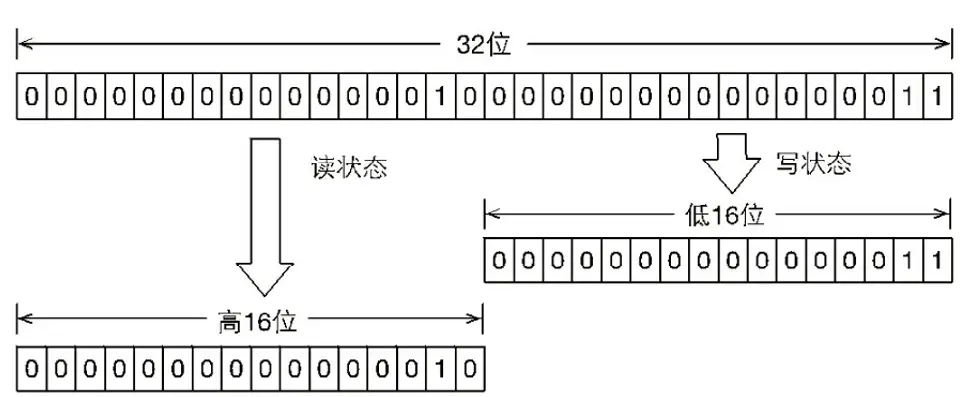

    ReentrantReadWriteLock通过按位切割state变量,同步状态的低16位表示写锁获取次数,高16位表示读锁获取次数,如图示意

    所以这解释了为什么写锁获取次数最多65535次

    写锁获取整体思路:当读锁已经被读线程获取或者写锁已经被其他写线程获取,则写锁获取失败;否则,获取成功并可重入,增加写锁同步状态

  • 写锁释放
  •
            protected final boolean tryRelease(int releases) {
                // 若释放的线程不为锁的持有者
                if (!isHeldExclusively())
                    throw new IllegalMonitorStateException();
                // 重新设置同步状态
                int nextc = getState() - releases;
                // 若新的写锁持有线程数为0,则将锁的持有线程置为null
                boolean free = exclusiveCount(nextc) == 0;
                if (free)
                    setExclusiveOwnerThread(null);
                // 更新同步状态
                setState(nextc);
                return free;
            }

    写锁的释放与ReentrantLock的释放过程基本类似,每次释放均减少写状态,当写状态为0 时表示写锁已被释放,从而等待的读写线程能够继续访问读写锁,同时前次写线程的修改对后续读写线程可见

    读锁的获取与释放

    读锁相对于写锁(独占锁或排他锁),读锁是一个支持重进入的共享锁,它能够被多个线程同时获取,在没有其他写线程访问(或者写状态为0)时,读锁总会被成功地获取,而所做的也只是(线程安全的)增加读状态

  • 读锁的获取
  •
            protected final int tryAcquireShared(int unused) {
                // 获取当前线程
                Thread current = Thread.currentThread();
                int c = getState();
                // 若写锁已被占有,且写锁占有线程不是当前线程,读锁获取失败
                if (exclusiveCount(c) != 0 &&
                    getExclusiveOwnerThread() != current)
                    return -1;
                // 读锁状态
                int r = sharedCount(c);
                // 判断读锁是否需要公平,读锁持有线程数是否小于极值,CAS设置读锁状态
                if (!readerShouldBlock() &&
                    r < MAX_COUNT &&
                    compareAndSetState(c, c + SHARED_UNIT)) {
                    // 若读锁未被线程占有,则更新firstReader和firstReaderHoldCount
                    if (r == 0) {
                        firstReader = current;
                        firstReaderHoldCount = 1;
                    // 如果获取读锁的线程为第一次获取读锁的线程,则firstReaderHoldCount重入数 + 1
                    } else if (firstReader == current) {
                        firstReaderHoldCount++;
                    } else {
                        HoldCounter rh = cachedHoldCounter;
                        if (rh == null || rh.tid != getThreadId(current))
                            cachedHoldCounter = rh = readHolds.get();
                        else if (rh.count == 0)
                            readHolds.set(rh);
                        rh.count++;
                    }
                    return 1;
                }
                return fullTryAcquireShared(current);
            }


    读锁获取整体思路
    ①.判断写锁是否被占有,写锁占有线程是否不是当前线程,若成立则读锁获取失败
    ②.判断读锁是否需要公平,读锁持有线程数是否小于极值,CAS设置读锁状态成功,若条件不满足,会调用fullTryAcquireShared()方法自旋再次尝试获取读锁;若条件满足修改当前线程HoldCounter的值

            final int fullTryAcquireShared(Thread current) {
                HoldCounter rh = null;
                for (;;) {
                    int c = getState();
                    // 若写锁已被占有,且写锁占有线程不是当前线程
                    if (exclusiveCount(c) != 0) {
                        if (getExclusiveOwnerThread() != current)
                            return -1;
                    // 公平性
                    } else if (readerShouldBlock()) {
                        // Make sure we're not acquiring read lock reentrantly
                        if (firstReader == current) {
                            // assert firstReaderHoldCount > 0;
                        } else {
                            if (rh == null) {
                                rh = cachedHoldCounter;
                                if (rh == null || rh.tid != getThreadId(current)) {
                                    rh = readHolds.get();
                                    if (rh.count == 0)
                                        readHolds.remove();
                                }
                            }
                            if (rh.count == 0)
                                return -1;
                        }
                    }
                    // 读锁占有线程达到极值
                    if (sharedCount(c) == MAX_COUNT)
                        throw new Error("Maximum lock count exceeded");
                    // cas设置成功
                    if (compareAndSetState(c, c + SHARED_UNIT)) {
                        // 若读锁未被线程占有,则更新firstReader和firstReaderHoldCount
                        if (sharedCount(c) == 0) {
                            firstReader = current;
                            firstReaderHoldCount = 1;
                        // 如果获取读锁的线程为第一次获取读锁的线程,则firstReaderHoldCount重入数 + 1
                        } else if (firstReader == current) {
                            firstReaderHoldCount++;
                        } else {
                            if (rh == null)
                                rh = cachedHoldCounter;
                            if (rh == null || rh.tid != getThreadId(current))
                                rh = readHolds.get();
                            else if (rh.count == 0)
                                readHolds.set(rh);
                            rh.count++;
                            cachedHoldCounter = rh; // cache for release
                        }
                        return 1;
                    }
                }
            }

  • 读锁的释放
  •
            protected final boolean tryReleaseShared(int unused) {
                Thread current = Thread.currentThread();
                // 若当前线程为第一个获取读锁的线程
                if (firstReader == current) {
                    // 若只有获取一次,将firstReader置为null
                    if (firstReaderHoldCount == 1)
                        firstReader = null;
                    // 若多次,firstReaderHoldCount-1
                    else
                        firstReaderHoldCount--;
                } else {
                    // 更新当前线程获取锁次数
                    HoldCounter rh = cachedHoldCounter;
                    if (rh == null || rh.tid != getThreadId(current))
                        rh = readHolds.get();
                    int count = rh.count;
                    if (count <= 1) {
                        readHolds.remove();
                        if (count <= 0)
                            throw unmatchedUnlockException();
                    }
                    --rh.count;
                }
                // 自旋CAS更新读锁同步状态
                for (;;) {
                    int c = getState();
                    int nextc = c - SHARED_UNIT;
                    if (compareAndSetState(c, nextc))
                        return nextc == 0;
                }
            }

  • HoldCounter
  • HoldCounter在读锁中起到了很重要的作用,用来计算每个线程的读锁重入次数,并使用ThreadLocal类型的HoldCounter,可以记录每个线程的锁的重入次数。 cachedHoldCounter记录了最后1个获取读锁的线程的重入次数。 firstReader指向了第一个获取读锁的线程,firstReaderHoldCounter记录了第一个获取读锁的线程的重入次数

        static final class HoldCounter {
            int count = 0;
            final long tid = getThreadId(Thread.currentThread());
        }

        static final class ThreadLocalHoldCounter
            extends ThreadLocal<HoldCounter> {
            public HoldCounter initialValue() {
                return new HoldCounter();
            }
        }

        private transient HoldCounter cachedHoldCounter;
        private transient int firstReaderHoldCount;
        private transient Thread firstReader = null;


    锁降级

    锁降级指的是写锁降级成为读锁,即先获取写锁、获取读锁在释放写锁的过程,目的为了保证数据的可见性。假设有两个线程A、B,若线程A获取到写锁,不获取读锁而是直接释放写锁,这时线程B获取了写锁并修改了数据,那么线程A无法知道线程B的数据更新。如果线程A获取读锁,即遵循锁降级的步骤,则线程B将会被阻塞,直到线程A使用数据并释放读锁之后,线程B才能获取写锁进行数据更新。

    总结

    当有线程获取读锁时,不允许再有线程获得写锁
    当有线程获得写锁时,不允许其他线程获得读锁和写锁
    写锁能降级为读锁,读锁无法升级成写锁
