令人困惑的TensorFlow！

理解 TensorFlow

TensorFlow 不是一个标准的 Python 库

Python 和 TensorFlow 之间的关系可以类比 Javascript 和 HTML 之间的关系。Javascript 是一种全功能的编程语言，可以做各种美妙的事情。HTML 是用于表示某种类型的实用计算抽象（此处指可由 Web 浏览器呈现的内容）的框架。Javascript 在交互式网页中的作用是组装浏览器看到的 HTML 对象，然后在需要时通过将其更新为新的 HTML 来与其交互。

``````import tensorflow as tf

``````import tensorflow as tf

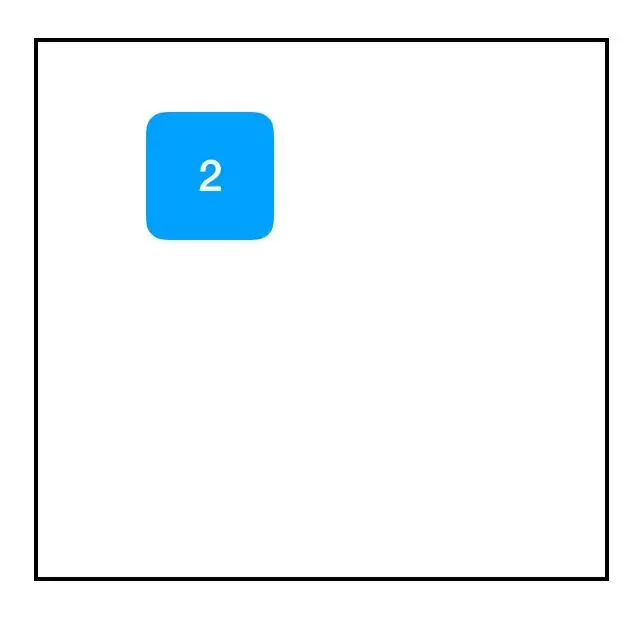

two_node = tf.constant(2)
print two_node

``````Tensor("Const:0", shape=(), dtype=int32)

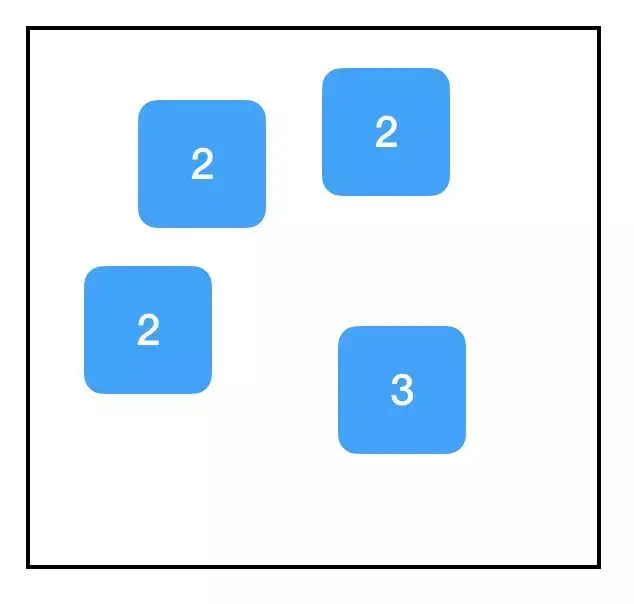

``````import tensorflow as tf
two_node = tf.constant(2)
another_two_node = tf.constant(2)
two_node = tf.constant(2)
tf.constant(3)

``````import tensorflow as tf
two_node = tf.constant(2)
another_pointer_at_two_node = two_node
two_node = None
print two_node
print another_pointer_at_two_node

``````None
Tensor("Const:0", shape=(), dtype=int32)

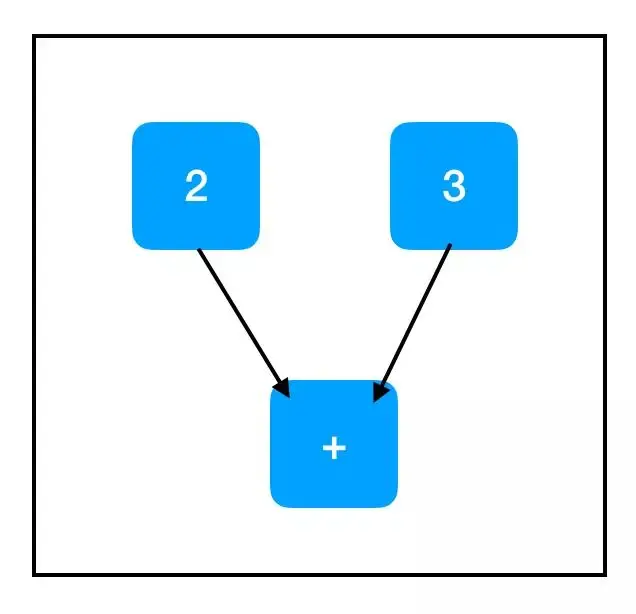

``````import tensorflow as tf
two_node = tf.constant(2)
three_node = tf.constant(3)
sum_node = two_node + three_node ## equivalent to tf.add(two_node, three_node)

``````import tensorflow as tf
two_node = tf.constant(2)
three_node = tf.constant(3)
sum_node = two_node + three_node
sess = tf.Session()
print sess.run(sum_node)

``````5

``````import tensorflow as tf
two_node = tf.constant(2)
three_node = tf.constant(3)
sum_node = two_node + three_node
sess = tf.Session()
print sess.run([two_node, sum_node])

``````[2, 5]

``````import tensorflow as tf

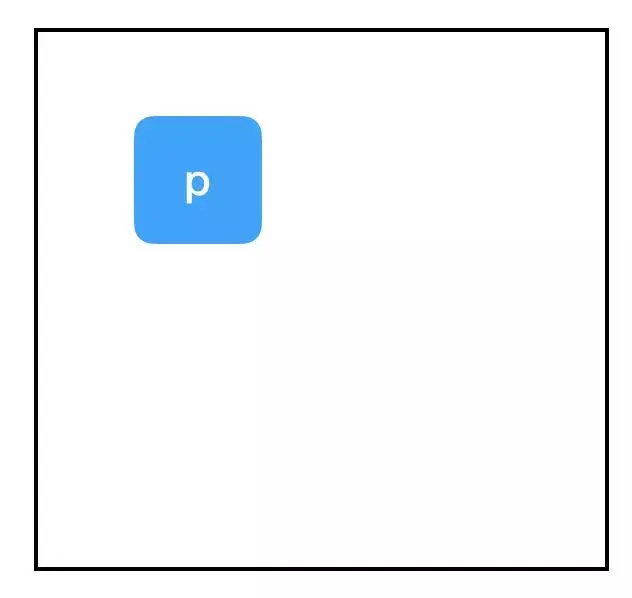

input_placeholder = tf.placeholder(tf.int32)
sess = tf.Session()
print sess.run(input_placeholder)

``````Traceback (most recent call last):
...
InvalidArgumentError (see above *for* traceback): You must feed a value *for* placeholder tensor 'Placeholder' *with* dtype int32
[[Node: Placeholder = Placeholder[dtype=DT_INT32, shape=<unknown>, _device="/job:localhost/replica:0/task:0/device:CPU:0"]()]]

... 这是一个糟糕的例子，因为它引发了一个异常。占位符预计会被赋予一个值。但我们没有提供一个值，所以 TensorFlow 崩溃了。

``````import tensorflow as tf
input_placeholder = tf.placeholder(tf.int32)
sess = tf.Session()
print sess.run(input_placeholder, feed_dict={input_placeholder: 2})

``````2

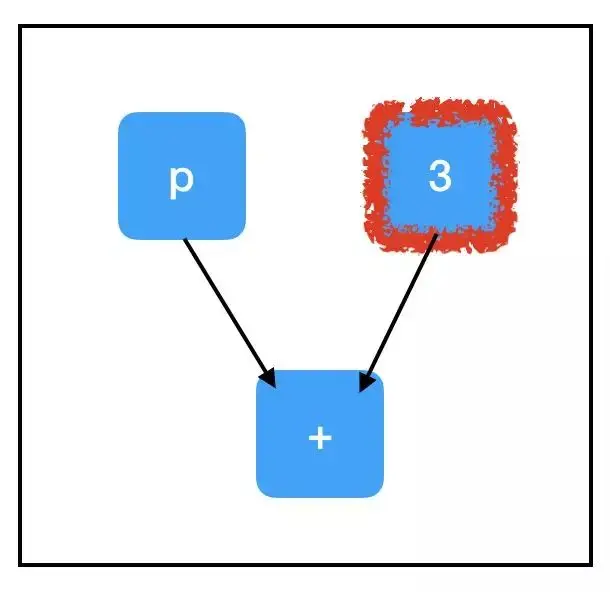

``````import tensorflow as tf
input_placeholder = tf.placeholder(tf.int32)
three_node = tf.constant(3)
sum_node = input_placeholder + three_node
sess = tf.Session()
print sess.run(three_node)
print sess.run(sum_node)

``````3
Traceback (most recent call last):
...
InvalidArgumentError (see above for traceback): You must feed a value *for* placeholder tensor 'Placeholder_2' with dtype int32
[[Node: Placeholder_2 = Placeholder[dtype=DT_INT32, shape=<unknown>, _device="/job:localhost/replica:0/task:0/device:CPU:0"]()]]

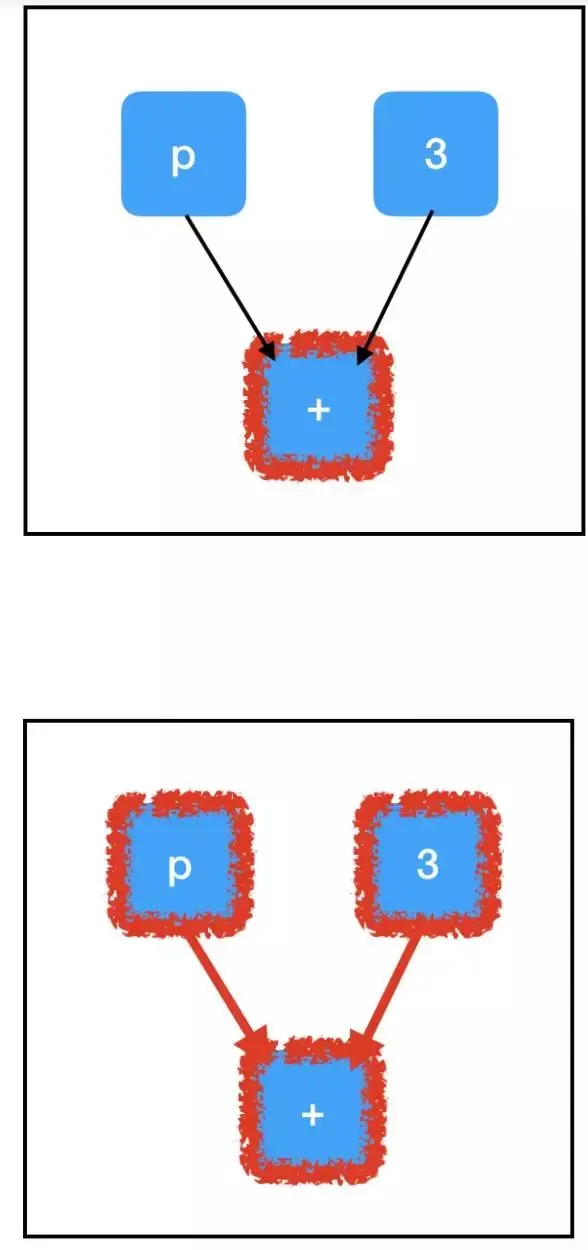

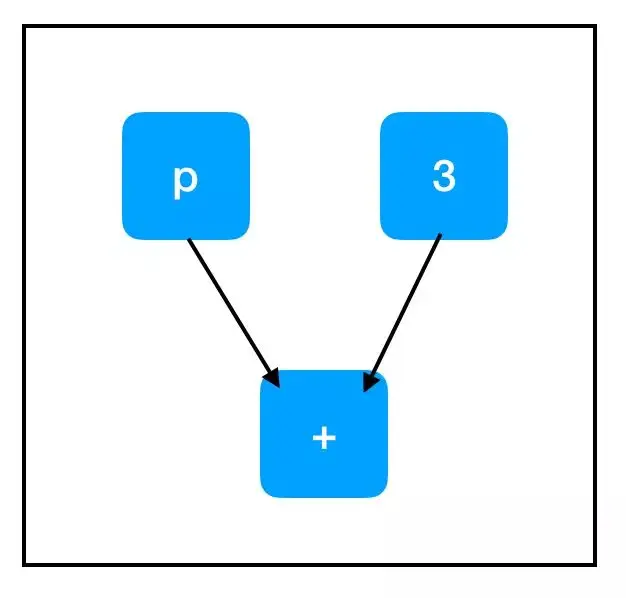

sum_node 的计算路径：

TensorFlow 仅通过必需的节点自动进行计算这一事实是该框架的一个巨大优势。如果计算图非常大并且有许多不必要的节点，那么它可以节省大量调用的运行时间。它允许我们构建大型的「多用途」计算图，这些计算图使用单个共享的核心节点集合，并根据所采取的不同计算路径去做不同的事情。对于几乎所有应用而言，根据所采取的计算路径考虑 sess.run() 的调用是很重要的。

``````import tensorflow as tf

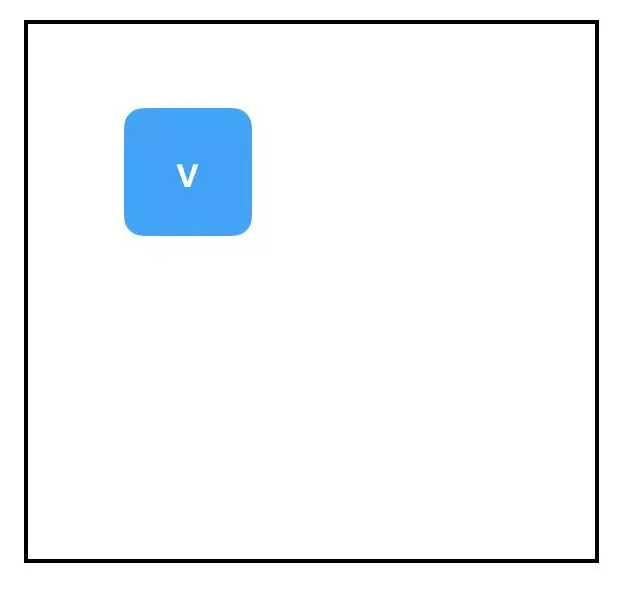

count_variable = tf.get_variable("count", [])
sess = tf.Session()
print sess.run(count_variable)

``````Traceback (most recent call last):
...
tensorflow.python.framework.errors_impl.FailedPreconditionError: Attempting to use uninitialized value count
[[Node: _retval_count_0_0 = _Retval[T=DT_FLOAT, index=0, _device="/job:localhost/replica:0/task:0/device:CPU:0"](count)]]

``````import tensorflow as tf
count_variable = tf.get_variable("count", [])
zero_node = tf.constant(0.)
assign_node = tf.assign(count_variable, zero_node)
sess = tf.Session()
sess.run(assign_node)
print sess.run(count_variable)

``````0

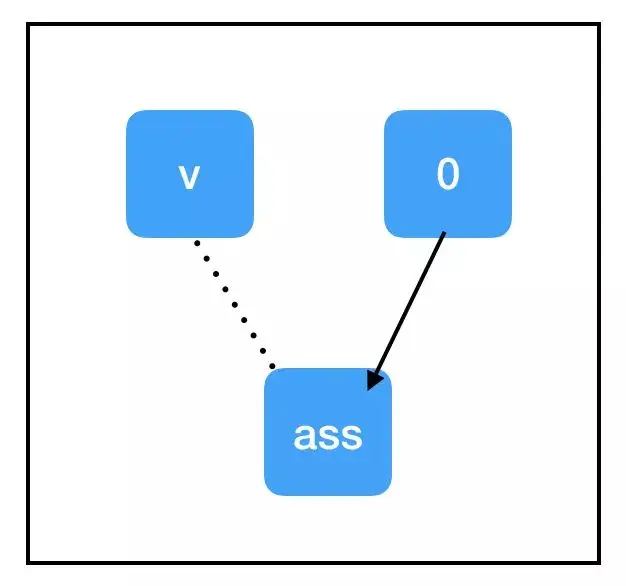

• 恒等运算。tf.assign(target, value) 不做任何有趣的运算，通常与 value 相等。
• 副作用。当计算「流经」assign_node 时，副作用发生在图中的其他节点上。此时，副作用是用存储在 zero_node 中的值替换 count_variable 的值。
• 非依赖边。即使 count_variable 节点和 assign_node 在图中是相连的，但它们彼此独立。这意味着计算任一节点时，计算不会通过边回流。然而，assign_node 依赖于 zero_node，它需要知道分配了什么。

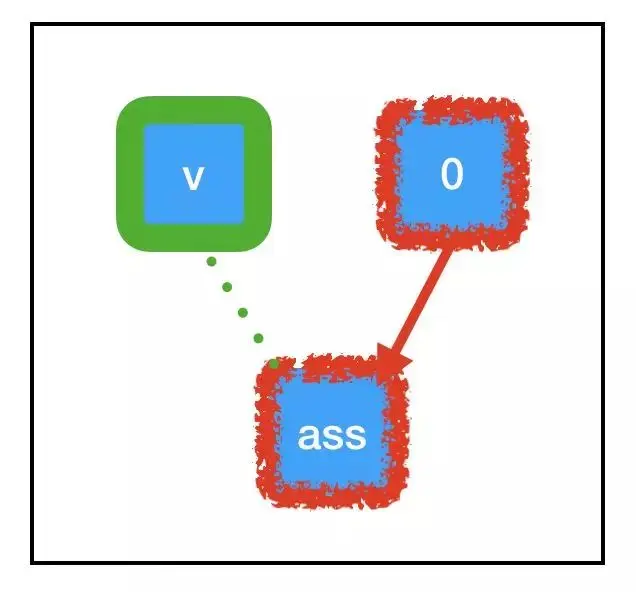

「副作用」节点支撑着大部分 Tensorflow 深度学习工作流程，所以请确保自己真正理解了在该节点发生的事情。当我们调用 sess.run(assign_node) 时，计算路径会通过 assign_node 和 zero_node。

``````import tensorflow as tf

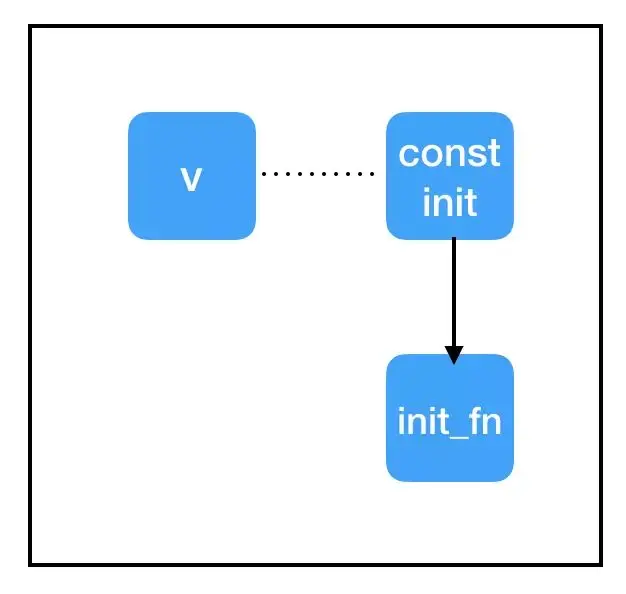

const_init_node = tf.constant_initializer(0.)
count_variable = tf.get_variable("count", [], initializer=const_init_node)
sess = tf.Session()
print sess.run([count_variable])

``````Traceback (most recent call last):
...
tensorflow.python.framework.errors_impl.FailedPreconditionError: Attempting to use uninitialized value count
[[Node: _retval_count_0_0 = _Retval[T=DT_FLOAT, index=0, _device="/job:localhost/replica:0/task:0/device:CPU:0"](count)]]

``````import tensorflow as tf
const_init_node = tf.constant_initializer(0.)
count_variable = tf.get_variable("count", [], initializer=const_init_node)
init = tf.global_variables_initializer()
sess = tf.Session()
sess.run(init)
print sess.run(count_variable)

``````0

1. 获取输入和 true_output

2. 根据输入和参数计算「推测」值

3. 根据推测与 true_output 之间的差异计算「损失」

4. 根据损失的梯度更新参数

``````import tensorflow as tf
### build the graph## first set up the parameters
m = tf.get_variable("m", [], initializer=tf.constant_initializer(0.))
b = tf.get_variable("b", [], initializer=tf.constant_initializer(0.))
init = tf.global_variables_initializer()
## then set up the computations
input_placeholder = tf.placeholder(tf.float32)
output_placeholder = tf.placeholder(tf.float32)

x = input_placeholder
y = output_placeholder
y_guess = m * x + b

loss = tf.square(y - y_guess)
## finally, set up the optimizer and minimization node
train_op = optimizer.minimize(loss)
### start the session
sess = tf.Session()
sess.run(init)
### perform the training loop*import* random
## set up problem
true_m = random.random()
true_b = random.random()
*for* update_i *in* range(100000):
## (1) get the input and output
input_data = random.random()
output_data = true_m * input_data + true_b

## (2), (3), and (4) all take place within a single call to sess.run()!
_loss, _ = sess.run([loss, train_op], feed_dict={input_placeholder: input_data, output_placeholder: output_data})
*print* update_i, _loss
### finally, print out the values we learned for our two variables*print* "True parameters: m=%.4f, b=%.4f" % (true_m, true_b)*print* "Learned parameters: m=%.4f, b=%.4f" % tuple(sess.run([m, b]))

``````0 2.32053831 0.57927422 1.552543 1.57332594 0.64356485 2.40612656 1.07462567 2.19987158 1.67751169 1.646242310 2.441034
...99990 2.9878322e-1299991 5.158629e-1199992 4.53646e-1199993 9.422685e-1299994 3.991829e-1199995 1.134115e-1199996 4.9467985e-1199997 1.3219648e-1199998 5.684342e-1499999 3.007017e-11*True* parameters: m=0.3519, b=0.3242
Learned parameters: m=0.3519, b=0.3242

``````## finally, set up the optimizer and minimization node
train_op = optimizer.minimize(loss)

train_op 回溯输入和损失的计算路径，寻找变量节点。对于它找到的每个变量节点，计算该变量对于损失的梯度。然后计算该变量的新值：当前值减去梯度乘以学习率的积。最后，它执行赋值操作更新变量的值。

``````import tensorflow as tf
two_node = tf.constant(2)
three_node = tf.constant(3)
sum_node = two_node + three_node
sess = tf.Session()
print sess.run(sum_node)

``````5

``````import tensorflow as tf
two_node = tf.constant(2)
three_node = tf.constant(3)
sum_node = two_node + three_node
sess = tf.Session()
answer, inspection = sess.run([sum_node, [two_node, three_node]])
print inspection

``````[2, 3]5

``````import tensorflow as tf
two_node = tf.constant(2)
three_node = tf.constant(3)
sum_node = two_node + three_node

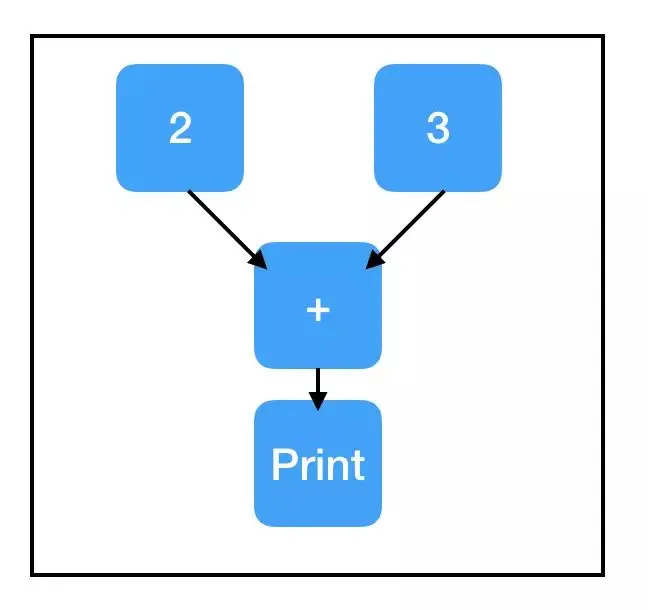

print_sum_node = tf.Print(sum_node, [two_node, three_node])
sess = tf.Session()
print sess.run(print_sum_node)

``````[2][3]5

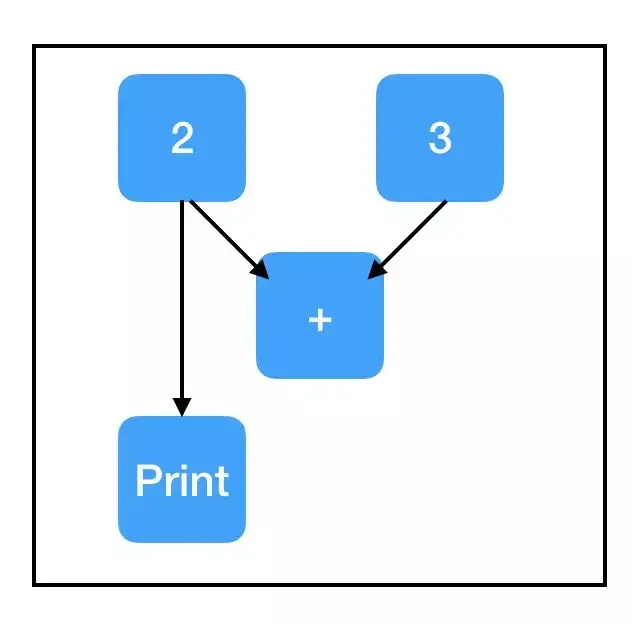

``````import tensorflow as tf
two_node = tf.constant(2)
three_node = tf.constant(3)
sum_node = two_node + three_node### this new copy of two_node is not on the computation path, so nothing prints!
print_two_node = tf.Print(two_node, [two_node, three_node, sum_node])
sess = tf.Session()
print sess.run(sum_node)

``````5
