写在前面

本文实现了基于Jtopo的在线网络拓扑设计和编辑,可以创建复杂网络并对网络和设备进行各种操作,提供拓扑的序列化和反序列操作。

为了方便演示,我已经把一个静态DEMO部署到github,传送门

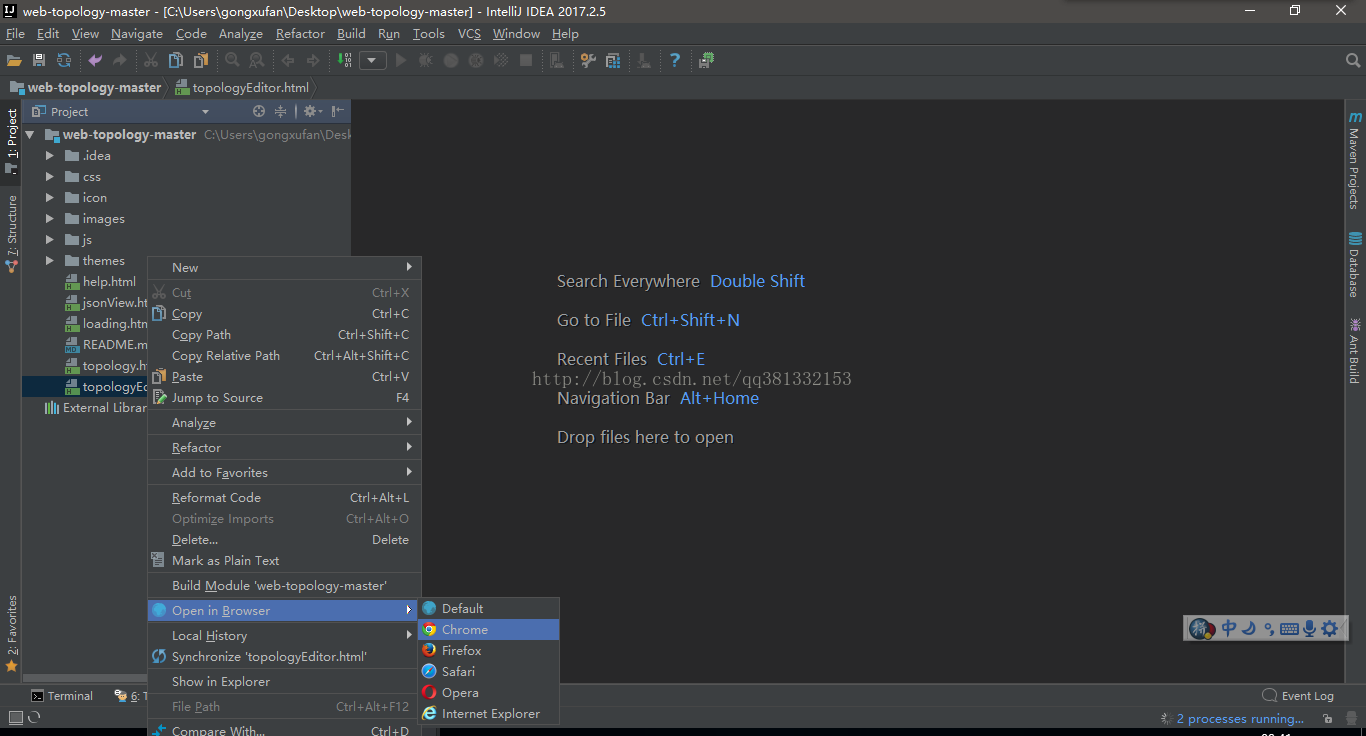

关于项目访问,因为读取远程json数据,直接用浏览器打开会有安全限制.请将项目放到tomcat启动访问或者直接用idea/webstorm打开项目直接右键打开,如下图所示:

完整代码单独放到了github:github.com/gongxufan/w…

功能简介

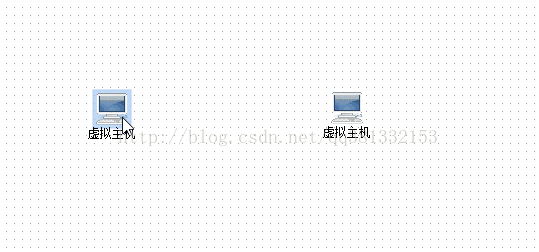

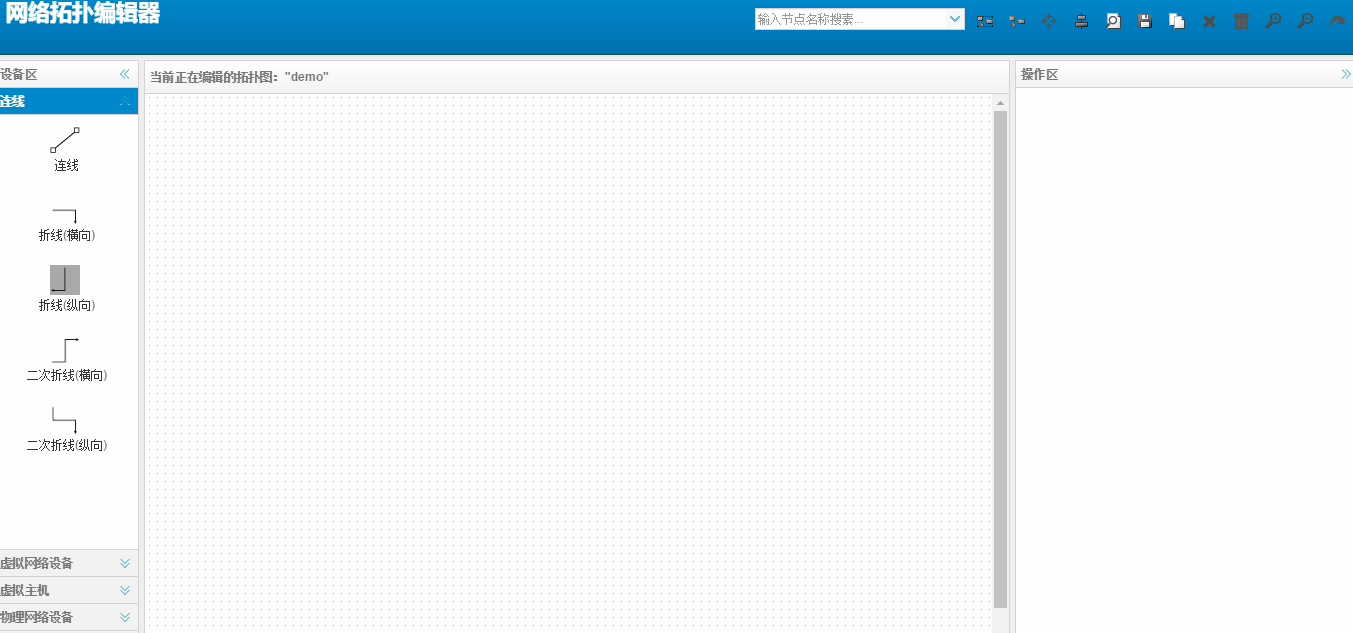

基本的操作可以看下面的GIF图,节点从左边图标栏拖拽至编辑区,通过单击节点图标,然后松开鼠标按键则可拖动一条连线。在目标节点单击,怎完成一次连线操作。左栏可以选择多种连线方式。

这个拓扑编辑器UI是easyUI做的布局,节点的编辑和连线则是基于jTopo二次开发的。jTopo提供了Stage、Scene、Node、Container以及对动画的支持,API使用相对简单易用。缺点是文档缺乏,但是我们可以通过作者提供的DEMO进行熟悉。一旦熟悉其源码,则十分便于二次开发。用来实现一些动画也是轻而易举的。由于是基于canvas的绘画,所以每次更改和操作其实都会重绘整个画布。当中还是有不少可以优化的地方。其实想D3.js也可以走到这样的效果,只是近期工作都在后端就没去探究了。
由于只是摘取个人开发项目的前端部分,由于公司许可原因只能开发这一部分了,有兴趣的可以去我的github上clone下来参考。核心部分代码都在editor.js,提供了节点拖拽、节点连线、布局等方法支持。这个是一个初始版本。代码粗糙,仅供参考。
下面摘取几个重要的地方稍微讲解:

编辑器初始化代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
//创建JTOP舞台屏幕对象
   var canvas = document.getElementById('drawCanvas');
   canvas.width = $("#contextBody").width();
   canvas.height = $("#contextBody").height();
   //加载空白的编辑器
   if(stageJson == "-1"){
       this.stage = new JTopo.Stage(canvas);
       this.stage.topoLevel = 1;
       this.stage.parentLevel = 0;
       this.modeIdIndex = 1;
       this.scene=  new JTopo.Scene(this.stage);
       this.scene.totalLevel = 1;
   }else{
       this.stage = JTopo.createStageFromJson(stageJson, canvas);
       this.scene = this.stage.childs[0];
   }

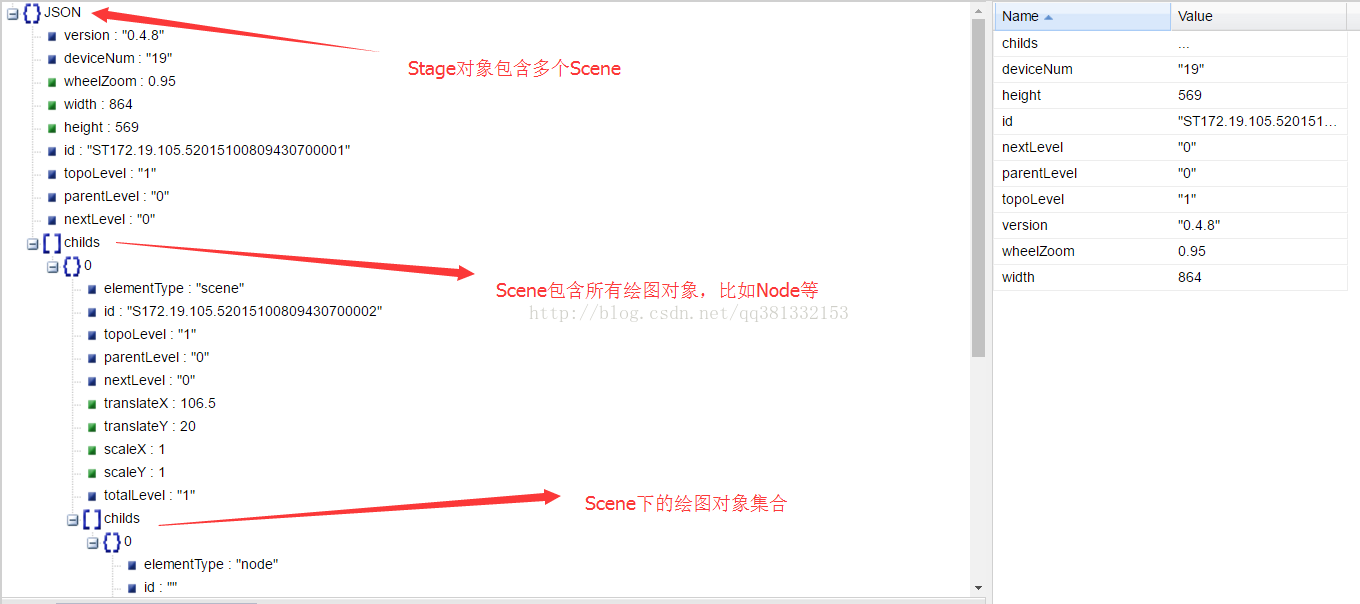

我们可以调用JTopo.Stage(canvas)来初始化一个画图区域,接下来就可以使用API进行节点和动画的操作了。整个画图对象的JSON层次结构如下所示:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
{
  "version": "0.4.8",
  "deviceNum": "19",
  "wheelZoom": 0.95,
  "width": 864,
  "height": 569,
  "id": "ST172.19.105.52015100809430700001",
  "topoLevel": "1",
  "parentLevel": "0",
  "nextLevel": "0",
  "childs": [
    {
      "elementType": "scene",
      "id": "S172.19.105.52015100809430700002",
      "topoLevel": "1",
      "parentLevel": "0",
      "nextLevel": "0",
      "translateX": 106.5,
      "translateY": 20,
      "scaleX": 1,
      "scaleY": 1,
      "totalLevel": "1",
      "childs": [
        {
          "elementType": "node",
          "id": "",
          "topoLevel": 1,
          "parentLevel": "0",
          "nextLevel": "0",
          "x": 211.5,
          "y": 135,
          "width": 32,
          "height": 32,
          "visible": true,
          "rotate": 0,
          "scaleX": 1,
          "scaleY": 1,
          "zIndex": 3,
          "deviceId": "1404683827351.4666",
          "dataType": "VR",
          "nodeImage": "tpIcon_9.png",
          "text": "CS路由器",
          "textPosition": "Bottom_Center",
          "templateId": undefined
        }
      ]
    }
  ]
}

其结构为:

通常我们只需要一个 Scene对象即可管理所有的对象,当然如果要实现更复杂的分组对象管理则可以创建多个Scene对象进行单独管理。同时我们可以调用JTopo.createStageFromJson(stageJson, canvas)方法来讲一个保存好的拓扑结构重新渲染。

节点的拖拽

节点的拖拽使用的原生H5的drag&drop来实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
/**
 * 图元拖放功能实现
 * @param modeDiv
 * @param drawArea
 */
networkTopologyEditor.prototype.drag = function (modeDiv, drawArea, text) {
    if (!text) text = "";
    var self = this;
    //拖拽开始,携带必要的参数
    modeDiv.ondragstart = function (e) {
        e = e || window.event;
        var dragSrc = this;
        var backImg = $(dragSrc).find("img").eq(0).attr("src");
        backImg = backImg.substring(backImg.lastIndexOf('/') + 1);
        var datatype = $(this).attr("datatype");
        try {
            //IE只允许KEY为text和URL
            e.dataTransfer.setData('text', backImg + ";" + text + ";" + datatype);
        } catch (ex) {
            console.log(ex);
        }
    };
    //阻止默认事件
    drawArea.ondragover = function (e) {
        e.preventDefault();
        return false;
    };
    //创建节点
    drawArea.ondrop = function (e) {
        e = e || window.event;
        var data = e.dataTransfer.getData("text");
        var img, text,datatype;
        if (data) {
            var datas = data.split(";");
            if (datas && datas.length == 3) {
                img = datas[0];
                text = datas[1];
                datatype = datas[2];
                var node = new JTopo.Node();
                node.fontColor = self.config.nodeFontColor;
                node.setBound((e.layerX ? e.layerX : e.offsetX) - self.scene.translateX - self.config.defaultWidth / 2, (e.layerY ? e.layerY : e.offsetY) - self.scene.translateY - self.config.defaultHeight / 2,self.config.defaultWidth,self.config.defaultHeight);
                //设备图片
                node.setImage(context + 'post/web-topology/icon/' + img);
                //var cuurId = "device" + (++self.modeIdIndex);
                var cuurId = "" + new Date().getTime() * Math.random();
                node.deviceId = cuurId;
                node.dataType = datatype;
                node.nodeImage = img;
                ++self.modeIdIndex;
                node.text = text;
                node.layout = self.layout;
                //节点所属层次
                node.topoLevel = parseInt($("#selectLevel").find("option:selected").val());
                //节点所属父层次
                node.parentLevel = $("#parentLevel").val();
                //子网连接点的下一个层,默认为0
                node.nextLevel = "0";
                self.scene.add(node);

                //加载属性面板
                /* if(self.currDataType)
                 self.clearOldPanels(self.currDataType)
                 self.currDeviceId = cuurId;
                 self.createNewPanels(datatype,self.templateId,self.currentModeId);*/
                //self.currDataType = datatype;
                self.currentNode = node;
            }
        }
        if (e.preventDefault()) {
            e.preventDefault();
        }
        if (e.stopPropagation()) {
            e.stopPropagation();
        }
    }
}

在ondragstart回调方法中传递底图以及必要参数,然后在ondrop进行节点的创建新建节点使用JTopo.Node()构造,设置好相关属性然后通过scene.add(node)加入到Stage。为何执行add操作在界面上就可以看到新的节点了呢?

原因是Stage有一个frames属性,它定义了画布重绘频率1000/frames

frames属性

设置当前舞台播放的帧数/秒

默认为:24

frames可以为0,表示:不自动绘制,由用户手工调用Stage对象的paint()方法来触发。

如果小于0意味着:只有键盘、鼠标有动作时才会重绘,例如:stage.frames = -24。

默认画面帧数为24帧,也就是每1000/24ms就会重绘屏幕。后台刷新的代码如下:

1
2
3
4
5
function() {
             0 == stage.frames ? setTimeout(arguments.callee, 100) : stage.frames < 0 ? (stage.repaint(),
                        setTimeout(arguments.callee, 1e3 / -stage.frames)) : (stage.repaint(),
                        setTimeout(arguments.callee, 1e3 / stage.frames))
        } ()

setTimeout会调用下面的重绘函数,

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
this.paint = function() {
      null  != this.canvas && (this.graphics.save(),
          this.graphics.clearRect(0, 0, this.width, this.height),
          this.childs.forEach(function(a) {
                  1 == a.visible && a.repaint(stage.graphics)
              }
          ),
      1 == this.eagleEye.visible && this.eagleEye.paint(this),
          this.graphics.restore())
  }
  ,
  this.repaint = function() {
      0 != this.frames && (this.frames < 0 && 0 == this.needRepaint || (this.paint(),
      this.frames < 0 && (this.needRepaint = !1)))
  }

paint对遍历所有可见对象 ,依次调用repaint方法。

节点连线

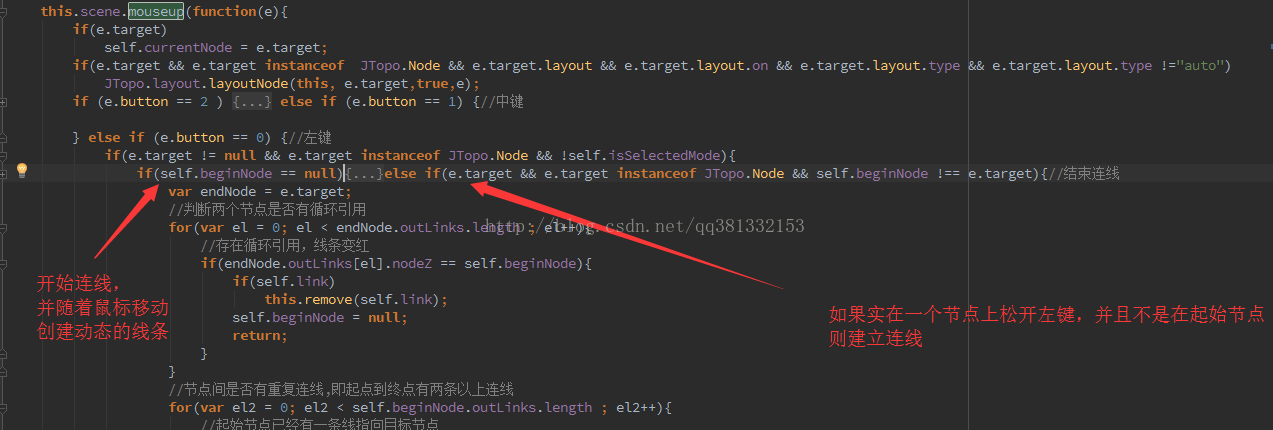

这里采用的连线方法是在节点按下鼠标左键,然后松开鼠标则创建一个连线,起点是被点击的节点,终点则随鼠标移动而动态更新。因此单机一个节点松开鼠标则可以看到随鼠标移动的一条连线。然后在某个节点点击左键松开怎完成了两个节点的连线。效果如下:

部分代码实现如下:

jTopo支持支线、折线、曲线等的常见,但是折线的拐角处长度现在只能在创建的时候指定。如需动态的秒点创建需要二次开发。代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
if(self.lineType == "line"){
    self.link = new JTopo.Link(self.tempNodeA, self.tempNodeZ);
    self.link.lineType = "line";
}else if(self.lineType == "foldLine"){
    self.link = new JTopo.FoldLink(self.tempNodeA, self.tempNodeZ);
    self.link.lineType = "foldLine";
    self.link.direction =  self.config.direction;
}else if(self.lineType == "flexLine"){
    self.link = new JTopo.FlexionalLink(self.tempNodeA, self.tempNodeZ);
    self.link.direction =  self.config.direction;
    self.link.lineType = "flexLine";
}else if(self.lineType == "curveLine"){
    self.link = new JTopo.CurveLink(self.tempNodeA, self.tempNodeZ);
    self.link.lineType = "curveLine";
}  xxxxx

关于拓扑的保存和加载

因为本文只是拓扑编辑器的前端,后端部分因为商业限制原因暂未开源。而且因为整体项目很大,单独剥离也不容易。其实我们只要知道拓扑的加载和保存逻辑,实现拓扑结构的序列化操作也是很简单的。下面占用一个篇幅集中讨论:

加载现有的拓扑图

现在我们拥有一个拓扑结构,也就是文本传送门地址所展示的拓扑图,其序列化结构如下:
