Activity启动流程分析

在Android中,当你想要打开一个新的页面的时候,通常会调用类似下面的代码

    Intent intent = new Intent(context,SomeActivity.class);
    startActivity(intent);
    // or
    startActivityForResult(intent,CODE);
复制代码

今天我们就来研究一下当调用startActivity的时候,一个新的Activity是如何启动的?

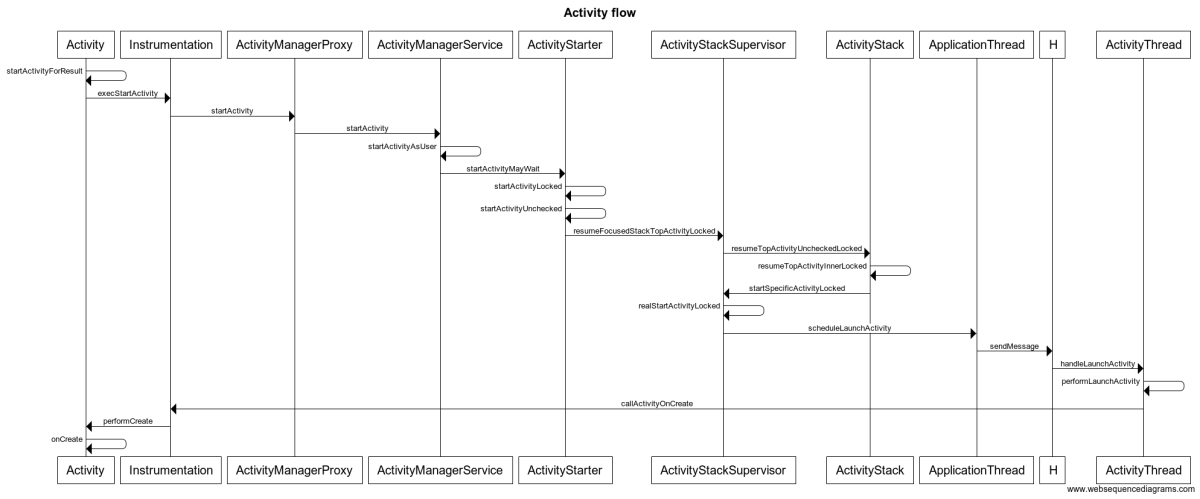

不过在开始之前,我们先看一张Activity启动大致的时序图,如果对源码不感兴趣的可以直接通过时序图了解一下大致流程

startActivity

startActivity这个方法是在Context中定义的,本身是个抽象方法,需要子类去实现

    /**
     * Same as {@link #startActivity(Intent, Bundle)} with no options
     * specified.
     *
     * @param intent The description of the activity to start.
     *
     * @throws ActivityNotFoundException
     *`
     * @see #startActivity(Intent, Bundle)
     * @see PackageManager#resolveActivity
     */
    public abstract void startActivity(@RequiresPermission Intent intent);
复制代码

事实上,Android中一共有两个类实现这个方法,其中一个就是众所周知的Activity

    @Override
    public void startActivity(Intent intent) {
        this.startActivity(intent, null);
    }
    @Override
    public void startActivity(Intent intent, @Nullable Bundle options) {
        if (options != null) {
            startActivityForResult(intent, -1, options);
        } else {
            startActivityForResult(intent, -1);
        }
    }

    public void startActivityForResult(@RequiresPermission Intent intent, int requestCode) {
        startActivityForResult(intent, requestCode, null);
    }

    public void startActivityForResult(@RequiresPermission Intent intent, int requestCode,
            @Nullable Bundle options) {
        if (mParent == null) {
            options = transferSpringboardActivityOptions(options);
            Instrumentation.ActivityResult ar =
                mInstrumentation.execStartActivity(
                    this, mMainThread.getApplicationThread(), mToken, this,
                    intent, requestCode, options);
            if (ar != null) {
                mMainThread.sendActivityResult(
                    mToken, mEmbeddedID, requestCode, ar.getResultCode(),
                    ar.getResultData());
            }
            if (requestCode >= 0) {
                mStartedActivity = true;
            }

            cancelInputsAndStartExitTransition(options);
        } else {
            if (options != null) {
                mParent.startActivityFromChild(this, intent, requestCode, options);
            } else {
                mParent.startActivityFromChild(this, intent, requestCode);
            }
        }
    }
复制代码

从代码中我们可以看到Activity中的startActivity最终调用的是自身的startActivifyForResult方法,而在startActivifyForResult方法中,如果mParent是null的话,就会执行下面的代码

Instrumentation.ActivityResult ar = mInstrumentation.execStartActivity(this, mMainThread.getApplicationThread(), mToken, this,intent, requestCode, options);
复制代码

如果mParent不为null,就会执行mParent.startActivityFromChild(this, intent, requestCode, options),这个mParemt实际上也是一个Activity,所以我们直接看startActivityFromChild中的代码

    public void startActivityFromChild(@NonNull Activity child, @RequiresPermission Intent intent,
            int requestCode, @Nullable Bundle options) {
        options = transferSpringboardActivityOptions(options);
        Instrumentation.ActivityResult ar =
            mInstrumentation.execStartActivity(
                this, mMainThread.getApplicationThread(), mToken, child,
                intent, requestCode, options);
        if (ar != null) {
            mMainThread.sendActivityResult(
                mToken, child.mEmbeddedID, requestCode,
                ar.getResultCode(), ar.getResultData());
        }
        cancelInputsAndStartExitTransition(options);
    }
复制代码

可以看到最终也是调用的Instrumentation中的execStartActivity方法。可能有人不明白为什么会区分mParent空和非空的情况,以及这个mParent究竟是干什么的?这个功能用的很少,我们大都知道View中存在父子关系,却不知道Activity也有父子关系,Activity中的父子关系和嵌套没有关系,这只是一个逻辑上的概念,你可以在Manifest文件中通过android:parentActivityName指定其的父Activity。具体功能可以参考官方文档

Context的另外一个实现类是ContextImpl,这个方法的使用范围更广,在任何可以访问到Context的地方都可以调用Context.startActivity方法。下面看一下ContextImpl的实现

    @Override
    public void startActivity(Intent intent, Bundle options) {
        warnIfCallingFromSystemProcess();

        // Calling start activity from outside an activity without FLAG_ACTIVITY_NEW_TASK is
        // generally not allowed, except if the caller specifies the task id the activity should
        // be launched in.
        if ((intent.getFlags()&Intent.FLAG_ACTIVITY_NEW_TASK) == 0
                && options != null && ActivityOptions.fromBundle(options).getLaunchTaskId() == -1) {
            throw new AndroidRuntimeException(
                    "Calling startActivity() from outside of an Activity "
                    + " context requires the FLAG_ACTIVITY_NEW_TASK flag."
                    + " Is this really what you want?");
        }
        mMainThread.getInstrumentation().execStartActivity(
                getOuterContext(), mMainThread.getApplicationThread(), null,
                (Activity) null, intent, -1, options);
    }
复制代码

是不是很眼熟?这个和Activity的startActivityForResult最终调用的方法是一样的,都是Instrumentation.execStartActivity方法,由上我们可以得出startActivity无论哪种实现都会调用Instrumentation中的execStartActivity方法。 通过阅读源码有发现两点需要注意

  • startActivityForResult这个方法是Activity独有的,可能有人会说Fragment中也有startActivityForResult,但是如果你看Fragment源码的话就会发现,Fragment最终也会调用的Activity中的startActivityForResult的方法。
  • Context调用startActivity的时候,如果这个Context不是Activity的Context,就必须设置FLAG_ACTIVITY_NEW_TASK,否则就会报错。可以尝试在Service中启动Activity。

Instrumentation.execStartActivity

Instrumentaion这个类是专门用来做单元测试的。Android应用程序和普通的java程序不同,在做UI测试的时候往往需要在机器上运行才可以,Instrumentation则可以模拟出应用与系统的交互,更方便的做UI单元测试。当然这并不是今天的重点,我们还是来看一下execStartActivity方法的实现。

    public ActivityResult execStartActivity(
            Context who, IBinder contextThread, IBinder token, Activity target,
            Intent intent, int requestCode, Bundle options) {
        IApplicationThread whoThread = (IApplicationThread) contextThread;
        Uri referrer = target != null ? target.onProvideReferrer() : null;
        if (referrer != null) {
            intent.putExtra(Intent.EXTRA_REFERRER, referrer);
        }
        if (mActivityMonitors != null) {
            synchronized (mSync) {
                final int N = mActivityMonitors.size();
                for (int i=0; i<N; i++) {
                    final ActivityMonitor am = mActivityMonitors.get(i);
                    if (am.match(who, null, intent)) {
                        am.mHits++;
                        if (am.isBlocking()) {
                            return requestCode >= 0 ? am.getResult() : null;
                        }
                        break;
                    }
                }
            }
        }
        try {
            intent.migrateExtraStreamToClipData();
            intent.prepareToLeaveProcess(who);
            int result = ActivityManagerNative.getDefault()
                .startActivity(whoThread, who.getBasePackageName(), intent,
                        intent.resolveTypeIfNeeded(who.getContentResolver()),
                        token, target != null ? target.mEmbeddedID : null,
                        requestCode, 0, null, options);
            checkStartActivityResult(result, intent);
        } catch (RemoteException e) {
            throw new RuntimeException("Failure from system", e);
        }
        return null;
    }
复制代码

我们先来看一下各个参数的类型以及其具体的含义

类型 参数 说明
Context who this 发起跳转的对象
IBinder contextThread mMainThread.getApplicationThread() ApplicationThread
IBinder token mToken Activity的标识
Activity target this 发起跳转的Activity
Intent intent intent 跳转intent
int requestCode requestCode 返回结果标识,在onActivityResult中使用
Bundle options options 需要传的参数

从代码的try块中我们可以看到,最后执行的是ActivityManagerNative.getDefault().startActivity方法。

ActivityManagerNative.getDefault

先看一下getDefault方法

    static public IActivityManager getDefault() {
        return gDefault.get();
    }
复制代码

返回值IActivityManager是一个巨长的接口,里面定义和Activity相关的很多操作,我们要找的startActivity也是在这里定义。gDefault是ActivityManagerNative内部的一个私有静态成员。

    private static final Singleton<IActivityManager> gDefault = new Singleton<IActivityManager>() {
        protected IActivityManager create() {
            IBinder b = ServiceManager.getService("activity");
            if (false) {
                Log.v("ActivityManager", "default service binder = " + b);
            }
            IActivityManager am = asInterface(b);
            if (false) {
                Log.v("ActivityManager", "default service = " + am);
            }
            return am;
        }
    };
复制代码

Singleton看名字就知道是为了实现单例的类,ServiceManager.getService("activity")通过Binder IPC调用得到一个IBinder服务,然后调用asInterface就得到了我们要找的IActivityManager对象,下面看一下asInterface方法的实现

    static public IActivityManager asInterface(IBinder obj) {
        if (obj == null) {
            return null;
        }
        IActivityManager in =
            (IActivityManager)obj.queryLocalInterface(descriptor);
        if (in != null) {
            return in;
        }

        return new ActivityManagerProxy(obj);
    }
复制代码

到这里找到了IActivityManager的实现类ActivityManagerProxy,我们看一些它的startActivity方法

    public int startActivity(IApplicationThread caller, String callingPackage, Intent intent,
            String resolvedType, IBinder resultTo, String resultWho, int requestCode,
            int startFlags, ProfilerInfo profilerInfo, Bundle options) throws RemoteException {
        Parcel data = Parcel.obtain();
        Parcel reply = Parcel.obtain();
        data.writeInterfaceToken(IActivityManager.descriptor);
        data.writeStrongBinder(caller != null ? caller.asBinder() : null);
        data.writeString(callingPackage);
        intent.writeToParcel(data, 0);
        data.writeString(resolvedType);
        data.writeStrongBinder(resultTo);
        data.writeString(resultWho);
        data.writeInt(requestCode);
        data.writeInt(startFlags);
        if (profilerInfo != null) {
            data.writeInt(1);
            profilerInfo.writeToParcel(data, Parcelable.PARCELABLE_WRITE_RETURN_VALUE);
        } else {
            data.writeInt(0);
        }
        if (options != null) {
            data.writeInt(1);
            options.writeToParcel(data, 0);
        } else {
            data.writeInt(0);
        }
        mRemote.transact(START_ACTIVITY_TRANSACTION, data, reply, 0);
        reply.readException();
        int result = reply.readInt();
        reply.recycle();
        data.recycle();
        return result;
    }
复制代码

先看一下它的参数

类型 参数 说明
IApplicationThread caller whoThread 这个就是之前传的ApplicationThread
String callingPackage who.getBasePackageName() 应用包名
Intent intent intent 跳转意图
String resolvedType intent.resolveTypeIfNeeded(who.getContentResolver()) intent的类型
IBinder resultTo token 同之前的token
String resultWho Activity.mEmbeddedID
int requestCode requestCode 同之前
int startFlags 0
ProfilerInfo profilerInfo null
Bundle options options 同之前

上面的代码也是一个典型的Binder IPC调用,我们可以把我们的app理解成客户端,Android系统的底层理解为服务端,客户端的部分操作是无法直接执行的,需要服务端去执行,那怎么去通知服务端呢,这就需要用Android的Binder机制了,mRemote.transact(START_ACTIVITY_TRANSACTION, data, reply, 0)可以当作是一个http请求,既然有请求那一定也有结果处理,在ActivityManagerNative里还有一个一大串的swich-case代码,专门用来处理系统的返回的结果。我们直接看START_ACTIVITY_TRANSACTION部分的代码

    switch (code) {
        case START_ACTIVITY_TRANSACTION:
        {
            data.enforceInterface(IActivityManager.descriptor);
            IBinder b = data.readStrongBinder();
            IApplicationThread app = ApplicationThreadNative.asInterface(b);
            String callingPackage = data.readString();
            Intent intent = Intent.CREATOR.createFromParcel(data);
            String resolvedType = data.readString();
            IBinder resultTo = data.readStrongBinder();
            String resultWho = data.readString();
            int requestCode = data.readInt();
            int startFlags = data.readInt();
            ProfilerInfo profilerInfo = data.readInt() != 0
                    ? ProfilerInfo.CREATOR.createFromParcel(data) : null;
            Bundle options = data.readInt() != 0
                    ? Bundle.CREATOR.createFromParcel(data) : null;
            int result = startActivity(app, callingPackage, intent, resolvedType,
                    resultTo, resultWho, requestCode, startFlags, profilerInfo, options);
            reply.writeNoException();
            reply.writeInt(result);
            return true;
        }
复制代码

可以看到这里又调用一个startActivity方法,而且这个startActivity的实现并不在ActivityManagerNative中,而是在它的子类中。我搜了一下extends ActivityManagerNative这个字符串,找到了这个实现类ActivityManagerService。

ActivityManagerService

看一下它的startActivity的实现

    @Override
    public final int startActivity(IApplicationThread caller, String callingPackage,
            Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
            int startFlags, ProfilerInfo profilerInfo, Bundle bOptions) {
        return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,
                resultWho, requestCode, startFlags, profilerInfo, bOptions,
                UserHandle.getCallingUserId());
    }
复制代码

调用的了startActivityAsUser方法

    @Override
    public final int startActivityAsUser(IApplicationThread caller, String callingPackage,
            Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
            int startFlags, ProfilerInfo profilerInfo, Bundle bOptions, int userId) {
        enforceNotIsolatedCaller("startActivity");
        userId = mUserController.handleIncomingUser(Binder.getCallingPid(), Binder.getCallingUid(),
                userId, false, ALLOW_FULL_ONLY, "startActivity", null);
        // TODO: Switch to user app stacks here.
        return mActivityStarter.startActivityMayWait(caller, -1, callingPackage, intent,
                resolvedType, null, null, resultTo, resultWho, requestCode, startFlags,
                profilerInfo, null, null, bOptions, false, userId, null, null);
    }
复制代码

startActivityAsUser的参数和之前没什么区别,但是多了一个参数userId,这个是由UserHandle.getCallingUserId()方法,之后通过native方法返回的一个10000以内的值。 mActivityStarter是一个ActivityStarter对象。

ActivityStarter

ActivityStarter这个类就是用来控制Activity的启动逻辑的,看一下它的startActivityMayWait的实现

    final int startActivityMayWait(IApplicationThread caller, int callingUid,
            String callingPackage, Intent intent, String resolvedType,
            IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,
            IBinder resultTo, String resultWho, int requestCode, int startFlags,
            ProfilerInfo profilerInfo, IActivityManager.WaitResult outResult, Configuration config,
            Bundle bOptions, boolean ignoreTargetSecurity, int userId,
            IActivityContainer iContainer, TaskRecord inTask) {
        // 异常检查
        if (intent != null && intent.hasFileDescriptors()) {
        }
        mSupervisor.mActivityMetricsLogger.notifyActivityLaunching();
        boolean componentSpecified = intent.getComponent() != null;

        // 备份intent,不直接修改传过来的intent
        final Intent ephemeralIntent = new Intent(intent);
        intent = new Intent(intent);

        //查找符合条件的跳转列表,并找出最符合度最高的一个
        ResolveInfo rInfo = mSupervisor.resolveIntent(intent, resolvedType, userId);
        // aInfo = rInfo.activityInfo
        ActivityInfo aInfo = mSupervisor.resolveActivity(intent, rInfo, startFlags, profilerInfo);
        // 传过来的Bundle生成ActivityOptions
        ActivityOptions options = ActivityOptions.fromBundle(bOptions);
        // iContainer为null,所以container也是null
        ActivityStackSupervisor.ActivityContainer container =
                (ActivityStackSupervisor.ActivityContainer)iContainer;
        synchronized (mService) {
            final int realCallingPid = Binder.getCallingPid();
            final int realCallingUid = Binder.getCallingUid();
            int callingPid;
            if (callingUid >= 0) {
                callingPid = -1;
            } else if (caller == null) {
                callingPid = realCallingPid;
                callingUid = realCallingUid;
            } else {
                callingPid = callingUid = -1;
            }

            final ActivityStack stack;
            if (container == null || container.mStack.isOnHomeDisplay()) {
                // mFocusedStack保存着当前正在启动的activity栈
                stack = mSupervisor.mFocusedStack;
            }
            // config为null,所以stack.mConfigWillChange为false
            stack.mConfigWillChange = config != null && mService.mConfiguration.diff(config) != 0;
            final long origId = Binder.clearCallingIdentity();

            if (aInfo != null &&
                    (aInfo.applicationInfo.privateFlags
                            & ApplicationInfo.PRIVATE_FLAG_CANT_SAVE_STATE) != 0) {
                // 检查是不是heavy-weight
            }

            final ActivityRecord[] outRecord = new ActivityRecord[1];
            int res = startActivityLocked(caller, intent, ephemeralIntent, resolvedType,
                    aInfo, rInfo, voiceSession, voiceInteractor,
                    resultTo, resultWho, requestCode, callingPid,
                    callingUid, callingPackage, realCallingPid, realCallingUid, startFlags,
                    options, ignoreTargetSecurity, componentSpecified, outRecord, container,
                    inTask);

            Binder.restoreCallingIdentity(origId);

            if (stack.mConfigWillChange) {
                // 不会执行
            }
            //outResult是null
            if (outResult != null) {
                // 不会执行
            }
            final ActivityRecord launchedActivity = mReusedActivity != null
                    ? mReusedActivity : outRecord[0];
            mSupervisor.mActivityMetricsLogger.notifyActivityLaunched(res, launchedActivity);
            return res;
        }
    }
复制代码

参数列表

类型 参数 说明
IApplicationThread caller caller 这个就是之前传的ApplicationThread
int callingUid -1
String callingPackage callingPackage 应用包名
Intent intent intent 跳转意图
String resolveType resolvedType intent的类型
IVoiceInteractionSession null
IVoiceInteractor voiceInteractor null
IBinder resultTo resultTo 同之前的token
String resultWho resultWho 同之前的Activity.mEmbeddedID
int requestCode requestCode 同之前
int startFlags 0
ProfilerInfo profilerInfo null
IActivityManager.WaitResult outResult null
Configuration config null
Bundle bOptions options 同之前
boolean ignoreTargetSecurity false
int userId UserController.handleIncomingUser
IActivityContainer iContainer null
TaskRecord inTask null

这个方法的代码非常长,但是由于传过来的一些值为空,所以我做了一些精简,我们在代码中间部分看到调用了startActivityLocked这个方法,这就是我们接下来要看的代码

    final int startActivityLocked(IApplicationThread caller, Intent intent, Intent ephemeralIntent,
            String resolvedType, ActivityInfo aInfo, ResolveInfo rInfo,
            IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,
            IBinder resultTo, String resultWho, int requestCode, int callingPid, int callingUid,
            String callingPackage, int realCallingPid, int realCallingUid, int startFlags,
            ActivityOptions options, boolean ignoreTargetSecurity, boolean componentSpecified,
            ActivityRecord[] outActivity, ActivityStackSupervisor.ActivityContainer container,
            TaskRecord inTask) {
        // 默认是成功状态
        int err = ActivityManager.START_SUCCESS;
        ProcessRecord callerApp = null;
        // caller是从startActivity传过来的ApplicationThread
        if (caller != null) {
            // 获取调用者所在的进程信息
            callerApp = mService.getRecordForAppLocked(caller);
            if (callerApp != null) {
                callingPid = callerApp.pid;
                callingUid = callerApp.info.uid;
            } else {
                err = ActivityManager.START_PERMISSION_DENIED;
            }
        }

        final int userId = aInfo != null ? UserHandle.getUserId(aInfo.applicationInfo.uid) : 0;

        // sourceRecord是发起跳转所在的ActivityRecord
        // resultRecord是需要返回的结果的ActivityRecord
        ActivityRecord sourceRecord = null;
        ActivityRecord resultRecord = null;
        if (resultTo != null) {
            sourceRecord = mSupervisor.isInAnyStackLocked(resultTo);
            if (sourceRecord != null) {
                if (requestCode >= 0 && !sourceRecord.finishing) {
                    resultRecord = sourceRecord;
                }
            }
        }

        final int launchFlags = intent.getFlags();

        // 如果跳转时设置了FLAG_ACTIVITY_FORWARD_RESULT,则需要特殊处理。
        if ((launchFlags & Intent.FLAG_ACTIVITY_FORWARD_RESULT) != 0 && sourceRecord != null) {
            if (requestCode >= 0) {
                ActivityOptions.abort(options);
                return ActivityManager.START_FORWARD_AND_REQUEST_CONFLICT;
            }
            resultRecord = sourceRecord.resultTo;
            if (resultRecord != null && !resultRecord.isInStackLocked()) {
                resultRecord = null;
            }
            resultWho = sourceRecord.resultWho;
            requestCode = sourceRecord.requestCode;
            sourceRecord.resultTo = null;
            if (resultRecord != null) {
                resultRecord.removeResultsLocked(sourceRecord, resultWho, requestCode);
            }
            if (sourceRecord.launchedFromUid == callingUid) {
                callingPackage = sourceRecord.launchedFromPackage;
            }
        }

        if (err == ActivityManager.START_SUCCESS && intent.getComponent() == null) {
            // 从给定的intent中找不到对应的Component
            err = ActivityManager.START_INTENT_NOT_RESOLVED;
        }

        if (err == ActivityManager.START_SUCCESS && aInfo == null) {
            // 找不到对应的ActivityInfo
            err = ActivityManager.START_CLASS_NOT_FOUND;
        }

        if (err == ActivityManager.START_SUCCESS && sourceRecord != null
                && sourceRecord.task.voiceSession != null) {
            // 处理语音交互
        }

        if (err == ActivityManager.START_SUCCESS && voiceSession != null) {
            // 语音启动流程
        }

        final ActivityStack resultStack = resultRecord == null ? null : resultRecord.task.stack;
        if (err != START_SUCCESS) {
            if (resultRecord != null) {
                resultStack.sendActivityResultLocked(
                        -1, resultRecord, resultWho, requestCode, RESULT_CANCELED, null);
            }
            ActivityOptions.abort(options);
            return err;
        }
        // 权限检查
        boolean abort = !mSupervisor.checkStartAnyActivityPermission(intent, aInfo, resultWho,
                requestCode, callingPid, callingUid, callingPackage, ignoreTargetSecurity, callerApp,
                resultRecord, resultStack, options);
        abort |= !mService.mIntentFirewall.checkStartActivity(intent, callingUid,
                callingPid, resolvedType, aInfo.applicationInfo);

        if (mService.mController != null) {
            try {
                Intent watchIntent = intent.cloneFilter();
                abort |= !mService.mController.activityStarting(watchIntent,
                        aInfo.applicationInfo.packageName);
            } catch (RemoteException e) {
                mService.mController = null;
            }
        }

        mInterceptor.setStates(userId, realCallingPid, realCallingUid, startFlags, callingPackage);
        mInterceptor.intercept(intent, rInfo, aInfo, resolvedType, inTask, callingPid, callingUid,
                options);
        intent = mInterceptor.mIntent;
        rInfo = mInterceptor.mRInfo;
        aInfo = mInterceptor.mAInfo;
        resolvedType = mInterceptor.mResolvedType;
        inTask = mInterceptor.mInTask;
        callingPid = mInterceptor.mCallingPid;
        callingUid = mInterceptor.mCallingUid;
        options = mInterceptor.mActivityOptions;

        if (abort) {
            // 如果不符合条件才会走到这
            if (resultRecord != null) {
                resultStack.sendActivityResultLocked(-1, resultRecord, resultWho, requestCode,
                        RESULT_CANCELED, null);
            }
            ActivityOptions.abort(options);
            return START_SUCCESS;
        }

        if (Build.PERMISSIONS_REVIEW_REQUIRED && aInfo != null) {
            if (mService.getPackageManagerInternalLocked().isPermissionsReviewRequired(
                    aInfo.packageName, userId)) {
                // 依然是权限检查
            }
        }

        if (rInfo != null && rInfo.ephemeralResolveInfo != null) {
            intent = buildEphemeralInstallerIntent(intent, ephemeralIntent,
                    rInfo.ephemeralResolveInfo.getPackageName(), callingPackage, resolvedType,
                    userId);
            resolvedType = null;
            callingUid = realCallingUid;
            callingPid = realCallingPid;
            aInfo = mSupervisor.resolveActivity(intent, rInfo, startFlags, null /*profilerInfo*/);
        }
        // 创建新的ActivityRecord,赋值给outActivity数组
        ActivityRecord r = new ActivityRecord(mService, callerApp, callingUid, callingPackage,
                intent, resolvedType, aInfo, mService.mConfiguration, resultRecord, resultWho,
                requestCode, componentSpecified, voiceSession != null, mSupervisor, container,
                options, sourceRecord);
        if (outActivity != null) {
            outActivity[0] = r;
        }

        final ActivityStack stack = mSupervisor.mFocusedStack;
        if (voiceSession == null && (stack.mResumedActivity == null
                || stack.mResumedActivity.info.applicationInfo.uid != callingUid)) {
            if (!mService.checkAppSwitchAllowedLocked(callingPid, callingUid,
                    realCallingPid, realCallingUid, "Activity start")) {
                PendingActivityLaunch pal =  new PendingActivityLaunch(r,
                        sourceRecord, startFlags, stack, callerApp);
                mPendingActivityLaunches.add(pal);
                ActivityOptions.abort(options);
                return ActivityManager.START_SWITCHES_CANCELED;
            }
        }

        if (mService.mDidAppSwitch) {
            mService.mAppSwitchesAllowedTime = 0;
        } else {
            mService.mDidAppSwitch = true;
        }
        // 处理pending Activity
        doPendingActivityLaunchesLocked(false);

        try {
            mService.mWindowManager.deferSurfaceLayout();
            err = startActivityUnchecked(r, sourceRecord, voiceSession, voiceInteractor, startFlags,
                    true, options, inTask);
        } finally {
            mService.mWindowManager.continueSurfaceLayout();
        }
        postStartActivityUncheckedProcessing(r, err, stack.mStackId, mSourceRecord, mTargetStack);
        return err;
    }
复制代码

这也是一个巨长的代码,主要做了一些权限检查,中间部分做了注释和精简,但依然很长,最后调用了startActivityUnchecked方法,参数列表和之前也差不了多少,主要就是多了一个outActivity数组,这是在 startActivityMayWait就创建好的一个数组final ActivityRecord[] outRecord = new ActivityRecord[1]。

    private int startActivityUnchecked(final ActivityRecord r, ActivityRecord sourceRecord,
            IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,
            int startFlags, boolean doResume, ActivityOptions options, TaskRecord inTask) {
        // 更新ActivityStarter里面的参数
        setInitialState(r, options, inTask, doResume, startFlags, sourceRecord, voiceSession,
                voiceInteractor);
        // 计算启动模式mLaunchFlags
        computeLaunchingTaskFlags();

        computeSourceStack();

        mIntent.setFlags(mLaunchFlags);
        // 是否将新的Activity插入到现有的栈中
        mReusedActivity = getReusableIntentActivity();

        final int preferredLaunchStackId =
                (mOptions != null) ? mOptions.getLaunchStackId() : INVALID_STACK_ID;

        if (mReusedActivity != null) {
            // mReusedActivity不为null,则需要把新的Activity插入到现有的栈中
        }

        // 处理要启动的Activity和栈顶Activity相同的逻辑
        final ActivityStack topStack = mSupervisor.mFocusedStack;
        final ActivityRecord top = topStack.topRunningNonDelayedActivityLocked(mNotTop);
        final boolean dontStart = top != null && mStartActivity.resultTo == null
                && top.realActivity.equals(mStartActivity.realActivity)
                && top.userId == mStartActivity.userId
                && top.app != null && top.app.thread != null
                && ((mLaunchFlags & FLAG_ACTIVITY_SINGLE_TOP) != 0
                || mLaunchSingleTop || mLaunchSingleTask);
        if (dontStart) {
        }

        boolean newTask = false;
        final TaskRecord taskToAffiliate = (mLaunchTaskBehind && mSourceRecord != null)
                ? mSourceRecord.task : null;
        if (mStartActivity.resultTo == null && mInTask == null && !mAddingToTask
                && (mLaunchFlags & FLAG_ACTIVITY_NEW_TASK) != 0) {
            // 设置了FLAG_ACTIVITY_NEW_TASK标志位
            setTaskFromReuseOrCreateNewTask(taskToAffiliate);
        } else if (mSourceRecord != null) {
            final int result = setTaskFromSourceRecord();
        } else if (mInTask != null) {
            final int result = setTaskFromInTask();
        } else {
            setTaskToCurrentTopOrCreateNewTask();
        }

        mService.grantUriPermissionFromIntentLocked(mCallingUid, mStartActivity.packageName,
                mIntent, mStartActivity.getUriPermissionsLocked(), mStartActivity.userId);

        if (mSourceRecord != null && mSourceRecord.isRecentsActivity()) {
            mStartActivity.task.setTaskToReturnTo(RECENTS_ACTIVITY_TYPE);
        }

        mTargetStack.mLastPausedActivity = null;

        mTargetStack.startActivityLocked(mStartActivity, newTask, mKeepCurTransition, mOptions);
        if (mDoResume) {
            if (!mLaunchTaskBehind) {
                mService.setFocusedActivityLocked(mStartActivity, "startedActivity");
            }
            final ActivityRecord topTaskActivity = mStartActivity.task.topRunningActivityLocked();
            if (!mTargetStack.isFocusable()
                    || (topTaskActivity != null && topTaskActivity.mTaskOverlay
                    && mStartActivity != topTaskActivity)) {
                mTargetStack.ensureActivitiesVisibleLocked(null, 0, !PRESERVE_WINDOWS);
                mWindowManager.executeAppTransition();
            } else {
                mSupervisor.resumeFocusedStackTopActivityLocked(mTargetStack, mStartActivity,
                        mOptions);
            }
        } else {
            mTargetStack.addRecentActivityLocked(mStartActivity);
        }
        mSupervisor.updateUserStackLocked(mStartActivity.userId, mTargetStack);

        mSupervisor.handleNonResizableTaskIfNeeded(
                mStartActivity.task, preferredLaunchStackId, mTargetStack.mStackId);

        return START_SUCCESS;
    }
复制代码

参数列表

类型 参数 说明
ActivityRecord r r 即将启动的ActivityRecord
ActivityRecord sourceRecord sourceRecord 发起跳转所在的ActivityRecord
IVoiceInteractionSession voiceSession null
IVoiceInteractor voiceInteractor null
int startFlags 0
boolean doResume true
ActivityOptions options options 同之前
TaskRecord inTask null

这巨长的代码看起来是真费劲,我尽量把逻辑给提炼出来,在中间部分调用了ActivityStack中的startActivityLocked方法,这个方法很有迷惑性,刚开始以为它是流程的下一步,找了半天发现是个死胡同。流程的下一步实际上是ActivityStackSupervisor中的resumeFocusedStackTopActivityLocked方法,下面再看一下它的源码吧

    boolean resumeFocusedStackTopActivityLocked() {
        return resumeFocusedStackTopActivityLocked(null, null, null);
    }

    boolean resumeFocusedStackTopActivityLocked(
            ActivityStack targetStack, ActivityRecord target, ActivityOptions targetOptions) {
        if (targetStack != null && isFocusedStack(targetStack)) {
            return targetStack.resumeTopActivityUncheckedLocked(target, targetOptions);
        }
        final ActivityRecord r = mFocusedStack.topRunningActivityLocked();
        if (r == null || r.state != RESUMED) {
            mFocusedStack.resumeTopActivityUncheckedLocked(null, null);
        }
        return false;
    }
复制代码

mFocusedStack是一个ActivityStack的类对象,我们查看一下它的resumeTopActivityUncheckedLocked方法

    boolean resumeTopActivityUncheckedLocked(ActivityRecord prev, ActivityOptions options) {
        if (mStackSupervisor.inResumeTopActivity) {
            // Don't even start recursing.
            return false;
        }

        boolean result = false;
        try {
            // Protect against recursion.
            mStackSupervisor.inResumeTopActivity = true;
            if (mService.mLockScreenShown == ActivityManagerService.LOCK_SCREEN_LEAVING) {
                mService.mLockScreenShown = ActivityManagerService.LOCK_SCREEN_HIDDEN;
                mService.updateSleepIfNeededLocked();
            }
            result = resumeTopActivityInnerLocked(prev, options);
        } finally {
            mStackSupervisor.inResumeTopActivity = false;
        }
        return result;
    }
复制代码

继续看一下它的resumeTopActivityInnerLocked方法

    private boolean resumeTopActivityInnerLocked(ActivityRecord prev, ActivityOptions options) {
        mStackSupervisor.cancelInitializingActivities();

        // 找到栈顶第一个没有finish的ActivityRecord
        final ActivityRecord next = topRunningActivityLocked();
        // 保存userLeaving状态
        final boolean userLeaving = mStackSupervisor.mUserLeaving;
        mStackSupervisor.mUserLeaving = false;

        final TaskRecord prevTask = prev != null ? prev.task : null;
        if (next == null) {
            // 栈里没有非finish状态的Activity了
            final String reason = "noMoreActivities";
            final int returnTaskType = prevTask == null || !prevTask.isOverHomeStack()
                    ? HOME_ACTIVITY_TYPE : prevTask.getTaskToReturnTo();
            if (!mFullscreen && adjustFocusToNextFocusableStackLocked(returnTaskType, reason)) {
                // 如果当前stack没有全屏,就尝试移动到下一个包含有运行状态Activity的栈
                return mStackSupervisor.resumeFocusedStackTopActivityLocked(
                        mStackSupervisor.getFocusedStack(), prev, null);
            }
            // 回到桌面
            return isOnHomeDisplay() &&
                    mStackSupervisor.resumeHomeStackTask(returnTaskType, prev, reason);
        }

        next.delayedResume = false;

        if (mResumedActivity == next && next.state == ActivityState.RESUMED &&
                    mStackSupervisor.allResumedActivitiesComplete()) {
            // 执行过场动画
            mWindowManager.executeAppTransition();
            mNoAnimActivities.clear();
            ActivityOptions.abort(options);
            return false;
        }

        final TaskRecord nextTask = next.task;
        if (prevTask != null && prevTask.stack == this &&
                prevTask.isOverHomeStack() && prev.finishing && prev.frontOfTask) {
            if (prevTask == nextTask) {
                prevTask.setFrontOfTask();
            } else if (prevTask != topTask()) {
                final int taskNdx = mTaskHistory.indexOf(prevTask) + 1;
                mTaskHistory.get(taskNdx).setTaskToReturnTo(HOME_ACTIVITY_TYPE);
            } else if (!isOnHomeDisplay()) {
                return false;
            } else if (!isHomeStack()){
                final int returnTaskType = prevTask == null || !prevTask.isOverHomeStack() ?
                        HOME_ACTIVITY_TYPE : prevTask.getTaskToReturnTo();
                return isOnHomeDisplay() &&
                        mStackSupervisor.resumeHomeStackTask(returnTaskType, prev, "prevFinished");
            }
        }

        // 没有resume状态的activity且顶部activity的状态为pause
        if (mService.isSleepingOrShuttingDownLocked()
                && mLastPausedActivity == next
                && mStackSupervisor.allPausedActivitiesComplete()) {
            // 执行过场动画
            mWindowManager.executeAppTransition();
            mNoAnimActivities.clear();
            ActivityOptions.abort(options);
            return false;
        }

        mStackSupervisor.mStoppingActivities.remove(next);
        mStackSupervisor.mGoingToSleepActivities.remove(next);
        next.sleeping = false;
        mStackSupervisor.mWaitingVisibleActivities.remove(next);

        // 如果当前正在pausing一个activity,直接返回
        if (!mStackSupervisor.allPausedActivitiesComplete()) {
            return false;
        }

        mStackSupervisor.setLaunchSource(next.info.applicationInfo.uid);

        // 需要等待暂停当前activity成功才能去resume新的activity
        final boolean dontWaitForPause = (next.info.flags & FLAG_RESUME_WHILE_PAUSING) != 0;
        boolean pausing = mStackSupervisor.pauseBackStacks(userLeaving, next, dontWaitForPause);
        if (mResumedActivity != null) {
            pausing |= startPausingLocked(userLeaving, false, next, dontWaitForPause);
        }
        if (pausing) {
            if (next.app != null && next.app.thread != null) {
                mService.updateLruProcessLocked(next.app, true, null);
            }
            return true;
        } else if (mResumedActivity == next && next.state == ActivityState.RESUMED &&
                mStackSupervisor.allResumedActivitiesComplete()) {
            mWindowManager.executeAppTransition();
            mNoAnimActivities.clear();
            ActivityOptions.abort(options);
            return true;
        }

        if (mService.isSleepingLocked() && mLastNoHistoryActivity != null &&
                !mLastNoHistoryActivity.finishing) {
            requestFinishActivityLocked(mLastNoHistoryActivity.appToken, Activity.RESULT_CANCELED,
                    null, "resume-no-history", false);
            mLastNoHistoryActivity = null;
        }

        if (prev != null && prev != next) {
            if (!mStackSupervisor.mWaitingVisibleActivities.contains(prev)
                    && next != null && !next.nowVisible) {
                mStackSupervisor.mWaitingVisibleActivities.add(prev);
            } else {
                if (prev.finishing) {
                    // 隐藏之前的activity
                    mWindowManager.setAppVisibility(prev.appToken, false);
                }
            }
        }

        // 确认包的状态不是stop
        try {
            AppGlobals.getPackageManager().setPackageStoppedState(
                    next.packageName, false, next.userId); /* TODO: Verify if correct userid */
        } catch (RemoteException e1) {
        } catch (IllegalArgumentException e) {
            Slog.w(TAG, "Failed trying to unstop package "
                    + next.packageName + ": " + e);
        }

         // 隐藏之前的activity
        boolean anim = true;
        if (prev != null) {
            if (prev.finishing) {
                if (mNoAnimActivities.contains(prev)) {
                    anim = false;
                    mWindowManager.prepareAppTransition(TRANSIT_NONE, false);
                } else {
                    mWindowManager.prepareAppTransition(prev.task == next.task
                            ? TRANSIT_ACTIVITY_CLOSE
                            : TRANSIT_TASK_CLOSE, false);
                }
                mWindowManager.setAppVisibility(prev.appToken, false);
            } else {
                if (mNoAnimActivities.contains(next)) {
                    anim = false;
                    mWindowManager.prepareAppTransition(TRANSIT_NONE, false);
                } else {
                    mWindowManager.prepareAppTransition(prev.task == next.task
                            ? TRANSIT_ACTIVITY_OPEN
                            : next.mLaunchTaskBehind
                                    ? TRANSIT_TASK_OPEN_BEHIND
                                    : TRANSIT_TASK_OPEN, false);
                }
            }
        } else {
            if (mNoAnimActivities.contains(next)) {
                anim = false;
                mWindowManager.prepareAppTransition(TRANSIT_NONE, false);
            } else {
                mWindowManager.prepareAppTransition(TRANSIT_ACTIVITY_OPEN, false);
            }
        }

        Bundle resumeAnimOptions = null;
        if (anim) {
            ActivityOptions opts = next.getOptionsForTargetActivityLocked();
            if (opts != null) {
                resumeAnimOptions = opts.toBundle();
            }
            next.applyOptionsLocked();
        } else {
            next.clearOptionsLocked();
        }

        ActivityStack lastStack = mStackSupervisor.getLastStack();
        if (next.app != null && next.app.thread != null) {
            //  前一个activity是否是透明的
            final boolean lastActivityTranslucent = lastStack != null
                    && (!lastStack.mFullscreen
                    || (lastStack.mLastPausedActivity != null
                    && !lastStack.mLastPausedActivity.fullscreen));

            // 要启动的activity变得可见
            if (!next.visible || next.stopped || lastActivityTranslucent) {
                mWindowManager.setAppVisibility(next.appToken, true);
            }

            ActivityRecord lastResumedActivity =
                    lastStack == null ? null :lastStack.mResumedActivity;
            ActivityState lastState = next.state;

            mService.updateCpuStats();
            // 设置要启动的activity的状态为RESUMED
            next.state = ActivityState.RESUMED;
            mResumedActivity = next;
            next.task.touchActiveTime();
            mRecentTasks.addLocked(next.task);
            mService.updateLruProcessLocked(next.app, true, null);
            updateLRUListLocked(next);
            mService.updateOomAdjLocked();

            boolean notUpdated = true;
            if (mStackSupervisor.isFocusedStack(this)) {
                Configuration config = mWindowManager.updateOrientationFromAppTokens(
                        mService.mConfiguration,
                        next.mayFreezeScreenLocked(next.app) ? next.appToken : null);
                if (config != null) {
                    next.frozenBeforeDestroy = true;
                }
                notUpdated = !mService.updateConfigurationLocked(config, next, false);
            }

            if (notUpdated) {
                ActivityRecord nextNext = topRunningActivityLocked();
                if (nextNext != next) {
                    // Do over!
                    mStackSupervisor.scheduleResumeTopActivities();
                }
                if (mStackSupervisor.reportResumedActivityLocked(next)) {
                    mNoAnimActivities.clear();
                    return true;
                }
                return false;
            }

            try {
                // 分发所有pending的结果
                ArrayList<ResultInfo> a = next.results;
                if (a != null) {
                    final int N = a.size();
                    if (!next.finishing && N > 0) {
                        next.app.thread.scheduleSendResult(next.appToken, a);
                    }
                }

                boolean allowSavedSurface = true;
                if (next.newIntents != null) {
                    for (int i = next.newIntents.size() - 1; i >= 0; i--) {
                        final Intent intent = next.newIntents.get(i);
                        if (intent != null && !ActivityRecord.isMainIntent(intent)) {
                            allowSavedSurface = false;
                            break;
                        }
                    }
                    next.app.thread.scheduleNewIntent(
                            next.newIntents, next.appToken, false /* andPause */);
                }

                mWindowManager.notifyAppResumed(next.appToken, next.stopped, allowSavedSurface);

                EventLog.writeEvent(EventLogTags.AM_RESUME_ACTIVITY, next.userId,
                        System.identityHashCode(next), next.task.taskId, next.shortComponentName);

                next.sleeping = false;
                mService.showUnsupportedZoomDialogIfNeededLocked(next);
                mService.showAskCompatModeDialogLocked(next);
                next.app.pendingUiClean = true;
                next.app.forceProcessStateUpTo(mService.mTopProcessState);
                next.clearOptionsLocked();
                next.app.thread.scheduleResumeActivity(next.appToken, next.app.repProcState,
                        mService.isNextTransitionForward(), resumeAnimOptions);

                mStackSupervisor.checkReadyForSleepLocked();
            } catch (Exception e) {
            }
        } else {
            if (!next.hasBeenLaunched) {
                next.hasBeenLaunched = true;
            } else {
                if (SHOW_APP_STARTING_PREVIEW) {
                    next.showStartingWindow(null, true);
                }
            }
            mStackSupervisor.startSpecificActivityLocked(next, true, true);
        }
        return true;
    }
复制代码

这个方法所做的工作大部分我都在代码里做了注释,主要来说就是要先完成之前栈顶的activity的pause过程,才能开始先的activity的resume过程,最后执行mStackSupervisor.startSpecificActivityLocked(next, true, true)进入到下一步

ActivityStackSupervisor

    void startSpecificActivityLocked(ActivityRecord r,
            boolean andResume, boolean checkConfig) {
        ProcessRecord app = mService.getProcessRecordLocked(r.processName,
                r.info.applicationInfo.uid, true);

        r.task.stack.setLaunchTime(r);

        if (app != null && app.thread != null) {
            try {
                if ((r.info.flags&ActivityInfo.FLAG_MULTIPROCESS) == 0
                        || !"android".equals(r.info.packageName)) {
                    app.addPackage(r.info.packageName, r.info.applicationInfo.versionCode,
                            mService.mProcessStats);
                }
                realStartActivityLocked(r, app, andResume, checkConfig);
                return;
            } catch (RemoteException e) {
                Slog.w(TAG, "Exception when starting activity "
                        + r.intent.getComponent().flattenToShortString(), e);
            }
        }

        mService.startProcessLocked(r.processName, r.info.applicationInfo, true, 0,
                "activity", r.intent.getComponent(), false, false, true);
    }
复制代码

执行了realStartActivityLocked方法

    final boolean realStartActivityLocked(ActivityRecord r, ProcessRecord app,
            boolean andResume, boolean checkConfig) throws RemoteException {
        if (andResume) {
            r.startFreezingScreenLocked(app, 0);
            mWindowManager.setAppVisibility(r.appToken, true);
        }

        if (checkConfig) {
            Configuration config = mWindowManager.updateOrientationFromAppTokens(
                    mService.mConfiguration,
                    r.mayFreezeScreenLocked(app) ? r.appToken : null);
            mService.updateConfigurationLocked(config, r, false, true /* deferResume */);
        }

        r.app = app;
        app.waitingToKill = null;
        r.launchCount++;
        r.lastLaunchTime = SystemClock.uptimeMillis();

        int idx = app.activities.indexOf(r);
        if (idx < 0) {
            app.activities.add(r);
        }
        mService.updateLruProcessLocked(app, true, null);
        mService.updateOomAdjLocked();

        final TaskRecord task = r.task;
        if (task.mLockTaskAuth == LOCK_TASK_AUTH_LAUNCHABLE ||
                task.mLockTaskAuth == LOCK_TASK_AUTH_LAUNCHABLE_PRIV) {
            setLockTaskModeLocked(task, LOCK_TASK_MODE_LOCKED, "mLockTaskAuth==LAUNCHABLE", false);
        }

        final ActivityStack stack = task.stack;
        try {
            if (app.thread == null) {
                throw new RemoteException();
            }
            List<ResultInfo> results = null;
            List<ReferrerIntent> newIntents = null;
            if (andResume) {
                results = r.results;
                newIntents = r.newIntents;
            }
            if (r.isHomeActivity()) {
                mService.mHomeProcess = task.mActivities.get(0).app;
            }
            mService.notifyPackageUse(r.intent.getComponent().getPackageName(),
                                      PackageManager.NOTIFY_PACKAGE_USE_ACTIVITY);
            r.sleeping = false;
            r.forceNewConfig = false;
            mService.showUnsupportedZoomDialogIfNeededLocked(r);
            mService.showAskCompatModeDialogLocked(r);
            r.compat = mService.compatibilityInfoForPackageLocked(r.info.applicationInfo);
            ProfilerInfo profilerInfo = null;
            if (mService.mProfileApp != null && mService.mProfileApp.equals(app.processName)) {
                if (mService.mProfileProc == null || mService.mProfileProc == app) {
                    mService.mProfileProc = app;
                    final String profileFile = mService.mProfileFile;
                    if (profileFile != null) {
                        ParcelFileDescriptor profileFd = mService.mProfileFd;
                        if (profileFd != null) {
                            try {
                                profileFd = profileFd.dup();
                            } catch (IOException e) {
                                if (profileFd != null) {
                                    try {
                                        profileFd.close();
                                    } catch (IOException o) {
                                    }
                                    profileFd = null;
                                }
                            }
                        }

                        profilerInfo = new ProfilerInfo(profileFile, profileFd,
                                mService.mSamplingInterval, mService.mAutoStopProfiler);
                    }
                }
            }

            if (andResume) {
                app.hasShownUi = true;
                app.pendingUiClean = true;
            }
            app.forceProcessStateUpTo(mService.mTopProcessState);
            app.thread.scheduleLaunchActivity(new Intent(r.intent), r.appToken,
                    System.identityHashCode(r), r.info, new Configuration(mService.mConfiguration),
                    new Configuration(task.mOverrideConfig), r.compat, r.launchedFromPackage,
                    task.voiceInteractor, app.repProcState, r.icicle, r.persistentState, results,
                    newIntents, !andResume, mService.isNextTransitionForward(), profilerInfo);

            if ((app.info.privateFlags&ApplicationInfo.PRIVATE_FLAG_CANT_SAVE_STATE) != 0) {
                if (app.processName.equals(app.info.packageName)) {
                    mService.mHeavyWeightProcess = app;
                    Message msg = mService.mHandler.obtainMessage(
                            ActivityManagerService.POST_HEAVY_NOTIFICATION_MSG);
                    msg.obj = r;
                    mService.mHandler.sendMessage(msg);
                }
            }

        } catch (RemoteException e) {
            if (r.launchFailed) {
                mService.appDiedLocked(app);
                stack.requestFinishActivityLocked(r.appToken, Activity.RESULT_CANCELED, null,
                        "2nd-crash", false);
                return false;
            }
            app.activities.remove(r);
            throw e;
        }

        r.launchFailed = false;
        if (andResume) {
            stack.minimalResumeActivityLocked(r);
        } else {
            r.state = PAUSED;
        }
        if (isFocusedStack(stack)) {
            mService.startSetupActivityLocked();
        }
        if (r.app != null) {
            mService.mServices.updateServiceConnectionActivitiesLocked(r.app);
        }

        return true;
    }
复制代码

在前面那么多代码的铺垫后,这个方法终于看到了曙光,执行了app.thread.scheduleLaunchActivity,app.thread我们之前看到过,就是ApplicationThread,下面看一下scheduleLaunchActivity方法

ApplicationThread

        public final void scheduleLaunchActivity(Intent intent, IBinder token, int ident,
                ActivityInfo info, Configuration curConfig, Configuration overrideConfig,
                CompatibilityInfo compatInfo, String referrer, IVoiceInteractor voiceInteractor,
                int procState, Bundle state, PersistableBundle persistentState,
                List<ResultInfo> pendingResults, List<ReferrerIntent> pendingNewIntents,
                boolean notResumed, boolean isForward, ProfilerInfo profilerInfo) {

            updateProcessState(procState, false);

            ActivityClientRecord r = new ActivityClientRecord();

            r.token = token;
            r.ident = ident;
            r.intent = intent;
            r.referrer = referrer;
            r.voiceInteractor = voiceInteractor;
            r.activityInfo = info;
            r.compatInfo = compatInfo;
            r.state = state;
            r.persistentState = persistentState;

            r.pendingResults = pendingResults;
            r.pendingIntents = pendingNewIntents;

            r.startsNotResumed = notResumed;
            r.isForward = isForward;

            r.profilerInfo = profilerInfo;

            r.overrideConfig = overrideConfig;
            updatePendingConfiguration(curConfig);

            sendMessage(H.LAUNCH_ACTIVITY, r);
        }
复制代码

这里只是向handler中添加了一个启动Activity的消息,并传过去一个ActivityClientRecord对象,下面看一下消息处理的代码

    switch (msg.what) {
        case LAUNCH_ACTIVITY: {
            Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
            final ActivityClientRecord r = (ActivityClientRecord) msg.obj;

            r.packageInfo = getPackageInfoNoCheck(
                            r.activityInfo.applicationInfo, r.compatInfo);
            handleLaunchActivity(r, null, "LAUNCH_ACTIVITY");
            Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
        } break;
复制代码

执行了handleLaunchActivity方法

    private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent, String reason) {
        unscheduleGcIdler();
        mSomeActivitiesChanged = true;

        if (r.profilerInfo != null) {
            mProfiler.setProfiler(r.profilerInfo);
            mProfiler.startProfiling();
        }
        handleConfigurationChanged(null, null);
        WindowManagerGlobal.initialize();

        Activity a = performLaunchActivity(r, customIntent);

        if (a != null) {
            r.createdConfig = new Configuration(mConfiguration);
            reportSizeConfigurations(r);
            Bundle oldState = r.state;
            handleResumeActivity(r.token, false, r.isForward,
                    !r.activity.mFinished && !r.startsNotResumed, r.lastProcessedSeq, reason);

            if (!r.activity.mFinished && r.startsNotResumed) {
                performPauseActivityIfNeeded(r, reason);
                if (r.isPreHoneycomb()) {
                    r.state = oldState;
                }
            }
        } else {
            try {
                ActivityManagerNative.getDefault()
                    .finishActivity(r.token, Activity.RESULT_CANCELED, null,
                            Activity.DONT_FINISH_TASK_WITH_ACTIVITY);
            } catch (RemoteException ex) {
                throw ex.rethrowFromSystemServer();
            }
        }
    }
复制代码

执行performLaunchActivity方法

    private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
        ActivityInfo aInfo = r.activityInfo;
        if (r.packageInfo == null) {
            r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo,
                    Context.CONTEXT_INCLUDE_CODE);
        }

        ComponentName component = r.intent.getComponent();
        if (component == null) {
            component = r.intent.resolveActivity(
                mInitialApplication.getPackageManager());
            r.intent.setComponent(component);
        }

        if (r.activityInfo.targetActivity != null) {
            component = new ComponentName(r.activityInfo.packageName,
                    r.activityInfo.targetActivity);
        }

        Activity activity = null;
        try {
            java.lang.ClassLoader cl = r.packageInfo.getClassLoader();
            activity = mInstrumentation.newActivity(
                    cl, component.getClassName(), r.intent);
            StrictMode.incrementExpectedActivityCount(activity.getClass());
            r.intent.setExtrasClassLoader(cl);
            r.intent.prepareToEnterProcess();
            if (r.state != null) {
                r.state.setClassLoader(cl);
            }
        } catch (Exception e) {
        }

        try {
            Application app = r.packageInfo.makeApplication(false, mInstrumentation);
            if (activity != null) {
                Context appContext = createBaseContextForActivity(r, activity);
                CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
                Configuration config = new Configuration(mCompatConfiguration);
                if (r.overrideConfig != null) {
                    config.updateFrom(r.overrideConfig);
                }
                Window window = null;
                if (r.mPendingRemoveWindow != null && r.mPreserveWindow) {
                    window = r.mPendingRemoveWindow;
                    r.mPendingRemoveWindow = null;
                    r.mPendingRemoveWindowManager = null;
                }
                activity.attach(appContext, this, getInstrumentation(), r.token,
                        r.ident, app, r.intent, r.activityInfo, title, r.parent,
                        r.embeddedID, r.lastNonConfigurationInstances, config,
                        r.referrer, r.voiceInteractor, window);

                if (customIntent != null) {
                    activity.mIntent = customIntent;
                }
                r.lastNonConfigurationInstances = null;
                activity.mStartedActivity = false;
                int theme = r.activityInfo.getThemeResource();
                if (theme != 0) {
                    activity.setTheme(theme);
                }

                activity.mCalled = false;
                if (r.isPersistable()) {
                    mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
                } else {
                    mInstrumentation.callActivityOnCreate(activity, r.state);
                }
                if (!activity.mCalled) {
                    throw new SuperNotCalledException(
                        "Activity " + r.intent.getComponent().toShortString() +
                        " did not call through to super.onCreate()");
                }
                r.activity = activity;
                r.stopped = true;
                if (!r.activity.mFinished) {
                    activity.performStart();
                    r.stopped = false;
                }
                if (!r.activity.mFinished) {
                    if (r.isPersistable()) {
                        if (r.state != null || r.persistentState != null) {
                            mInstrumentation.callActivityOnRestoreInstanceState(activity, r.state,
                                    r.persistentState);
                        }
                    } else if (r.state != null) {
                        mInstrumentation.callActivityOnRestoreInstanceState(activity, r.state);
                    }
                }
                if (!r.activity.mFinished) {
                    activity.mCalled = false;
                    if (r.isPersistable()) {
                        mInstrumentation.callActivityOnPostCreate(activity, r.state,
                                r.persistentState);
                    } else {
                        mInstrumentation.callActivityOnPostCreate(activity, r.state);
                    }
                    if (!activity.mCalled) {
                        throw new SuperNotCalledException(
                            "Activity " + r.intent.getComponent().toShortString() +
                            " did not call through to super.onPostCreate()");
                    }
                }
            }
            r.paused = true;

            mActivities.put(r.token, r);

        } catch (SuperNotCalledException e) {
            throw e;

        } catch (Exception e) {
            if (!mInstrumentation.onException(activity, e)) {
                throw new RuntimeException(
                    "Unable to start activity " + component
                    + ": " + e.toString(), e);
            }
        }

        return activity;
    }
复制代码
  • 通过反射创建了新的activity。
  • 如果没有application就创建一个,如果有就直接返回
  • activity调用attach方法绑定数据

调用Instrumentation中的callActivityOnCreate方法

    public void callActivityOnCreate(Activity activity, Bundle icicle,
            PersistableBundle persistentState) {
        prePerformCreate(activity);
        activity.performCreate(icicle, persistentState);
        postPerformCreate(activity);
    }
复制代码

中间执行activity的performCreate方法

    final void performCreate(Bundle icicle) {
        restoreHasCurrentPermissionRequest(icicle);
        onCreate(icicle);
        mActivityTransitionState.readState(icicle);
        performCreateCommon();
    }
复制代码

调用了Activity生命周期的onCreate方法,结束。

文章分类
Android
