OpenGL 学习系列---投影矩阵

3,664 阅读5分钟

OpenGL 坐标系统 文章中,根据点的坐标变换得出了如下的公式:

V_{clip}=M_{projection} \cdot M_{view} \cdot M_{model} \cdot V_{local}

这个公式每左乘一个矩阵,都代表了一种坐标系的变换。

转化为着色器脚本语言如下:

attribute vec4 a_Position;
uniform mat4 u_ModelMatrix;
uniform mat4 u_ProjectionMatrix;
uniform mat4 u_ViewMatrix;
void main()
{
    gl_Position  = u_ProjectionMatrix * u_ViewMatrix * u_ModelMatrix * a_Position;
}

本篇文章就主要是对投影矩阵来分析的。

OpenGL 在观察空间转换到裁剪空间时,需要用到投影矩阵。而在着色器脚本中,也需要提供一个投影矩阵给对应的 u_ProjectionMatrix变量。

首先要在程序里绑定到对应的变量,然后再给变量赋值。

// 绑定到着色器脚本中的对应变量
private static final String U_ProMatrix = "u_ProjectionMatrix";
private int uProMatrixLocation;
uProMatrixLocation = glGetUniformLocation(mProgram,U_ProMatrix);
// 给变量赋值,projectionMatrix 为投影矩阵
glUniformMatrix4fv(uProMatrixLocation,1,false,projectionMatrix,0)

正如前文讲到的,投影矩阵会创建一个视景体对物体坐标进行裁剪,得到的裁剪坐标再经过透视除法之后,就会得到归一化设备坐标。归一化设备坐标再经过视口转换,最终将坐标映射到了屏幕上。

OpenGL 提供了两种投影方式:正交投影和透视投影。

正交投影矩阵

不管是正交投影还是透视投影,最终都是将视景体内的物体投影在近平面上,这也是 3D 坐标转换到 2D 坐标的关键一步。

而近平面上的坐标接着也会转换成归一化设备坐标,再映射到屏幕视口上。

为了解决之前的图像拉伸问题,就是要保证近平面的宽高比和视口的宽高比一致,而且是以较短的那一边作为 1 的标准,让图像保持居中。

OpenGL 提供了 Matrix.orthoM 函数来生成正交投影矩阵。

    /**
     * Computes an orthographic projection matrix.
     *
     * @param m returns the result 正交投影矩阵
     * @param mOffset 偏移量,默认为 0 ,不偏移
     * @param left 左平面距离
     * @param right 右平面距离
     * @param bottom 下平面距离
     * @param top 上平面距离
     * @param near 近平面距离
     * @param far 远平面距离
     */
    public static void orthoM(float[] m, int mOffset,
        float left, float right, float bottom, float top,
        float near, float far)

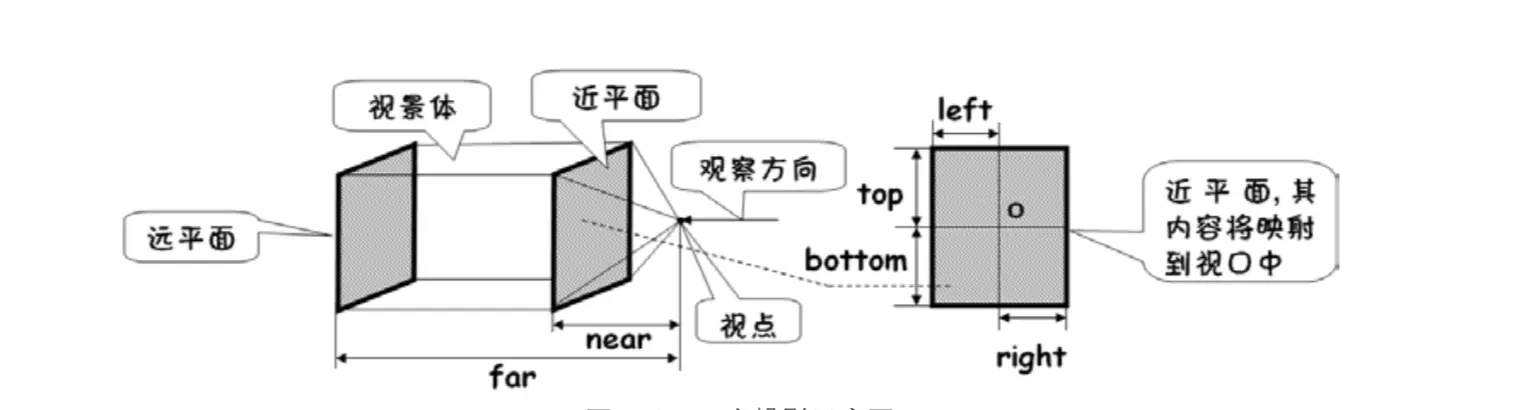

需要注意的是,我们的左、上、右、下距离都是相对于近平面中心的。

近平面的坐标原点位于中心,向右为 X 轴正方向,向上为 Y 轴正方向,所以我们的 left、bottom 要为负数,而 right、top 要为正数。同时,近平面和远平面的距离都是指相对于视点的距离,所以 near、far 要为正数,而且 far > near

可以在 GLSurfaceView 的 surfaceChanged 里面来设定正交投影矩阵。

  @Override
    public void onSurfaceChanged(GL10 gl, int width, int height) {
        float aspectRatio = width > height ? (float) width / (float) height : (float) height / (float) width;
        if (width > height){
            Matrix.orthoM(projectionMatrix,0,-aspectRatio,aspectRatio,-1f,1f,0f,10f);
        }else {
            Matrix.orthoM(projectionMatrix,0,-1f,1f,-aspectRatio,aspectRatio,0f,10f);
        }
    }

这样的话,就把近平面的宽高比设定与视口的宽高比一致了。

透视投影矩阵

OpenGL 提供了两个函数来创建透视投影矩阵:frustumMperspectiveM

frustumM

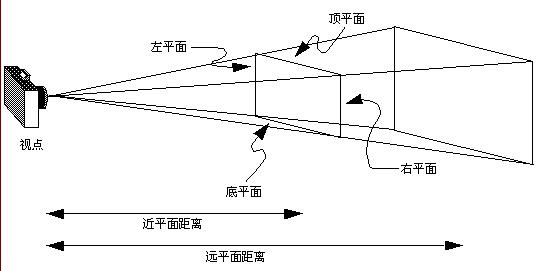

frustumM 函数创建的视景体是一个锥形。

它的视景体有点类似于正交投影,在参数理解上基本都相同的。

/**
     * Defines a projection matrix in terms of six clip planes.
     *
     * @param m the float array that holds the output perspective matrix
     * @param offset the offset into float array m where the perspective
     *        matrix data is written
     * @param left
     * @param right
     * @param bottom
     * @param top
     * @param near
     * @param far
     */
    public static void frustumM(float[] m, int offset,
            float left, float right, float bottom, float top,
            float near, float far)

需要注意的是 near 和 far 变量的值必须要大于 0 。因为它们都是相对于视点的距离,也就是照相机的距离。

当用视图矩阵确定了照相机的位置时,要确保物体距离视点的位置在 near 和 far 的区间范围内,否则就会看不到物体。

由于透视投影会产生近大远小的效果,当照相机位置不变,改变 near 的值时也会改变物体大小,near 越小,则离视点越近,相当于物体越远,那么显示的物体也就越小了。

当然也可以 near 和 far 的距离不动,改变摄像机的位置来改变观察到的物体大小。

perspectiveM

OpenGL 还提供了 perspectiveM 函数来创建投影矩阵,它的视景体和 frustumM 函数相同,但是构造的参数有所不同。

 /**
     * Defines a projection matrix in terms of a field of view angle, an
     * aspect ratio, and z clip planes.
     *
     * @param m the float array that holds the perspective matrix
     * @param offset the offset into float array m where the perspective
     *        matrix data is written
     * @param fovy field of view in y direction, in degrees
     * @param aspect width to height aspect ratio of the viewport
     * @param zNear
     * @param zFar
     */
    public static void perspectiveM(float[] m, int offset,
          float fovy, float aspect, float zNear, float zFar)

视景体不再需要确定近平面左、上、右、下距离了。

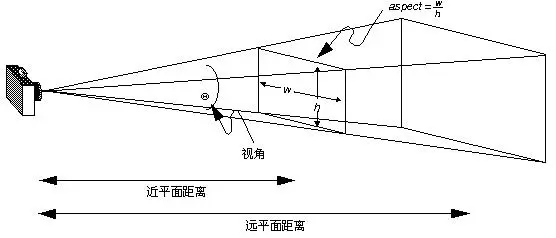

通过视角来决定我们能看到的视野大小。视角就是图中所示的那个夹角。另外的参数是视口的宽高比,还有近平面和远平面的距离,参数个数减少了。

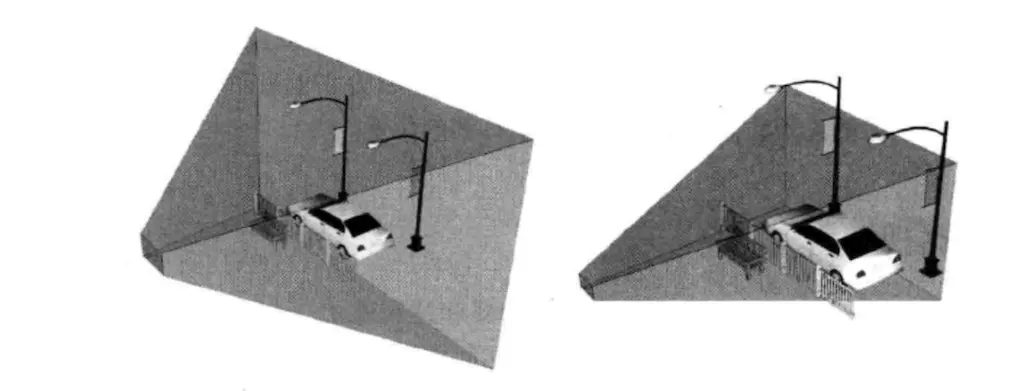

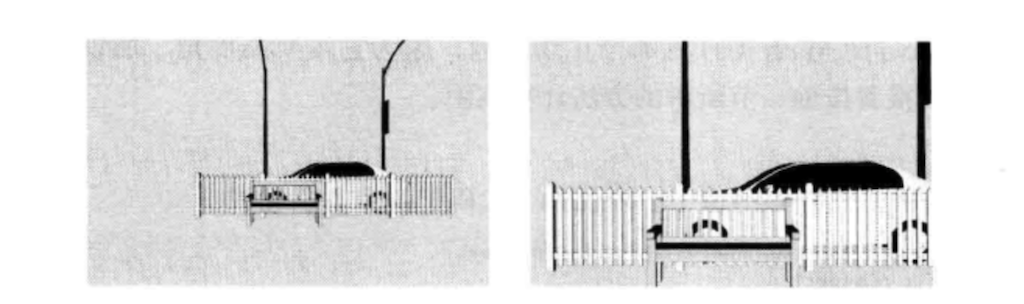

上述图片左边是 90 视角,右边是 45 度视角。显然,视野角度越大,则看到的内容更多,但是物体显得更小,而视野角度越小,则看的内容更少,但物体显得更大。

frustumM不同的是,一旦确定了视角和宽高比,那么整个摄像机视野也就确定了,此时完整的锥形视野已经形成了,也就是说物体的近大远小效果已经完成了。这时,近平面距离和远平面距离只是想要截取锥形视野中的那一部分了。不像在frustumM函数中,近、远平面的距离还能够调整近大远小的效果。

参考

  1. 《OpenGL ES 应用开发实践指南》
  2. 《OpenGL ES 3.x 游戏开发》

具体代码详情,可以参考我的 Github 项目:

https://github.com/glumes/AndroidOpenGLTutorial
