这里我说是指的Google对于常用的动画效果进行的封装. 有很多炫酷的效果可以通过这些封装快速实现.
LayoutAnimationController
用于支持列表控件(RecyclerView和ListView)的Item动画效果

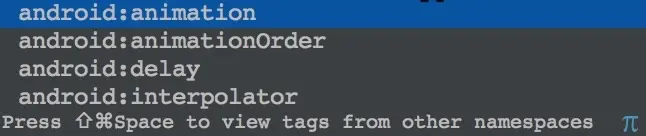

属性:
-
动画
传入动画XML文件来决定加载动画
-
动画顺序
有三个值: normal 按照正常顺序 reverse 从最后的控件开始加载动画 random 随机顺序
-
延迟时间
毫秒值单位, 表示每个条目的加载时间相差多少毫秒
-
动画插值器
布局动画使用方式有两种:
- 布局中引用动画
在anim目录下创建XML
<?xml version="1.0" encoding="utf-8"?>
<layoutAnimation xmlns:android="http://schemas.android.com/apk/res/android"
android:animation="@anim/animation_set"
android:animationOrder="normal"
android:delay="300">
</layoutAnimation>
在布局XML中引用XML动画
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:orientation="vertical"
android:layout_height="match_parent"
android:id="@+id/ll_root"
android:gravity="center"
android:layoutAnimation="@anim/animation_layout"
>
- 代码中引用动画
//通过加载XML动画设置文件来创建一个Animation对象;
Animation animation=AnimationUtils.loadAnimation(this, R.anim.list_anim);
//得到一个LayoutAnimationController对象;
LayoutAnimationController mLayoutAnimationController = new LayoutAnimationController(animation);
//设置控件显示的顺序;
mLayoutAnimationController.setOrder(LayoutAnimationController.ORDER_REVERSE);
//设置控件显示间隔时间;
mLayoutAnimationController.setDelay(1);
//为ListView设置LayoutAnimationController属性;
mList.setLayoutAnimation(mLayoutAnimationController);
Tip: 注意布局动画要么在onCreate方法中执行, 如果在其他地方执行就需要你手动执行布局对象的invalidate()方法.
该函数属于ViewGroup下的动画效果
void setLayoutAnimation (LayoutAnimationController controller)
LayoutTransitionController
参考网上写法我出现了Crash情况. 并且无法直接运行ExampleDemo. 指向ObjectAnimator的View参数不能为Null, 报空指针异常. 我没有解决故也不做讲解.

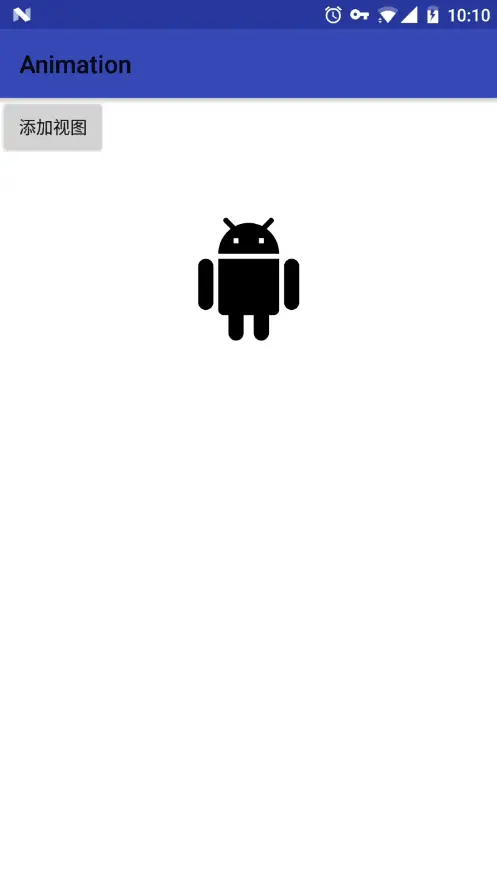

不过通过在XML布局中给ViewGroup添加如下属性可以启用默认的动画效果
android:animateLayoutChanges="true"
ViewAnimationUtils

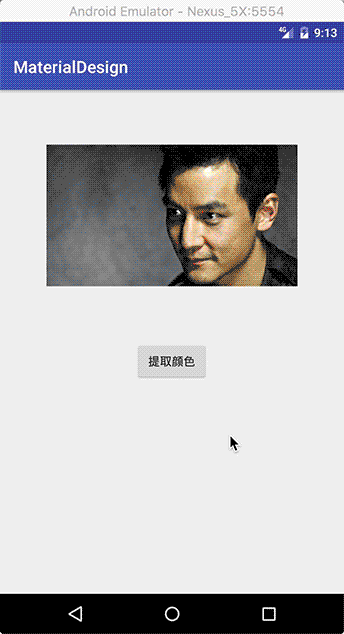

揭示效果也可以看做是控制一个控件的圆角变化动画效果. ViewAnimationUtils这个类只有一个方法:
Animator createCircularReveal (View view,
int centerX,
int centerY,
float startRadius,
float endRadius)

// 创建环形显示动画
Animator animator = ViewAnimationUtils.createCircularReveal(mBtnExtract, mBtnExtract.getWidth() / 2, mBtnExtract.getHeight() / 2, mBtnExtract.getWidth() / 4, mBtnExtract.getHeight() / 4);
animator.setInterpolator(new LinearInterpolator());
animator.setDuration(1000);
animator.start();
overridePendingTransition
自定义进入下一个Activity和退出当前Activity的动画XML文件, 不需要考虑兼容问题.
注意一定要在startActivity或者finishd的后面调用才有效.
overridePendingTransition(int enterAnim, int exitAnim); // 0表示不显示动画
- enterAnim 界面进入动画
- exitAnim 界面退出动画
ViewPropertyAnimator
视图类View提供一个animate()
方法方便快速的设置常用动画
ViewPropertyAnimator animate ()
ViewPropertyAnimator
这个类基本上可以设置View的所有属性, 方法看名字就可以全部理解了
其中很多方法有带"By"和不带的同名方法. 带"By"相当于相对属性值, 不带就是绝对属性值.
ViewPropertyAnimator translationX (float value)
ViewPropertyAnimator translationXBy (float value)
Tip: 如果使用链式调用可以同时执行多个动画效果.
view.animate()
.scaleX(1)
.scaleY(1)
.alpha(1);
监听器
ViewPropertyAnimator setListener (Animator.AnimatorListener listener)
AnimatorListener包含四种回调
// 在动画被取消的时候
abstract void onAnimationCancel(Animator animation)
// 无论动画是否取消, 结束的时候都会回调
abstract void onAnimationEnd(Animator animation)
default void onAnimationEnd(Animator animation,
boolean isReverse) // 是否重复
// 动画重复的时候回调
abstract void onAnimationRepeat(Animator animation)
// 动画开始
abstract void onAnimationStart(Animator animation)
default void onAnimationStart(Animator animation,
boolean isReverse) // 动画是否重复
还有一种一次性的回调, 如果ViewPropertyAnimator对象再次执行动画并不会回调. 并且withEndAction()
在动画被取消的时候不会回调. 这和onAnimationEnd()
不同.
ViewPropertyAnimator withEndAction (Runnable runnable)
ViewPropertyAnimator withStartAction (Runnable runnable)
更新
该回调会在大概每10毫秒执行一次
ViewPropertyAnimator setUpdateListener (ValueAnimator.AnimatorUpdateListener listener)
DynamicAnimation
DynamicAnimation是在API25出现的基于物理运动效果的动画, 属于抽象类. 官方目前只有SpringAnimation继承该类. 使用SpringAnimation的好处是让动画显得不那么生硬, 可能有人会说动画插值器也可以. 但是鉴于动画插值器涉及到坐标轴算法Google为了让更多人能够方便的优化自己的动画效果才出现了DynamicAnimation.

以下介绍官方示例
SpringForce spring = new SpringForce(0)
.setDampingRatio(SpringForce.DAMPING_RATIO_LOW_BOUNCY)
.setStiffness(SpringForce.STIFFNESS_LOW);
final SpringAnimation anim = new SpringAnimation(mImag, DynamicAnimation.SCALE_Y)
.setMinValue(0).setSpring(spring).setStartValue(1);
anim.start();
SpringForce
通过SpringAnimation的方法设置
SpringAnimation setSpring (SpringForce force)
或者不创建SpringForce直接通过SpringAnimation得到一个SpringForce实例也可以
SpringForce getSpring ()
是控制SpringAnimation的力度, 分别控制三种弹性特性
- 阻尼比例
- 僵硬程度
创建构造方法
SpringForce (float finalPosition) // 最终位置
SpringForce可以决定动画的最终值却无法决定起始值(默认起始值是当前属性值), 起始值也可以由SpringAnimation设置.
阻尼比例设置(阻尼具体提现在摆动次数)
SpringForce setDampingRatio (float dampingRatio)
SpringForce内部提供四种阻尼比例:
public static final float DAMPING_RATIO_HIGH_BOUNCY = 0.2f;
public static final float DAMPING_RATIO_MEDIUM_BOUNCY = 0.5f; // 默认值
public static final float DAMPING_RATIO_LOW_BOUNCY = 0.75f;
public static final float DAMPING_RATIO_NO_BOUNCY = 1f;
僵硬值具体提现在摆动时间上
SpringForce setStiffness (float stiffness)
同样SpringForce也提供了四种僵硬值:
public static final float STIFFNESS_HIGH = 10_000f;
public static final float STIFFNESS_MEDIUM = 1500f; // 默认值
public static final float STIFFNESS_LOW = 200f;
public static final float STIFFNESS_VERY_LOW = 50f;
Spring的构造方法
SpringAnimation (View v, // 目标视图
DynamicAnimation.ViewProperty property) // 属性值, 后面将重点讲解
SpringAnimation (View v,
DynamicAnimation.ViewProperty property,
float finalPosition)
ViewProperty是内部的一个抽象类

从源码可以看出主要作用就是设置属性值
DynamicAnimation提供一系列默认的ViewProperty
TRANSLATION_X
TRANSLATION_Y
TRANSLATION_Z
SCALE_X
SCALE_Y
ROTATION
ROTATION_X
ROTATION_Y
X
Y
Z
ALPHA
SCROLL_X
SCROLL_Y
SpringAnimation在运动时候也可以修改最终位置
void animateToFinalPosition (float finalPosition)
AnimatedStateListDrawable
注意和StateListAnimator
有所区分, 限制api21;
StateListAnimator 即
<selector>
标签中的item从Drawable换成了animation
<animated-selector xmlns:android="http://schemas.android.com/apk/res/android">
<item
android:id="@+id/on"
android:state_activated="true">
<bitmap
android:src="@drawable/ic_heart_100"/>
</item>
<item
android:id="@+id/off">
<bitmap
android:src="@drawable/ic_heart_0"/>
</item>
<transition
android:fromId="@+id/on"
android:toId="@+id/off"
android:drawable="@drawable/animation_emptying">
</transition>
<transition
android:fromId="@id/off"
android:toId="@id/on"
android:drawable="@drawable/animation_filling">
</transition>
</animated-selector>
item可以指定起始和结束的位图以及触发状态
transition可以指定当触发状态时执行什么动画
