PostgreSQL 快速靠谱的跨大版本升级

1,479 阅读12分钟
原文链接: click.aliyun.com

标签

PostgreSQL , pg_upgrade , 跨版本升级 , 原地升级 , 快速


背景

已使用pg_upgrade顺利将一个8TB的生产数据库(包含表, 索引, 类型, 函数, 外部对象等对象大概10万个)从9.3升级到9.4, 升级比较快(约2分钟), 因为数据库较大后期analyze的时间比较长, 不过你可以将常用的表优先analyze一下, 就可以放心大胆的提供服务了.

PostgreSQL 9.4于(2014-12-18)正式发布, 为了让大家可以快速的享受9.4带来的强大特性, 写一篇使用zfs和pg_upgrade升级9.4的快速可靠的文章. 希望对大家有帮助.

提醒:

在正式升级9.4前, 请做好功课, 至少release note要阅读一遍, 特别是兼容性. 例如有些应用可能用了某些9.4不兼容的语法或者插件的话, 需要解决了再上. (以前就有出现过版本升级带来的bytea的默认表述变更导致的程序异常)

pg_upgrade支持从8.3.x以及更新的版本的跨大版本升级, 使用LINK模式, 可以减少数据的拷贝工作, 大大提高版本升级的速度.

本文将演示一下使用pg_upgrade将数据库从9.3.5升级到最新的9.4.

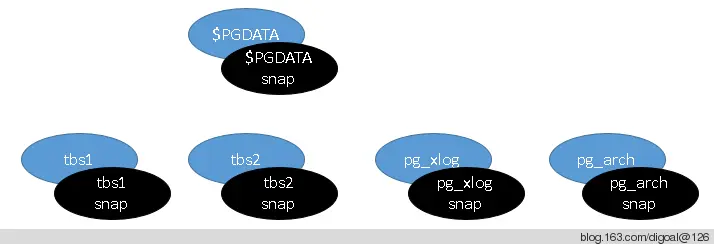

使用zfs快照来保存老的数据文件和软件. 如果升级失败, 回滚非常简单, 回退到ZFS快照或者使用ZFS快照克隆都可以.

实际上,使用备库来进行升级演练,把流程都跑通,是很不错的选择。ZFS则是加一道保险,或者说方便多次(克隆ZFS进行演练)演练。

pic

升级步骤简介

1、假设主机已是基于ZFS

  停库

  创建快照

  使用upgrade升级

2、假设主机不是基于ZFS

  创建ZFS主机

  创建PostgreSQL物理standby

  主备角色切换,把主库切到ZFS主机下。

  以下基于新的主库操作:

  停主

  创建快照

  使用upgrade升级

3、如何把老版本的standby升级成为9.4 standby?

  pg start backup

  rsync 数据文件

  pg_stop_backup

  创建recovery.conf 继续.

使用ZFS和pg_upgrade升级9.4的详细步骤

以CentOS 7 x64为例,

测试环境部署

安装zfs

download.fedoraproject.org/pub/epel 找到最新的epel7 rpm包, 加入YUM仓库.

例如当下版本如下 :

[root@localhost ~]# yum localinstall --nogpgcheck http://ftp.cuhk.edu.hk/pub/linux/fedora-epel/7/x86_64/e/epel-release-7-5.noarch.rpm
[root@localhost ~]# yum localinstall --nogpgcheck http://archive.zfsonlinux.org/epel/zfs-release.el7.noarch.rpm
[root@localhost ~]# uname -r
3.10.0-123.el7.x86_64
[root@localhost ~]# yum install kernel-devel-3.10.0-123.el7 zfs

安装好ZFS后, 创建ZPOOL, 我们使用5个文件来模拟5块磁盘.

[root@localhost disks]# dd if=/dev/zero of=./disk1 bs=8192k count=1024 oflag=direct
[root@localhost disks]# dd if=/dev/zero of=./disk2 bs=8192k count=1024 oflag=direct
[root@localhost disks]# dd if=/dev/zero of=./disk3 bs=8192k count=1024 oflag=direct
[root@localhost disks]# dd if=/dev/zero of=./disk4 bs=8192k count=1024 oflag=direct
[root@localhost disks]# dd if=/dev/zero of=./disk5 bs=8192k count=1024 oflag=direct

创建zpool

[root@localhost disks]# zpool create -o ashift=12 zp1 raidz /data01/disks/disk1 /data01/disks/disk2 /data01/disks/disk3 /data01/disks/disk4 /data01/disks/disk5
[root@localhost disks]# zpool status
  pool: zp1
 state: ONLINE
  scan: none requested
config:

        NAME                     STATE     READ WRITE CKSUM
        zp1                      ONLINE       0     0     0
          raidz1-0               ONLINE       0     0     0
            /data01/disks/disk1  ONLINE       0     0     0
            /data01/disks/disk2  ONLINE       0     0     0
            /data01/disks/disk3  ONLINE       0     0     0
            /data01/disks/disk4  ONLINE       0     0     0
            /data01/disks/disk5  ONLINE       0     0     0

设置zfs默认参数 :

[root@localhost disks]# zfs set atime=off zp1
[root@localhost disks]# zfs set compression=lz4 zp1
[root@localhost disks]# zfs set canmount=off zp1

接下来, 我们需要规划一下数据库的目录结构.

假设分开5个文件系统来存放.

$PGDATA
pg_xlog
pg_arch
tbs1
tbs2

创建对应的zfs文件系统

[root@localhost disks]# zfs create -o mountpoint=/pgdata01 zp1/pg_root
[root@localhost disks]# zfs create -o mountpoint=/pgdata02 zp1/pg_xlog
[root@localhost disks]# zfs create -o mountpoint=/pgdata03 zp1/pg_arch
[root@localhost disks]# zfs create -o mountpoint=/pgdata04 zp1/tbs1
[root@localhost disks]# zfs create -o mountpoint=/pgdata05 zp1/tbs2
[root@localhost disks]# df -h
zp1/pg_root                 32G  256K   32G   1% /pgdata01
zp1/pg_xlog                 32G  256K   32G   1% /pgdata02
zp1/pg_arch                 32G  256K   32G   1% /pgdata03
zp1/tbs1                    32G  256K   32G   1% /pgdata04
zp1/tbs2                    32G  256K   32G   1% /pgdata05

创建数据目录

[root@localhost ~]# mkdir /pgdata01/pg_root
[root@localhost ~]# mkdir /pgdata02/pg_xlog
[root@localhost ~]# mkdir /pgdata03/pg_arch
[root@localhost ~]# mkdir /pgdata04/tbs1
[root@localhost ~]# mkdir /pgdata05/tbs2
[root@localhost ~]# chown -R postgres:postgres /pgdata0*/

接下来安装PostgreSQL 9.3.5, 并初始化数据库, 生成测试数据.

[root@localhost soft_bak]# tar -jxvf postgresql-9.3.5.tar.bz2
[root@localhost soft_bak]# cd postgresql-9.3.5

注意在升级到9.4时, 软件的编译参数要一致, 例如我们这里使用了非默认的数据块, 所以在编译9.4时也需要一致.

[root@localhost soft_bak]# yum -y install glib2 lrzsz sysstat e4fsprogs xfsprogs ntp readline-devel zlib zlib-devel openssl openssl-devel pam-devel libxml2-devel libxslt-devel python-devel tcl-devel gcc make smartmontools flex bison perl perl-devel perl-ExtUtils* OpenIPMI-tools openldap openldap-devel
[root@localhost postgresql-9.3.5]# ./configure --prefix=/opt/pgsql9.3.5 --with-pgport=1921 --with-perl --with-tcl --with-python --with-openssl --with-pam --without-ldap --with-libxml --with-libxslt --enable-thread-safety --with-blocksize=32 --with-wal-blocksize=32 && gmake world && gmake install-world
[root@localhost postgresql-9.3.5]# ln -s /opt/pgsql9.3.5 /opt/pgsql
[root@localhost postgresql-9.3.5]# vi /etc/ld.so.conf
/opt/pgsql/lib
[root@localhost postgresql-9.3.5]# ldconfig

[root@localhost postgresql-9.3.5]# ldconfig -p|grep /opt/pgsql
        libpqwalreceiver.so (libc6,x86-64) => /opt/pgsql/lib/libpqwalreceiver.so
        libpq.so.5 (libc6,x86-64) => /opt/pgsql/lib/libpq.so.5
        libpq.so (libc6,x86-64) => /opt/pgsql/lib/libpq.so
        libpgtypes.so.3 (libc6,x86-64) => /opt/pgsql/lib/libpgtypes.so.3
        libpgtypes.so (libc6,x86-64) => /opt/pgsql/lib/libpgtypes.so
        libecpg_compat.so.3 (libc6,x86-64) => /opt/pgsql/lib/libecpg_compat.so.3
        libecpg_compat.so (libc6,x86-64) => /opt/pgsql/lib/libecpg_compat.so
        libecpg.so.6 (libc6,x86-64) => /opt/pgsql/lib/libecpg.so.6
        libecpg.so (libc6,x86-64) => /opt/pgsql/lib/libecpg.so
[root@localhost postgresql-9.3.5]# vi /etc/profile
export PATH=/opt/pgsql/bin:$PATH
[root@localhost postgresql-9.3.5]# . /etc/profile
[root@localhost postgresql-9.3.5]# which psql
/opt/pgsql/bin/psql
[root@localhost postgresql-9.3.5]# which pg_config
/opt/pgsql/bin/pg_config

再安装一个外部插件, 提醒各位在使用pg_upgrade升级时, 也需要在新的版本中编译进去(请使用相同的版本).

如果外部插件不支持PostgreSQL 9.4的话, 那么请在9.3的数据库中先卸载对应的插件(包括里面创建的类型, 函数等有依赖的一切).

我这里以pldebug为例

http://git.postgresql.org/gitweb/?p=pldebugger.git;a=summary
[root@localhost soft_bak]# tar -zxvf pldebugger-85d7b3b.tar.gz
[root@localhost soft_bak]# mv pldebugger-85d7b3b postgresql-9.3.5/contrib/
[root@localhost soft_bak]# cd postgresql-9.3.5/contrib/pldebugger-85d7b3b/
[root@localhost pldebugger-85d7b3b]# which pg_config
/opt/pgsql/bin/pg_config
[root@localhost pldebugger-85d7b3b]# gmake clean
[root@localhost pldebugger-85d7b3b]# gmake
[root@localhost pldebugger-85d7b3b]# gmake install

初始化数据库

[root@localhost pldebugger-85d7b3b]# useradd postgres
# su - postgres
$ vi .bash_profile
export PS1="$USER@`/bin/hostname -s`-> "
export PGPORT=1921
export PGDATA=/pgdata01/pg_root
export LANG=en_US.utf8
export PGHOME=/opt/pgsql
export LD_LIBRARY_PATH=$PGHOME/lib:/lib64:/usr/lib64:/usr/local/lib64:/lib:/usr/lib:/usr/local/lib:$LD_LIBRARY_PATH
export DATE=`date +"%Y%m%d%H%M"`
export PATH=$PGHOME/bin:$PATH:.
export MANPATH=$PGHOME/share/man:$MANPATH
export PGUSER=postgres
export PGHOST=$PGDATA
export PGDATABASE=postgres
alias rm='rm -i'
alias ll='ls -lh'
$ . ~/.bash_profile

修改权限

[root@localhost pldebugger-85d7b3b]# chown -R postgres:postgres /pgdata0*/*
[root@localhost pldebugger-85d7b3b]# chmod -R 700 /pgdata0*/*

初始化数据库

postgres@localhost-> initdb -D $PGDATA -U postgres -E UTF8 --locale=C -W -X /pgdata02/pg_xlog

修改配置文件, 开启归档

vi pg_hba.conf
host all all 0.0.0.0/0 md5

vi postgresql.conf
listen_addresses = '0.0.0.0'            # what IP address(es) to listen on;
port = 1921                             # (change requires restart)
max_connections = 100                   # (change requires restart)
superuser_reserved_connections = 3      # (change requires restart)
unix_socket_directories = '.'   # comma-separated list of directories
unix_socket_permissions = 0700          # begin with 0 to use octal notation
tcp_keepalives_idle = 60                # TCP_KEEPIDLE, in seconds;
tcp_keepalives_interval = 10            # TCP_KEEPINTVL, in seconds;
tcp_keepalives_count = 10               # TCP_KEEPCNT;
shared_buffers = 512MB                  # min 128kB
maintenance_work_mem = 512MB            # min 1MB
vacuum_cost_delay = 10                  # 0-100 milliseconds
vacuum_cost_limit = 10000               # 1-10000 credits
bgwriter_delay = 10ms                   # 10-10000ms between rounds
wal_level = hot_standby                 # minimal, archive, or hot_standby
synchronous_commit = off                # synchronization level;
wal_buffers = 16384kB                   # min 32kB, -1 sets based on shared_buffers
wal_writer_delay = 10ms         # 1-10000 milliseconds
checkpoint_segments = 32                # in logfile segments, min 1, 16MB each
archive_mode = on               # allows archiving to be done
archive_command = 'DIR="/pgdata03/pg_arch/`date +%F`";test -d $DIR || mkdir -p $DIR; cp %p $DIR/%f'               # command to use to archive a logfile segment
archive_timeout = 600           # force a logfile segment switch after this
effective_cache_size = 4096MB
log_destination = 'csvlog'              # Valid values are combinations of
logging_collector = on          # Enable capturing of stderr and csvlog
log_directory = 'pg_log'                # directory where log files are written,
log_filename = 'postgresql-%Y-%m-%d_%H%M%S.log' # log file name pattern,
log_file_mode = 0600                    # creation mode for log files,
log_truncate_on_rotation = on           # If on, an existing log file with the
log_checkpoints = on
log_connections = on
log_disconnections = on
log_error_verbosity = verbose           # terse, default, or verbose messages
log_lock_waits = on                     # log lock waits >= deadlock_timeout
log_statement = 'ddl'                   # none, ddl, mod, all
log_timezone = 'PRC'
autovacuum = on                 # Enable autovacuum subprocess?  'on'
log_autovacuum_min_duration = 0 # -1 disables, 0 logs all actions and
datestyle = 'iso, mdy'
timezone = 'PRC'
lc_messages = 'C'                       # locale for system error message
lc_monetary = 'C'                       # locale for monetary formatting
lc_numeric = 'C'                        # locale for number formatting
lc_time = 'C'                           # locale for time formatting
default_text_search_config = 'pg_catalog.english'

启动数据库

postgres@localhost-> pg_ctl start

创建测试用户

postgres=# create role digoal login encrypted password 'digoal';
CREATE ROLE

创建表空间, 数据库

postgres=# create tablespace tbs1 location '/pgdata04/tbs1';
CREATE TABLESPACE
postgres=# create tablespace tbs2 location '/pgdata05/tbs2';
CREATE TABLESPACE
postgres=# create database digoal template template0 encoding 'UTF8' tablespace tbs1;
CREATE DATABASE
postgres=# grant all on database digoal to digoal;
GRANT
postgres=# grant all on tablespace tbs1 to digoal;
GRANT
postgres=# grant all on tablespace tbs2 to digoal;
GRANT
postgres=# \c digoal digoal
You are now connected to database "digoal" as user "digoal".
digoal=> create schema digoal;
CREATE SCHEMA

创建extension, 用于后面模拟9.3升级到9.4的扩展模块.

postgres=# \c digoal postgres
You are now connected to database "digoal" as user "postgres".
digoal=# create extension pldbgapi;
CREATE EXTENSION

该扩展会创建一些复合类型和函数

digoal=# \dT
        List of data types
 Schema |    Name    | Description
--------+------------+-------------
 public | breakpoint |
 public | frame      |
 public | proxyinfo  |
 public | targetinfo |
 public | var        |
(5 rows)

digoal=# \df
                                                          List of functions
 Schema |            Name             | Result data type |                       Argument data types                        |  Type

--------+-----------------------------+------------------+------------------------------------------------------------------+-------
 public | pldbg_abort_target          | SETOF boolean    | session integer                                                  | normal
 public | pldbg_attach_to_port        | integer          | portnumber integer                                               | normal
 public | pldbg_continue              | breakpoint       | session integer                                                  | normal
 public | pldbg_create_listener       | integer          |                                                                  | normal
 public | pldbg_deposit_value         | boolean          | session integer, varname text, linenumber integer, value text    | normal
 public | pldbg_drop_breakpoint       | boolean          | session integer, func oid, linenumber integer                    | normal
 public | pldbg_get_breakpoints       | SETOF breakpoint | session integer                                                  | normal
 public | pldbg_get_proxy_info        | proxyinfo        |                                                                  | normal
 public | pldbg_get_source            | text             | session integer, func oid                                        | normal
 public | pldbg_get_stack             | SETOF frame      | session integer                                                  | normal
 public | pldbg_get_target_info       | targetinfo       | signature text, targettype "char"                                | normal
 public | pldbg_get_variables         | SETOF var        | session integer                                                  | normal
 public | pldbg_oid_debug             | integer          | functionoid oid                                                  | normal
 public | pldbg_select_frame          | breakpoint       | session integer, frame integer                                   | normal
 public | pldbg_set_breakpoint        | boolean          | session integer, func oid, linenumber integer                    | normal
 public | pldbg_set_global_breakpoint | boolean          | session integer, func oid, linenumber integer, targetpid integer | normal
 public | pldbg_step_into             | breakpoint       | session integer                                                  | normal
 public | pldbg_step_over             | breakpoint       | session integer                                                  | normal
 public | pldbg_wait_for_breakpoint   | breakpoint       | session integer                                                  | normal
 public | pldbg_wait_for_target       | integer          | session integer                                                  | normal
 public | plpgsql_oid_debug           | integer          | functionoid oid                                                  | normal
(21 rows)

digoal=# \d breakpoint
Composite type "public.breakpoint"
   Column   |  Type   | Modifiers
------------+---------+-----------
 func       | oid     |
 linenumber | integer |
 targetname | text    |

创建测试数据表, 函数, 创建在tbs1和tbs2.

digoal=# \c digoal digoal
You are now connected to database "digoal" as user "digoal".
digoal=> create table userinfo (id int primary key, info text, crt_time timestamp);
CREATE TABLE
digoal=> \d userinfo
              Table "digoal.userinfo"
  Column  |            Type             | Modifiers
----------+-----------------------------+-----------
 id       | integer                     | not null
 info     | text                        |
 crt_time | timestamp without time zone |
Indexes:
    "userinfo_pkey" PRIMARY KEY, btree (id)

digoal=> alter index userinfo_pkey set tablespace tbs2;
ALTER INDEX

digoal=> create or replace function f_digoal(i_id int) returns void as ?
declare
begin
  update userinfo set info=$_$Hello,I'm digoal.$_$||md5(random()::text), crt_time=now() where id=i_id;
  if not found then
    insert into userinfo(id,info,crt_time) values(i_id, $_$Hello,I'm digoal.$_$||md5(random()::text), now());
  end if;
  return;
exception when others then
  return;
end;
? language plpgsql strict volatile;
CREATE FUNCTION
digoal=> select f_digoal(1);
 f_digoal
----------

(1 row)

digoal=> select * from userinfo ;
 id |                       info                        |          crt_time
----+---------------------------------------------------+----------------------------
  1 | Hello,I'm digoal.607acd6f0bfe3c48eecde00f1b98ad85 | 2014-12-19 18:48:03.398352
(1 row)
digoal=> select f_digoal(1);
 f_digoal
----------

(1 row)

digoal=> select * from userinfo ;
 id |                       info                        |          crt_time
----+---------------------------------------------------+----------------------------
  1 | Hello,I'm digoal.debe361485303d3bac72ea3d9a95aa42 | 2014-12-19 18:48:47.255641
(1 row)

生成测试数据

digoal=> insert into userinfo select generate_series(2,10000000),'test',clock_timestamp();
INSERT 0 9999999

安装PostgreSQL 9.4, 注意编译参数一致性, 以及内部和外部扩展模块(内部模块gmake world gmake install-world会全部安装).

[root@localhost soft_bak]# wget https://ftp.postgresql.org/pub/source/v9.4.0/postgresql-9.4.0.tar.bz2
[root@localhost soft_bak]# tar -jxvf postgresql-9.4.0.tar.bz2
[root@localhost soft_bak]# cd postgresql-9.4.0
[root@localhost postgresql-9.4.0]# ./configure --prefix=/opt/pgsql9.4.0 --with-pgport=1921 --with-perl --with-tcl --with-python --with-openssl --with-pam --without-ldap --with-libxml --with-libxslt --enable-thread-safety --with-blocksize=32 --with-wal-blocksize=32 && gmake world && gmake install-world

检查安装包含upgrade和upgrade库.

[root@localhost ~]# cd /opt/pgsql9.4.0/lib/
[root@localhost lib]# ll|grep upgr
-rwxr-xr-x 1 root root   14352 Dec 19 19:12 pg_upgrade_support.so
[root@localhost lib]# ll /opt/pgsql9.4.0/bin/pg_upgrade
-rwxr-xr-x 1 root root 116368 Dec 19 19:12 /opt/pgsql9.4.0/bin/pg_upgrade

安装pldebug模块, 这个模块可以和9.4兼容.

[root@localhost postgresql-9.4.0]# cd ..
[root@localhost soft_bak]# tar -zxvf pldebugger-85d7b3b.tar.gz
[root@localhost soft_bak]# mv pldebugger-85d7b3b postgresql-9.4.0/contrib/
[root@localhost soft_bak]# cd postgresql-9.4.0/contrib/pldebugger-85d7b3b/
[root@localhost pldebugger-85d7b3b]# export PATH=/opt/pgsql9.4.0/bin:$PATH
[root@localhost pldebugger-85d7b3b]# which pg_config
/opt/pgsql9.4.0/bin/pg_config
[root@localhost pldebugger-85d7b3b]# gmake clean
[root@localhost pldebugger-85d7b3b]# gmake
[root@localhost pldebugger-85d7b3b]# gmake install

如果我们要使用硬链接$PGDATA来加快升级速度的话, 那么新的集群$PGDATA要和老集群的$PGDATA在一个文件系统下.

所以我们使用 /pgdata01/pg_root_9.4 :

[root@localhost lib]# mkdir /pgdata01/pg_root_9.4
[root@localhost lib]# chown -R postgres:postgres /pgdata01/pg_root_9.4
[root@localhost lib]# chmod 700 /pgdata01/pg_root_9.4

初始化XLOG目录和arch目录(如果使用了定制的pg_log, 则还需初始化pg_log目录, 本例使用的是$PGDATA/pg_log, 所以无需创建pg_log)

[root@localhost lib]# mkdir /pgdata02/pg_xlog_9.4
[root@localhost lib]# chown -R postgres:postgres /pgdata02/pg_xlog_9.4
[root@localhost lib]# chmod 700 /pgdata02/pg_xlog_9.4
[root@localhost lib]# mkdir /pgdata03/pg_arch_9.4
[root@localhost lib]# chown -R postgres:postgres /pgdata03/pg_arch_9.4
[root@localhost lib]# chmod 700 /pgdata03/pg_arch_9.4

初始化9.4数据库, 注意除xlog,pgdata以为其他初始化参数和9.3一致(超级用户名也要一致) :

[root@localhost lib]# su - postgres
Last login: Fri Dec 19 19:23:00 CST 2014 on pts/3
postgres@localhost-> /opt/pgsql9.4.0/bin/initdb -D /pgdata01/pg_root_9.4 -X /pgdata02/pg_xlog_9.4 -E UTF8 --locale=C -U postgres -W

配置9.4集群

将pg_hba.conf改为和老实例的9.3一致.

另外, 因为升级需要多次连接新老集群数据库实例, 所以修改为使用本地trust认证.

postgres@localhost-> vi /pgdata01/pg_root/pg_hba.conf
postgres@localhost-> vi /pgdata01/pg_root_9.4/pg_hba.conf

包含以下即可

# "local" is for Unix domain socket connections only
local   all             all                                     trust
# IPv4 local connections:
host    all             all             127.0.0.1/32            trust

修改9.4实例的postgresql.conf, 注意使用不同的监听端口. (PostgreSQL 9.4新增了很多功能和参数, 本例一并提供了 )

listen_addresses = '0.0.0.0'            # what IP address(es) to listen on;
port = 1922                             # (change requires restart)
max_connections = 100                   # (change requires restart)
unix_socket_directories = '.'   # comma-separated list of directories
unix_socket_permissions = 0700          # begin with 0 to use octal notation
tcp_keepalives_idle = 60                # TCP_KEEPIDLE, in seconds;
tcp_keepalives_interval = 10            # TCP_KEEPINTVL, in seconds;
tcp_keepalives_count = 10               # TCP_KEEPCNT;
shared_buffers = 512MB                  # min 128kB
huge_pages = try                        # on, off, or try
maintenance_work_mem = 512MB            # min 1MB
autovacuum_work_mem = -1                # min 1MB, or -1 to use maintenance_work_mem
dynamic_shared_memory_type = posix      # the default is the first option
vacuum_cost_delay = 10                  # 0-100 milliseconds
vacuum_cost_limit = 10000               # 1-10000 credits
bgwriter_delay = 10ms                   # 10-10000ms between rounds
wal_level = logical                     # minimal, archive, hot_standby, or logical
synchronous_commit = off                # synchronization level;
wal_buffers = 16384kB                   # min 32kB, -1 sets based on shared_buffers
wal_writer_delay = 10ms         # 1-10000 milliseconds
checkpoint_segments = 32                # in logfile segments, min 1, 16MB each
archive_mode = on               # allows archiving to be done
archive_command = 'DIR="/pgdata03/pg_arch_9.4/`date +%F`";test -d $DIR || mkdir -p $DIR; cp %p $DIR/%f'         # command to use to archive a logfile segment
archive_timeout = 600           # force a logfile segment switch after this
log_destination = 'csvlog'              # Valid values are combinations of
logging_collector = on          # Enable capturing of stderr and csvlog
log_directory = 'pg_log'                # directory where log files are written,
log_filename = 'postgresql-%Y-%m-%d_%H%M%S.log' # log file name pattern,
log_file_mode = 0600                    # creation mode for log files,
log_truncate_on_rotation = on           # If on, an existing log file with the
log_checkpoints = on
log_connections = on
log_disconnections = on
log_error_verbosity = verbose           # terse, default, or verbose messages
log_lock_waits = on                     # log lock waits >= deadlock_timeout
log_statement = 'ddl'                   # none, ddl, mod, all
log_timezone = 'PRC'
autovacuum = on                 # Enable autovacuum subprocess?  'on'
log_autovacuum_min_duration = 0 # -1 disables, 0 logs all actions and
datestyle = 'iso, mdy'
timezone = 'PRC'
lc_messages = 'C'                       # locale for system error message
lc_monetary = 'C'                       # locale for monetary formatting
lc_numeric = 'C'                        # locale for number formatting
lc_time = 'C'                           # locale for time formatting
default_text_search_config = 'pg_catalog.english'

停库

postgres@localhost-> /opt/pgsql9.3.5/bin/pg_ctl stop -m fast -D /pgdata01/pg_root
postgres@localhost-> /opt/pgsql9.4.0/bin/pg_ctl stop -m fast -D /pgdata01/pg_root_9.4

创建9.3数据库的文件系统快照

[root@localhost ~]# df -h
zp1/pg_root                 30G   19M   30G   1% /pgdata01
zp1/pg_xlog                 31G  428M   30G   2% /pgdata02
zp1/pg_arch                 31G  636M   30G   3% /pgdata03
zp1/tbs1                    31G  170M   30G   1% /pgdata04
zp1/tbs2                    31G   97M   30G   1% /pgdata05
[root@localhost ~]# zfs snapshot zp1/pg_root@pg9.3.5
[root@localhost ~]# zfs snapshot zp1/pg_xlog@pg9.3.5
[root@localhost ~]# zfs snapshot zp1/pg_arch@pg9.3.5
[root@localhost ~]# zfs snapshot zp1/tbs1@pg9.3.5
[root@localhost ~]# zfs snapshot zp1/tbs2@pg9.3.5
[root@localhost ~]# zfs list -t snapshot
NAME                  USED  AVAIL  REFER  MOUNTPOINT
zp1/pg_arch@pg9.3.5      0      -   635M  -
zp1/pg_root@pg9.3.5      0      -  18.4M  -
zp1/pg_xlog@pg9.3.5      0      -   428M  -
zp1/tbs1@pg9.3.5         0      -   169M  -
zp1/tbs2@pg9.3.5         0      -  96.2M  -

使用9.4的pg_upgrade检测兼容性

su - postgres
postgres@localhost-> cd
postgres@localhost-> mkdir upgrade_log
postgres@localhost-> cd upgrade_log/
postgres@localhost-> /opt/pgsql9.4.0/bin/pg_upgrade -b /opt/pgsql9.3.5/bin -B /opt/pgsql9.4.0/bin -d /pgdata01/pg_root -D /pgdata01/pg_root_9.4 -p 1921 -P 1922 -U postgres -j 8 -k -c
Performing Consistency Checks
-----------------------------
Checking cluster versions                                   ok
Checking database user is a superuser                       ok
Checking for prepared transactions                          ok
Checking for reg* system OID user data types                ok
Checking for contrib/isn with bigint-passing mismatch       ok
Checking for invalid "line" user columns                    ok
Checking for presence of required libraries                 ok
Checking database user is a superuser                       ok
Checking for prepared transactions                          ok

*Clusters are compatible*

验证兼容性正常, 可以正式升级了.

postgres@localhost-> /opt/pgsql9.4.0/bin/pg_upgrade -b /opt/pgsql9.3.5/bin -B /opt/pgsql9.4.0/bin -d /pgdata01/pg_root -D /pgdata01/pg_root_9.4 -p 1921 -P 1922 -U postgres -j 8 -k -r -v

最后输出如下 :

Upgrade Complete
----------------
Optimizer statistics are not transferred by pg_upgrade so,
once you start the new server, consider running:
    analyze_new_cluster.sh

Running this script will delete the old cluster's data files:
    delete_old_cluster.sh

给了2个脚本, 用于收集统计信息和删除老集群.

postgres@localhost-> ll
total 20K
-rwx------ 1 postgres postgres 785 Dec 19 19:50 analyze_new_cluster.sh
-rwx------ 1 postgres postgres 114 Dec 19 19:50 delete_old_cluster.sh
-rw------- 1 postgres postgres 326 Dec 19 19:51 pg_upgrade_internal.log
-rw------- 1 postgres postgres 179 Dec 19 19:51 pg_upgrade_server.log
-rw------- 1 postgres postgres 179 Dec 19 19:51 pg_upgrade_utility.log

接下来要做的是启动新的数据库集群.

postgres@localhost-> /opt/pgsql9.4.0/bin/pg_ctl start -D /pgdata01/pg_root_9.4

执行统计信息收集脚本, 因为使用pg_upgrade升级的话, 统计信息不会迁移过来. 所以需要手工统计一下.

脚本内容如下

postgres@localhost-> cat analyze_new_cluster.sh
#!/bin/sh

echo 'This script will generate minimal optimizer statistics rapidly'
echo 'so your system is usable, and then gather statistics twice more'
echo 'with increasing accuracy.  When it is done, your system will'
echo 'have the default level of optimizer statistics.'
echo

echo 'If you have used ALTER TABLE to modify the statistics target for'
echo 'any tables, you might want to remove them and restore them after'
echo 'running this script because they will delay fast statistics generation.'
echo

echo 'If you would like default statistics as quickly as possible, cancel'
echo 'this script and run:'
echo '    "/opt/pgsql9.4.0/bin/vacuumdb" -U "postgres" --all --analyze-only'
echo

"/opt/pgsql9.4.0/bin/vacuumdb" -U "postgres" --all --analyze-in-stages
echo

echo 'Done'

脚本需要我们自行提供连接参数,当然我们也可以设置环境变量,避免修改脚本($PGHOST $PGDATABASE $PGPASSWORD $PGUSER $PGPORT等).

postgres@localhost-> "/opt/pgsql9.4.0/bin/vacuumdb" -U "postgres" --all --analyze-only -h /pgdata01/pg_root_9.4 -p 1922 -U postgres
vacuumdb: vacuuming database "digoal"
vacuumdb: vacuuming database "postgres"
vacuumdb: vacuuming database "template1"

升级完成.

----------------------------------------------------------------------------------------------------------------------------------------------

查看数据

postgres@localhost-> /opt/pgsql9.4.0/bin/psql -h 127.0.0.1 -p 1922 -U digoal digoal
psql (9.4.0)
Type "help" for help.
digoal=> \dt
         List of relations
 Schema |   Name   | Type  | Owner
--------+----------+-------+--------
 digoal | userinfo | table | digoal
(1 row)

digoal=> \dx
                              List of installed extensions
   Name   | Version |   Schema   |                     Description
----------+---------+------------+------------------------------------------------------
 pldbgapi | 1.0     | public     | server-side support for debugging PL/pgSQL functions
 plpgsql  | 1.0     | pg_catalog | PL/pgSQL procedural language
(2 rows)
digoal=> select count(*) from userinfo ;
  count
----------
 10000000
(1 row)

最后, 确认升级成功后, 我们可以把老的集群删掉. 删之前也请确认清楚是否真的可以删除, 不要太相信pg_upgrade.

postgres@localhost-> cat delete_old_cluster.sh
#!/bin/sh

rm -rf /pgdata01/pg_root
rm -rf /pgdata04/tbs1/PG_9.3_201306121
rm -rf /pgdata05/tbs2/PG_9.3_201306121

因为我们用了硬链接, 检查一下就可以删除了, 表空间, $PGDATA都使用了硬链接.

postgres@localhost-> stat PG_9.3_201306121
  File: ‘PG_9.3_201306121’
  Size: 3               Blocks: 27         IO Block: 131072 directory
Device: 26h/38d Inode: 8           Links: 3
Access: (0700/drwx------)  Uid: ( 1001/postgres)   Gid: ( 1001/postgres)
Access: 2014-12-19 19:24:39.096630736 +0800
Modify: 2014-12-19 19:24:47.718612433 +0800
Change: 2014-12-19 19:24:47.718612433 +0800
 Birth: -
postgres@localhost-> du -sh *
170M    PG_9.3_201306121
3.0M    PG_9.4_201409291

删除后, 文件统计信息正确

postgres@localhost-> du -sh *
170M    PG_9.4_201409291

如果要玩回退的话, 以下调整先不要做.

确认要完全使用9.4以后, 我们还需要调整一下/etc/profile, ~/.bash_profile, 方便我们的使用.

rm -f /opt/pgsql
ln -s /opt/pgsql9.4.0 /opt/pgsql

vi /etc/profile
export PATH=/opt/pgsql/bin:$PATH

vi /home/postgres/.bash_profile
export PGPORT=1921
export PGDATA=/pgdata01/pg_root_9.4

--------------------------------------------------------------------------------------------------------------------------------------------------------------

最后做一下ZFS回退测试 :

回退也很简单, 简单的描述一下 :

[root@localhost ~]# zfs clone -o mountpoint=/old_pgdata01 zp1/pg_root@pg9.3.5 zp1/old_pgdata01
[root@localhost ~]# zfs clone -o mountpoint=/old_pgdata02 zp1/pg_xlog@pg9.3.5 zp1/old_pgdata02
[root@localhost ~]# zfs clone -o mountpoint=/old_pgdata03 zp1/pg_arch@pg9.3.5 zp1/old_pgdata03
[root@localhost ~]# zfs clone -o mountpoint=/old_pgdata04 zp1/tbs1@pg9.3.5 zp1/old_pgdata04
[root@localhost ~]# zfs clone -o mountpoint=/old_pgdata05 zp1/tbs2@pg9.3.5 zp1/old_pgdata05
df -h
zp1/old_pgdata01            30G   19M   30G   1% /old_pgdata01
zp1/old_pgdata02            31G  428M   30G   2% /old_pgdata02
zp1/old_pgdata03            31G  636M   30G   3% /old_pgdata03
zp1/old_pgdata04            31G  170M   30G   1% /old_pgdata04
zp1/old_pgdata05            30G   97M   30G   1% /old_pgdata05

调整pg_xlog,以及 表空间链接

[root@localhost ~]# su - postgres
postgres@localhost-> cd /old_pgdata01
postgres@localhost-> cd pg_root
postgres@localhost-> ll
total 225K
lrwxrwxrwx 1 postgres postgres   17 Dec 19 19:23 pg_xlog -> /pgdata02/pg_xlog
postgres@localhost-> rm -f pg_xlog
postgres@localhost-> ln -s /old_pgdata02/pg_xlog ./
postgres@localhost-> cd pg_tblspc/
postgres@localhost-> ll
total 1.0K
lrwxrwxrwx 1 postgres postgres 14 Dec 19 19:24 16385 -> /pgdata04/tbs1
lrwxrwxrwx 1 postgres postgres 14 Dec 19 19:24 16386 -> /pgdata05/tbs2
postgres@localhost-> rm -f *
postgres@localhost-> ln -s /old_pgdata04/tbs1 ./16385
postgres@localhost-> ln -s /old_pgdata05/tbs2 ./16386

修改参数(新老版本不冲突),

archive_command = 'DIR="/old_pgdata03/pg_arch/`date +%F`";test -d $DIR || mkdir -p $DIR; cp %p $DIR/%f'
port = 1922|1921

启动old数据库

postgres@localhost-> /opt/pgsql9.3.5/bin/pg_ctl start -D /old_pgdata01/pg_root
server starting

链接到old数据库测试正常.

postgres@localhost-> /opt/pgsql9.3.5/bin/psql -h 127.0.0.1 -p 1921 -U digoal digoal
psql (9.3.5)
Type "help" for help.

digoal=> select count(*) from userinfo ;
  count
----------
 10000000
(1 row)

参考

1. www.postgresql.org/docs/9.4/st…

2. 《PostgreSQL pg_upgrade 9.3 improve and example》

3. download.fedoraproject.org/pub/epel

4. zfsonlinux.org/epel.html

5. pg_upgrade --help

Usage:
  pg_upgrade [OPTION]...

Options:
  -b, --old-bindir=BINDIR       old cluster executable directory
  -B, --new-bindir=BINDIR       new cluster executable directory
  -c, --check                   check clusters only, don't change any data
  -d, --old-datadir=DATADIR     old cluster data directory
  -D, --new-datadir=DATADIR     new cluster data directory
  -j, --jobs                    number of simultaneous processes or threads to use
  -k, --link                    link instead of copying files to new cluster
  -o, --old-options=OPTIONS     old cluster options to pass to the server
  -O, --new-options=OPTIONS     new cluster options to pass to the server
  -p, --old-port=PORT           old cluster port number (default 50432)
  -P, --new-port=PORT           new cluster port number (default 50432)
  -r, --retain                  retain SQL and log files after success
  -U, --username=NAME           cluster superuser (default "postgres")
  -v, --verbose                 enable verbose internal logging
  -V, --version                 display version information, then exit
  -?, --help                    show this help, then exit

Before running pg_upgrade you must:
  create a new database cluster (using the new version of initdb)
  shutdown the postmaster servicing the old cluster
  shutdown the postmaster servicing the new cluster

When you run pg_upgrade, you must provide the following information:
  the data directory for the old cluster  (-d DATADIR)
  the data directory for the new cluster  (-D DATADIR)
  the "bin" directory for the old version (-b BINDIR)
  the "bin" directory for the new version (-B BINDIR)

For example:
  pg_upgrade -d oldCluster/data -D newCluster/data -b oldCluster/bin -B newCluster/bin
or
  $ export PGDATAOLD=oldCluster/data
  $ export PGDATANEW=newCluster/data
  $ export PGBINOLD=oldCluster/bin
  $ export PGBINNEW=newCluster/bin
  $ pg_upgrade

其他大版本升级思路

不管是小版本还是大版本升级,最重要的是减少业务停机时间,降低升级风险。

1、pg_upgrade + zfs, 支持从PostgreSQL 8.3+升级到任何更高版本

github.com/digoal/blog…

2、逻辑复制的方式,工具 - 支持从PostgreSQL 9.4+升级到任何更高版本

github.com/aliyun/rds_…

www.2ndquadrant.com/en/resource…

3、采用FDW+ETL的方式, 支持升级到PostgreSQL 9.0+版本

github.com/digoal/blog…

github.com/digoal/blog…

4、采用数据库订阅功能-逻辑复制, 支持从PostgreSQL 10+升级到更高版本

github.com/digoal/blog…

github.com/digoal/blog…

github.com/digoal/blog…

github.com/digoal/blog…
