从零搭建自己的SpringBoot后台框架(二)

Hello大家好,本章我们将默认数据库连接池换成Druid连接池。有问题可以联系我mr_beany@163.com。另求各路大神指点,感谢

一:引入Druid依赖

打开上篇文章→从头开始搭建自己的springboot后台框架(一)中提到的pom.xml

找到<dependencies></dependencies>标签,在标签中添加Druid依赖

<dependency>
   <groupId>com.alibaba</groupId>
   <artifactId>druid</artifactId>
   <version>1.0.29</version>
</dependency>复制代码

刚添加时  <version>1.0.29</version>  显示红色

然后鼠标右键选择Maven→Reimport进行依赖下载

下载成功后  <version>1.0.29</version> 显示黑色

二:配置数据源连接池信息

在application.properties文件中添加如下配置

spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
#连接池配置
spring.datasource.initialSize=5
spring.datasource.minIdle=5
spring.datasource.maxActive=20
#连接等待超时时间
spring.datasource.maxWait=60000
#配置隔多久进行一次检测(检测可以关闭的空闲连接)
spring.datasource.timeBetweenEvictionRunsMillis=60000
#配置连接在池中的最小生存时间
spring.datasource.minEvictableIdleTimeMillis=300000
spring.datasource.validationQuery=SELECT 1 FROM DUAL
spring.datasource.testWhileIdle=true
spring.datasource.testOnBorrow=false
spring.datasource.testOnReturn=false
# 打开PSCache,并且指定每个连接上PSCache的大小
spring.datasource.poolPreparedStatements=true
spring.datasource.maxPoolPreparedStatementPerConnectionSize=20
# 配置监控统计拦截的filters,去掉后监控界面sql无法统计,'wall'用于防火墙
spring.datasource.filters=stat,wall,slf4j
# 通过connectProperties属性来打开mergeSql功能;慢SQL记录
spring.datasource.connectionProperties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000复制代码

三:添加配置文件

在core→configurer下创建DruidDataSourceConfigurer.java 和DruidMonitorConfigurer.java

内容如下:

DruidDataSourceConfigurer

package com.example.demo.core.configurer;

import com.alibaba.druid.pool.DruidDataSource;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;
import java.sql.SQLException;

/**
 * @author 张瑶
 * @Description:
 * @time 2018/4/18 15:16
 */
@Configuration
public class DruidDataSourceConfigurer {

    private Logger logger = LoggerFactory.getLogger(DruidDataSourceConfigurer.class);

    @Value("${spring.datasource.url}")
    private String dbUrl;

    @Value("${spring.datasource.username}")
    private String username;

    @Value("${spring.datasource.password}")
    private String password;

    @Value("${spring.datasource.driverClassName}")
    private String driverClassName;

    @Value("${spring.datasource.initialSize}")
    private int initialSize;

    @Value("${spring.datasource.minIdle}")
    private int minIdle;

    @Value("${spring.datasource.maxActive}")
    private int maxActive;

    @Value("${spring.datasource.maxWait}")
    private int maxWait;

    @Value("${spring.datasource.timeBetweenEvictionRunsMillis}")
    private int timeBetweenEvictionRunsMillis;

    @Value("${spring.datasource.minEvictableIdleTimeMillis}")
    private int minEvictableIdleTimeMillis;

    @Value("${spring.datasource.validationQuery}")
    private String validationQuery;

    @Value("${spring.datasource.testWhileIdle}")
    private boolean testWhileIdle;

    @Value("${spring.datasource.testOnBorrow}")
    private boolean testOnBorrow;

    @Value("${spring.datasource.testOnReturn}")
    private boolean testOnReturn;

    @Value("${spring.datasource.poolPreparedStatements}")
    private boolean poolPreparedStatements;

    @Value("${spring.datasource.maxPoolPreparedStatementPerConnectionSize}")
    private int maxPoolPreparedStatementPerConnectionSize;

    @Value("${spring.datasource.filters}")
    private String filters;

    @Value("{spring.datasource.connectionProperties}")
    private String connectionProperties;

    @Bean
    public DataSource getDataSource() {
        DruidDataSource datasource = new DruidDataSource();
        datasource.setUrl(this.dbUrl);
        datasource.setUsername(username);
        datasource.setPassword(password);
        datasource.setDriverClassName(driverClassName);

        //configuration
        datasource.setInitialSize(initialSize);
        datasource.setMinIdle(minIdle);
        datasource.setMaxActive(maxActive);
        datasource.setMaxWait(maxWait);
        datasource.setTimeBetweenEvictionRunsMillis(timeBetweenEvictionRunsMillis);
        datasource.setMinEvictableIdleTimeMillis(minEvictableIdleTimeMillis);
        datasource.setValidationQuery(validationQuery);
        datasource.setTestWhileIdle(testWhileIdle);
        datasource.setTestOnBorrow(testOnBorrow);
        datasource.setTestOnReturn(testOnReturn);
        datasource.setPoolPreparedStatements(poolPreparedStatements);
        datasource.setMaxPoolPreparedStatementPerConnectionSize(maxPoolPreparedStatementPerConnectionSize);
        try {
            datasource.setFilters(filters);
        } catch (SQLException e) {
            logger.error("druid configuration initialization filter", e);
        }
        datasource.setConnectionProperties(connectionProperties);

        return datasource;
    }
}
复制代码

DruidMonitorConfigurer

package com.example.demo.core.configurer;

import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;

/**
 * @author 张瑶
 * @Description:Druid监控配置
 * @time 2018/4/18 15:30
 */
@Configuration
public class DruidMonitorConfigurer {

    /**
     * 注册ServletRegistrationBean
     * @return
     */
    @Bean
    public ServletRegistrationBean registrationBean() {
        ServletRegistrationBean bean = new ServletRegistrationBean(new StatViewServlet(), "/druid/*");
        /** 初始化参数配置,initParams**/
        //白名单
        bean.addInitParameter("allow", "127.0.0.1");//多个ip逗号隔开
        //IP黑名单 (存在共同时,deny优先于allow) : 如果满足deny的话提示:Sorry, you are not permitted to view this page.
        //bean.addInitParameter("deny", "192.168.1.110");
        //登录查看信息的账号密码.
        bean.addInitParameter("loginUsername", "admin");
        bean.addInitParameter("loginPassword", "123456");
        //是否能够重置数据.
        bean.addInitParameter("resetEnable", "false");
        return bean;
    }

    /**
     * 注册FilterRegistrationBean
     * @return
     */
    @Bean
    public FilterRegistrationBean druidStatFilter() {
        FilterRegistrationBean bean = new FilterRegistrationBean(new WebStatFilter());
        //添加过滤规则.
        bean.addUrlPatterns("/*");
        //添加不需要忽略的格式信息.
        bean.addInitParameter("exclusions","*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*");
        return bean;
    }

}复制代码

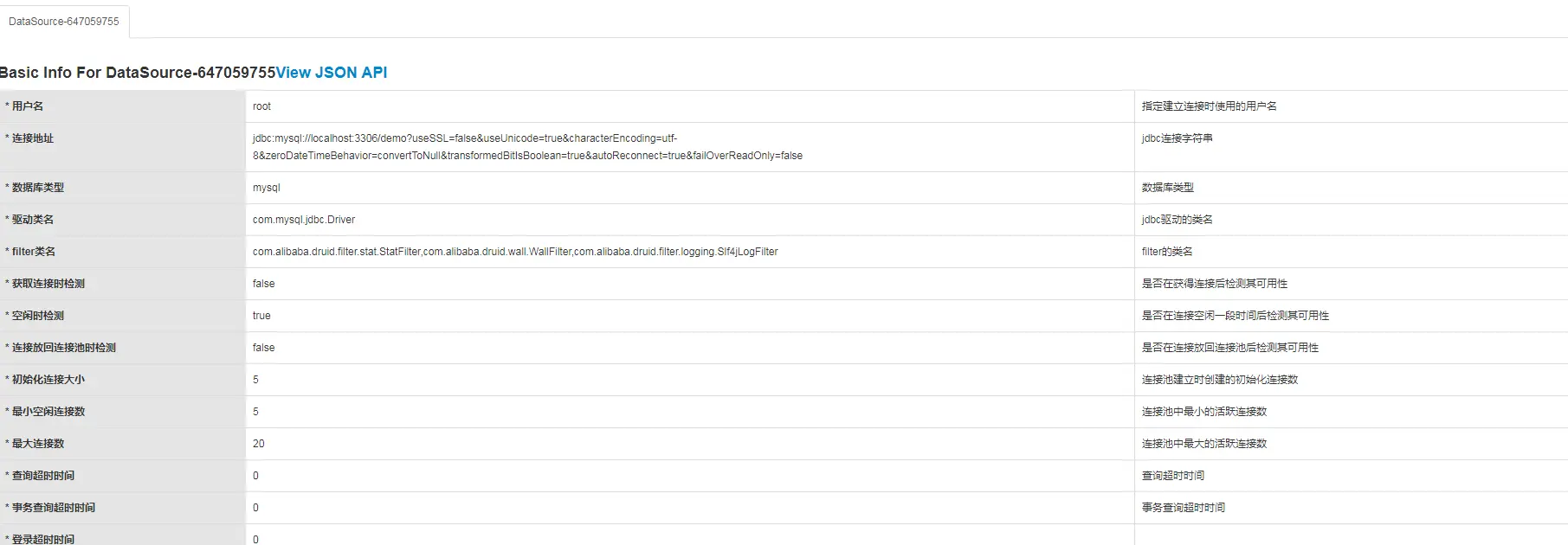

四:启动服务器,访问数据连接池管理页面

打开浏览器,输入http://localhost:8080/druid    出现以下页面,为配置成功


账号为admin,密码为123456

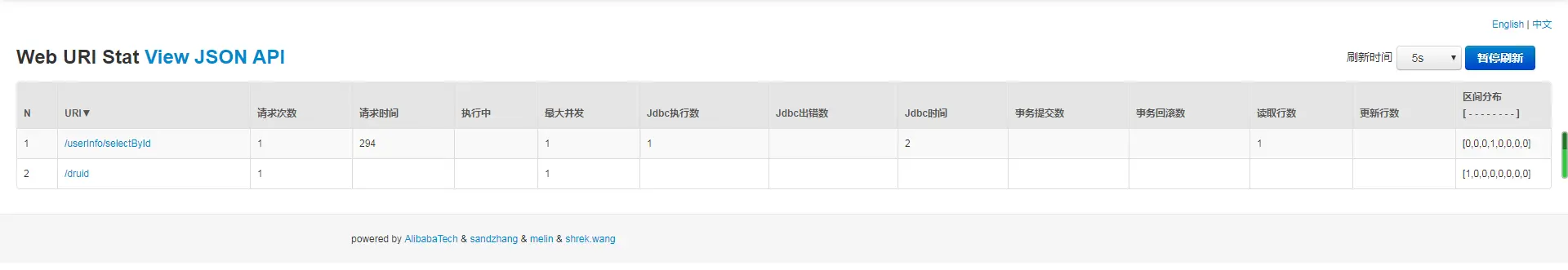

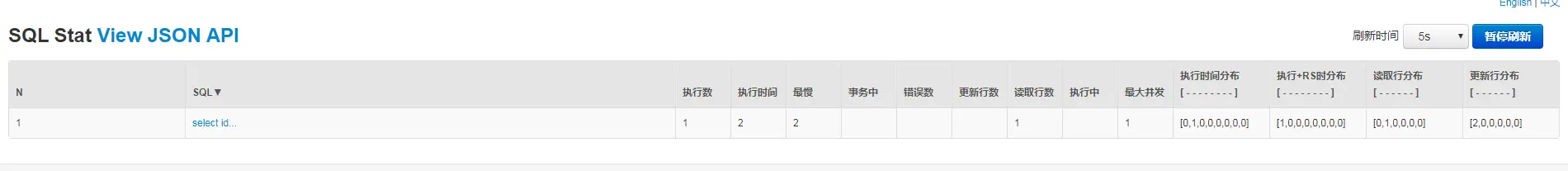

可以查看数据源,SQL监控,URL监控等信息





项目地址

码云地址: gitee.com/beany/mySpr…

GitHub地址: github.com/MyBeany/myS…

写文章不易,如对您有帮助,请帮忙点下star

结尾

springboot整合Druid已完成,后续功能接下来陆续更新,有问题可以联系我mr_beany@163.com。另求各路大神指点,感谢大家。
