[WebAssembly 入门] 第二次的 Hello, world!
上一次Hello,world做了最基础的实现,主要的代码如下
src/lib.rs
//! a WebAssembly module with Rust
extern {
fn hello_insert_dom();
}
/// return "Hello, world"'s bytes array
#[no_mangle]
pub extern fn hello_call_js() { // equal pub extern "C" fn ...
unsafe {
hello_insert_dom();
}
}
main.js
const imports = {
env: {
hello_insert_dom: () => {
const h1 = document.createElement('h1');
h1.innerHTML = 'Hello, world';
const body = document.querySelector('body');
body.appendChild(h1);
},
}
};
fetch('build/hello.wasm')
.then(response => response.arrayBuffer())
.then(bytes => WebAssembly.instantiate(bytes, imports))
.then(results => {
console.log(results);
const exports = results.instance.exports;
exports.hello_call_js();
});
ok, 现在让我们来换一个方式实现这个hello,world ———— 通过在WebAssembly中向JS函数传递参数来实现
传递参数
但是传参在 MVP 版本的WebAssebly中并不是一件容易的事, WebAssembly只支持整数或浮点数 (支持 i32/i64/f32/f64值类型以及 i8/i16 存储。), 并没有对String的原生支持
想要与实例交互, 可以通过以下属性
exports
- JS调用WebAssembly函数的地方, WebAssembly返回的值imports
- 当WebAssembly调用JS时, 具有任意数量的值类型(请注意: 这即不是数组也不是可变参数, 长度必须在Module编译时已知)Memory.buffer
- 这是一个ArrayBuffer,可以使用Uint8Array(等等)进行序列化
所有的方法中似乎直接访问缓冲区是最简单的: 首先我们要在JS中创建一个内存对象并序列化它:
// create a memory, Size is in pages.
const memory = new WebAssembly.Memory({ initial: 2 }); // 创建了2页的内存,每个page 65536B -> 64KiB
const buffer = new Uint8Array(memory.buffer); // index arrayBuffer
// 当字符全部是英文时u8足够使用
// 即只有0~255
然后在env属性中创建存值函数:
env: {
...
save_char_to_memory(num, index) {
buffer[index] = num;
},
...
}
以及hello函数:
env: {
save_char_to_memory(num, index) {
buffer[index] = num;
},
log_string(size, index) {
let s = "";
for (let i = index; i < index + size; ++i) {
s += String.fromCodePoint(buffer[i]);
}
console.log(s);
}
}
接下来在rust中完成函数
extern {
fn save_char_to_memory(num: u8, index: usize);
fn log_string(size: usize, index: usize);
}
/// return "Hello, world"'s bytes array
#[no_mangle]
pub extern fn pass_str() { // equal pub extern "C" fn ...
let s = b"Hello, world";
unsafe {
for i in 0..s.len() {
save_char_to_memory(s[i], i);
}
log_string(s.len(), 0);
}
}
测试!
测试之前我们的代码应该长这样:
src/lib.rs
:
//! a WebAssembly module with Rust
extern {
fn save_char_to_memory(num: u8, index: usize);
fn log_string(size: usize, index: usize);
}
/// return "Hello, world"'s bytes array
#[no_mangle]
pub extern fn pass_str() { // equal pub extern "C" fn ...
let s = b"Hello, world";
unsafe {
for i in 0..s.len() {
save_char_to_memory(s[i], i);
}
log_string(s.len(), 0);
}
}
main.js
:
// create a memory, Size is in pages.
const memory = new WebAssembly.Memory({ initial: 2 });
const buffer = new Uint8Array(memory.buffer); // index arrayBuffer
const imports = {
memory: memory,
env: {
save_char_to_memory(num, index) {
buffer[index] = num;
},
log_string(size, index) {
let s = "";
for (let i = index; i < index + size; i++) {
s += String.fromCodePoint(buffer[i]);
}
console.log(s);
}
}
};
fetch('build/hello.wasm')
.then(response => response.arrayBuffer())
.then(bytes => WebAssembly.instantiate(bytes, imports))
.then(results => {
console.log(results);
const exports = results.instance.exports;
exports.pass_str();
});

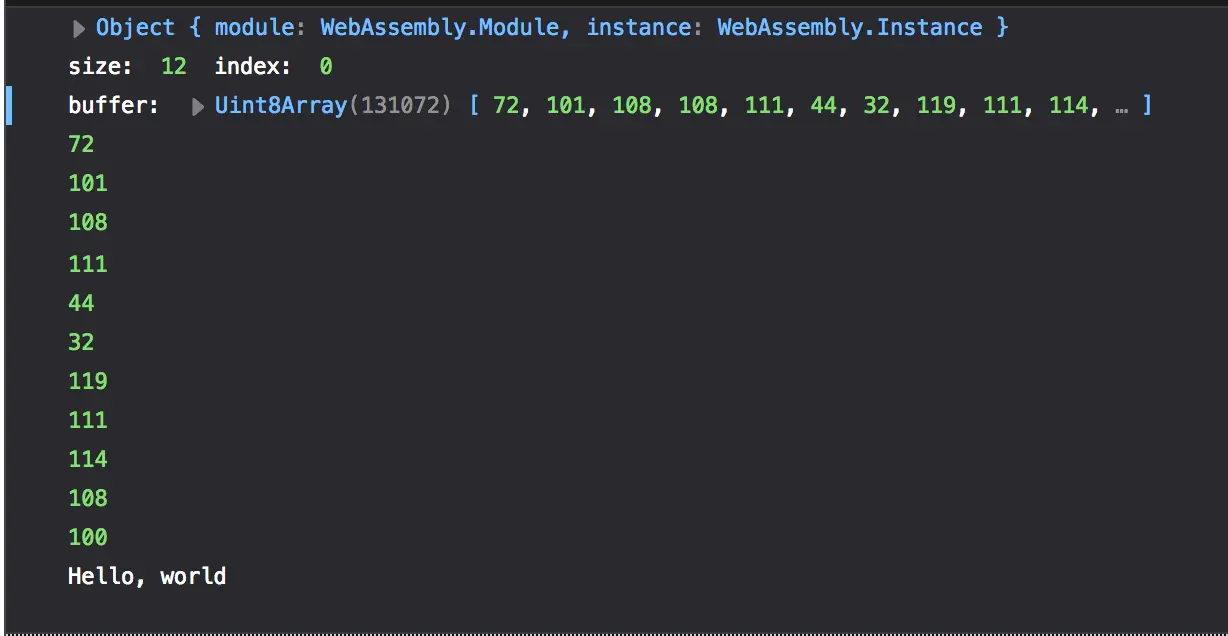

编译运行吧!
但是,没有更优雅的方式吗?
结果显而易见,之前的文章中有讲到WebAssembly也能够使用memory,但是无法接触到memory范围之外的数据。
那么让我们先打印一下WebAssembly实例的内容
main.js:
fetch('build/hello.wasm')
.then(response => response.arrayBuffer())
.then(bytes => WebAssembly.instantiateStreaming(bytes, imports))
.then(results => {
console.log(results);
});
src/lib.rs:
//! a WebAssembly module with Rust
extern {
fn log_string(ptr: *const u8, len: u16);
}
/// pass str | slice to js side
#[no_mangle]
pub extern fn pass_str() { // equal pub extern "C" fn ...
...
}
result:
嗯??,memory?
看来这个就是WebAssembly自动创建的Memory实例,并且在附加在exports.instance
中传递到了JS端
那么我们就能够自然地假设js直接从WebAssembly中获取字符串的裸指针和长度就能够从memory中截取一段buffer并使用Uint8Array
序列化,再使用String.fromCharCode
翻译为js String
try:
main.js:
...
const imports = {
memory: memory,
env: {
store_string_to_buffer(ptr, len) {
// buffer slice
let buf = new Uint16Array(mem.buffer, ptr, len);
let msg = new TextDecoder('utf8').decode(buf);
// 这是个新的api,你也可以用下面的方法
// let msg = String.fromCharCode(...buf);
console.log('msg: ', msg);
console.log('mbuf: ', buf);
}
}
};
...
src/lib.rs:
//! a WebAssembly module with Rust
extern {
fn log_string(ptr: *const u8, len: u16);
}
/// return "Hello, world"'s bytes array
#[no_mangle]
pub extern fn pass_str() { // equal pub extern "C" fn ...
let s = "Hello, world";
unsafe {
log_string(s.as_ptr(), s.len() as u16);
}
}

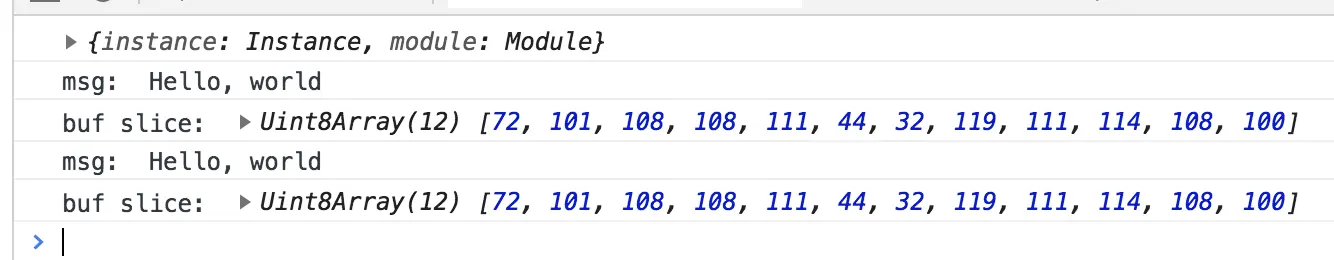

Second attempt:
yeap! 一切如自己所料的感觉真不错!😙
但是!
memory对象应该是共享的才对!这样JS端也能够向WebAssembly传值...
算了,还是留待下回分解吧 😋
