webpack v4 从dev到prd

1,893 阅读5分钟

目录

  • 概述
  • Big changes
  • 加载loader方法总结
  • 开发必备的loader&plugins
  • 加载bootstrap&jquery
  • 优化向prd进发
  • 未完待续

概述

本月迎来了 v4 正式版的发布,本文用于学习新特性和总结开发必用plugin & loader,从dev到prd,走你~

Big changes

  • Environment
    • Node.js 4 is no longer supported. Source Code was upgraded to a higher ecmascript version.
  • Usage
    • You have to choose (mode or --mode) between two modes now: production or development

本次新版本中引入了 mode 配置项,开发者可在 none,development(开发 ) 以及 production(产品)三种模式间选择。该配置项缺省情况下默认使用 production 模式。

  • development 模式给你极致的开发体验,包含浏览器调试相关工具,极快的增量编译,丰富全面的报错信息...
  • production 模式则包含大量发版优化,代码压缩,丝般润滑的运行时优化,开发相关代码的排除,易用,etc.
  • none 不使用预设,等于老版本中全部自己配置的原始状态。

eg:

webpack --mode development
  • Usage
    • Some Plugin options are now validated
    • CLI has been move to webpack-cli, you need to install webpack-cli to use the CLI
    • The ProgressPlugin (--progress) now displays plugin names At least for plugins migrated to the new plugin system

新版中将 webpack 命令行工具拆分到单独的仓库中,所以需要额外安装 webpack-cli。

npm init -y //初始化项目
npm install webpack webpack-cli -D //安装webpack webpack-cli 依赖
npx webpack --mode development // npx可以直接运行node_modules/.bin目录下面的命令

或者通过配置package.json的script build
"scripts": {
    "build": "webpack --mode development",
},

加载loader方法总结

  • use
module: {
    rules:[
        {
            test: /\.css$/,
            use: ['style-loader','css-loader']
        }
    ]
}

css-loader用来解析处理CSS文件中的url路径,

要把CSS文件变成一个模块 多个loader是有顺序要求的,从右往左写,因为转换的时候是从右往左转换

此插件先用css-loader处理一下css文件,再用style-loader把CSS文件变成style标签插入head中

  • loader
module: {
    rules:[
        {
            test: /\.css$/,
            loader: ["style-loader", "css-loader"]
        },
    ]
}
  • use+loader
module: {
    rules:[
        {
            test: /\.css$/,
            use:[
                { loader:"style-loader"},
                {
                    loader: 'css-loader',
                    options: {sourceMap: true}
                }
            ]
        }
    ]
}

这三种loader的写法,最后打包的结果相同

loader中的options配置项可以用"?"跟在加载器后面

eg:

{
    test: /\.jpeg$/,
    use: 'url-loader?limit=1024&name=[path][name].[ext]&outputPath=img/&publicPath=output/',
}

为以下配置的简写

{
    test: /\.jpeg$/,
    use: {
        loader:'url-loader',
        options:{
            limit:1024,
            name:[path][name].[ext],
            outputPath:img/
            publicPath:output/'
        }
    }
}

加载bootstrap&jquery

(1)加载bootstrap

要在模块中引入bootstrap需要在js中加入

import 'bootstrap/dist/css/bootstrap.css'

但是这样相对麻烦,我们可以做相关修改,将这句代码简化成

import 'bootstrap'

简化方法如下:

  • 在webpack中配置别名alias,可以加快webpack查找模块的速度

  • 每当引入bootstrap模块的时候,它会直接引入bootstrapPath,而不需要从node_modules文件夹中按模块的查找规则查找

  • 不需要webpack去解析bootstrap文件

const bootstrap=path.join(__dirname,'node_modules/bootstrap/dist/css/bootstrap.css')
resolve: {
 +       alias: {
 +           'bootstrap': bootstrap
 +       }
    },

安装依赖

npm i bootstrap url url-loader style-loader css-loader --save

在webpack.js中配置bootstrap中css 图片 字体等文件的解析依赖

loaders: [

    { test: /\.css$/, loader: 'style-loader!css-loader' },
    { test: /\.eot(\?v=\d+\.\d+\.\d+)?$/, loader: "file" },
    { test: /\.(woff|woff2)$/, loader:"url?prefix=font/&limit=5000" },
    { test: /\.ttf(\?v=\d+\.\d+\.\d+)?$/, loader: "url?limit=10000&mimetype=application/octet-stream" },
    { test: /\.svg(\?v=\d+\.\d+\.\d+)?$/, loader: "url?limit=10000&mimetype=image/svg+xml" }
]

(2)如果需要使用bootstrap的js插件的话,就必须首先引入jquery。引用jquery的一个方法是使用webpack插件。

首先安装jquery:

npm i jquery

在webpack中用插件装入jquery

plugins: [
        new webpack.ProvidePlugin({
            $: "jquery",
            jQuery: "jquery"
        })
    ]

在入口文件内加入代码来做验证:

$("body").append("<div>hello world</div>")

开发必备的loader&plugins

  • css-loader
  • babel-loader

讲ES6代码转换为ES5

{
    test: /\.js/,
    use: {
        loader: 'babel-loader',
        query: {
            presets: ["env", "stage-0", "react"]
        }
    }
},

babel-loader的预设可以添加在query中,也可以在项目根目录添加 .babelrc 文件

.babelrc

{
    "presets": [
        "env",
        "stage-0",
        "react"
    ]
}
  • html-webpack-plugin

插件的基本作用就是生成html文件。原理很简单:

将 webpack中entry配置的相关入口thunk 和 extract-text-webpack-plugin抽取的css样式 插入到该插件提供的template或者templateContent配置项指定的内容基础上生成一个html文件,具体插入方式是将样式link插入到head元素中,script插入到head或者body中。

const HtmlWebpackPlugin = require('html-webpack-plugin');

new HtmlWebpackPlugin({
    template: './src/index.html',//指定产的HTML模板
    filename: `index.html`,//产出的HTML文件名
    title: 'index',
    hash: true,// 会在引入的js里加入查询字符串避免缓存,
    minify: {
        removeAttributeQuotes: true
    }
}),

可以用 cnpm search html-webpack-plugin 查找想用loader的用法

  • less-loader sass-loader

优化向prd进发

  • 提取公共的css代码

它会将所有的入口 chunk(entry chunks)中引用的 *.css,移动到独立分离的 CSS 文件。因此,你的样式将不再内嵌到 JS bundle 中,而是会放到一个单独的 CSS 文件(即 styles.css)当中。 如果你的样式文件大小较大,这会做更快提前加载,因为 CSS bundle 会跟 JS bundle 并行加载。

npm i extract-text-webpack-plugin@next -D
const ExtractTextWebpackPlugin = require('extract-text-webpack-plugin');
let cssExtract = new ExtractTextWebpackPlugin({
    filename: 'css/css.css',
    allChunks: true
});
module:{
    rules:[
        {
            test: /\.css$/,//转换文件的匹配正则
            loader: cssExtract.extract({
                use: ["css-loader?minimize"]
            })
        },
    ]
}
plugins:[
    ...... ,
    + cssExtract
]
  • 尽量减少文件解析,用resolve配置文件解析路径,include
rules: {
    test: /\.js$/,
    loader:'babel-loader',
    include: path.resolve(__dirname, 'src'),//只转换或者编译src 目录 下的文件
    exclude: /node_modules/ //不要解析node_modules
}
  • resolve.mainFields
WebpackTest
|
|
| - src
|   | - index.js
|
| - lib
|   | - fetch
|       |
|       browser.js
|       node.js
|       package.json
|
| - webpack.config.js

当从 npm 包中导入模块时(例如,引入lib下的库),此选项将决定在 package.json 中使用哪个字段导入模块。根据 webpack 配置中指定的 target 不同,默认值也会有所不同。

package.json

lib文件夹下的package.json中配置相对应模块的key

{
  "name": "fetch",
  "version": "1.0.0",
  "description": "",
  "node": "./node.js",
  "browser": "./browser.js",
  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1"
  },
  "keywords": [],
  "author": "",
  "license": "ISC"
}

webpack.config.js

在resolve解析对象中,加入lib的路径

resolve: {
    extensions: ['.js', '.json'],
    mainFields: ['main', 'browser', 'node'],
    modules: [path.resolve('node_modules'), path.resolve('lib')]
}

index.js

这样在index.js中引用第三方库时,会去查找modules下的路径中是否配置了所需的文件,知道在package.json中找到mainFields中的key对应文件,停止。

let fetch = require('fetch');
console.log(fetch);

打包后 console.log出的对象

如果交换mainFields中的key顺序

mainFields: ['main', 'node','browser']

打包后 console.log出的对象,因为找到了key=node对应的文件就停止了查找

  • DllReferencePlugin

这个插件是在 webpack 主配置文件中设置的, 这个插件把只有 dll 的 bundle(们)(dll-only-bundle(s)) 引用到需要的预编译的依赖。

新建webpack.react.config.js

const path = require('path');
const webpack = require('webpack')
module.exports = {
    entry: {
        react: ['react', 'react-dom']
    },
    output: {
        path: path.join(__dirname, 'dist'),// 输出动态连接库的文件名称
        filename: '[name]_dll.js',
        library: '_dll_[name]'//全局变量的名字,其它会从此变量上获取到里面的模块
    },
    // manifest 表示一个描述文件
    plugins: [
        new webpack.DllPlugin({
            name: '_dll_[name]',
            path: path.join(__dirname, 'dist', 'manifest.json')//最后打包出来的文件目录和名字
        })
    ]
}
在entry入口写入要打包成dll的文件,这里把体积较大的react和react-dom打包

output中的关键是library的全局变量名,下文详细说明dll&manifest工作原理

打包dll文件

webpack --config webpack.react.config.js --mode development

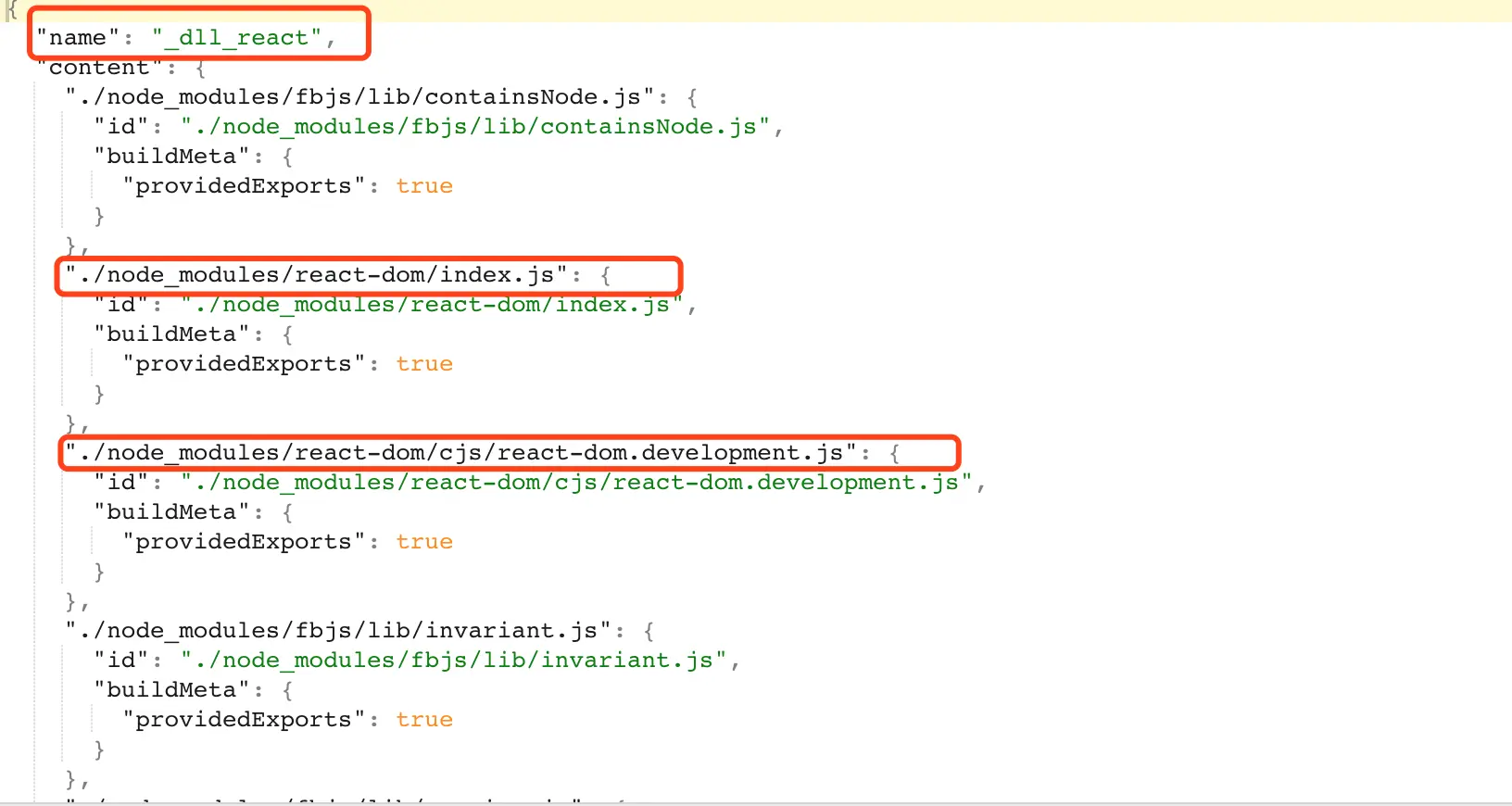

打包出来的manifest.json节选

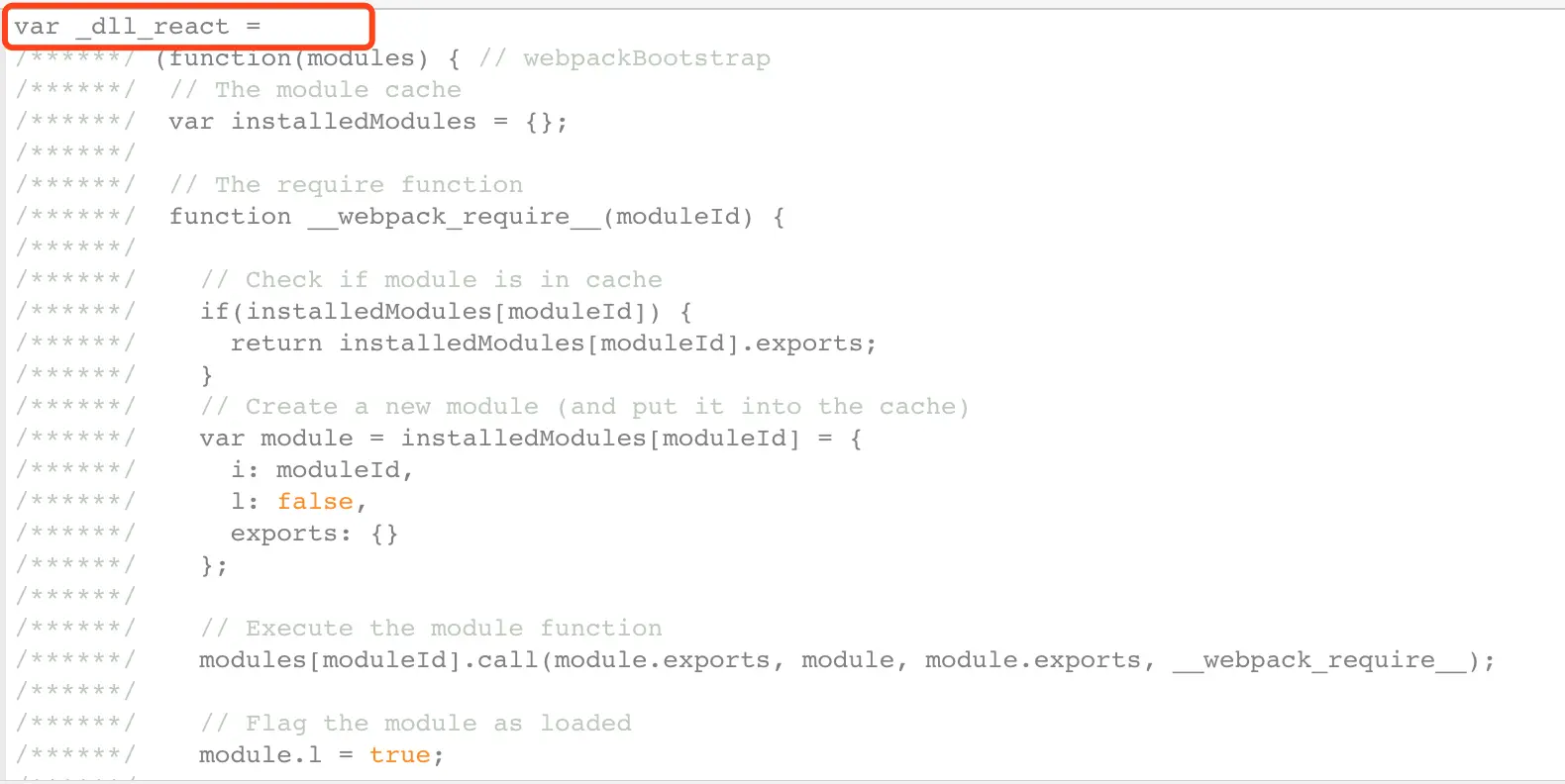

打包出来的react_dll.js节选

可见manifest.json中的 name值就是

output:{
    library:_dll_react
}

manifest.json就是借书证,_dll_react就像图书馆书籍的条形码,为我们最终找到filename为react_dll.js的参考书

使用“参考书”

在webpack.config.js中加入“借书证”

new webpack.DllReferencePlugin({
    manifest: path.join(__dirname, 'dist', 'manifest.json')
})

再运行

webpack --mode development

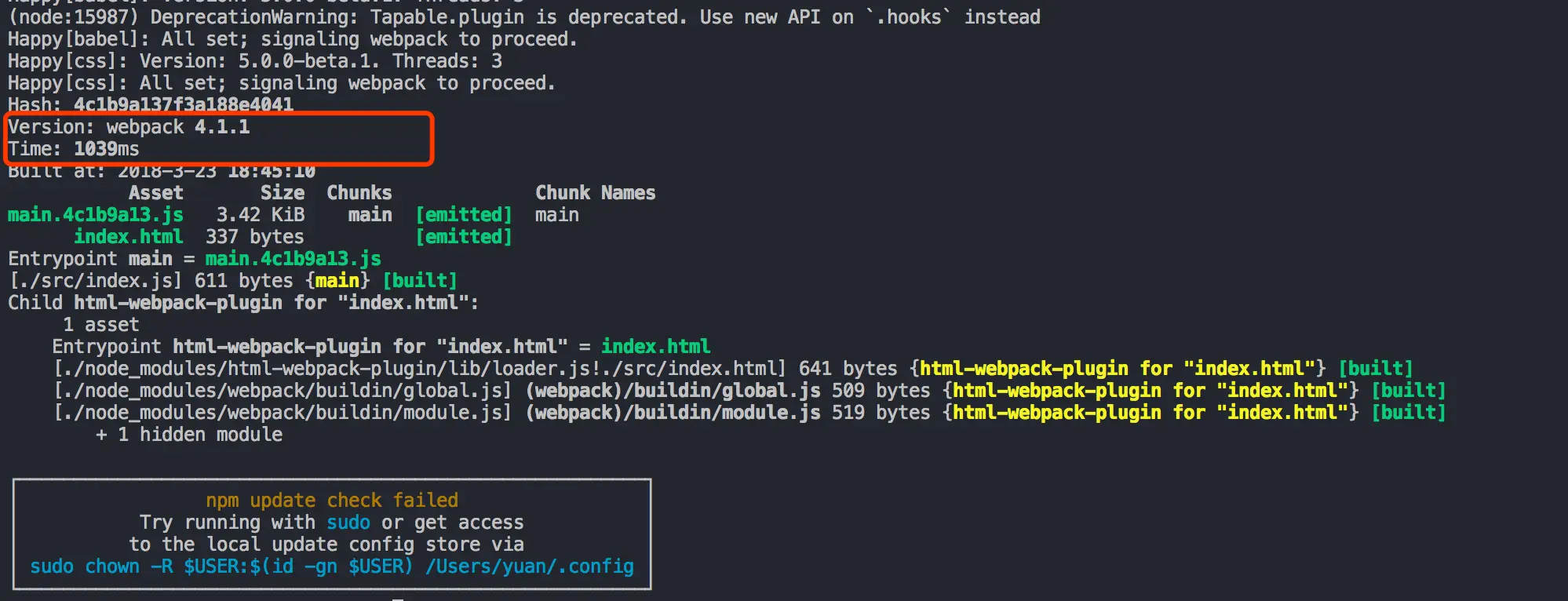

打包速度显著变快

打包后的main.js中,react,react-dom.js也打包进来了,成功~

import React from 'react';\n//import ReactDOM from 'react-dom';
 (function(module, exports, __webpack_require__) {

"use strict";
eval("\n\n//import name from './base';\n//import React from 'react';\n//import ReactDOM from 'react-dom';\n//import ajax from 'ajax';\n//let result = ajax('/ajax');\n\n//ReactDOM.render(<h1>{result}</h1>, document.getElementById('root'));\n// fetch fetch.js fetch.json fetch文件夹\n//let fetch = require('fetch');\n//console.log(fetch);\n//let get = require('../dist/bundle.js');\n//get.getName();\nconsole.log('hello');\n\nvar name = 'zfpx';\nconsole.log(name);\nif (true) {\n    var s = 'ssssssssssssssssssssssss';\n    console.log(s);\n    console.log(s);\n    console.log(s);\n    console.log(s);\n}\n\n//# sourceURL=webpack:///./src/index.js?");

/***/ })

/******/ });

未完待续

  • webpack.ProvidePlugin
  • 拷贝静态资源
  • 压缩css(npm i -D purifycss-webpack purify-css)

觉得好玩就关注一下~欢迎大家收藏写评论~~~
