Retrofit源码解析

理想是自由
308 阅读13分钟

文章首发于个人博客

参考:

准备

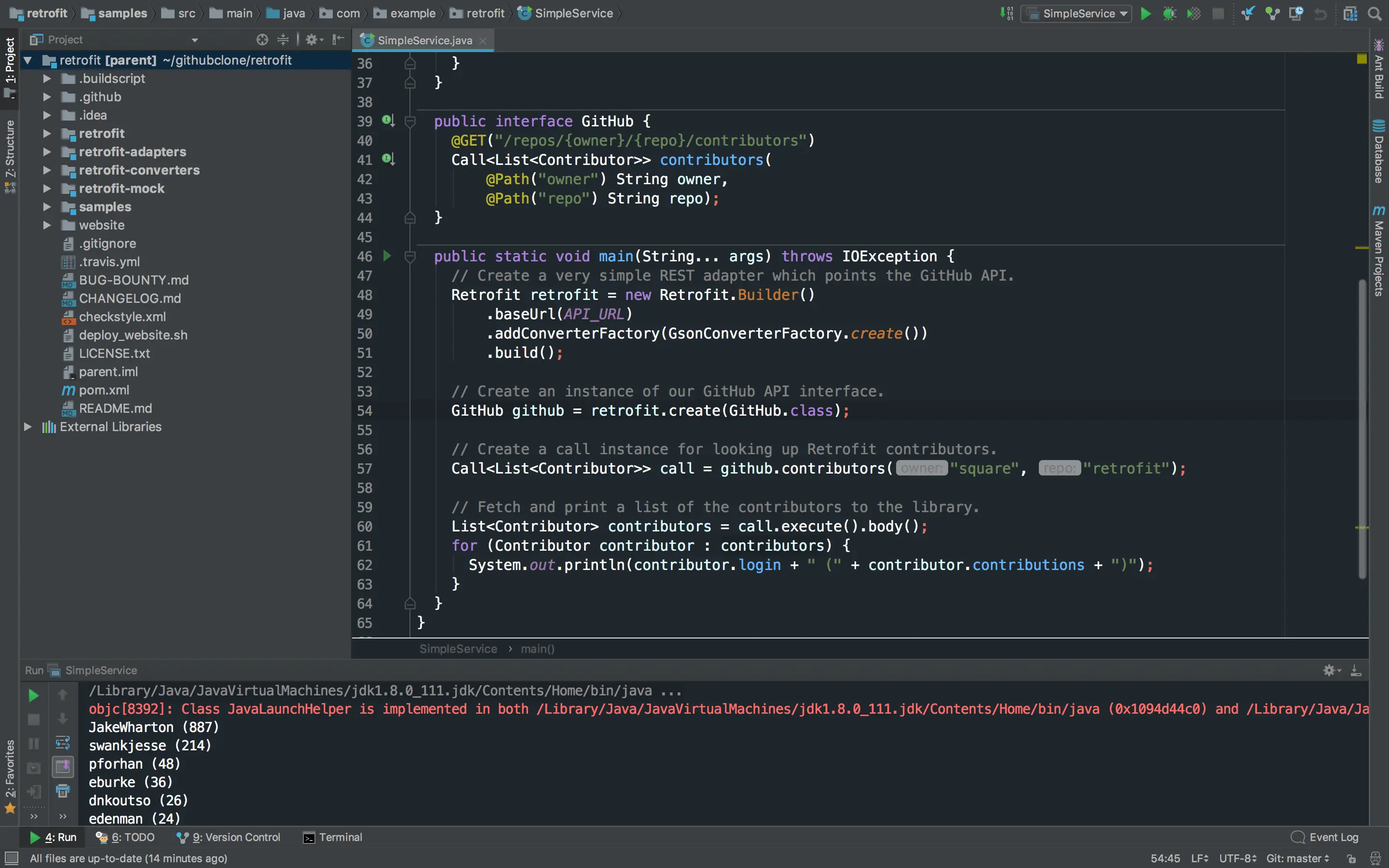

和上次看okhttp的源码一样, 先把源码clone下来, 导入Intellij IDEA用maven构建

使用示例

Gson gson = new GsonBuilder().setDateFormat("yyyy-MM-dd'T'HH:mm:ss.SSS'Z'")
        .serializeNulls()
        .create();

HttpLoggingInterceptor logger = new HttpLoggingInterceptor();
logger.setLevel(Level.BODY);
OkHttpClient client =
        new Builder().addInterceptor(logger).connectTimeout(12, TimeUnit.SECONDS).build();
String baseUrl = "http://gank.io/";
Retrofit.Builder builder = new Retrofit.Builder().baseUrl(baseUrl)
        .client(client)
        .addCallAdapterFactory(
                RxJavaCallAdapterFactory.createWithScheduler(Schedulers.io()))
        .addConverterFactory(GsonConverterFactory.create(gson));
Retrofit retrofit = builder.build();
return retrofit;

同步请求

new Thread(new Runnable() {
    @Override
    public void run() {
        GankApi gankApi = mRetrofit.create(GankApi.class);
        final Call<MeizhiModel> call = gankApi.getMeiZhi(10, 1);
        try {
            MeizhiModel meizhiModel = call.execute().body();
            Log.d(TAG, "meizhiModel = " + meizhiModel.toString());
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}).start();

异步请求

GankApi gankApi = mRetrofit.create(GankApi.class);
Call<MeizhiModel> call = gankApi.getMeiZhi(10, 1);
call.enqueue(new Callback<MeizhiModel>() {
    @Override
    public void onResponse(Call<MeizhiModel> call, Response<MeizhiModel> response) {
        Log.d(TAG, "currentThread = " + Thread.currentThread().getName());
        Log.d(TAG, "response = " + response.body().toString());
    }

    @Override
    public void onFailure(Call<MeizhiModel> call, Throwable t) {

    }
});

Retrofit的创建

从这句代码我们点进去看

Retrofit retrofit = new Retrofit.Builder()
    .baseUrl(API_URL)
    .addConverterFactory(GsonConverterFactory.create())
    .build();

Builder(Platform platform) {
  this.platform = platform;
}

public Builder() {
  this(Platform.get());
}

看一下Platform.get()方法

class Platform {
  private static final Platform PLATFORM = findPlatform();

  static Platform get() {
    return PLATFORM;
  }

  private static Platform findPlatform() {
    try {
      Class.forName("android.os.Build");
      if (Build.VERSION.SDK_INT != 0) {
        return new Android();
      }
    } catch (ClassNotFoundException ignored) {
    }
    try {
      Class.forName("java.util.Optional");
      return new Java8();
    } catch (ClassNotFoundException ignored) {
    }
    return new Platform();
  }
  ...

从上面的代码可以看出通过Class.forName反射获取类名的方式，来判断当前的平台是Android或者是java8又或者是一个默认的平台. 我们Android这个类, 可能后面要用到

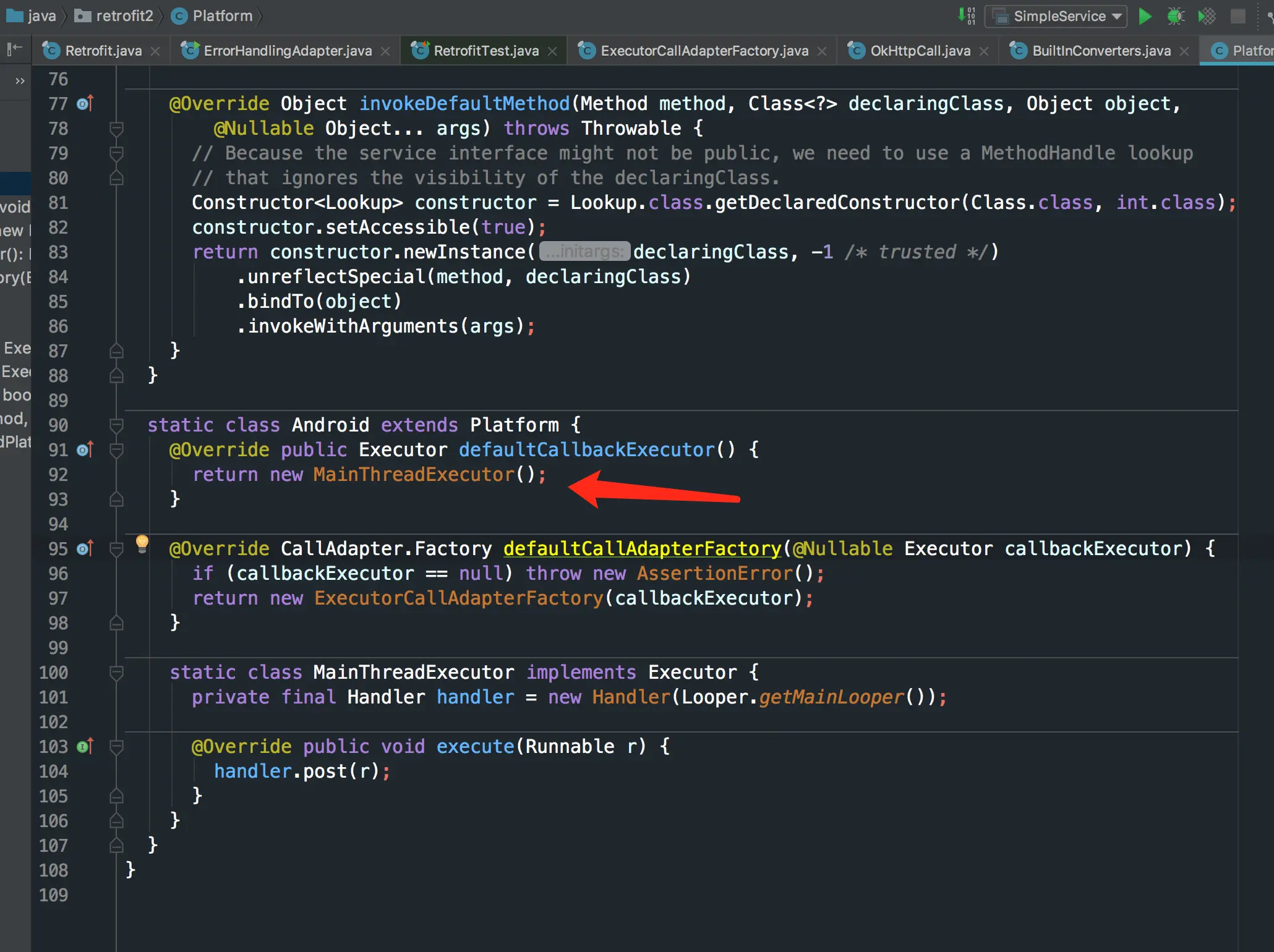

  static class Android extends Platform {
    @Override public Executor defaultCallbackExecutor() {
      return new MainThreadExecutor();
    }

    @Override CallAdapter.Factory defaultCallAdapterFactory(@Nullable Executor callbackExecutor) {
      if (callbackExecutor == null) throw new AssertionError();
      return new ExecutorCallAdapterFactory(callbackExecutor);
    }

    static class MainThreadExecutor implements Executor {
      private final Handler handler = new Handler(Looper.getMainLooper());

      @Override public void execute(Runnable r) {
        handler.post(r);
      }
    }
  }

Retrofit.create

看一下这个方法

  public <T> T create(final Class<T> service) {
    Utils.validateServiceInterface(service);
    if (validateEagerly) {
      eagerlyValidateMethods(service);
    }
    return (T) Proxy.newProxyInstance(service.getClassLoader(), new Class<?>[] { service },
        new InvocationHandler() {
          private final Platform platform = Platform.get();

          @Override public Object invoke(Object proxy, Method method, @Nullable Object[] args)
              throws Throwable {
            // If the method is a method from Object then defer to normal invocation.
            if (method.getDeclaringClass() == Object.class) {
              return method.invoke(this, args);
            }
            if (platform.isDefaultMethod(method)) {
              return platform.invokeDefaultMethod(method, service, proxy, args);
            }
            ServiceMethod<Object, Object> serviceMethod =
                (ServiceMethod<Object, Object>) loadServiceMethod(method);
            OkHttpCall<Object> okHttpCall = new OkHttpCall<>(serviceMethod, args);
            return serviceMethod.callAdapter.adapt(okHttpCall);
          }
        });
  }

这个方法, 我们传进去的是一个interface的字节码对象, 然后得到的是却是一个这个interface的对象, 代理类在程序运行前不存在、运行时由程序动态生成的代理方式称为动态代理。
关于动态代理, 我们还是写一个例子来理解比较好点 新建一个interface

public interface Flyable {
    void fly();
}

再建一个委托类(也就是被代理的类)叫做Bird, 模拟鸟在空中飞行的时间.
动态代理要求委托类必须实现了某个接口，比如这里委托类Bird实现了Flyable

public class Bird implements Flyable {

    private static void sleep(long millSeconds) {
        try {
            Thread.sleep(millSeconds);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }

    @Override
    public void fly() {
        System.out.println("fly");
        sleep(110);
    }
}

现在我想要统计Bird的飞行时间, 要怎么做呢? 新建一个类实现InvocationHandler接口

public class TimingInvocationHandler implements InvocationHandler {

    private Object target;

    public TimingInvocationHandler() {}

    public TimingInvocationHandler(Object target) {
        this.target = target;
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        long start = System.currentTimeMillis();
        Object obj = method.invoke(target, args);
        System.out.println(method.getName() + " cost time is:" + (System.currentTimeMillis() - start));
        return obj;
    }
}

这里的这个target表示委托类对象, 从外部传进来, 也就是上面的Bird对象 InvocationHandler是负责连接代理类和委托类的中间类必须实现的接口。其中只有一个 public Object invoke(Object proxy, Method method, Object[] args) proxy表示通过Proxy.newProxyInstance()生成的代理类对象 method表示代理对象被调用的函数 args表示代理对象被调用的函数的参数 调用代理对象的每个函数实际最终都是调用了InvocationHandler的invoke函数。这里我们在invoke实现中添加了开始结束计时，其中还调用了委托类对象target(也就是传进来的bird对象)的相应函数，这样便完成了统计执行时间的需求. 接下来通过 Proxy 类静态函数生成代理对象

public class Main {

    public static void main(String[] args) {
        TimingInvocationHandler timingInvocationHandler =
                new TimingInvocationHandler(new Bird());
        Flyable flyable = (Flyable) (Proxy.newProxyInstance(Flyable.class.getClassLoader(),
                new Class[] { Flyable.class }, timingInvocationHandler));
        // 调用该代理对象的函数会调用到timingInvocationHandler的invoke方法
        // 而invoke方法会去反射调用实现类的方法, 然后输出反射所花费的时间
        flyable.fly();
        System.out.println();
    }
}

输出结果:

fly
fly cost time is:115

我们可以这样理解，如上的动态代理实现实际是双层的静态代理，开发者提供了委托类 Bird(就是被代理的对象)，程序动态生成了代理类Flyable。开发者还需要提供一个实现了InvocationHandler的子类TimingInvocationHandler，TimingInvocationHandler是代理类Flyable的委托类，委托类Bird的代理类。用户直接调用代理类Flyable的对象，Flyable将调用转发给委托类TimingInvocationHandler，TimingInvocationHandler再将调用转发给它的委托类Bird。 关于更多动态代理的知识, 可以看看这几篇
公共技术点之 Java 动态代理
10分钟看懂动态代理设计模式
从一道面试题开始说起 枚举、动态代理的原理

OK, 理解了动态代理之后, 我们可以看看Retrofit.create()这个方法了

  public <T> T create(final Class<T> service) {
    // 确保service这个类是一个接口, 并且这个接口没有实现别的接口
    Utils.validateServiceInterface(service);
    // 是否需要提前解析接口方法
    if (validateEagerly) {
      eagerlyValidateMethods(service);
    }
    // 传入类加载器, 接口对象, 和一个InvocationHandler
    return (T) Proxy.newProxyInstance(service.getClassLoader(), new Class<?>[] { service },
        new InvocationHandler() {
          private final Platform platform = Platform.get();

          @Override public Object invoke(Object proxy, Method method, @Nullable Object[] args)
              throws Throwable {
            // If the method is a method from Object then defer to normal invocation.
            // 返回表示声明由此Method对象表示的方法的类的Class对象
            // 假如这个方法是从Object类继承下来的, 就调用InvocationHandler对象的方法
            if (method.getDeclaringClass() == Object.class) {
              return method.invoke(this, args);
            }
            if (platform.isDefaultMethod(method)) {
              return platform.invokeDefaultMethod(method, service, proxy, args);
            }
            // 将接口方法构造为ServiceMethod, 注意这里是核心方法
            ServiceMethod<Object, Object> serviceMethod =
                (ServiceMethod<Object, Object>) loadServiceMethod(method);
            OkHttpCall<Object> okHttpCall = new OkHttpCall<>(serviceMethod, args);
            return serviceMethod.callAdapter.adapt(okHttpCall);
          }
        });
  }

注释我已经在代码中写好了 重点就是这三句代码

ServiceMethod<Object, Object> serviceMethod = (ServiceMethod<Object, Object>) loadServiceMethod(method);
OkHttpCall<Object> okHttpCall = new OkHttpCall<>(serviceMethod, args);
return serviceMethod.callAdapter.adapt(okHttpCall);

我们来看看核心方法 先看这个

  ServiceMethod<?, ?> loadServiceMethod(Method method) {
    // 先从缓存中取ServiceMethod, 如果有的话
    ServiceMethod<?, ?> result = serviceMethodCache.get(method);
    if (result != null) return result;
    // 如果没有缓存
    synchronized (serviceMethodCache) {
      // 再取一遍缓存, 如果还是没有, 就构造一个, 同时放到缓存里面
      result = serviceMethodCache.get(method);
      if (result == null) {
        result = new ServiceMethod.Builder<>(this, method).build();
        serviceMethodCache.put(method, result);
      }
    }
    return result;
  }

我们看看这个ServiceMethod是怎么构建出来的

    Builder(Retrofit retrofit, Method method) {
      this.retrofit = retrofit;
      // 接口的方法
      this.method = method;
      // 接口方法的注解
      this.methodAnnotations = method.getAnnotations();
      // 接口方法的参数类型
      this.parameterTypes = method.getGenericParameterTypes();
      // 接口方法的参数的注解
      this.parameterAnnotationsArray = method.getParameterAnnotations();
    }

    public ServiceMethod build() {
      // 根据方法的返回类型和方法的注解创建一个CallAdapter
      // 如果没有添加 CallAdapter 那么默认会用 ExecutorCallAdapterFactory
      callAdapter = createCallAdapter();
      // response的类型, 其实就是方法的返回类型中的第一个泛型参数
      // 比如 Call<User> 中的 User
      responseType = callAdapter.responseType();
      if (responseType == Response.class || responseType == okhttp3.Response.class) {
        throw methodError("'"
            + Utils.getRawType(responseType).getName()
            + "' is not a valid response body type. Did you mean ResponseBody?");
      }
      // 根据responseType和方法的注解, 获取converterFactories中的第一个responseConverter
      responseConverter = createResponseConverter();

      // 根据接口方法的注解构造请求方法，比如 @GET @POST @DELETE 等
      // 检查url中有无带?，转化 path 中的参数
      // 另外如果有@Headers还有添加请求头，
      for (Annotation annotation : methodAnnotations) {
        parseMethodAnnotation(annotation);
      }

      if (httpMethod == null) {
        throw methodError("HTTP method annotation is required (e.g., @GET, @POST, etc.).");
      }

      // 如果没有body, 就不能是Multipart和FormEncoded类型
      if (!hasBody) {
        if (isMultipart) {
          throw methodError(
              "Multipart can only be specified on HTTP methods with request body (e.g., @POST).");
        }
        if (isFormEncoded) {
          throw methodError("FormUrlEncoded can only be specified on HTTP methods with "
              + "request body (e.g., @POST).");
        }
      }

      // 下面的代码主要用来解析接口方法参数中的注解，比如 @Path @Query @QueryMap @Field 等等
      // 相应的，每个方法的参数都创建了一个 ParameterHandler<?> 对象
      int parameterCount = parameterAnnotationsArray.length;
      parameterHandlers = new ParameterHandler<?>[parameterCount];
      for (int p = 0; p < parameterCount; p++) {
        Type parameterType = parameterTypes[p];
        if (Utils.hasUnresolvableType(parameterType)) {
          throw parameterError(p, "Parameter type must not include a type variable or wildcard: %s",
              parameterType);
        }

        Annotation[] parameterAnnotations = parameterAnnotationsArray[p];
        if (parameterAnnotations == null) {
          throw parameterError(p, "No Retrofit annotation found.");
        }

        parameterHandlers[p] = parseParameter(p, parameterType, parameterAnnotations);
      }

      // 检查构造出的请求有没有不对的地方
      if (relativeUrl == null && !gotUrl) {
        throw methodError("Missing either @%s URL or @Url parameter.", httpMethod);
      }
      if (!isFormEncoded && !isMultipart && !hasBody && gotBody) {
        throw methodError("Non-body HTTP method cannot contain @Body.");
      }
      if (isFormEncoded && !gotField) {
        throw methodError("Form-encoded method must contain at least one @Field.");
      }
      if (isMultipart && !gotPart) {
        throw methodError("Multipart method must contain at least one @Part.");
      }

      return new ServiceMethod<>(this);
    }

代码比较长,这两个方法主要就是对API接口中的方法进行解析, 构造一个ServiceMethod, 然后返回给OkHttpCall使用.大致做了这些事情:

  1. 创建CallAdapter
  2. 创建ResponseConerter
  3. 根据API接口方法的注解构造网络请求方法
  4. 根据API接口方法参数中的注解构造网络请求的参数
  5. 检查有无异常 接下来看看OkHttpCall<Object> okHttpCall = new OkHttpCall<>(serviceMethod, args);这个方法 OkHttpCall的构造方法是这样的, 没什么可说
  OkHttpCall(ServiceMethod<T, ?> serviceMethod, @Nullable Object[] args) {
    this.serviceMethod = serviceMethod;
    this.args = args;
  }

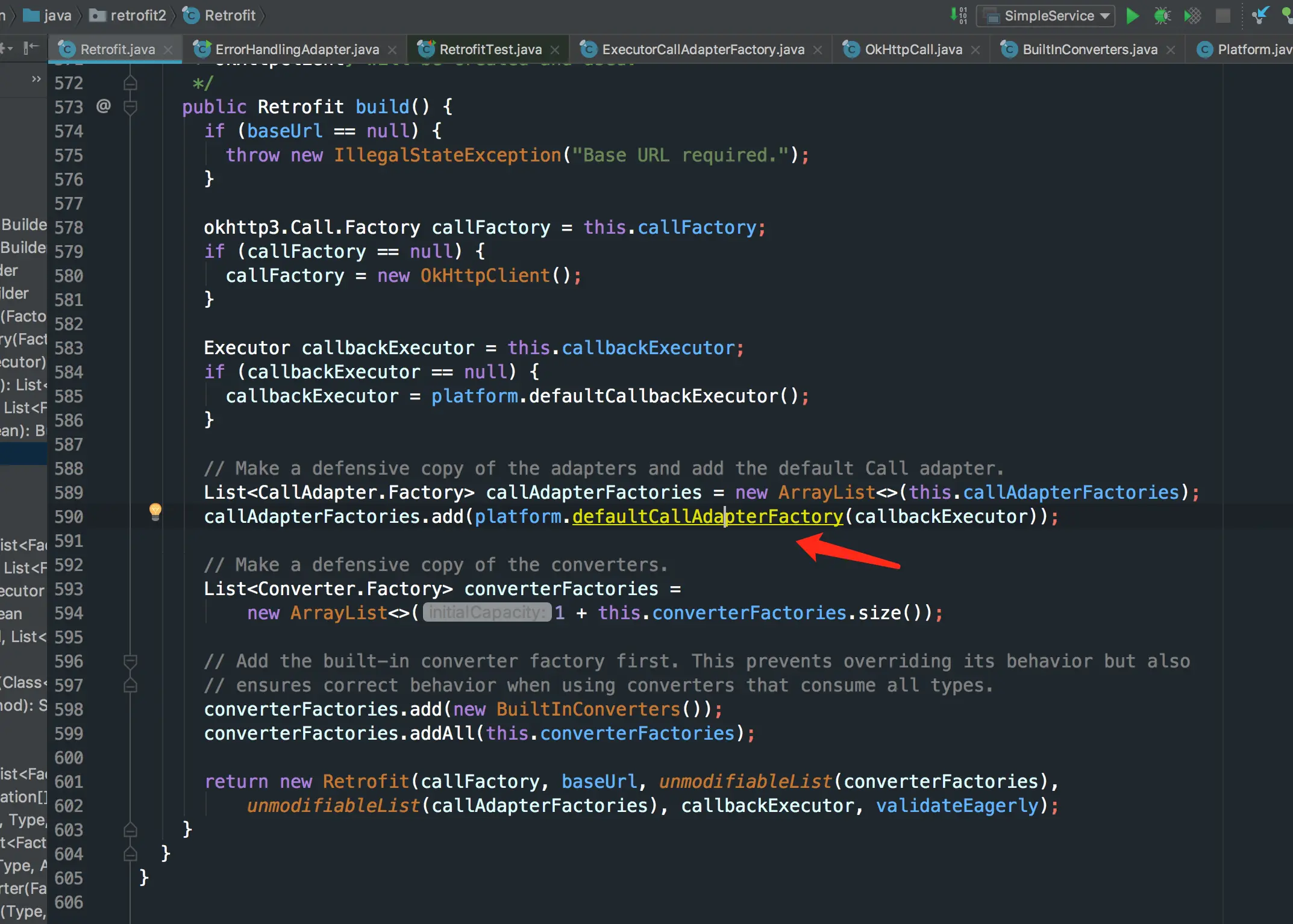

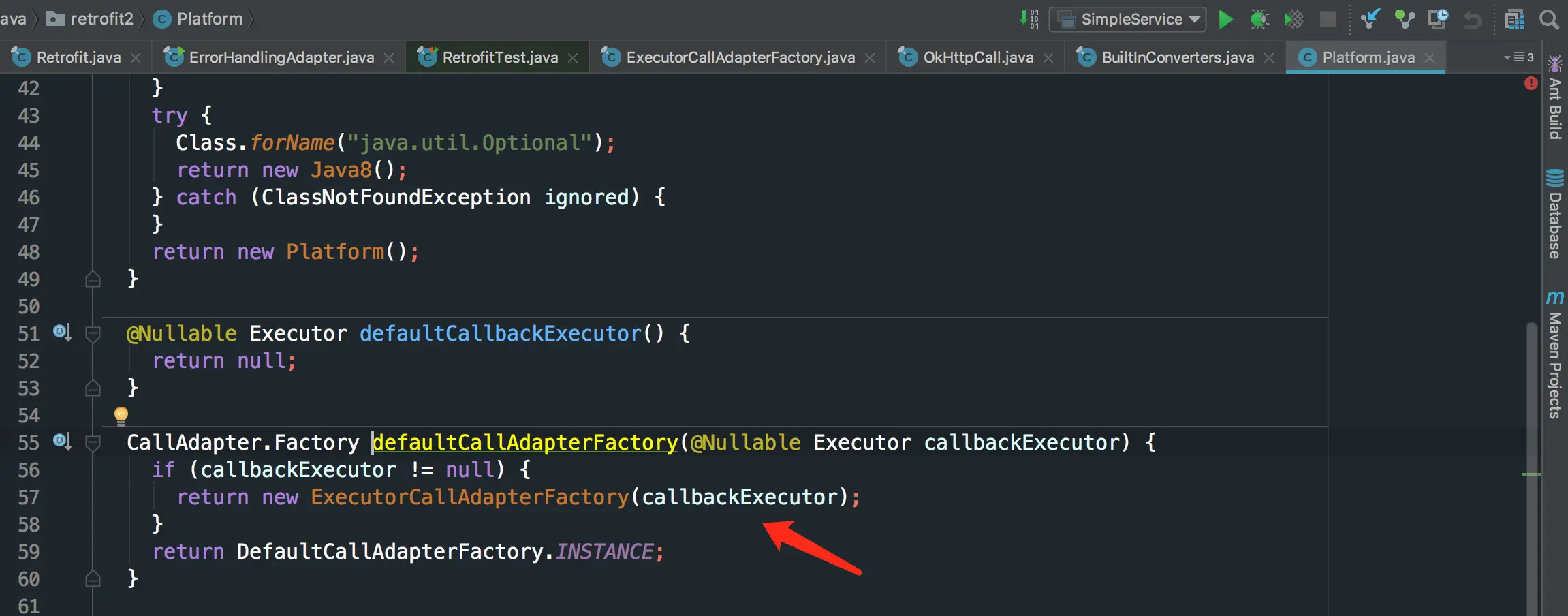

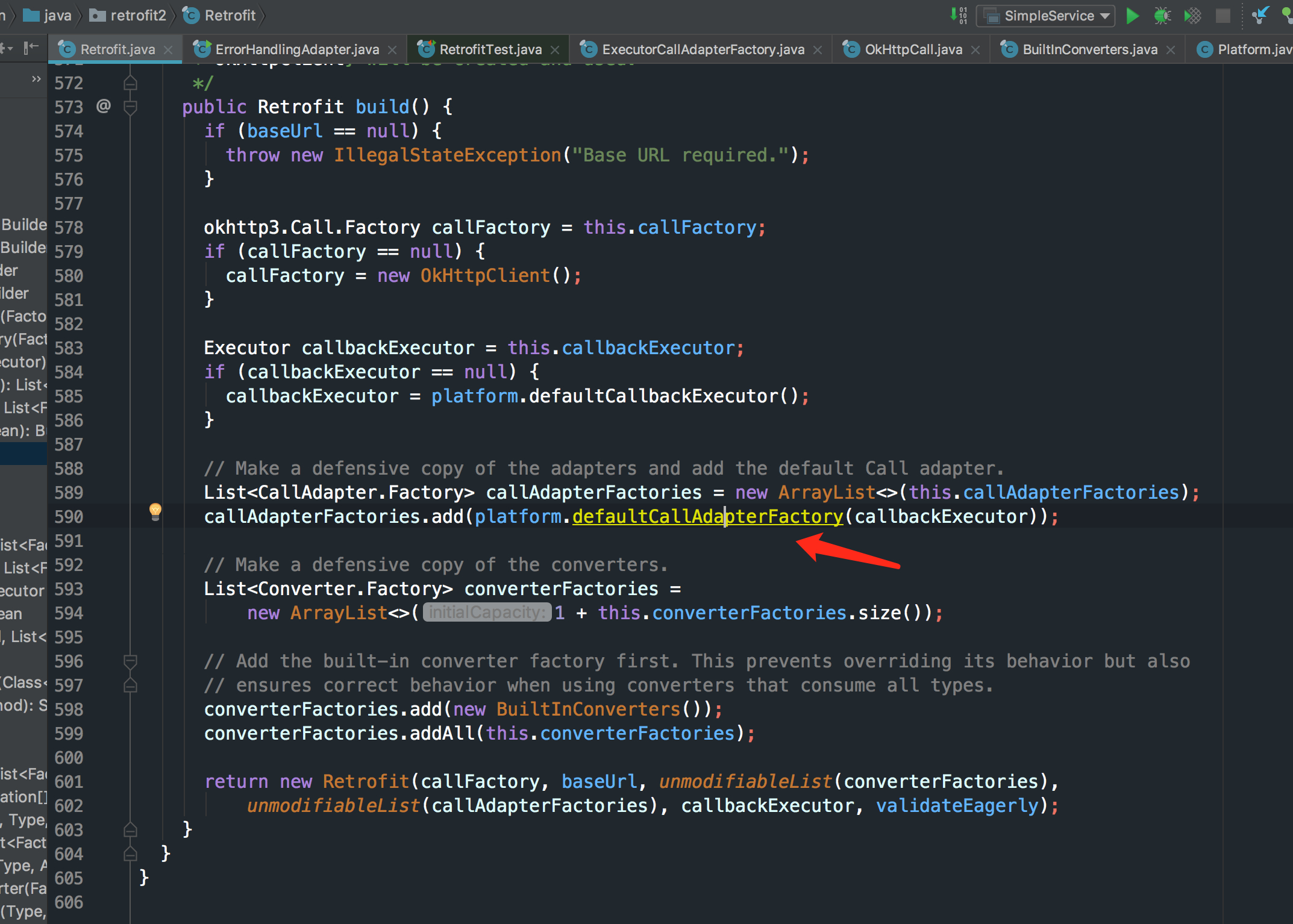

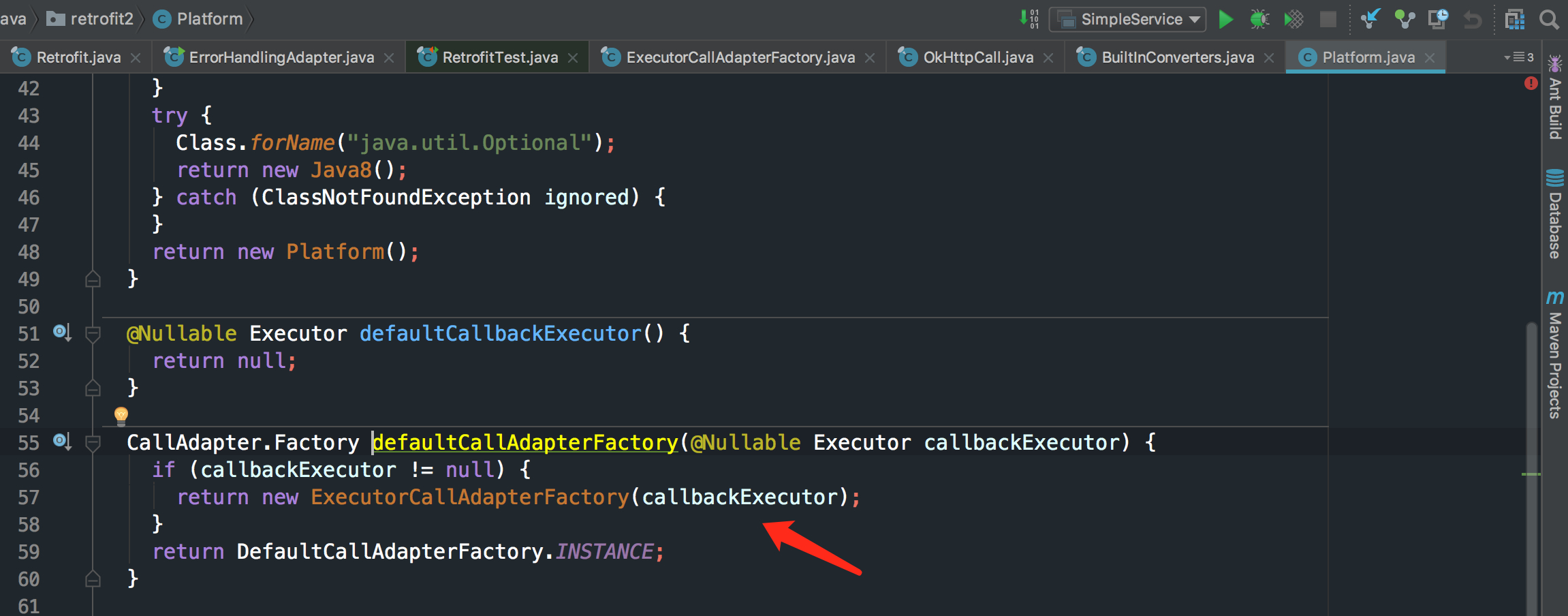

接着再看return serviceMethod.callAdapter.adapt(okHttpCall);这个方法 这个serviceMethod.callAdapter就是serviceMethod在构建的时候创建出来的callAdapter, 跟踪createCallAdapter()这个方法, 在 Retrofit 中默认的 callAdapterFactory 是 ExecutorCallAdapterFactory, 所以这个callAdapter是由一个ExecutorCallAdapterFactory(来自于retrofit的adapterFactories)的get(Type returnType, Annotation[] annotations, Retrofit retrofit)生成的

final class ExecutorCallAdapterFactory extends CallAdapter.Factory {
  final Executor callbackExecutor;

  ExecutorCallAdapterFactory(Executor callbackExecutor) {
    this.callbackExecutor = callbackExecutor;
  }

  @Override
  public CallAdapter<?, ?> get(Type returnType, Annotation[] annotations, Retrofit retrofit) {
    if (getRawType(returnType) != Call.class) {
      return null;
    }
    final Type responseType = Utils.getCallResponseType(returnType);
    return new CallAdapter<Object, Call<?>>() {
      @Override public Type responseType() {
        return responseType;
      }

      @Override public Call<Object> adapt(Call<Object> call) {
        return new ExecutorCallbackCall<>(callbackExecutor, call);
      }
    };
  }

可以看到这个get()方法返回了一个匿名内部类, 它的adpter方式是return new ExecutorCallbackCall<>(callbackExecutor, call); 看一下这个构造方法

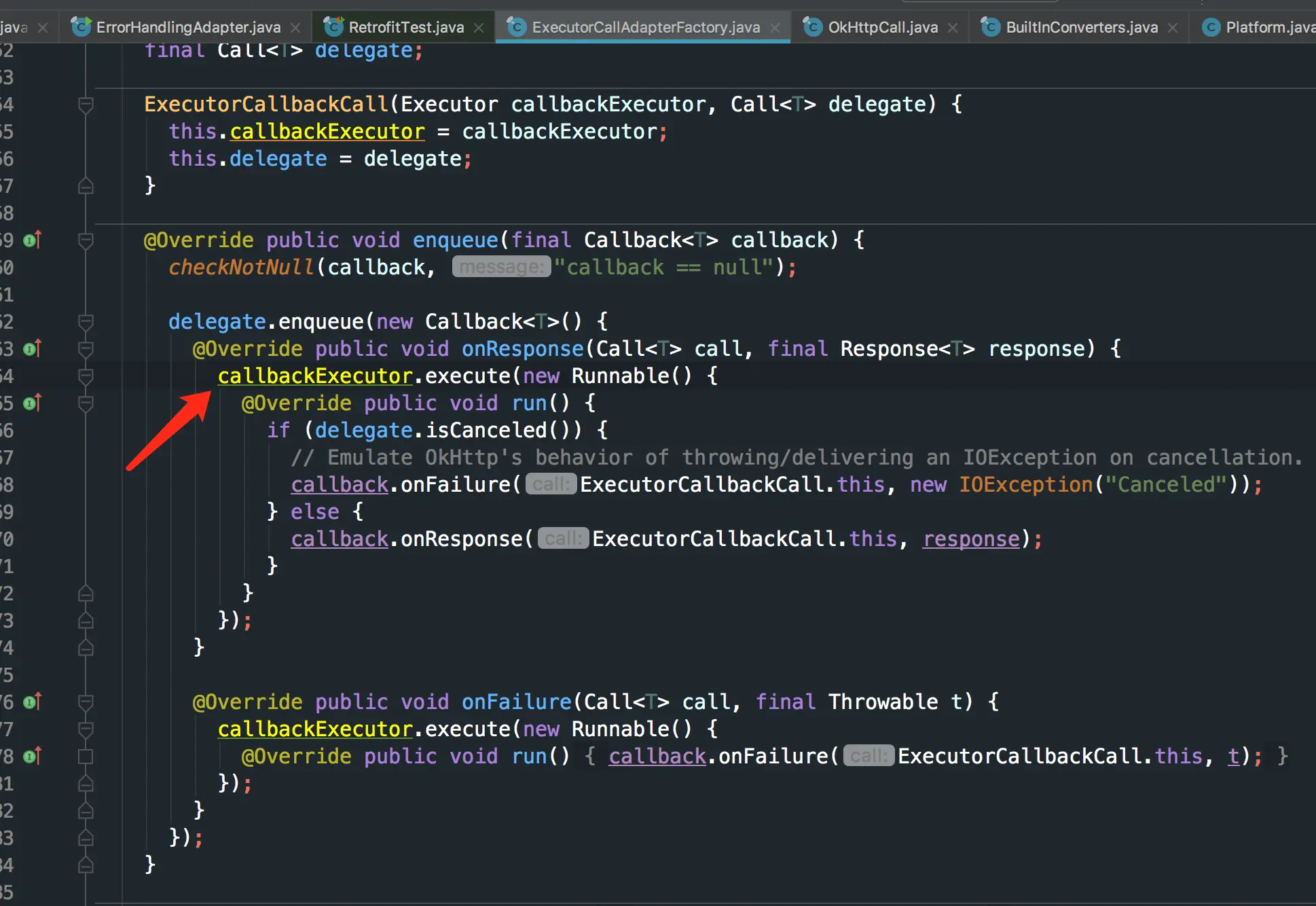

  static final class ExecutorCallbackCall<T> implements Call<T> {
    final Executor callbackExecutor;
    final Call<T> delegate;

    ExecutorCallbackCall(Executor callbackExecutor, Call<T> delegate) {
      this.callbackExecutor = callbackExecutor;
      this.delegate = delegate;
    }
    ...

ExecutorCallbackCall实现了Retrofit.Call接口, 而我们看到OkHttpCall也是实现了Retrofit.Call接口的, 这个接口中的方法有execute(), enqueue(), isExecuted(), cancel(), isCanceled(), clone(), request()一共7个, 这里使用装饰者模式, 所以我们不妨将代码改写成这样更清楚一些

  public <T> T create(final Class<T> service) {
    Utils.validateServiceInterface(service);
    if (validateEagerly) {
      eagerlyValidateMethods(service);
    }
    return (T) Proxy.newProxyInstance(service.getClassLoader(), new Class<?>[] { service },
        new InvocationHandler() {
          private final Platform platform = Platform.get();

          @Override public Object invoke(Object proxy, Method method, @Nullable Object[] args)
              throws Throwable {
            // If the method is a method from Object then defer to normal invocation.
            if (method.getDeclaringClass() == Object.class) {
              return method.invoke(this, args);
            }
            if (platform.isDefaultMethod(method)) {
              return platform.invokeDefaultMethod(method, service, proxy, args);
            }
            ServiceMethod<Object, Object> serviceMethod =
                (ServiceMethod<Object, Object>) loadServiceMethod(method);
            OkHttpCall<Object> okHttpCall = new OkHttpCall<>(serviceMethod, args);
            return new ExecutorCallbackCall<>(callbackExecutor, okHttpCall);
            // return serviceMethod.callAdapter.adapt(okHttpCall);
          }
        });
  }

serviceMethod中包含了从create()方法中传入的接口字节码文件的所有方法, url, CallFactory, ResponseConverter等, 然后又把这个serviceMethod传入了OkHttpCall构造了一个okhttpCall对象, 然后又把这个okhttpCall对象传入了ExecutorCallbackCall构造了一个ExecutorCallbackCall对象.根据上面动态代理的知识, retrofit.create()会返回一个接口的对象, 调用这个接口对象的方法会调用InvocationHandler中的invoke方法, 返回值也是invoke方法的返回值, 而invoke方法的返回值是一个ExecutorCallbackCall对象, 一般我们都使用Retrofit.Call类型的变量来引用retrofit.create()返回的对象(因为接口中的方法的返回类型是Call嘛), 而正好ExecutorCallbackCall是实现了Retrofit.Call的, 所以这里不会有问题.同时ExecutorCallbackCall使用了装饰者模式

  static final class ExecutorCallbackCall<T> implements Call<T> {
    final Executor callbackExecutor;
    final Call<T> delegate;

    ExecutorCallbackCall(Executor callbackExecutor, Call<T> delegate) {
      this.callbackExecutor = callbackExecutor;
      this.delegate = delegate;
    }

    @Override public void enqueue(final Callback<T> callback) {
      checkNotNull(callback, "callback == null");

      delegate.enqueue(new Callback<T>() {
        @Override public void onResponse(Call<T> call, final Response<T> response) {
          callbackExecutor.execute(new Runnable() {
            @Override public void run() {
              if (delegate.isCanceled()) {
                // Emulate OkHttp's behavior of throwing/delivering an IOException on cancellation.
                callback.onFailure(ExecutorCallbackCall.this, new IOException("Canceled"));
              } else {
                callback.onResponse(ExecutorCallbackCall.this, response);
              }
            }
          });
        }

        @Override public void onFailure(Call<T> call, final Throwable t) {
          callbackExecutor.execute(new Runnable() {
            @Override public void run() {
              callback.onFailure(ExecutorCallbackCall.this, t);
            }
          });
        }
      });
    }

    @Override public boolean isExecuted() {
      return delegate.isExecuted();
    }
    ...

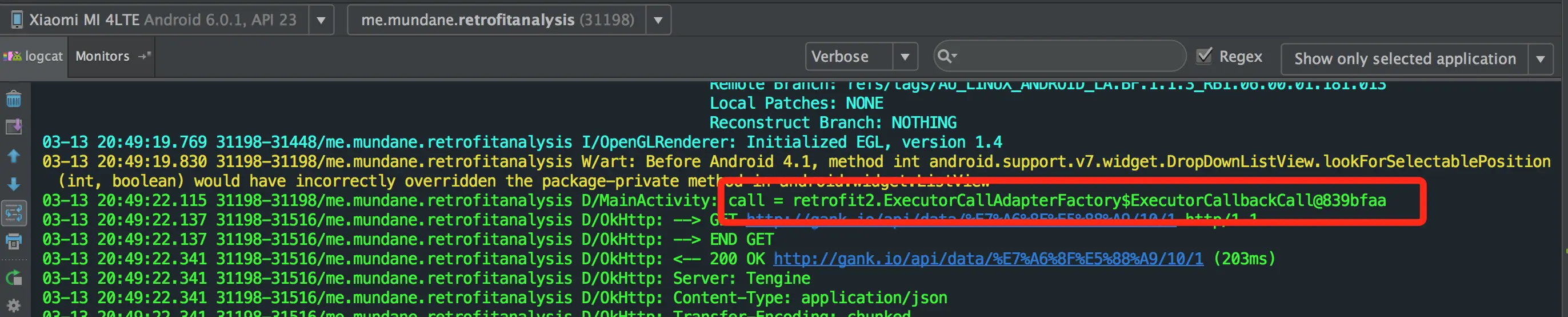

从上面的代码可以看到很显然这是装饰者模式, 对OkHttpCall的方法进行了包装.在retrofit.create()得到一个Call对象之后, 调用这个Call对象的enqueue()方法实际上是调用一个ExecutorCallbackCall对象的enqueue()方法, 不信可以将这个Call对象的名字打印一下 而ExecutorCallbackCall对象的enqueue()方法其实又是调用了传入进去的Retrofit2.OkHttpCall对象的enqueue()方法

ExecutorCallbackCall.execute()

接下来我们看看ExecutorCallbackCall.execute()吧, 异步的一会儿再看.

    @Override public Response<T> execute() throws IOException {
      return delegate.execute();
    }

刚才说了, 这里的delegate其实是Retrofit.create()方法里传进来的OkHttpCall对象, 所以我们去看看

  @Override public Response<T> execute() throws IOException {
    okhttp3.Call call;

    synchronized (this) {
      if (executed) throw new IllegalStateException("Already executed.");
      executed = true;

      if (creationFailure != null) {
        if (creationFailure instanceof IOException) {
          throw (IOException) creationFailure;
        } else {
          throw (RuntimeException) creationFailure;
        }
      }

      call = rawCall;
      if (call == null) {
        try {
          // 注意这里的createRawCall()方法
          call = rawCall = createRawCall();
        } catch (IOException | RuntimeException e) {
          creationFailure = e;
          throw e;
        }
      }
    }

    if (canceled) {
      call.cancel();
    }

    return parseResponse(call.execute());
  }

注意一下注释中标记的createRawCall()方法, 我们跟踪一下

  private okhttp3.Call createRawCall() throws IOException {
    // 根据OkhttpCall$args构造一个okHttp的request
    Request request = serviceMethod.toRequest(args);
    // 这里的serviceMethod.callFactory其实是一个OkHttpClient对象
    okhttp3.Call call = serviceMethod.callFactory.newCall(request);
    if (call == null) {
      throw new NullPointerException("Call.Factory returned null.");
    }
    return call;
  }

可以看到这里其实返回的是一个okhttp3.Call对象, 然后在execute()方法里调用parseResponse(call.execute())方法将结果返回, 我们去看看这个方法

  Response<T> parseResponse(okhttp3.Response rawResponse) throws IOException {
    ResponseBody rawBody = rawResponse.body();

    // Remove the body's source (the only stateful object) so we can pass the response along.
    rawResponse = rawResponse.newBuilder()
        .body(new NoContentResponseBody(rawBody.contentType(), rawBody.contentLength()))
        .build();

    int code = rawResponse.code();
    // 根据code返回response错误
    if (code < 200 || code >= 300) {
      try {
        // Buffer the entire body to avoid future I/O.
        ResponseBody bufferedBody = Utils.buffer(rawBody);
        return Response.error(bufferedBody, rawResponse);
      } finally {
        rawBody.close();
      }
    }

    // 根据code返回成功, 但是没有body
    if (code == 204 || code == 205) {
      rawBody.close();
      return Response.success(null, rawResponse);
    }

    ExceptionCatchingRequestBody catchingBody = new ExceptionCatchingRequestBody(rawBody);
    try {
      // 利用serviceMethod中的responseConverter将body转换成泛型对象, 然后返回成功
      T body = serviceMethod.toResponse(catchingBody);
      return Response.success(body, rawResponse);
    } catch (RuntimeException e) {
      // If the underlying source threw an exception, propagate that rather than indicating it was
      // a runtime exception.
      catchingBody.throwIfCaught();
      throw e;
    }
  }

必要的注释我已经写了, 再看一下serviceMethod.toResponse(catchingBody);方法

  /** Builds a method return value from an HTTP response body. */
  R toResponse(ResponseBody body) throws IOException {
    return responseConverter.convert(body);
  }

那个这个responseConverter是在哪里赋值的呢?赋进去的是一个什么呢? 其实是在retrofit对象创建的时候, 在Retrofit.Builder的构造方法里

    Builder(Platform platform) {
      this.platform = platform;
      // Add the built-in converter factory first. This prevents overriding its behavior but also
      // ensures correct behavior when using converters that consume all types.
      converterFactories.add(new BuiltInConverters());
    }

可以看到加入了一个即使没有指定, 也加入了一个BuildInConverters, 里面包含了多种converter, 而serviceMethod里面的converter是在ServiceMethod的这里生成的

public ServiceMethod build() {
      callAdapter = createCallAdapter();
      responseType = callAdapter.responseType();
      if (responseType == Response.class || responseType == okhttp3.Response.class) {
        throw methodError("'"
            + Utils.getRawType(responseType).getName()
            + "' is not a valid response body type. Did you mean ResponseBody?");
      }
      // 在这里生成
      responseConverter = createResponseConverter();
      ...
}

具体的细节我就不细究了, 有时间再研究.总之用的是BuildInConverters中的responseBodyConverter()方法得到的Converter.看一下代码

final class BuiltInConverters extends Converter.Factory {
  @Override
  public Converter<ResponseBody, ?> responseBodyConverter(Type type, Annotation[] annotations,
      Retrofit retrofit) {
    if (type == ResponseBody.class) {
      return Utils.isAnnotationPresent(annotations, Streaming.class)
          ? StreamingResponseBodyConverter.INSTANCE
          : BufferingResponseBodyConverter.INSTANCE;
    }
    if (type == Void.class) {
      return VoidResponseBodyConverter.INSTANCE;
    }
    return null;
  }

异步请求

关于异步请求, 我不想说的太多, 只说一下如何将okhttp中子线程的请求结果回调到主线程, 就贴几张图吧 注意到这个callbackExecutor, 又是从这里传进来 在这里被调用 而其实这里的platform是Android

总结

Retrofit的源码用到了不少设计模式, 外观模式，动态代理，策略模式，观察者模式, 简单点的还有 Builder 模式，工厂等. CallAdapterFactory决定了interface中请求方法的返回类型, 比如默认是Call类型, 如果是RxJavaCallAdapterFactory就能返回Observable类型, 而ConverterFactory决定了返回类型的泛型, 比如这么一个interface

public interface GankApi {

    // http://gank.io/api/data/福利/10/1
    @GET("api/data/福利/{pagesize}/{page}")
    Call<MeizhiModel> getMeiZhi(@Path("pagesize") int pageSize, @Path("page") int page);

}

Call类型还是Observable类型由CallAdapterFactory决定.
Call中的泛型由ConverterFactory决定,默认的ConverterFactory只能返回ResponseBody类型, 而加了GsonConverterFactory之后就能返回POJO类型, 也就是MeizhiModel类型. 关于这几点, 推荐怪盗kidou的这篇你真的会用 Retrofit2 吗? Retrofit2 完全教程, 写的十分的详细.
关于retrofit, 还有许多的细节, 例如注解参数的校验, 拼接等等, 相信十分的繁琐, 不过我就先只写到这里了.

avatar
文章
阅读
粉丝
