一、Spring MVC
Spring MVC 基于模型-视图-控制器（Model-View-Controller, MVC）模式实现，并且很好的实现了软件设计中的开闭原则（即对扩展开放，对修改关闭），当因为业务需要对Spring MVC做些定制化处理时，就会发现Spring MVC对功能扩展是极其友好的、在后续的源码解析系列文章中我们会陆续看到Spring MVC在处理请求的各个步骤中都可以定制所需要的功能。
二、Spring MVC 整体框架
整个系列的文章都会围绕这张图进行，会对每一个步骤进行详细讲解。

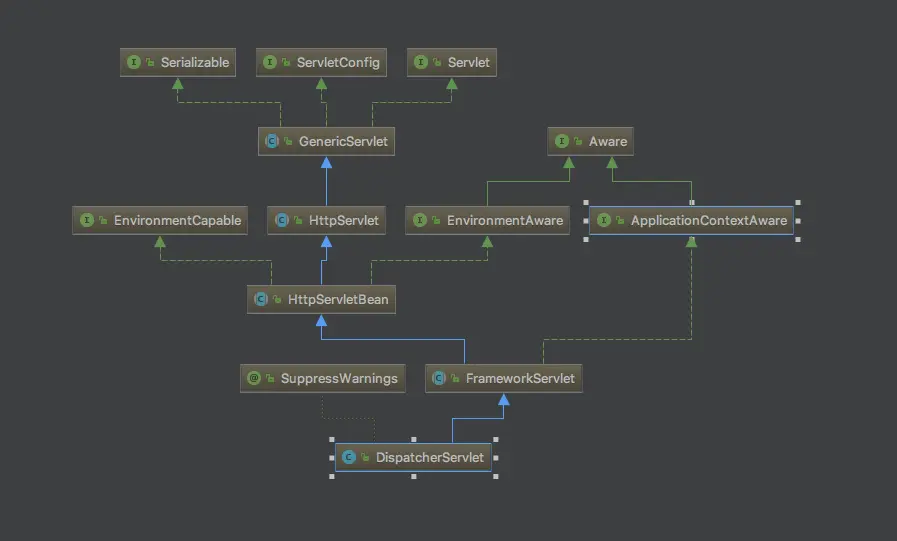

首先我们先来看一下 DispatcherServlet diagram
可以看到蓝色的继承关系到 Servlet 相信大家在学习MVC框架之前对 HttpServlet
非常的熟悉，目前还有一些老项目在使用原生的 java servlet进行项目开发。我们看一下 servlet接口最重要的方法签名：
/**
* Called by the servlet container to allow the servlet to respond to
* a request.
*
* <p>This method is only called after the servlet's <code>init()</code>
* method has completed successfully.
*
* <p> The status code of the response always should be set for a servlet
* that throws or sends an error.
*
*
* <p>Servlets typically run inside multithreaded servlet containers
* that can handle multiple requests concurrently. Developers must
* be aware to synchronize access to any shared resources such as files,
* network connections, and as well as the servlet's class and instance
* variables.
* More information on multithreaded programming in Java is available in
* <a href="http://java.sun.com/Series/Tutorial/java/threads/multithreaded.html">
* the Java tutorial on multi-threaded programming</a>.
*
*
* @param req the <code>ServletRequest</code> object that contains
* the client's request
*
* @param res the <code>ServletResponse</code> object that contains
* the servlet's response
*
* @exception ServletException if an exception occurs that interferes
* with the servlet's normal operation
*
* @exception IOException if an input or output exception occurs
*
*/
public void service(ServletRequest req, ServletResponse res)
throws ServletException, IOException;
这个方法是servlet处理web请求的入口。Spring MVC在DispatchSerlvet还分装了一层FrameWorkServlet用于统一处理所有不同方法类型（GET、POST等）的请求
三、各组件的基本介绍。

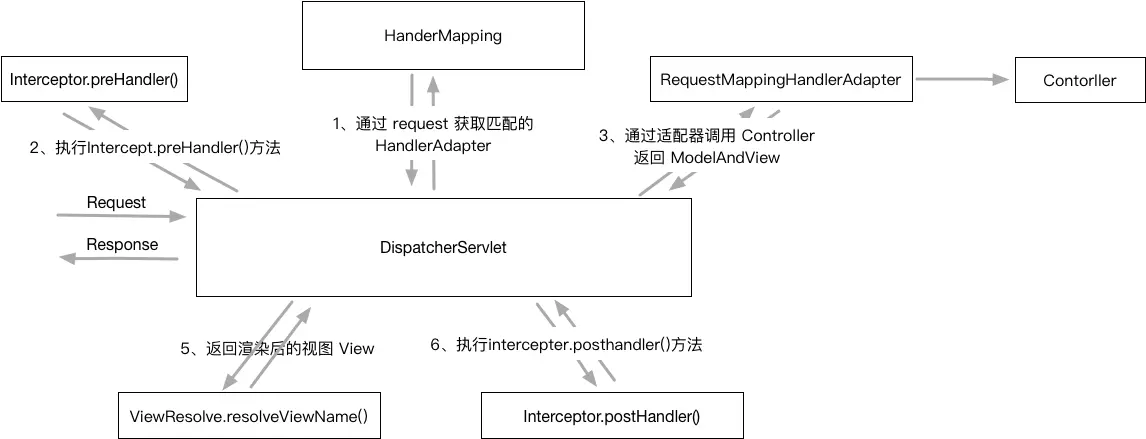

我们从一个Http请求的角度，来大致了解Spring MVC是处理请求的大致流程（例如，到controller方法加@ResponseBody时就不会有视图解析这一步）。
1、web container 接收到一个请求，容器调用已经注册好的DispatcherServlet,后者通过Request对象到RequestMapping
获取对应的 handler(即controller层实际调用的方法)。
2、执行interceptor的preHandler()方法。
3、执行第一步获取的Controller方法，并返回ModelAndView。
4、执行interceptor的postHandler()方法。
5、视图渲染，执行ViewResolve.resolveViewName()方法回去视图文件。
/**
* Process the actual dispatching to the handler.
* <p>The handler will be obtained by applying the servlet's HandlerMappings in order.
* The HandlerAdapter will be obtained by querying the servlet's installed HandlerAdapters
* to find the first that supports the handler class.
* <p>All HTTP methods are handled by this method. It's up to HandlerAdapters or handlers
* themselves to decide which methods are acceptable.
* @param request current HTTP request
* @param response current HTTP response
* @throws Exception in case of any kind of processing failure
*/
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
HttpServletRequest processedRequest = request;
HandlerExecutionChain mappedHandler = null;
boolean multipartRequestParsed = false;
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
try {
ModelAndView mv = null;
Exception dispatchException = null;
try {
//判断请求是否是 multipart post (常见的有 post 表单提交的数据)
processedRequest = checkMultipart(request);
multipartRequestParsed = (processedRequest != request);
// Determine handler for the current request.
//通过request获取handler，包括 intercepter 信息
mappedHandler = getHandler(processedRequest);
if (mappedHandler == null || mappedHandler.getHandler() == null) {
noHandlerFound(processedRequest, response);
return;
}
// Determine handler adapter for the current request.
//获取 handler 适配器
HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
// Process last-modified header, if supported by the handler.
String method = request.getMethod();
boolean isGet = "GET".equals(method);
if (isGet || "HEAD".equals(method)) {
long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
if (logger.isDebugEnabled()) {
logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
}
if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
return;
}
}
//调用 intercepter.perHandler()方法
if (!mappedHandler.applyPreHandle(processedRequest, response)) {
return;
}
// Actually invoke the handler.
//调用controller方法发挥 ModelAndView
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
if (asyncManager.isConcurrentHandlingStarted()) {
return;
}
//当 ModelAndView 中不包含视图时获取默认视图
applyDefaultViewName(processedRequest, mv);
//调用 intercepter.perHandler()方法
mappedHandler.applyPostHandle(processedRequest, response, mv);
}
catch (Exception ex) {
dispatchException = ex;
}
catch (Throwable err) {
// As of 4.3, we're processing Errors thrown from handler methods as well,
// making them available for @ExceptionHandler methods and other scenarios.
dispatchException = new NestedServletException("Handler dispatch failed", err);
}
//视图渲染并将渲染后的视图文件（html）或者 json 等写入Response body 返回给浏览器
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
}
catch (Exception ex) {
triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
}
catch (Throwable err) {
triggerAfterCompletion(processedRequest, response, mappedHandler,
new NestedServletException("Handler processing failed", err));
}
finally {
if (asyncManager.isConcurrentHandlingStarted()) {
// Instead of postHandle and afterCompletion
if (mappedHandler != null) {
mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
}
}
else {
// Clean up any resources used by a multipart request.
if (multipartRequestParsed) {
cleanupMultipart(processedRequest);
}
}
}
}
总结
本文主要介绍了Spring MVC的一些概念以及请求执行的大致过程。后续的文章将继续分析Spring MVC的各个组件，以及如何根据自己的项目定制相应的功能。
