Dagger2从入门到补胎(二)

使用

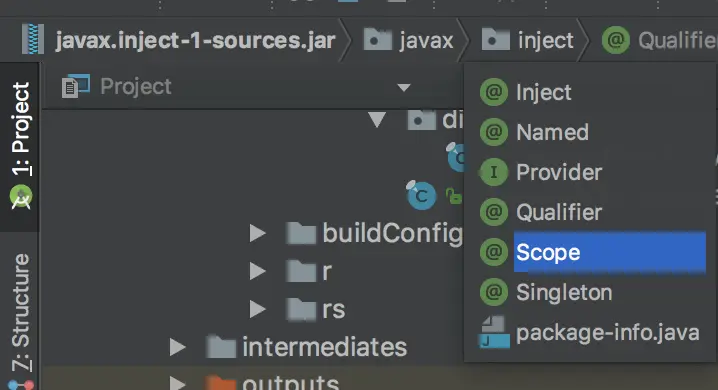

继续学习在代码中会看到的标注：@Named、@Qualifier、@Singleton、@Scope。这四个标注包括之前学的@Inject其实不是在dagger的包中，而是javax-inject包中：

经过上篇的学习，结合@Inject、@Component、@Module、@Provides的使用，先看一个例子：

City.java

public class City {
    private String name;

    public City() {}

    public String show() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }
}

BeanModule.java

@Module
public class BeanModule {
    @Provides
    City providerCityCD() {
        City city = new City();
        city.setName("成都");
        return city;
    }

    @Provides
    City providerCityZG(){
        City city = new City();
        city.setName("自贡");
        return city;
    }
}

MainActivityComponent.java

@Component(modules = BeanModule.class)
public interface MainActivityComponent {
    void inject(MainActivity activity);
}

MainActivity.java

public class MainActivity extends AppCompatActivity {
    public static String TAG = "hcy";
    @Inject
    City city;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        //in Android Studio, select Build > Rebuild Project
        DaggerMainActivityComponent.create().inject(this);
        Log.d(TAG, "city name: " + city.show());
    }
}

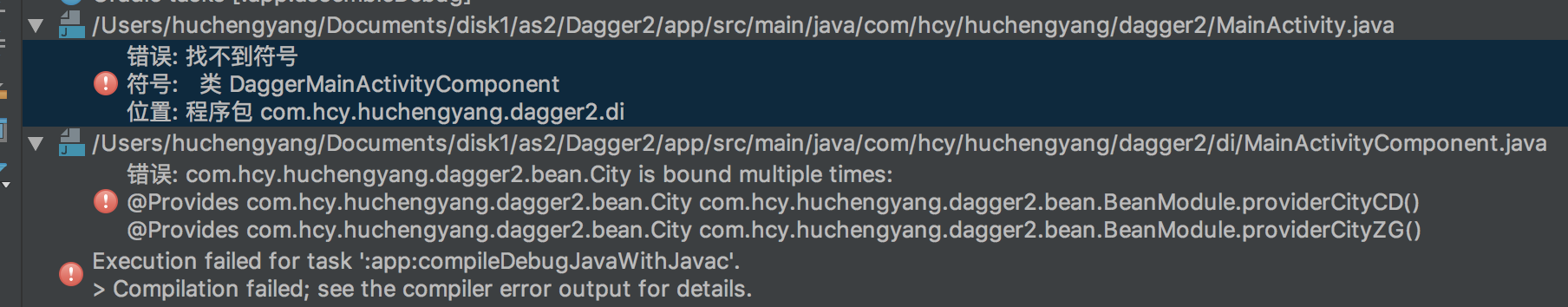

一跑起来就GG了

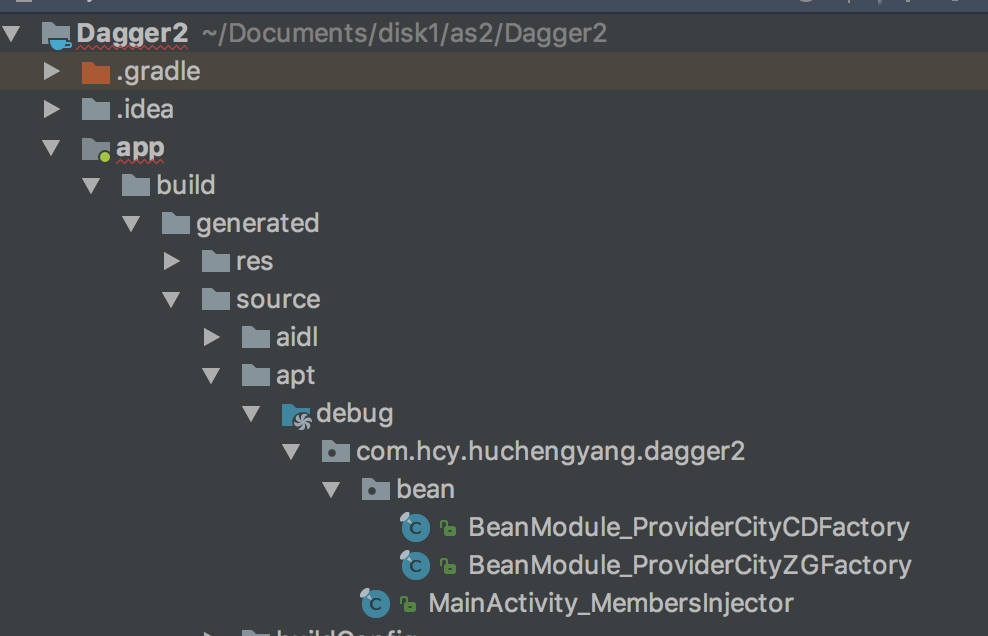

心路历程是这样的，MainActivity.java作为依赖需求方，编译生成MainActivity_MembersInjector，BeanModule.java作为依赖提供方，编译生成两个Xx_Factory，那么问题来了，有两个“备胎”供选择，你选谁？Component一脸懵逼，愣是搞不懂把哪两个"绑定"起来，直接罢工了，因此可以看到上篇中的DaggerMainActivityComponent在这里没有生成。

@Named

那么告诉Component我们要的是哪个不就行啦？可以使用@Named标注，改下BeanModule.java

@Module
public class BeanModule {
    @Named("CD")
    @Provides
    City providerCityCD() {
        City city = new City();
        city.setName("成都");
        return city;
    }

    @Named("ZG")
    @Provides
    City providerCityZG() {
        City city = new City();
        city.setName("自贡");
        return city;
    }
}

MainActivity.java

public class MainActivity extends AppCompatActivity {
    public static String TAG = "hcy";
    @Named("CD")
    @Inject
    City city;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        //in Android Studio, select Build > Rebuild Project
        DaggerMainActivityComponent.create().inject(this);
        Log.d(TAG, "city name: " + city.show());

@Named("参数")和被引用的地方填的一致就可以了，编译运行就不会报错了。此时编译生成的文件：

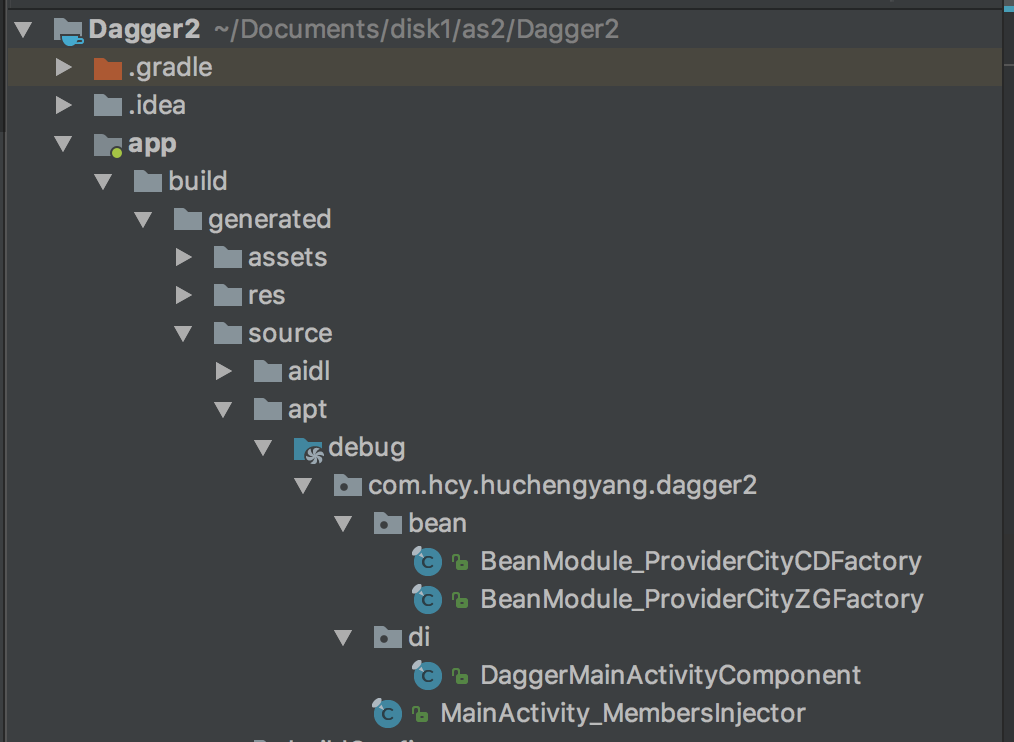

熟悉的DaggerMainActivityComponent又回来了，而且两个依赖提供者也都在，通过打印我们知道选的是CD，那它是怎么实现的呢？看下DaggerMainActivityComponent的initialize()：

private void initialize(final Builder builder) {

    this.providerCityCDProvider = BeanModule_ProviderCityCDFactory.create(builder.beanModule);

    this.mainActivityMembersInjector = MainActivity_MembersInjector.create(providerCityCDProvider);
  }

可以看到，依赖提供方和需求方通过@Named加了相同的标注CD后，在创建工厂的时候只会把CD这个提供方初始化，ZG根本没有露脸的机会，后面的流程就跟上篇一样了。

@Qualifier

使用@Qualifier可以实现@Named一样的功能，Qualifier翻译过来是修饰符的意思，先看下用法，再分析@Qualifier和@Named之间的“苟且”。添加一个接口CD.java和ZG.java

@Qualifier
@Retention(RetentionPolicy.RUNTIME)
public @interface CD {}

@Qualifier
@Retention(RetentionPolicy.RUNTIME)
public @interface ZG {}

修改BeanModule.java如下：

@Module
public class BeanModule {
    @CD
    @Provides
    City providerCityCD() {
        City city = new City();
        city.setName("成都");
        return city;
    }

    @ZG
    @Provides
    City providerCityZG() {
        City city = new City();
        city.setName("自贡");
        return city;
    }
}

MainActivity.java

public class MainActivity extends AppCompatActivity {
    public static String TAG = "hcy";
    @CD
    @Inject
    City city;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        //in Android Studio, select Build > Rebuild Project
        DaggerMainActivityComponent.create().inject(this);
        Log.d(TAG, "city name: " + city.show());
    }
}

修改后和输出结果、编译生成的类以及源码都和@Named一毛一样。@Qualifier可以让我们自己创建限定符，其实@Named内部也是通过@Qualifier实现，源码如下：

/**
 * String-based {@linkplain Qualifier qualifier}.
 *
 * <p>Example usage:
 *
 * <pre>
 *   public class Car {
 *     &#064;Inject <b>@Named("driver")</b> Seat driverSeat;
 *     &#064;Inject <b>@Named("passenger")</b> Seat passengerSeat;
 *     ...
 *   }</pre>
 */
@Qualifier
@Documented
@Retention(RUNTIME)
public @interface Named {

    /** The name. */
    String value() default "";
}

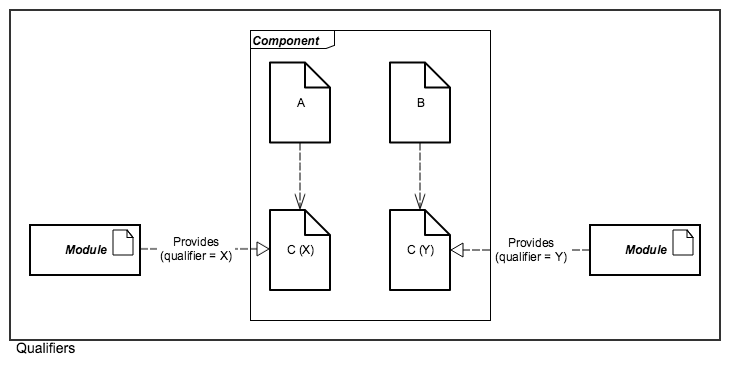

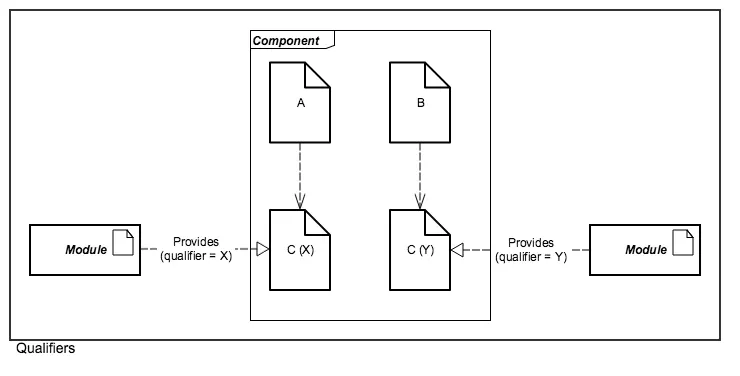

从注释可知@Named是@Qualifier的String型实现；看下github上一张介绍图：

顺便提一下这里的@Retention，翻译过来是保留的意思，它是用来指定我们自定义的限定符能保留的多久，有三种可选：

/**
 * Indicates how long annotations with the annotated type are to
 * be retained.  If no Retention annotation is present on
 * an annotation type declaration, the retention policy defaults to
 * {@code RetentionPolicy.CLASS}.
 */
public enum RetentionPolicy {
    /**
     * Annotations are to be discarded by the compiler.
     */
    SOURCE,

    /**
     * Annotations are to be recorded in the class file by the compiler
     * but need not be retained by the VM at run time.  This is the default
     * behavior.
     */
    CLASS,

    /**
     * Annotations are to be recorded in the class file by the compiler and
     * retained by the VM at run time, so they may be read reflectively.
     *
     * @see java.lang.reflect.AnnotatedElement
     */
    RUNTIME
}

@Singleton

@Singleton从名字就知道是单例，怎么用这个？先看一个例子：

City.java

public class City {
    public City() {}

}

BeanModule.java

@Module
public class BeanModule {
    @Named("CD")
    @Provides
    City providerCityCD() {
        City city = new City();
        return city;
    }

    @Named("ZG")
    @Provides
    City providerCityZG() {
        City city = new City();
        return city;
    }
}

MainActivityComponent.java

@Component(modules = BeanModule.class)
public interface MainActivityComponent {
    void inject(MainActivity activity);
}

MainActivity.java

public class MainActivity extends AppCompatActivity {
    public static String TAG = "hcy";
    @Named("CD")
    @Inject
    City cityCD1;
    @Named("CD")
    @Inject
    City cityCD2;

    @Named("ZG")
    @Inject
    City cityZG1;
    @Named("ZG")
    @Inject
    City cityZG2;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        //in Android Studio, select Build > Rebuild Project
        DaggerMainActivityComponent.create().inject(this);
        Log.d(TAG, "cityCD1 is: " + cityCD1);
        Log.d(TAG, "cityCD2 is: " + cityCD2);
        Log.d(TAG, "cityZG1 is: " + cityZG1);
        Log.d(TAG, "cityZG2 is: " + cityZG2);
    }
}

例子很简单，打印city如下:

D/hcy     (13129): cityCD1 is: com.hcy.huchengyang.dagger2.bean.City@35051924
D/hcy     (13129): cityCD2 is: com.hcy.huchengyang.dagger2.bean.City@36acdc8d
D/hcy     (13129): cityZG1 is: com.hcy.huchengyang.dagger2.bean.City@14db0e42
D/hcy     (13129): cityZG2 is: com.hcy.huchengyang.dagger2.bean.City@28a95e53

可以看到这里获取到的对应4个不同的city，按照上一篇的分析套路可以很快定位到原因，查看编译生成的MainActivity_MembersInjector.java中的injectMembers()方法

@Override
  public void injectMembers(MainActivity instance) {
    if (instance == null) {
      throw new NullPointerException("Cannot inject members into a null reference");
    }
    instance.cityCD1 = cityCD1AndCityCD2Provider.get();
    instance.cityCD2 = cityCD1AndCityCD2Provider.get();
    instance.cityZG1 = cityZG1AndCityZG2Provider.get();
    instance.cityZG2 = cityZG1AndCityZG2Provider.get();
  }

这里会调用目标工厂的get方法，最后调用到BeanModule的方法创建对象；如果要确保单例，@Singleton就可以派上用场了。

使用

1.在提供依赖的构造函数上加@Singleton

@Module
public class BeanModule {
    @Named("CD")
    @Provides
    @Singleton
    City providerCityCD() {
        City city = new City();
        return city;
    }

    @Named("ZG")
    @Provides
    City providerCityZG() {
        City city = new City();
        return city;
    }
}

2.@Component标注的接口加上@Singleton

@Singleton
@Component(modules = BeanModule.class)
public interface MainActivityComponent {
    void inject(MainActivity activity);
}

修改后打印：

D/hcy     (13519): cityCD1 is: com.hcy.huchengyang.dagger2.bean.City@35051924
D/hcy     (13519): cityCD2 is: com.hcy.huchengyang.dagger2.bean.City@35051924
D/hcy     (13519): cityZG1 is: com.hcy.huchengyang.dagger2.bean.City@36acdc8d
D/hcy     (13519): cityZG2 is: com.hcy.huchengyang.dagger2.bean.City@14db0e42

那么它是怎么保证单例的呢？查看源码会发现MainActivity_MembersInjector.java中的injectMembers()方法和之前是一样的，但是DaggerMainActivityComponent.java的initialize()方法发生了改变：

private void initialize(final Builder builder) {

    this.providerCityCDProvider =
        DoubleCheck.provider(BeanModule_ProviderCityCDFactory.create(builder.beanModule));

    this.providerCityZGProvider = BeanModule_ProviderCityZGFactory.create(builder.beanModule);

    this.mainActivityMembersInjector =
        MainActivity_MembersInjector.create(providerCityCDProvider, providerCityZGProvider);
  }

这里多了DoubleCheck的操作。看下DoubleCheck.java

public final class DoubleCheck<T> implements Provider<T>, Lazy<T> {
  private static final Object UNINITIALIZED = new Object();

  private volatile Provider<T> provider;
  private volatile Object instance = UNINITIALIZED;

  private DoubleCheck(Provider<T> provider) {
    assert provider != null;
    this.provider = provider;
  }

  @Override
  public T get() {
    Object result = instance;
    if (result == UNINITIALIZED) {//第一次取值后下次再来判断不满足直接返回之前的实例
      synchronized (this) {
        result = instance;
        if (result == UNINITIALIZED) {
          result = provider.get();
          Object currentInstance = instance;
          if (currentInstance != UNINITIALIZED && currentInstance != result) {
            throw new IllegalStateException();
          }
          instance = result;

          provider = null;
        }
      }
    }
    return (T) result;
  }

  public static <T> Provider<T> provider(Provider<T> delegate) {
    checkNotNull(delegate);
    if (delegate instanceof DoubleCheck) {
      return delegate;
    }
    return new DoubleCheck<T>(delegate);
  }
}

整个类都没多少代码，省略了注释和异常以及部分代码，DoubleCheck和我们的Factory都实现了共有接口Provider，保证单例的操作就是这里的get()方法，注释已解释，可以跟着流程走一波。这里看下github上的一张图，下图左边的对应没有标注@Singleton，每次取时都会重新new；右边有标注的在第一次创建时会缓存一份，下次再获取直接就返回缓存的。

@Scope

使用@Scope可以实现@Singleton一样的功能，Scope翻译过来是作用域的意思，其实@Singleton就是@Scope的实现(有点像上面@Named和@Qualifier的关系)，源码如下：

@Scope
@Documented
@Retention(RUNTIME)
public @interface Singleton {}

我们可以完全可以自己定义一个接口如：MainActivityScope.java

@Scope
@Documented
@Retention(value= RetentionPolicy.RUNTIME)
public @interface MainActivityScope{}

修改MainActivityComponent.java

@MainActivityScope
@Component(modules = BeanModule.class)
public interface MainActivityComponent {
    void inject(MainActivity activity);
}

修改BeanModule.java

@Module
public class BeanModule {
    @Named("CD")
    @Provides
    @MainActivityScope
    City providerCityCD() {
        City city = new City();
        return city;
    }

    @Named("ZG")
    @Provides
    City providerCityZG() {
        City city = new City();
        return city;
    }
}

效果是一样的，@Scope是成对使用的，在@Module的@Provides方法上使用@Scope标注，那么对应的@Component也需要@Scope标准，此时@Provides方法提供的依赖在@Component中为单例。

未完待续...
