retrofit源码解析
在近期的项目中网络框架使用retrofit居多,总而言之retrofit的使用还是比较熟练的,从封装到网络请求的bindData,还是比较方便的;retrofit的注解和retrofit+rajava是的retrofit成为android网络框架的主流

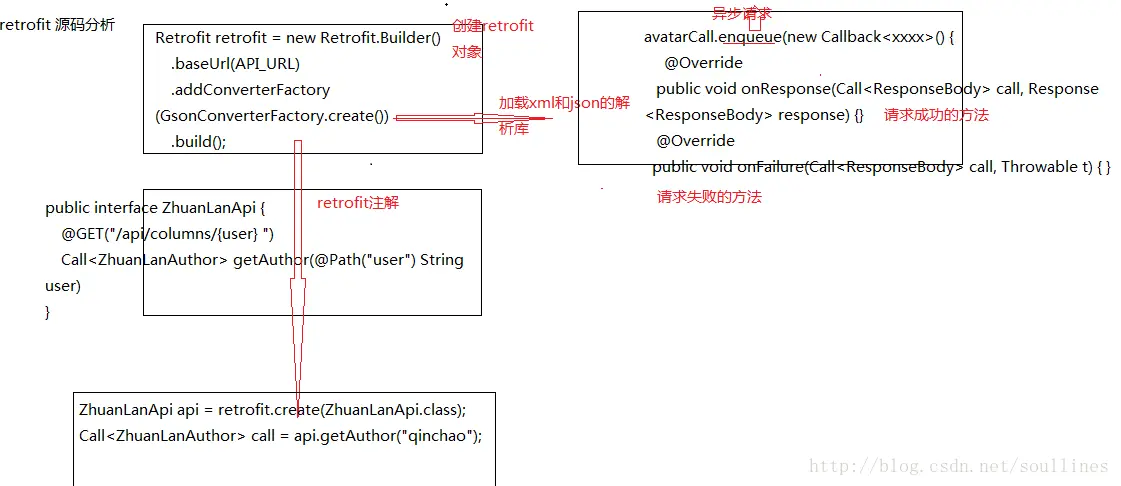

下面看一张图:
下面代码为retrofit的简单使用:<包括添加了retrofit请求的对话框>
private ApiClient(Context context) {
this.mContext = context;
initHttpClient();
mRetrofit = new Retrofit.Builder()
.baseUrl(Constant.BASE_URL)//设置baseurl参数
.client(mOkHttpClient)//设置OkHttpClient实例
.addConverterFactory(GsonConverterFactory.create())//gson转化工厂
.build();
}
/**
* 公有的方法创建ApiClients对象
* @return
*/
public static ApiClient getInstance(Context context) {
if (mApiClient == null) {
synchronized (ApiClient.class) {
mApiClient = new ApiClient(context);
}
}
return mApiClient;
}
/**
* 关联接口定义类
*/
public <T> T create(Class<T> service) {
return mRetrofit.create(service);
}
/**
* 二次封装回调接口
* @param call
* @param mCallBack
* @param <T>
*/
public <T> void show(Call<T> call, final boolean isLoading,final RetrofitListener<T> mCallBack) {
//展示对话框
mCallBack.onBefor(isLoading);
call.enqueue(new Callback<T>() {
@Override
public void onResponse(Call<T> call, retrofit2.Response<T> response) {
mCallBack.onAfter(isLoading);
mCallBack.onResponse(call, response);
}
@Override
public void onFailure(Call<T> call, Throwable t) {
mCallBack.onAfter(isLoading);
mCallBack.onFailure(call, t);
}
});
}retrofit的大概流程:第一步，创建一个接口。第二步，创建一个Retrofit对象，提供BASE_URL等信息。第三步，创建一个实现了接口的代理对象。第四步，调用接口方法，返回一个Call对象。第五步，调用execute执行同步请求。第六步，从响应获取数据。进行数据的bind。
ok~ 开始看retrofit的源码:
1
//new Retrofit.Builder() 先来看Builder类
public static final class Builder {
...
Builder(Platform platform) {
this.platform = platform;
converterFactories.add(new BuiltInConverters());
}
public Builder() {
this(Platform.get());
}
public Builder client(OkHttpClient client) {
return callFactory(checkNotNull(client, "client == null"));
}
public Builder callFactory(okhttp3.Call.Factory factory) {
this.callFactory = checkNotNull(factory, "factory == null");
return this;
}
public Builder baseUrl(String baseUrl) {
checkNotNull(baseUrl, "baseUrl == null");
HttpUrl httpUrl = HttpUrl.parse(baseUrl);
if (httpUrl == null) {
throw new IllegalArgumentException("Illegal URL: " + baseUrl);
}
return baseUrl(httpUrl);
}
public Builder baseUrl(HttpUrl baseUrl) {
checkNotNull(baseUrl, "baseUrl == null");
List<String> pathSegments = baseUrl.pathSegments();
if (!"".equals(pathSegments.get(pathSegments.size() - 1))) {
throw new IllegalArgumentException("baseUrl must end in /: " + baseUrl);
}
this.baseUrl = baseUrl;
return this;
}
public Builder addConverterFactory(Converter.Factory factory) {
converterFactories.add(checkNotNull(factory, "factory == null"));
return this;
}
public Builder addCallAdapterFactory(CallAdapter.Factory factory) {
adapterFactories.add(checkNotNull(factory, "factory == null"));
return this;
}
public Builder callbackExecutor(Executor executor) {
this.callbackExecutor = checkNotNull(executor, "executor == null");
return this;
}
public Builder validateEagerly(boolean validateEagerly) {
this.validateEagerly = validateEagerly;
return this;
}
public Retrofit build() {
if (baseUrl == null) {
throw new IllegalStateException("Base URL required.");
}
okhttp3.Call.Factory callFactory = this.callFactory;
if (callFactory == null) {
callFactory = new OkHttpClient();
}
Executor callbackExecutor = this.callbackExecutor;
if (callbackExecutor == null) {
callbackExecutor = platform.defaultCallbackExecutor();
}
List<CallAdapter.Factory> adapterFactories = new ArrayList<>(this.adapterFactories);
adapterFactories.add(platform.defaultCallAdapterFactory(callbackExecutor));
List<Converter.Factory> converterFactories = new ArrayList<>(this.converterFactories);
return new Retrofit(callFactory, baseUrl, converterFactories, adapterFactories,
callbackExecutor, validateEagerly);
}
}1.new Retrofit.Builder()是获取平台信息,并且将内置的转换工厂加入当工厂集合中去 2：从我们的基本示例中看到有调用到.baseUrl(BASE_URL)这个方法，实际上没当使用Retrofit时，该方法都是必须传入的，并且还不能为空，从源码中可以看出，当baseUrl方法传进的参数来看，如果为空的话将会抛出NullPointerException空指针异常。
3：addConverterFactory该方法是传入一个转换器工厂，它主要是对数据转化用的，请网络请求获取的数据，将会在这里被转化成我们所需要的数据类型，比如通过Gson将json数据转化成对象类型。
4 ： 从源码中，我们看到还有一个client方法，这个是可选的，如果没有传入则就默认为OkHttpClient，在这里可以对OkHttpClient做一些操作，比如添加拦截器打印log等
5：callbackExecutor该方法从名字上看可以得知应该是回调执行者，也就是Call对象从网络服务获取数据之后转换到UI主线程中。
6：addCallAdapterFactory该方法主要是针对Call转换了，比如对Rxjava的支持，从返回的call对象转化为Observable对象。
7：最后调用build()方法，通过new Retrofit(callFactory, baseUrl, converterFactories, adapterFactories,callbackExecutor, validateEagerly);构造方法把所需要的对象传递到Retrofit对象中。
2.
//mRetrofit.create(xxxApi.class//即注解类)
public <T> T create(final Class<T> service) {
Utils.validateServiceInterface(service);
if (validateEagerly) {
eagerlyValidateMethods(service);
}
return (T) Proxy.newProxyInstance(service.getClassLoader(), new Class<?>[] { service },
new InvocationHandler() {
private final Platform platform = Platform.get();
@Override public Object invoke(Object proxy, Method method, @Nullable Object[] args)
throws Throwable {
// If the method is a method from Object then defer to normal invocation.
if (method.getDeclaringClass() == Object.class) {
return method.invoke(this, args);
}
if (platform.isDefaultMethod(method)) {
return platform.invokeDefaultMethod(method, service, proxy, args);
}
ServiceMethod<Object, Object> serviceMethod =
(ServiceMethod<Object, Object>) loadServiceMethod(method);
OkHttpCall<Object> okHttpCall = new OkHttpCall<>(serviceMethod, args);
return serviceMethod.callAdapter.adapt(okHttpCall);
}
});
}首先xxxApi api = mRetrofit.create(xxxApi.class//即注解类)返回的是一个动态代理对象(动态代理之后单独详解)api,之后用动态代理对象调用注解类中方法,获取request:
Call<AppointInfo> appointInfo = responseInfoApi.getAppointInfo("APPAPI","123456", code, data);在这里responseInfoApi.getAppointInfo(“APPAPI”,”123456”, code, data);走的是Proxy.newProxyInstance中的invoke方法,相当于动态拦截,进而调用; 当然最核心代码就是:
ServiceMethod serviceMethod = loadServiceMethod(method);
OkHttpCall okHttpCall = new OkHttpCall<>(serviceMethod, args);
return serviceMethod.callAdapter.adapt(okHttpCall);通过method获取serviceMethod对象—->再次获取okHttpCall对象,通过serviceMethod.callAdapter.adapt 继续封装okHttpCall 返回call对象,即request对象 下面看loadServiceMethod:
ServiceMethod loadServiceMethod(Method method) {
ServiceMethod result;
synchronized (serviceMethodCache) {
result = serviceMethodCache.get(method);
if (result == null) {
result = new ServiceMethod.Builder(this, method).build();
serviceMethodCache.put(method, result);
}
}
return result;
}其实在loadServiceMethod中有一个serviceMethodCache即serviceMethod的一个缓存队列,首先通过method从缓存队列中获取相应的serviceMethod,若为空,通过new ServiceMethod.Builder(this, method).build();得到serviceMethod,并且serviceMethodCache.put(method, result); 然后看new ServiceMethod.Builder(this, method).build()源码
public Builder(Retrofit retrofit, Method method) {
this.retrofit = retrofit;
this.method = method;
this.methodAnnotations = method.getAnnotations();
this.parameterTypes = method.getGenericParameterTypes();
this.parameterAnnotationsArray = method.getParameterAnnotations();
}
public ServiceMethod build() {
callAdapter = createCallAdapter();
responseType = callAdapter.responseType();
if (responseType == Response.class || responseType == okhttp3.Response.class) {
throw methodError("'"
+ Utils.getRawType(responseType).getName()
+ "' is not a valid response body type. Did you mean ResponseBody?");
}
responseConverter = createResponseConverter();
...
return new ServiceMethod<>(this);
}可以看的出来,在builder中初始化一部分参数,在build中返回serviceMethod; 接着着眼看build方法,//createCallAdapter();
private CallAdapter<?> createCallAdapter() {
Type returnType = method.getGenericReturnType();
if (Utils.hasUnresolvableType(returnType)) {
throw methodError(
"Method return type must not include a type variable or wildcard: %s", returnType);
}
if (returnType == void.class) {
throw methodError("Service methods cannot return void.");
}
Annotation[] annotations = method.getAnnotations();
try {
return retrofit.callAdapter(returnType, annotations);
} catch (RuntimeException e) { // Wide exception range because factories are user code.
throw methodError(e, "Unable to create call adapter for %s", returnType);
}
}build就是获取method的类型以及注解:
Type returnType = method.getGenericReturnType();然后调用retrofit.callAdapter(returnType, annotations);
public CallAdapter<?> callAdapter(Type returnType, Annotation[] annotations) {
return nextCallAdapter(null, returnType, annotations);
}
public CallAdapter<?> nextCallAdapter(CallAdapter.Factory skipPast, Type returnType,
Annotation[] annotations) {
checkNotNull(returnType, "returnType == null");
checkNotNull(annotations, "annotations == null");
int start = adapterFactories.indexOf(skipPast) + 1;
for (int i = start, count = adapterFactories.size(); i < count; i++) {
CallAdapter<?> adapter = adapterFactories.get(i).get(returnType, annotations, this);
if (adapter != null) {
return adapter;
}
}
...
}最后调用nextCallAdapter,for遍历adapterFractory,获取callAdapter对象,那么下面从builder构造器中获取callAdapter对象:
public static final class Builder {
...
public Builder addCallAdapterFactory(CallAdapter.Factory factory) {
adapterFactories.add(checkNotNull(factory, "factory == null"));
return this;
}
...
public Retrofit build() {
List<CallAdapter.Factory> adapterFactories = new ArrayList<>(this.adapterFactories);
adapterFactories.add(platform.defaultCallAdapterFactory(callbackExecutor));
...
}
}
CallAdapter.Factory defaultCallAdapterFactory(Executor callbackExecutor) {
if (callbackExecutor != null) {
return new ExecutorCallAdapterFactory(callbackExecutor);
}
return DefaultCallAdapterFactory.INSTANCE;
}//通过serviceMethod, args获取到okHttpCall 对象第二步相对比较简单，就是对象传递：
OkHttpCall(ServiceMethod<T> serviceMethod, Object[] args) {
this.serviceMethod = serviceMethod;
this.args = args;
}//serviceMethod.callAdapter.adapt(okHttpCall),获取okHttpCall对象之后,对其进行封装成call对象,作为request进行请求,查看adapt源码
T adapt(Call<R> call);很简单的一句,没有头绪有木有,那么 接着看serviceMethod.callAdapter:
@Override
public CallAdapter<Call<?>> get(Type returnType, Annotation[] annotations, Retrofit retrofit) {
if (getRawType(returnType) != Call.class) {
return null;
}
final Type responseType = Utils.getCallResponseType(returnType);
return new CallAdapter<Call<?>>() {
@Override public Type responseType() {
return responseType;
}
@Override public <R> Call<R> adapt(Call<R> call) {
return new ExecutorCallbackCall<>(callbackExecutor, call);
}
};
}return new ExecutorCallbackCall<>(callbackExecutor, call);就是上面那句奇怪的代码;那么这样就获得了call对象 可以开始下一步请求了;
3.
请求方式分为同步和异步,这里以异步为例<一般都使用异步>,// call.enqueue(new Callback() ,具体实现如下:
service.enqueue(new Callback<List<User>>() {
@Override
public void onResponse(Call<List<User>> call, Response<List<User>> response) {
Log.d("response body",response.body());
}
@Override
public void onFailure(Call<BoardInfo> call, Throwable t) {
Log.i("response Throwable",t.getMessage().toString());
}
});从上面的代理获取拦截可以看出Call对象就是ExecutorCallbackCall:
static final class ExecutorCallbackCall<T> implements Call<T> {
final Executor callbackExecutor;
final Call<T> delegate;
ExecutorCallbackCall(Executor callbackExecutor, Call<T> delegate) {
this.callbackExecutor = callbackExecutor;
this.delegate = delegate;
}
@Override public void enqueue(final Callback<T> callback) {
if (callback == null) throw new NullPointerException("callback == null");
delegate.enqueue(new Callback<T>() {
@Override public void onResponse(Call<T> call, final Response<T> response) {
callbackExecutor.execute(new Runnable() {
@Override public void run() {
if (delegate.isCanceled()) {
callback.onFailure(ExecutorCallbackCall.this, new IOException("Canceled"));
} else {
callback.onResponse(ExecutorCallbackCall.this, response);
}
}
});
}
@Override public void onFailure(Call<T> call, final Throwable t) {
callbackExecutor.execute(new Runnable() {
@Override public void run() {
callback.onFailure(ExecutorCallbackCall.this, t);
}
});
}
});
}由上代码可以看出,在ExecutorCallbackCall中定义了两个接口
ExecutorCallbackCall(Executor callbackExecutor, Call<T> delegate) {
this.callbackExecutor = callbackExecutor;
this.delegate = delegate;
}其中callbackExecutor 是完成线程的切换,而delegate是执行异步请求的主体
delegate.enqueue(new Callback<T>() {
@Override public void onResponse(Call<T> call, final Response<T> response) {
callbackExecutor.execute(new Runnable() {
@Override public void run() {
if (delegate.isCanceled()) {
callback.onFailure(ExecutorCallbackCall.this, new IOException("Canceled"));
} else {
callback.onResponse(ExecutorCallbackCall.this, response);
}
}
});
}
@Override public void onFailure(Call<T> call, final Throwable t) {
callbackExecutor.execute(new Runnable() {
@Override public void run() {
callback.onFailure(ExecutorCallbackCall.this, t);
}
});
}
});
}接下来看delegate 如何执行异步请求:
@Override
public void enqueue(final Callback<T> callback) {
if (callback == null) throw new NullPointerException("callback == null");
okhttp3.Call call;
Throwable failure;
synchronized (this) {
if (executed) throw new IllegalStateException("Already executed.");
executed = true;
call = rawCall;
failure = creationFailure;
if (call == null && failure == null) {
try {
call = rawCall = createRawCall();
} catch (Throwable t) {
failure = creationFailure = t;
}
}
}
if (failure != null) {
callback.onFailure(this, failure);
return;
}
if (canceled) {
call.cancel();
}
call.enqueue(new okhttp3.Callback() {
@Override
public void onResponse(okhttp3.Call call, okhttp3.Response rawResponse)
throws IOException {
Response<T> response;
try {
response = parseResponse(rawResponse);
} catch (Throwable e) {
callFailure(e);
return;
}
callSuccess(response);
}
@Override
public void onFailure(okhttp3.Call call, IOException e) {
try {
callback.onFailure(OkHttpCall.this, e);
} catch (Throwable t) {
t.printStackTrace();
}
}
private void callFailure(Throwable e) {
try {
callback.onFailure(OkHttpCall.this, e);
} catch (Throwable t) {
t.printStackTrace();
}
}
private void callSuccess(Response<T> response) {
try {
callback.onResponse(OkHttpCall.this, response);
} catch (Throwable t) {
t.printStackTrace();
}
}
});
}其实不难看出就是okhttp的封装了~ 到这里就结束了 有什么不清楚的可以继续研究源码.
