Recyclerview最最简单实现水平分页GridView效果

2,564 阅读2分钟

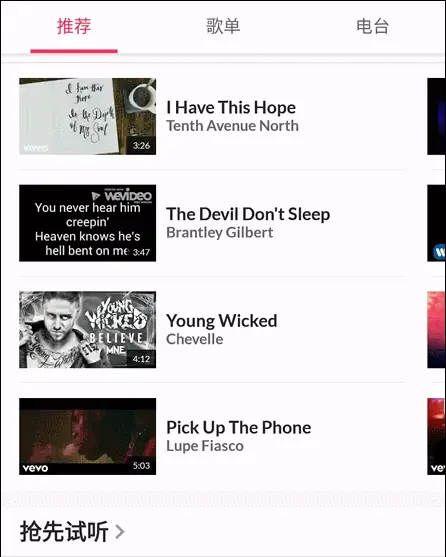

昨天UI妹子给了给需求,展示水平分页效果,而且第二页要默认显示一部分,提示用户水平可以滑动,先上效果图:


,很明显横向滑动的分页,第一反应就是使用ViewPager,毕竟只要通过自定义ViewPager,实现这个效果还是很容易,但是实际中问题时,当前模块是Recyclerview中某一个Holder,为了性能,肯定尽量使用Recyclerview去复用View,而且ViewPager并不能复用,所以考虑之后,还是要用Recyclerview去实现。

解决思路

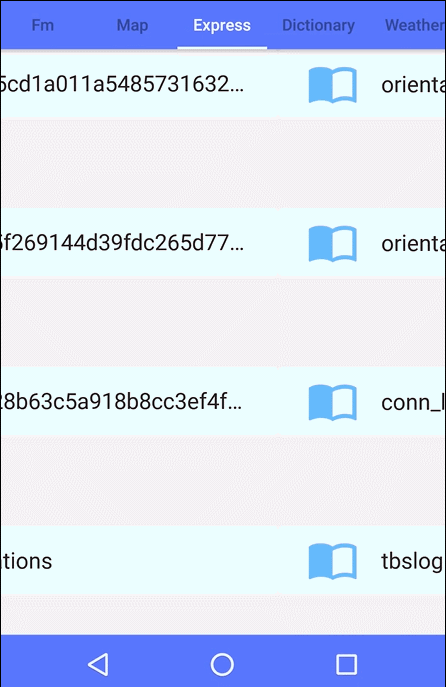

既然打算用Recyclerview实现,很明显这就可以用GridLayoutManager处理横向滑动的列表,初步实现横向列表的效果,列数为4的横向分页效果


横向列表效果是实现了,但是并没有达到设计稿的要求,第二页要默认显示一部分,那么就要从水平方向上去思考解决问题,既然第二页要显示一部分,假如显示16dp,那么将第一页列表宽度减少右边距16dp,第二页就可以在第一页显示了。 在Recyclerview的Adapter中,先上布局:

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/rl_parent"
    android:layout_width="match_parent"
    android:layout_height="55dp"
    android:background="@drawable/news_click_bg"
    android:clickable="true"
    android:gravity="center_vertical">

    <ImageView
        android:id="@+id/iv_img"
        android:layout_width="48dp"
        android:layout_height="48dp"
        android:layout_centerVertical="true"
         android:layout_marginLeft="16dp"
        android:padding="3dp"
        android:src="@drawable/icon_book_default"
        android:tint="@color/blue" />

    <com.ddz.lifestyle.baseview.customview.RobotoTextView
        android:id="@+id/tv_title"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_centerVertical="true"
        android:layout_marginLeft="15dp"
        android:layout_marginRight="20dp"
        android:layout_toRightOf="@+id/iv_img"
        android:ellipsize="end"
        android:lines="1"
        android:textSize="18sp"
        app:typeface="roboto_regular"
        tools:text="name" />

    <ImageView
        android:id="@+id/iv_menu"
        android:layout_width="34dp"
        android:layout_height="34dp"
        android:layout_alignParentRight="true"
        android:layout_centerVertical="true"
        android:layout_marginRight="10dp"
        android:padding="10dp"
        android:src="@drawable/menu_right"
        android:visibility="invisible" />
</RelativeLayout>```

在onBindViewHolder方法中,去修改边距
@Override
public void onBindViewHolder(ItemHolder holder, int position) {
    if (null == bean) {
        return;
    }
    RelativeLayout.LayoutParams params = new RelativeLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, DensityUtil.dip2px(86));     //DensityUtil是px转dp的工具类
    int screenWidth = TCommonUtils.getScreenWidth(context);
    if (position <= 3) {  //因为每列数量为4个,那么只需要将前4个item的宽度减少32dp
        screenWidth -= DensityUtil.dip2px(32);  //宽度减少32dp,即左右各16dp
        params.width = screenWidth;
    } else {
        params.width = screenWidth;
    }
    holder.rlParent.setLayoutParams(params);
    holder.tvTitle.setText(bean.get(position).getTitle());
}```

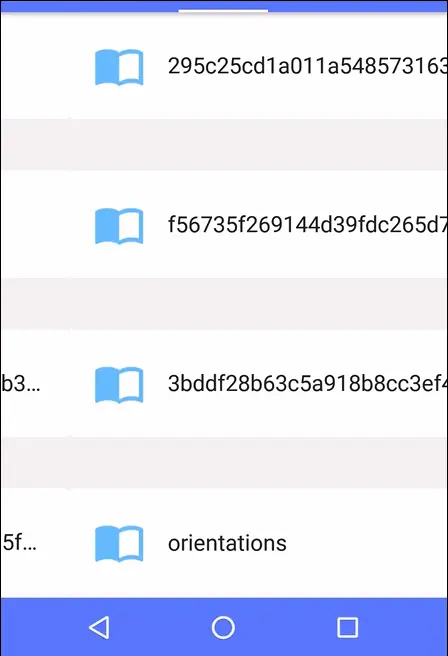

来看看效果



可以看到默认第二页可以显示一部分,而且后面每一页都正常显示,没有像第二页一样侵入上一页中

总结

实现这种分页效果的方法有很多,但是选择最容易并且效率最高的方式,才是开发中需要的。
