可能是目前轻量级弹幕控件中功能最强大的一款

9,059 阅读3分钟

本项目是一个开源的弹幕控件库,能够支持多种样式弹幕,弹幕点击监听,弹幕分区域显示,自定义移动速度等功能,项目原理是通过自定义ViewGroup。可能是目前轻量级弹幕控件中功能最强大的一款了。

Github项目地址:github.com/hust2010107…,希望你能Star或者提交Issues.

效果

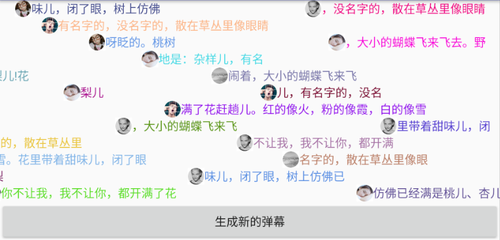

  • 常规样式

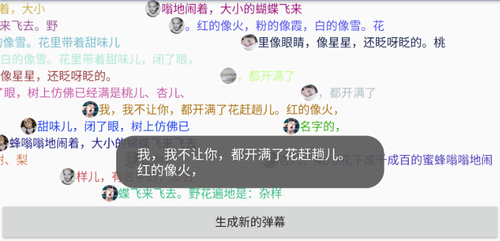

  • 点击事件

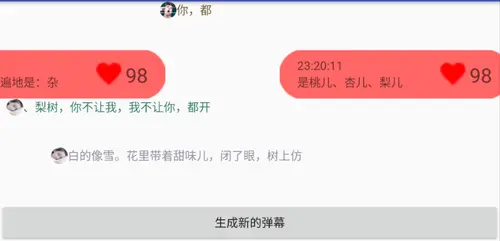

  • 多种弹幕样式

  • 分区域显示

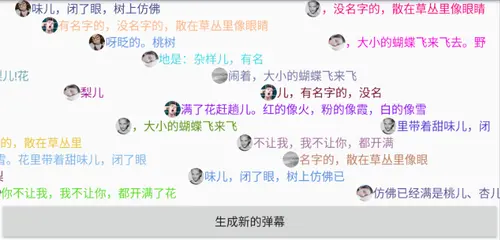

  • GIF效果图

使用

0. 添加依赖

1. 导入xdanmuku源码

你可以直接下载本项目xdanmuku模块,并导入项目目录,并添加依赖compile project(':xdanmuku')

2. Gradle

先把jitpack仓库添加到项目根 build.gradle(Project)文件中,

allprojects {
    repositories {
        ...
        maven { url 'https://jitpack.io' }
    }
}

然后在你的项目中添加依赖

dependencies {
        compile 'com.github.hust201010701:XDanmuku:33a063b46e'
}

其他添加依赖的方式,如maven等请自行到点我查看。

1. 添加控件

在布局xml中添加控件

<com.orzangleli.xdanmuku.DanmuContainerView
    android:id="@+id/danmuContainerView"
    android:layout_width="match_parent"
    android:layout_height="240dp"
    />

2. 自定义弹幕实体类DanmuEntity

根据需求定制弹幕实体类,包含所有弹幕的属性和类型。

public class DanmuEntity {
    public String content;
    public int textColor;
    public int backgroundColor;
    public int type;
    public String time;
}

3. 添加DanmuConverter(弹幕转换器)

DanmuConverter中有两个抽象方法需要实现,getSingleLineHeight是返回所有弹幕样式中高度最大值作为弹幕航道的高度;convert负责将弹幕实体类DanmuEntity绑定到弹幕子视图上(类似于BaseAdaptergetView方法的作用)。

DanmuConverter danmuConverter = new DanmuConverter<DanmuEntity>() {
    @Override
    public int getSingleLineHeight() {
        //将所有类型弹幕的布局拿出来,找到高度最大值,作为弹道高度
        View view = LayoutInflater.from(MainActivity.this).inflate(R.layout.item_danmu, null);
        //指定行高
        view.measure(0, 0);

        View view2 = LayoutInflater.from(MainActivity.this).inflate(R.layout.item_super_danmu, null);
        //指定行高
        view2.measure(0, 0);

        return Math.max(view.getMeasuredHeight(),view2.getMeasuredHeight());
    }

    @Override
    public View convert(DanmuEntity model) {
        View view = null;
        if(model.getType() == 0) {
            view = LayoutInflater.from(MainActivity.this).inflate(R.layout.item_danmu, null);
            TextView content = (TextView) view.findViewById(R.id.content);
            ImageView image = (ImageView) view.findViewById(R.id.image);
            image.setImageResource(ICON_RESOURCES[random.nextInt(5)]);
            content.setText(model.content);
            content.setTextColor(Color.rgb(random.nextInt(256), random.nextInt(256), random.nextInt(256)));
        }
        else if(model.getType() == 1) {
            view = LayoutInflater.from(MainActivity.this).inflate(R.layout.item_super_danmu, null);
            TextView content = (TextView) view.findViewById(R.id.content);
            content.setText(model.content);
            TextView time = (TextView) view.findViewById(R.id.time);
            time.setText(model.getTime());
        }
        return view;
    }
};

4. 添加弹幕

DanmuEntity danmuEntity = new DanmuEntity();
danmuEntity.setContent(doubleSeed.substring(index, index + 2 + random.nextInt(20)));
danmuEntity.setType(random.nextInt(2));
danmuEntity.setTime("23:20:11");
try {
    danmuContainerView.addDanmu(danmuEntity);
} catch (Exception e) {
    e.printStackTrace();
}

5. 弹幕点击事件监听

//弹幕点击事件
danmuContainerView.setOnItemClickListener(new DanmuContainerView.OnItemClickListener<DanmuEntity>() {
    @Override
    public void onItemClick(DanmuEntity danmuEntity) {
        Toast.makeText(MainActivity.this,danmuEntity.content,Toast.LENGTH_SHORT).show();
    }
});

6. 设置弹幕移动速度

DanmuContainerView中预设了三种弹幕移动速度:

public final static int LOW_SPEED = 1;
public final static int NORMAL_SPEED = 3;
public final static int HIGH_SPEED = 5;

设置速度通过setSpeed方法:

danmuContainerView.setSpeed(DanmuContainerView.HIGH_SPEED);

同时你可以传递具体的整数型速度:

danmuContainerView.setSpeed(4);

7. 弹幕显示区域

本人将弹幕控件按照竖向均分为3份,分别为GRAVITY_TOP,GRAVITY_CENTER,GRAVITY_BOTTOM。用户可以自由组合显示区域,默认情况下全区域(GRAVITY_FULL)显示。设置要显示的区域通过setGravity方法实现,参数可以使用 | 进行连接。

//只在上方和中间区域显示弹幕
danmuContainerView.setGravity(DanmuContainerView.GRAVITY_TOP | DanmuContainerView.GRAVITY_CENTER);

后记

本控件的原理你可能已经知道了使用自定义ViewGroup实现。但是之前我花了很多事件尝试通过自定义LayoutManager让RecyclerView实现弹幕控件,不过最终这种方案失败了,更多细节讨论欢迎发送邮件(orzangleli@163.com)给我。

欢迎Star,提交Issues。
