This sample demonstrates basic usage of Picture-in-Picture mode for handheld devices. The sample plays a video. The video keeps on playing when the app is turned in to Picture-in-Picture mode. On Picture-in-Picture screen, the app shows an action item to pause or resume the video.
Introduction
The O Developer Preview allows activities to launch in Picture-in-Picture (PiP) mode. PiP is a special type of multi-window mode mostly used for video playback. PiP mode is already available for Android TV; the O Developer Preview makes the feature available on other Android devices.
The app is paused when it enters PiP mode, but it should continue showing content. For this reason, you should make sure your app does not pause playback in its onPause() handler. Instead, you should pause video in onStop(). For more information, see Multi-Window Lifecycle.
To specify that your activity can use PIP mode, set android:supportsPictureInPicture to true in the manifest. (Beginning with the O Developer Preview, you do not need to set android:resizeableActivity to true if you are supporting PIP mode, either on Android TV or on other Android devices; you only need to setrandroid:resizeableActivity if your activity supports other multi-window modes.)
You can pass a PictureInPictureArgs to enterPictureInPictureMode() to specify how an activity should behave when it is in PiP mode. You can also use it to call setPictureInPictureArgs() and update the current behavior. If the app is in not PiP mode, it will be used for later call of enterPictureInPictureMode().
With a PictureInPictureArgs, you can specify aspect ratio of PiP activity and action items available for PiP mode. The aspect ratio is used when the activity is in PiP mode. The action items are used as menu items in PiP mode. You can use a PendingIntent to specify what to do when the item is selected.
Pre-requisites
- Android SDK 25
- Android Build Tools v25.0.2
- Android Support Repository

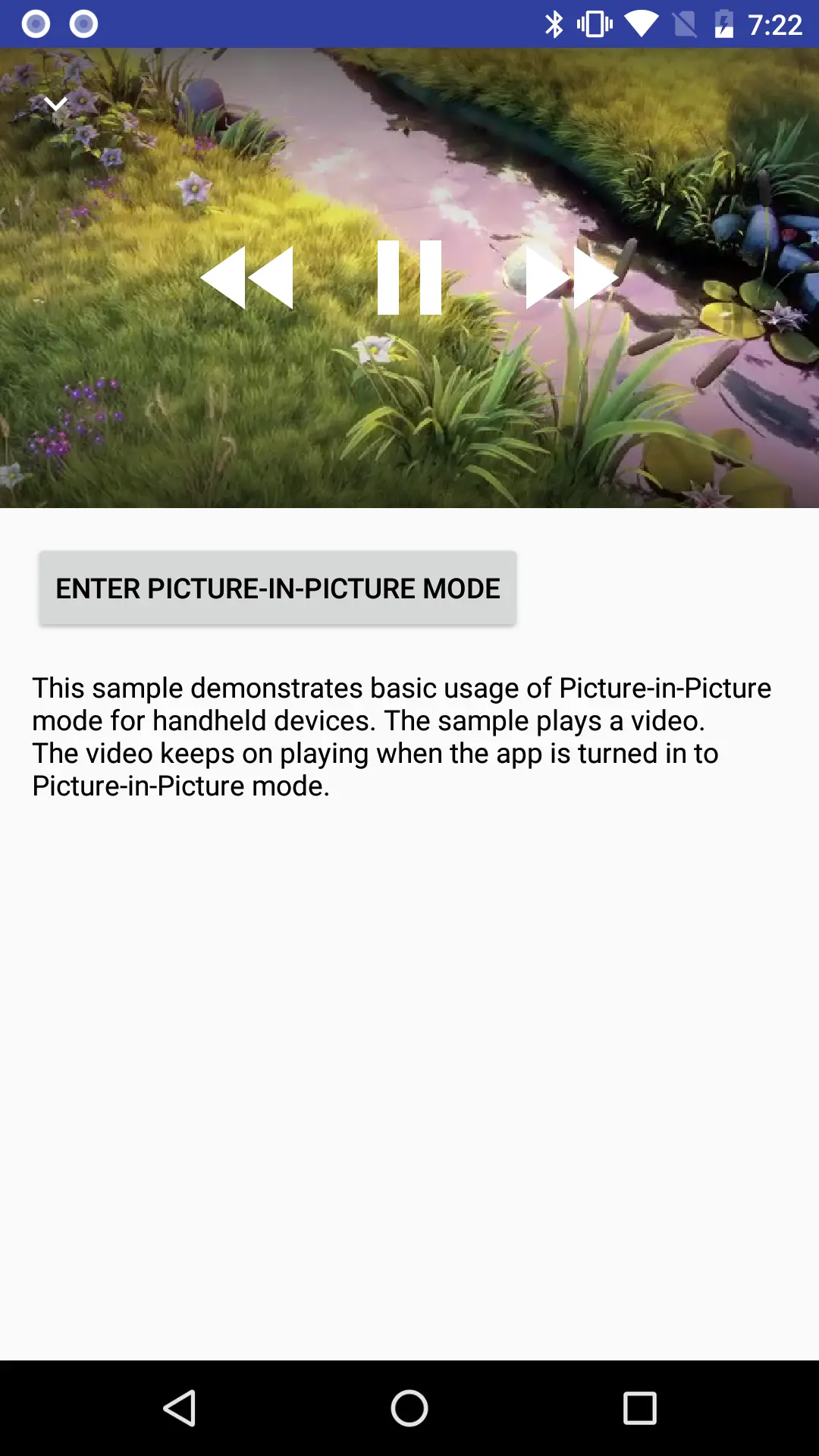

Screenshots
Getting Started
This sample uses the Gradle build system. To build this project, use the "gradlew build" command or use "Import Project" in Android Studio.
Support
- Google+ Community: plus.google.com/communities…
- Stack Overflow: stackoverflow.com/questions/t…
If you've found an error in this sample, please file an issue: github.com/googlesampl…
Patches are encouraged, and may be submitted by forking this project and submitting a pull request through GitHub. Please see CONTRIBUTING.md for more details.
