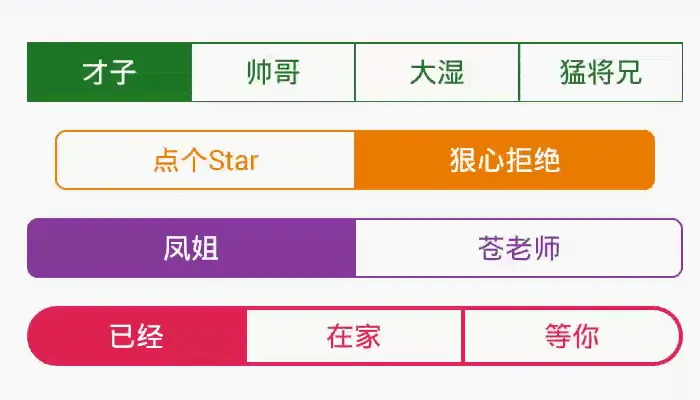

动态图在结尾,大家可以拉下去看,想学习的同学看好了再回来看文章,高手直接看结篇然后进传送门 - -!
开篇
艺术来源于生活
自定义View来源于需求,来源于灵感。自定义View如果做的好,就是艺术,就是艺术,就是艺术。 文章讲的SwitchButton是大家开发过程中经常遇到的切换按钮,提供两个或两个以上的选项,居家旅行必备。
正文
文章是以SwitchButton的实现步骤作为大纲,主要包含以下内容:
- 自定义属性
- 构造方法
- 绘制流程
- 接口回调
- 事件响应
- 方法设置
- 状态恢复
自定义属性
1.定义
<?xml version="1.0" encoding="utf-8"?>
<resources>
<declare-styleable name="SwitchMultiButton">
<attr name="strokeRadius" format="dimension" />
<attr name="strokeWidth" format="dimension" />
<attr name="textSize" format="dimension" />
<attr name="selectedTab" format="integer" />
<attr name="selectedColor" format="color|reference" />
</declare-styleable>
</resources>
2.获取
private void initAttrs(Context context, AttributeSet attrs) {
TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.SwitchMultiButton);
mStrokeRadius = typedArray.getDimension(R.styleable.SwitchMultiButton_strokeRadius, dp2px(STROKE_RADIUS));
mStrokeWidth = typedArray.getDimension(R.styleable.SwitchMultiButton_strokeWidth, dp2px(STROKE_WIDTH));
mTextSize = typedArray.getDimension(R.styleable.SwitchMultiButton_textSize, sp2px(TEXT_SIZE));
mSelectedColor = typedArray.getColor(R.styleable.SwitchMultiButton_selectedColor, SELECTED_COLOR);
mSelectedTab = typedArray.getInteger(R.styleable.SwitchMultiButton_selectedTab, SELECTED_TAB);
typedArray.recycle();
}
构造函数
public SwitchMultiButton(Context context) {
this(context, null);
}
public SwitchMultiButton(Context context, AttributeSet attrs) {
this(context, attrs, 0);
}
public SwitchMultiButton(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
initAttrs(context, attrs);
initPaint();
}
绘制流程
1.测量 onMeasure()
onMeasure()的主要目的是解决wrap_content情况下尺寸设置,这里我们设置默认的尺寸来填充wrap_content情况
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
int defaultWidth = dp2px(DEFAULT_WIDTH_DP);
int defaultHeight = dp2px(DEFAULT_HEIGHT_DP);
setMeasuredDimension(getExpectSize(defaultWidth, widthMeasureSpec), getExpectSize(defaultHeight, heightMeasureSpec));
}
private int getExpectSize(int size, int measureSpec) {
int result = size;
int specMode = MeasureSpec.getMode(measureSpec);
int specSize = MeasureSpec.getSize(measureSpec);
switch (specMode) {
case MeasureSpec.EXACTLY:
result = specSize;
break;
case MeasureSpec.UNSPECIFIED:
result = size;
break;
case MeasureSpec.AT_MOST:
result = Math.min(size, specSize);
break;
}
return result;
}
2.绘制onDraw()
我们的交互是动态的,要根据点击进行重新绘制。
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
float left = mStrokeWidth * 0.5f;//4
float top = mStrokeWidth * 0.5f;//5
float right = mWidth - mStrokeWidth * 0.5f;//6
float bottom = mHeight - mStrokeWidth * 0.5f;//7
//draw rounded rectangle
canvas.drawRoundRect(new RectF(left, top, right, bottom), mStrokeRadius, mStrokeRadius, mStrokePaint);
//draw line
for (int i = 0; i < mTabNum - 1; i++) {
canvas.drawLine(perWidth * (i + 1), top, perWidth * (i + 1), bottom, mStrokePaint);//14
}
//draw tab and line
for (int i = 0; i < mTabNum; i++) {
String tabText = mTabTextList.get(i);
float tabTextWidth = mSelectedTextPaint.measureText(tabText);
if (i == mSelectedTab) {
//draw selected tab
if (i == 0) {
drawLeftPath(canvas, left, top, bottom);
} else if (i == mTabNum - 1) {
drawRightPath(canvas, top, right, bottom);
} else {
canvas.drawRect(new RectF(perWidth * i, top, perWidth * (i + 1), bottom), mFillPaint);
}
// draw selected text
canvas.drawText(tabText, 0.5f * perWidth * (2 * i + 1) - 0.5f * tabTextWidth, mHeight * 0.5f //32
+ mTextHeightOffset, mUnselectedTextPaint);
} else {
//draw unselected text
canvas.drawText(tabText, 0.5f * perWidth * (2 * i + 1) - 0.5f * tabTextWidth, mHeight * 0.5f //37
+ mTextHeightOffset, mSelectedTextPaint);
}
}
}
基本的绘制步骤如下:
第1步:绘制外层边框 根据用户设置的strokeRadio(圆角半径)绘制外层的边框,默认是矩形,strokeRadio>0则是圆角矩形。注意 边框画笔是有width(粗度)的,笔刷的起点在中间的位置,因此我们需要画笔的落笔范围要往内收缩mStrokeWidth /2的距离(Line4-Line7),这样才能确保画笔完整地出现在画布内。
第2步:绘制垂直分割线。 这步较为简单,根据传入的字符串集合的size()进行宽度等分,drawLine(Line14)。
第3部:绘制选中时候的填充矩形(圆角矩形)以及所有文字。 注意 绘制选中矩形要最左边(第一个)和最右边(最后一个)是矩形和半圆角矩形两种情况,因此用路径绘制比较合适(Line23,Line26 )。 文字绘制比较简单,选中的用上色画笔,else用白色画笔即可(Line32,Line37 )。需要注意的是它们的 位置 的摆放。
选中的矩形绘制用矩形绘制直线和弧线连接而成(5-6应该是直线,没画好)
private void drawLeftPath(Canvas canvas, float left, float top, float bottom) {
Path leftPath = new Path();
leftPath.moveTo(left + mStrokeRadius, top);//1
leftPath.lineTo(perWidth, top);//2
leftPath.lineTo(perWidth, bottom);//3
leftPath.lineTo(left + mStrokeRadius, bottom);//4
leftPath.arcTo(new RectF(left, bottom - 2 * mStrokeRadius, left + 2 * mStrokeRadius, bottom), 90, 90);//5
leftPath.lineTo(left, top + mStrokeRadius);//6
leftPath.arcTo(new RectF(left, top, left + 2 * mStrokeRadius, top + 2 * mStrokeRadius), 180, 90);//7
canvas.drawPath(leftPath, mFillPaint);
}
接口回调
会了能响应用户的交互,我们需要设置接口,在用户点击的时候进行回调
public interface OnSwitchListener {
void onSwitch(int position, String tabText);
}
public void setOnSwitchListener(@NonNull OnSwitchListener onSwitchListener) {
this.onSwitchListener = onSwitchListener;
}
事件响应
这里我们接收用户的点击事件,由点击的位置来决定SwitchButton的选择tab,进行重新绘制。
@Override
public boolean onTouchEvent(MotionEvent event) {
if (event.getAction() == MotionEvent.ACTION_UP) {
float x = event.getX();
for (int i = 0; i < mTabNum; i++) {
if (x > perWidth * i && x < perWidth * (i + 1)) {
if (mSelectedTab == i) {
return true;
}
mSelectedTab = i;
if (onSwitchListener != null) {
onSwitchListener.onSwitch(i, mTabTextList.get(i));
}
}
}
invalidate();
}
return true;
}
设置方法
我们的SwitchButton的内容是由用户传入的,因此要对外提供数据设置方法
public SwitchMultiButton setText(@NonNull List<String> list) {
if (list.size() > 1) {
this.mTabTextList = list;
mTabNum = list.size();
invalidate();
return this;
} else {
throw new IllegalArgumentException("the size of list should greater then 1");
}
}
状态恢复
带自定义View的界面难免会有切到后台的时候,再回来的时候要恢复它原来的状态,就要这这里做保存和恢复的设置。
@Override
protected Parcelable onSaveInstanceState() {
Bundle bundle = new Bundle();
bundle.putParcelable("View", super.onSaveInstanceState());
bundle.putFloat("StrokeRadius", mStrokeRadius);
bundle.putFloat("StrokeWidth", mStrokeWidth);
bundle.putFloat("TextSize", mTextSize);
bundle.putInt("SelectedColor", mSelectedColor);
bundle.putInt("SelectedTab", mSelectedTab);
return bundle;
}
@Override
protected void onRestoreInstanceState(Parcelable state) {
if (state instanceof Bundle) {
Bundle bundle = (Bundle) state;
mStrokeRadius = bundle.getInt("StrokeRadius");
mStrokeWidth = bundle.getInt("StrokeWidth");
mTextSize = bundle.getInt("TextSize");
mSelectedColor = bundle.getInt("SelectedColor");
mSelectedTab = bundle.getInt("SelectedTab");
super.onRestoreInstanceState(bundle.getParcelable("View"));
} else {
super.onRestoreInstanceState(state);
}
}
结篇
每当我看到别人的项目,如果刹那间,它点悟了我,或者让我回想起曾经的皱眉一刻,或者恰好是我未实现的灵光一闪,我会倍感亲切,马上滚动鼠标到顶Star一下。同样的,我希望您也能给我一颗Star,您给的这颗Star是一只萤火虫,是我漆黑生活中的一盏明灯,是沙漠中的一片绿洲,是汪洋里的一座灯塔,给我动力,指引着我前进,让这世界充满爱,来吧,让这份爱一直传递下去吧。
