java spring+mybatis 整合实现爬虫之《今日头条》搞笑动态图片爬取

先上效果图

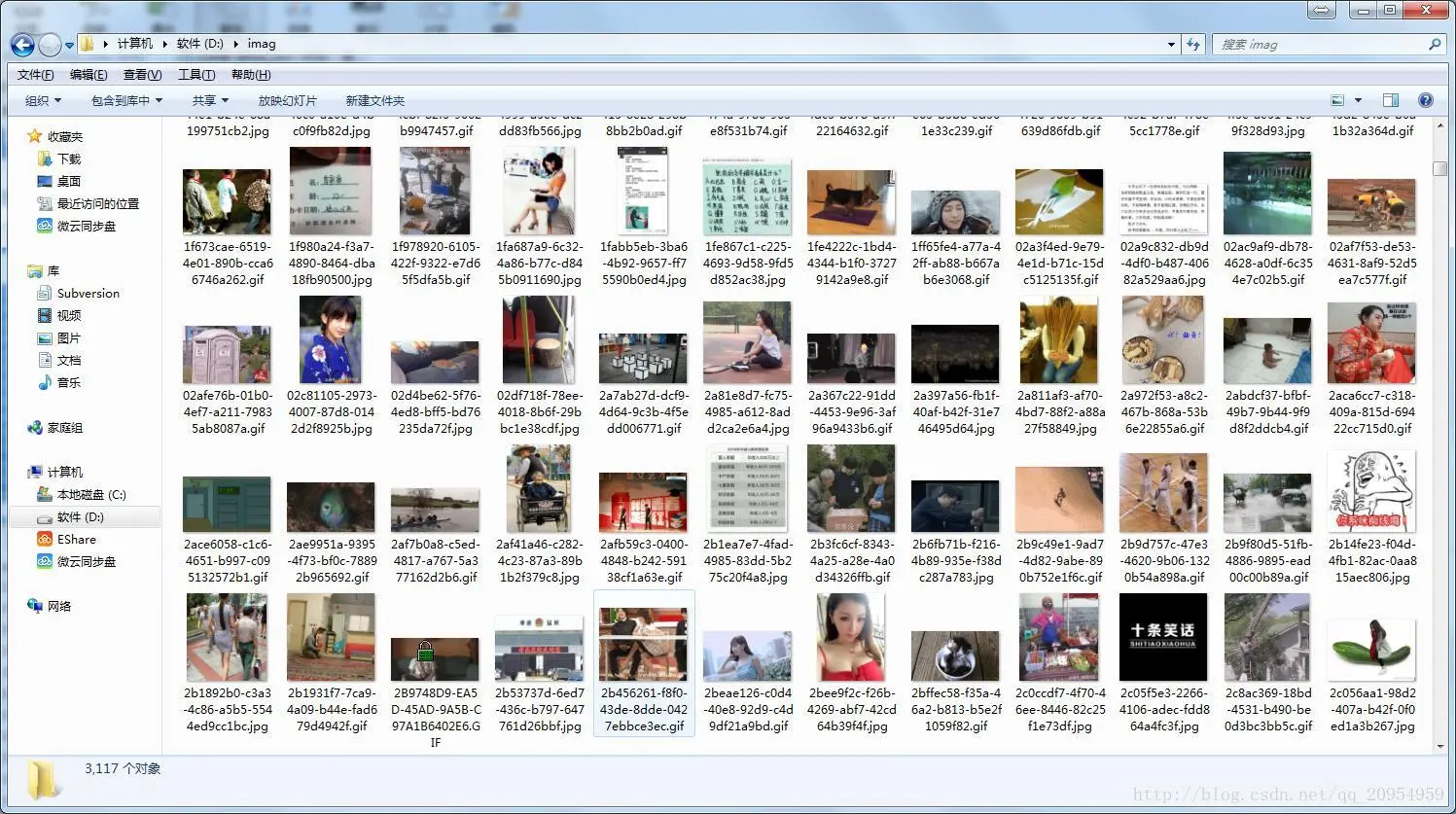

抓取的动态图:

抓取的动态图

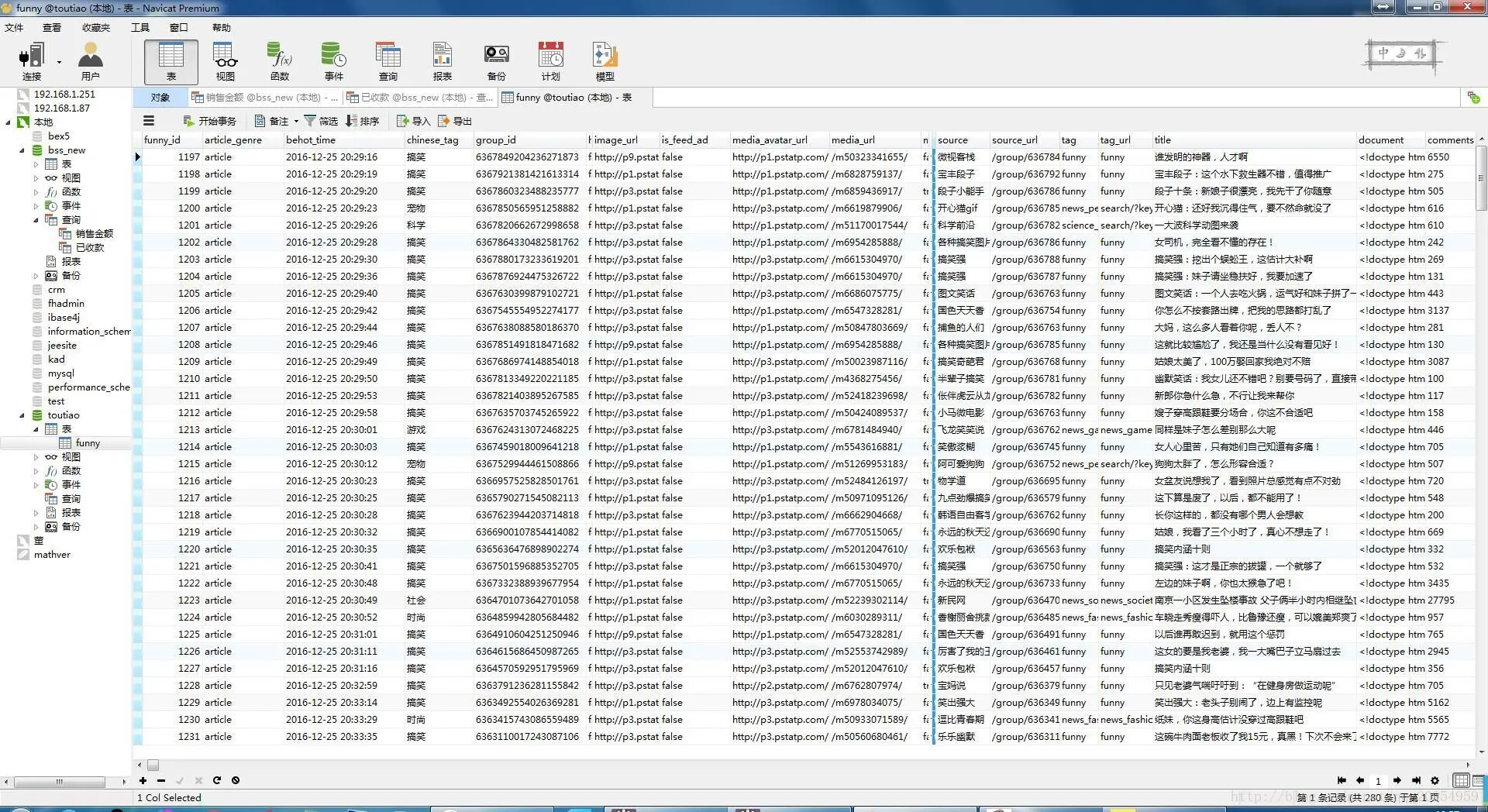

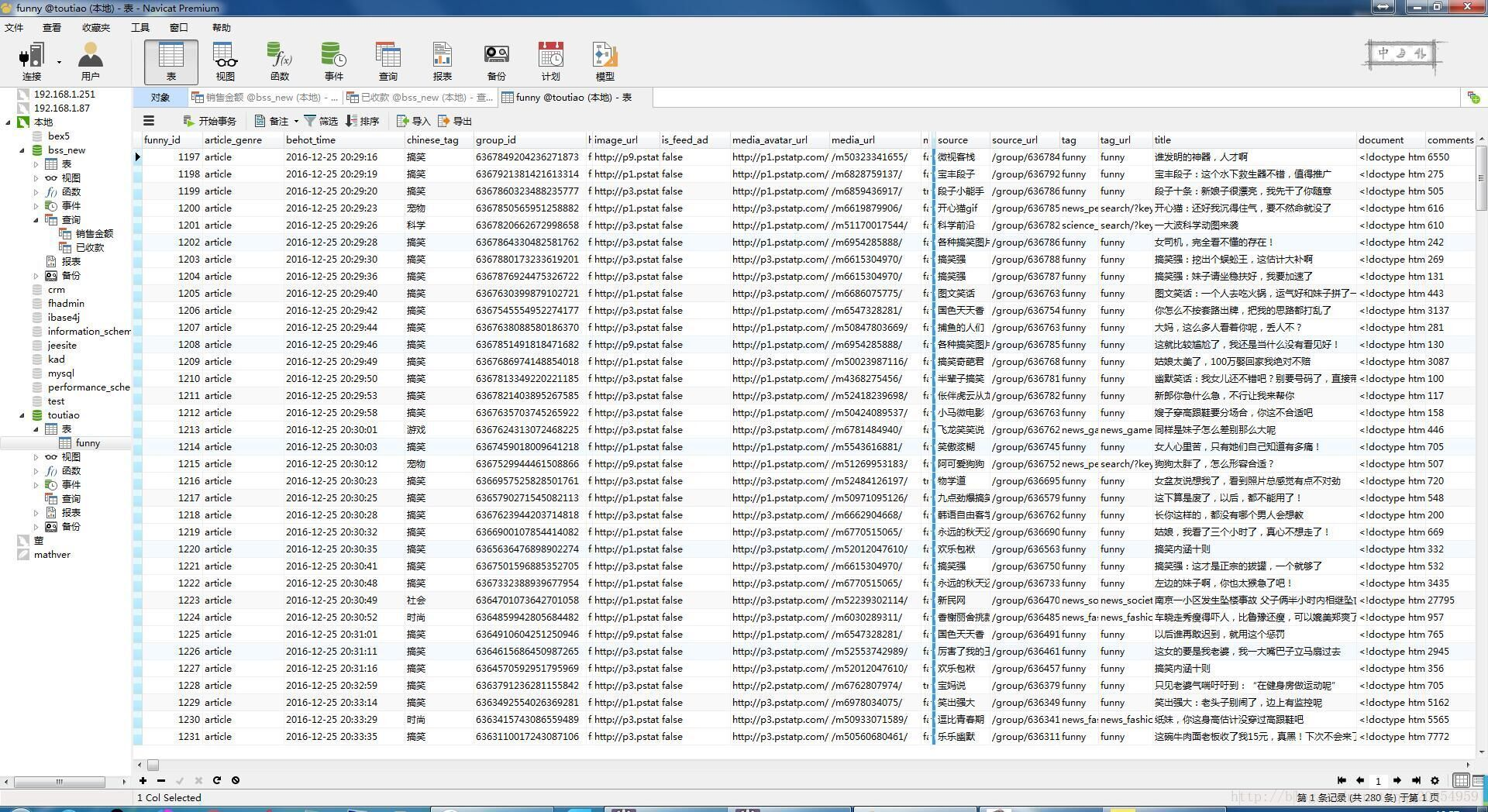

数据库:

数据库

一.此爬虫介绍

今日头条本身就是做爬虫的,爬取各大网站的图片文字信息,再自己整合后推送给用户,特别是里面的动态图片,很有意思。在网上搜了搜,大多都是用Python来写的,本人是学习javaweb这块的,对正则表达式也不是很熟悉,就想着能不能换个我熟悉的方式来写。此爬虫使用spring+mybatis框架整合实现,使用mysql数据库保存爬取的数据,用jsoup来操作HTML的标签节点(完美避开正则表达式),获取文章中动态图片的链接,通过响应头中“Content-Type”的值来判断图片的格式,再将图片保存在本地。当然也可以爬取里面的文字,比如一些搞笑的黄段子,在此基础上稍加改动就可以实现,此爬虫只是提供一个入门的思路,更多好玩的爬虫玩法还待大家去开发,哈哈。

二.技术选型

  1. 核心语言:java;
  2. 核心框架:spring;
  3. 持久层框架:mybatis;
  4. 数据库连接池:Alibaba Drui;
  5. 日志管理:Log4j;
  6. jar包管理:maven; 。。。。

三.找规律,划重点

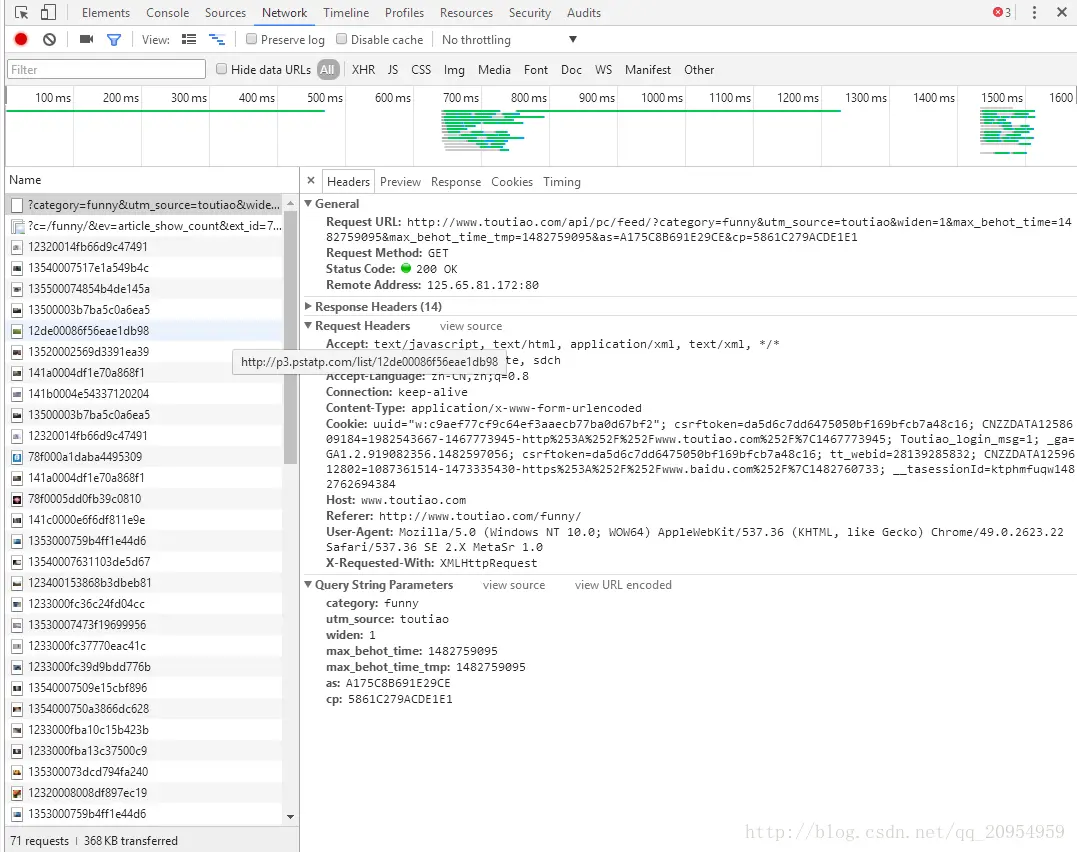

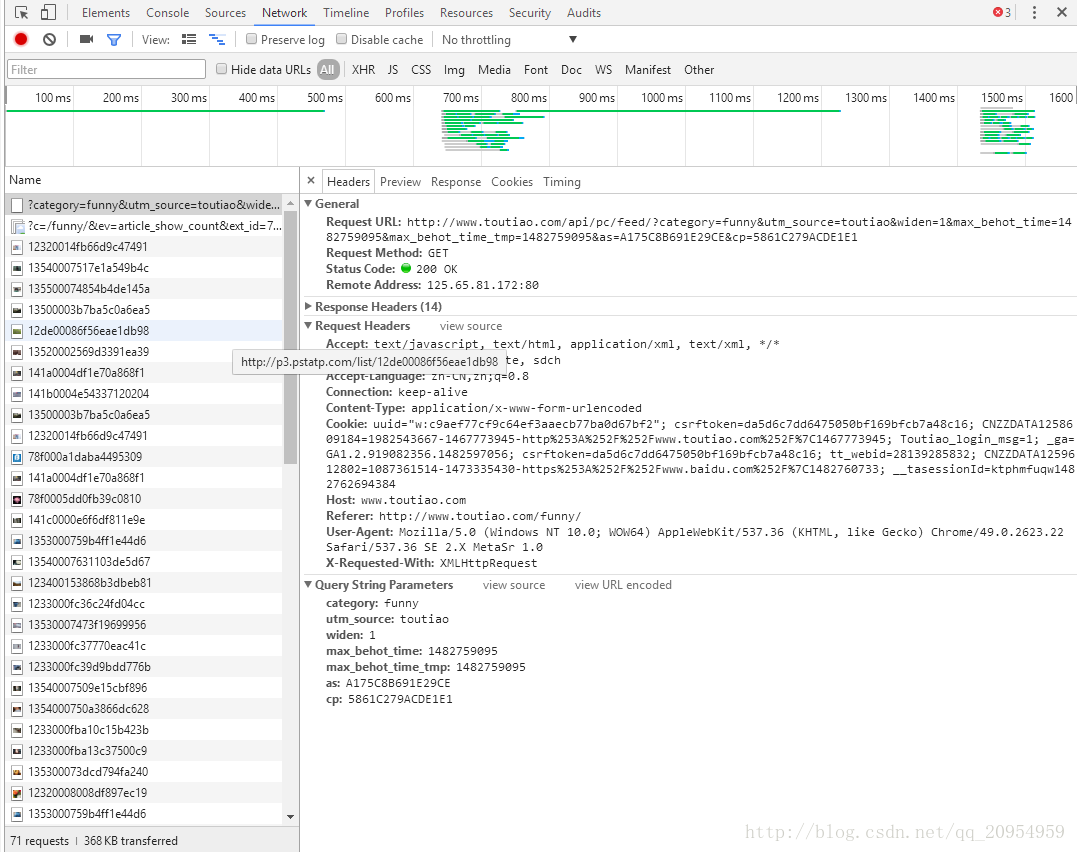

打开头条首页,找到点击搞笑模块,点击F12,下滚后加载下一页,发现是通过ajax请求api来获取的数据,如下图:

这里写图片描述

这里写图片描述

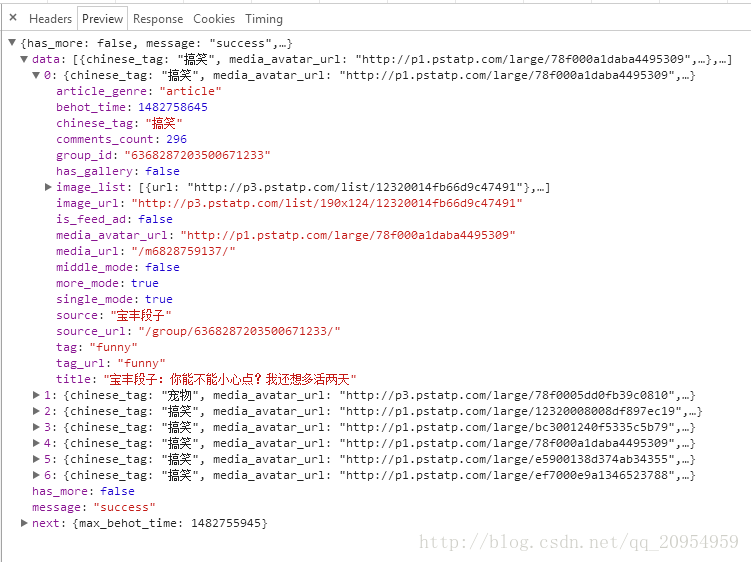

这是响应的json数据,里面的参数和值顾名思义大家都懂得。

这里写图片描述

这里写图片描述

是ajax访问就好解决了,通过我百度谷歌各种研究后发现,ajax请求的前三个参数是不变的,改变category参数是请求不同的模块,本列子是请求的搞笑模块所以值为funny,max_behot_time和max_behot_time_tmp这两个参数值是时间戳,首次请求是0,之后的值是响应json数据里面的next中的值。as和cp值是通过一段js生成的,其实就是一个加密了的时间戳而已。js代码后面会贴。

四.开始搭框架撸代码

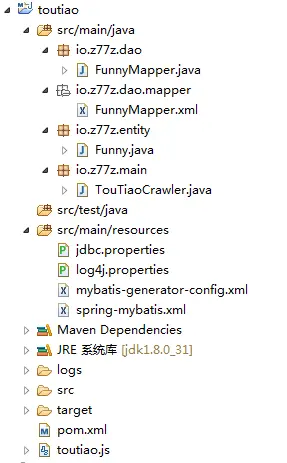

项目搭建后之后为下图所示的文件结构,不懂得自行谷歌 哈哈

这里写图片描述

不多说直接上核心代码了:

package io.z77z.main;
import io.z77z.dao.FunnyMapper;
import io.z77z.entity.Funny;
import java.io.BufferedInputStream;
import java.io.BufferedReader;
import java.io.FileOutputStream;
import java.io.FileReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.net.HttpURLConnection;
import java.net.URL;
import java.util.Date;
import java.util.UUID;
import javax.script.Invocable;
import javax.script.ScriptEngine;
import javax.script.ScriptEngineManager;
import org.jsoup.Connection;
import org.jsoup.Jsoup;
import org.jsoup.nodes.Document;
import org.jsoup.nodes.Element;
import org.jsoup.select.Elements;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
public class TouTiaoCrawler {
    // 搞笑板块的api地址
    public static final String FUNNY = "http://www.toutiao.com/api/pc/feed/?utm_source=toutiao&widen=1";
    // 头条首页地址
    public static final String TOUTIAO = "http://www.toutiao.com";
    // 使用"spring.xml"和"spring-mybatis.xml"这两个配置文件创建Spring上下文
    static ApplicationContext ac = new ClassPathXmlApplicationContext(
            "spring-mybatis.xml");
    // 从Spring容器中根据bean的id取出我们要使用的funnyMapper对象
    static FunnyMapper funnyMapper = (FunnyMapper) ac.getBean("funnyMapper");
    // 接口访问次数
    private static int refreshCount = 0;
    // 时间戳
    private static long time = 0;
    public static void main(String[] args) {
        System.out.println("----------开始干活!-----------------");
        while (true) {
            crawler(time);
        }
    }
    public static void crawler(long hottime) {// 传入时间戳,会获取这个时间戳的内容
        refreshCount++;
        System.out.println("----------第" + refreshCount + "次刷新------返回的请求时间为:"
                + hottime + "----------");
        String url = FUNNY + "&max_behot_time=" + hottime
                + "&max_behot_time_tmp=" + hottime;
        JSONObject param = getUrlParam(); // 获取用js代码得到的as和cp的值
        // 定义接口访问的模块
        /*
         * __all__ : 推荐 news_hot: 热点 funny:搞笑
         */
        String module = "funny";
        url += "&as=" + param.get("as") + "&cp=" + param.get("cp")
                + "&category=" + module;
        JSONObject json = null;
        try {
            json = getReturnJson(url);// 获取json串
        } catch (Exception e) {
            e.printStackTrace();
        }
        if (json != null) {
            time = json.getJSONObject("next").getLongValue("max_behot_time");
            JSONArray data = json.getJSONArray("data");
            for (int i = 0; i < data.size(); i++) {
                try {
                    JSONObject obj = (JSONObject) data.get(i);
                    // 判断这条文章是否已经爬过
                    if (funnyMapper.selectByGroupId((String) obj
                            .get("group_id")) != null) {
                        System.out
                                .println("----------此文章已经爬过啦!-----------------");
                        continue;
                    }
                    // 访问页面返回document对象
                    String url1 = TOUTIAO + "/a" + obj.getString("group_id");
                    Document document = getArticleInfo(url1);
                    System.out.println("----------成功访问了文章:" + url1
                            + "-----------------");
                    // 将document也存入
                    obj.put("document", document.toString());
                    // 将json对象转换成java Entity对象
                    Funny funny = JSON.parseObject(obj.toString(), Funny.class);
                    // json入库
                    funny.setBehotTime(new Date());
                    funnyMapper.insertSelective(funny);
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
        } else {
            System.out.println("----------返回的json列表为空----------");
        }
    }
    // 访问接口,返回json封装的数据格式
    public static JSONObject getReturnJson(String url) {
        try {
            URL httpUrl = new URL(url);
            BufferedReader in = new BufferedReader(new InputStreamReader(
                    httpUrl.openStream(), "UTF-8"));
            String line = null;
            String content = "";
            while ((line = in.readLine()) != null) {
                content += line;
            }
            in.close();
            return JSONObject.parseObject(content);
        } catch (Exception e) {
            System.err.println("访问失败:" + url);
            e.printStackTrace();
        }
        return null;
    }
    // 获取网站的document对象
    public static Document getArticleInfo(String url) {
        try {
            Connection connect = Jsoup.connect(url);
            Document document;
            document = connect.get();
            Elements article = document.getElementsByClass("article-content");
            if (article.size() > 0) {
                Elements a = article.get(0).getElementsByTag("img");
                if (a.size() > 0) {
                    for (Element e : a) {
                        String url2 = e.attr("src");
                        // 下载img标签里面的图片到本地
                        saveToFile(url2);
                    }
                }
            }
            return document;
        } catch (IOException e) {
            System.err.println("访问文章页失败:" + url + "  原因" + e.getMessage());
            return null;
        }
    }
    // 执行js获取as和cp参数值
    public static JSONObject getUrlParam() {
        JSONObject jsonObject = null;
        FileReader reader = null;
        try {
            ScriptEngineManager manager = new ScriptEngineManager();
            ScriptEngine engine = manager.getEngineByName("javascript");
            String jsFileName = "toutiao.js"; // 读取js文件
            reader = new FileReader(jsFileName); // 执行指定脚本
            engine.eval(reader);
            if (engine instanceof Invocable) {
                Invocable invoke = (Invocable) engine;
                Object obj = invoke.invokeFunction("getParam");
                jsonObject = JSONObject.parseObject(obj != null ? obj
                        .toString() : null);
            }
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            try {
                if (reader != null) {
                    reader.close();
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
        return jsonObject;
    }
    // 通过url获取图片并保存在本地
    public static void saveToFile(String destUrl) {
        FileOutputStream fos = null;
        BufferedInputStream bis = null;
        HttpURLConnection httpUrl = null;
        URL url = null;
        String uuid = UUID.randomUUID().toString();
        String fileAddress = "d:\\imag/" + uuid;// 存储本地文件地址
        int BUFFER_SIZE = 1024;
        byte[] buf = new byte[BUFFER_SIZE];
        int size = 0;
        try {
            url = new URL(destUrl);
            httpUrl = (HttpURLConnection) url.openConnection();
            httpUrl.connect();
            String Type = httpUrl.getHeaderField("Content-Type");
            if (Type.equals("image/gif")) {
                fileAddress += ".gif";
            } else if (Type.equals("image/png")) {
                fileAddress += ".png";
            } else if (Type.equals("image/jpeg")) {
                fileAddress += ".jpg";
            } else {
                System.err.println("未知图片格式");
                return;
            }
            bis = new BufferedInputStream(httpUrl.getInputStream());
            fos = new FileOutputStream(fileAddress);
            while ((size = bis.read(buf)) != -1) {
                fos.write(buf, 0, size);
            }
            fos.flush();
            System.out.println("图片保存成功!地址:" + fileAddress);
        } catch (IOException e) {
            e.printStackTrace();
        } catch (ClassCastException e) {
            e.printStackTrace();
        } finally {
            try {
                fos.close();
                bis.close();
                httpUrl.disconnect();
            } catch (IOException e) {
                e.printStackTrace();
            } catch (NullPointerException e) {
                e.printStackTrace();
            }
        }
    }
}复制代码

获取as和cp参数的js代码

function getParam(){
    var asas;
    var cpcp;
    var t = Math.floor((new Date).getTime() / 1e3)
      , e = t.toString(16).toUpperCase()
      , i = md5(t).toString().toUpperCase();
    if (8 != e.length){
        asas = "479BB4B7254C150";
        cpcp = "7E0AC8874BB0985";
    }else{
        for (var n = i.slice(0, 5), o = i.slice(-5), a = "", s = 0; 5 > s; s++){
            a += n[s] + e[s];
        }
        for (var r = "", c = 0; 5 > c; c++){
            r += e[c + 3] + o[c];
        }
        asas = "A1" + a + e.slice(-3);
        cpcp= e.slice(0, 3) + r + "E1";
    }
    return '{"as":"'+asas+'","cp":"'+cpcp+'"}';
}
!function(e) {
    "use strict";
    function t(e, t) {
        var n = (65535 & e) + (65535 & t)
          , r = (e >> 16) + (t >> 16) + (n >> 16);
        return r << 16 | 65535 & n
    }
    function n(e, t) {
        return e << t | e >>> 32 - t
    }
    function r(e, r, o, i, a, u) {
        return t(n(t(t(r, e), t(i, u)), a), o)
    }
    function o(e, t, n, o, i, a, u) {
        return r(t & n | ~t & o, e, t, i, a, u)
    }
    function i(e, t, n, o, i, a, u) {
        return r(t & o | n & ~o, e, t, i, a, u)
    }
    function a(e, t, n, o, i, a, u) {
        return r(t ^ n ^ o, e, t, i, a, u)
    }
    function u(e, t, n, o, i, a, u) {
        return r(n ^ (t | ~o), e, t, i, a, u)
    }
    function s(e, n) {
        e[n >> 5] |= 128 << n % 32,
        e[(n + 64 >>> 9 << 4) + 14] = n;
        var r, s, c, l, f, p = 1732584193, d = -271733879, h = -1732584194, m = 271733878;
        for (r = 0; r < e.length; r += 16)
            s = p,
            c = d,
            l = h,
            f = m,
            p = o(p, d, h, m, e[r], 7, -680876936),
            m = o(m, p, d, h, e[r + 1], 12, -389564586),
            h = o(h, m, p, d, e[r + 2], 17, 606105819),
            d = o(d, h, m, p, e[r + 3], 22, -1044525330),
            p = o(p, d, h, m, e[r + 4], 7, -176418897),
            m = o(m, p, d, h, e[r + 5], 12, 1200080426),
            h = o(h, m, p, d, e[r + 6], 17, -1473231341),
            d = o(d, h, m, p, e[r + 7], 22, -45705983),
            p = o(p, d, h, m, e[r + 8], 7, 1770035416),
            m = o(m, p, d, h, e[r + 9], 12, -1958414417),
            h = o(h, m, p, d, e[r + 10], 17, -42063),
            d = o(d, h, m, p, e[r + 11], 22, -1990404162),
            p = o(p, d, h, m, e[r + 12], 7, 1804603682),
            m = o(m, p, d, h, e[r + 13], 12, -40341101),
            h = o(h, m, p, d, e[r + 14], 17, -1502002290),
            d = o(d, h, m, p, e[r + 15], 22, 1236535329),
            p = i(p, d, h, m, e[r + 1], 5, -165796510),
            m = i(m, p, d, h, e[r + 6], 9, -1069501632),
            h = i(h, m, p, d, e[r + 11], 14, 643717713),
            d = i(d, h, m, p, e[r], 20, -373897302),
            p = i(p, d, h, m, e[r + 5], 5, -701558691),
            m = i(m, p, d, h, e[r + 10], 9, 38016083),
            h = i(h, m, p, d, e[r + 15], 14, -660478335),
            d = i(d, h, m, p, e[r + 4], 20, -405537848),
            p = i(p, d, h, m, e[r + 9], 5, 568446438),
            m = i(m, p, d, h, e[r + 14], 9, -1019803690),
            h = i(h, m, p, d, e[r + 3], 14, -187363961),
            d = i(d, h, m, p, e[r + 8], 20, 1163531501),
            p = i(p, d, h, m, e[r + 13], 5, -1444681467),
            m = i(m, p, d, h, e[r + 2], 9, -51403784),
            h = i(h, m, p, d, e[r + 7], 14, 1735328473),
            d = i(d, h, m, p, e[r + 12], 20, -1926607734),
            p = a(p, d, h, m, e[r + 5], 4, -378558),
            m = a(m, p, d, h, e[r + 8], 11, -2022574463),
            h = a(h, m, p, d, e[r + 11], 16, 1839030562),
            d = a(d, h, m, p, e[r + 14], 23, -35309556),
            p = a(p, d, h, m, e[r + 1], 4, -1530992060),
            m = a(m, p, d, h, e[r + 4], 11, 1272893353),
            h = a(h, m, p, d, e[r + 7], 16, -155497632),
            d = a(d, h, m, p, e[r + 10], 23, -1094730640),
            p = a(p, d, h, m, e[r + 13], 4, 681279174),
            m = a(m, p, d, h, e[r], 11, -358537222),
            h = a(h, m, p, d, e[r + 3], 16, -722521979),
            d = a(d, h, m, p, e[r + 6], 23, 76029189),
            p = a(p, d, h, m, e[r + 9], 4, -640364487),
            m = a(m, p, d, h, e[r + 12], 11, -421815835),
            h = a(h, m, p, d, e[r + 15], 16, 530742520),
            d = a(d, h, m, p, e[r + 2], 23, -995338651),
            p = u(p, d, h, m, e[r], 6, -198630844),
            m = u(m, p, d, h, e[r + 7], 10, 1126891415),
            h = u(h, m, p, d, e[r + 14], 15, -1416354905),
            d = u(d, h, m, p, e[r + 5], 21, -57434055),
            p = u(p, d, h, m, e[r + 12], 6, 1700485571),
            m = u(m, p, d, h, e[r + 3], 10, -1894986606),
            h = u(h, m, p, d, e[r + 10], 15, -1051523),
            d = u(d, h, m, p, e[r + 1], 21, -2054922799),
            p = u(p, d, h, m, e[r + 8], 6, 1873313359),
            m = u(m, p, d, h, e[r + 15], 10, -30611744),
            h = u(h, m, p, d, e[r + 6], 15, -1560198380),
            d = u(d, h, m, p, e[r + 13], 21, 1309151649),
            p = u(p, d, h, m, e[r + 4], 6, -145523070),
            m = u(m, p, d, h, e[r + 11], 10, -1120210379),
            h = u(h, m, p, d, e[r + 2], 15, 718787259),
            d = u(d, h, m, p, e[r + 9], 21, -343485551),
            p = t(p, s),
            d = t(d, c),
            h = t(h, l),
            m = t(m, f);
        return [p, d, h, m]
    }
    function c(e) {
        var t, n = "";
        for (t = 0; t < 32 * e.length; t += 8)
            n += String.fromCharCode(e[t >> 5] >>> t % 32 & 255);
        return n
    }
    function l(e) {
        var t, n = [];
        for (n[(e.length >> 2) - 1] = void 0,
        t = 0; t < n.length; t += 1)
            n[t] = 0;
        for (t = 0; t < 8 * e.length; t += 8)
            n[t >> 5] |= (255 & e.charCodeAt(t / 8)) << t % 32;
        return n
    }
    function f(e) {
        return c(s(l(e), 8 * e.length))
    }
    function p(e, t) {
        var n, r, o = l(e), i = [], a = [];
        for (i[15] = a[15] = void 0,
        o.length > 16 && (o = s(o, 8 * e.length)),
        n = 0; 16 > n; n += 1)
            i[n] = 909522486 ^ o[n],
            a[n] = 1549556828 ^ o[n];
        return r = s(i.concat(l(t)), 512 + 8 * t.length),
        c(s(a.concat(r), 640))
    }
    function d(e) {
        var t, n, r = "0123456789abcdef", o = "";
        for (n = 0; n < e.length; n += 1)
            t = e.charCodeAt(n),
            o += r.charAt(t >>> 4 & 15) + r.charAt(15 & t);
        return o
    }
    function h(e) {
        return unescape(encodeURIComponent(e))
    }
    function m(e) {
        return f(h(e))
    }
    function g(e) {
        return d(m(e))
    }
    function v(e, t) {
        return p(h(e), h(t))
    }
    function y(e, t) {
        return d(v(e, t))
    }
    function b(e, t, n) {
        return t ? n ? v(t, e) : y(t, e) : n ? m(e) : g(e)
    }
    "function" == typeof define && define.amd ? define("static/js/lib/md5", ["require"], function() {
        return b
    }) : "object" == typeof module && module.exports ? module.exports = b : e.md5 = b
}(this)复制代码

五.最后

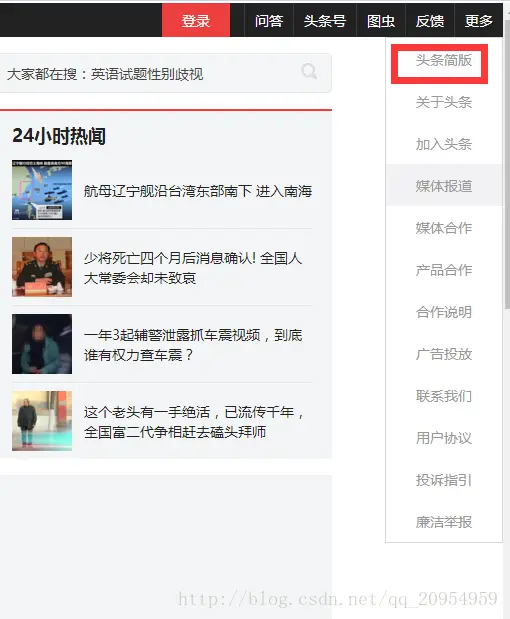

我还发现了头条有个简约版,研究后发现这个简约版应该更好爬一些。

这里写图片描述

这里写图片描述

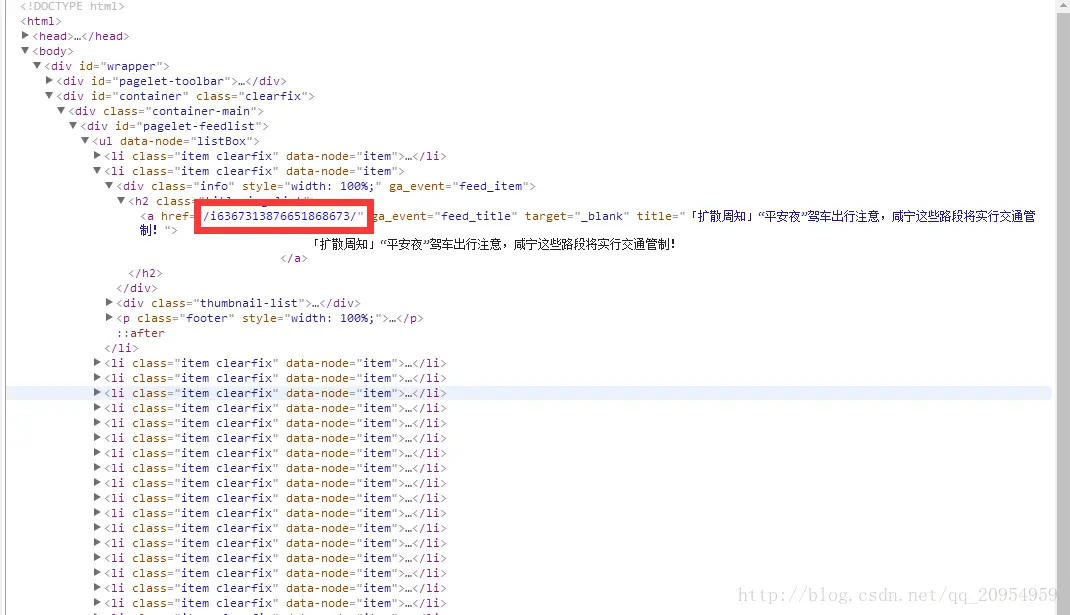

访问的格式是p+页码,直接读取每页里面的链接,就可以进行爬取了,就不再通过json串来获取文章地址,也不需要传什么限制参数,在本项目上稍加改动就可以了

这里写图片描述

这里写图片描述 这里写图片描述

这里写图片描述

六.JUST DO IT

> 。。。。。。。。。。。。。。。。。。。。。。

最后更新时间:
如要转载请注明出处:z77z.oschina.io/2016/12/29/…
分类:
后端
标签:
收藏成功!
已添加到「」, 点击更改
